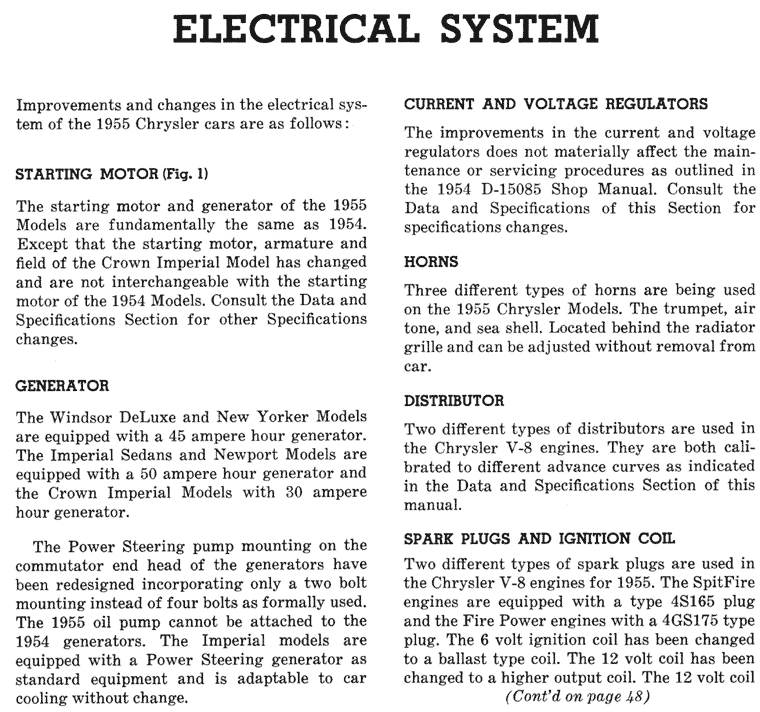

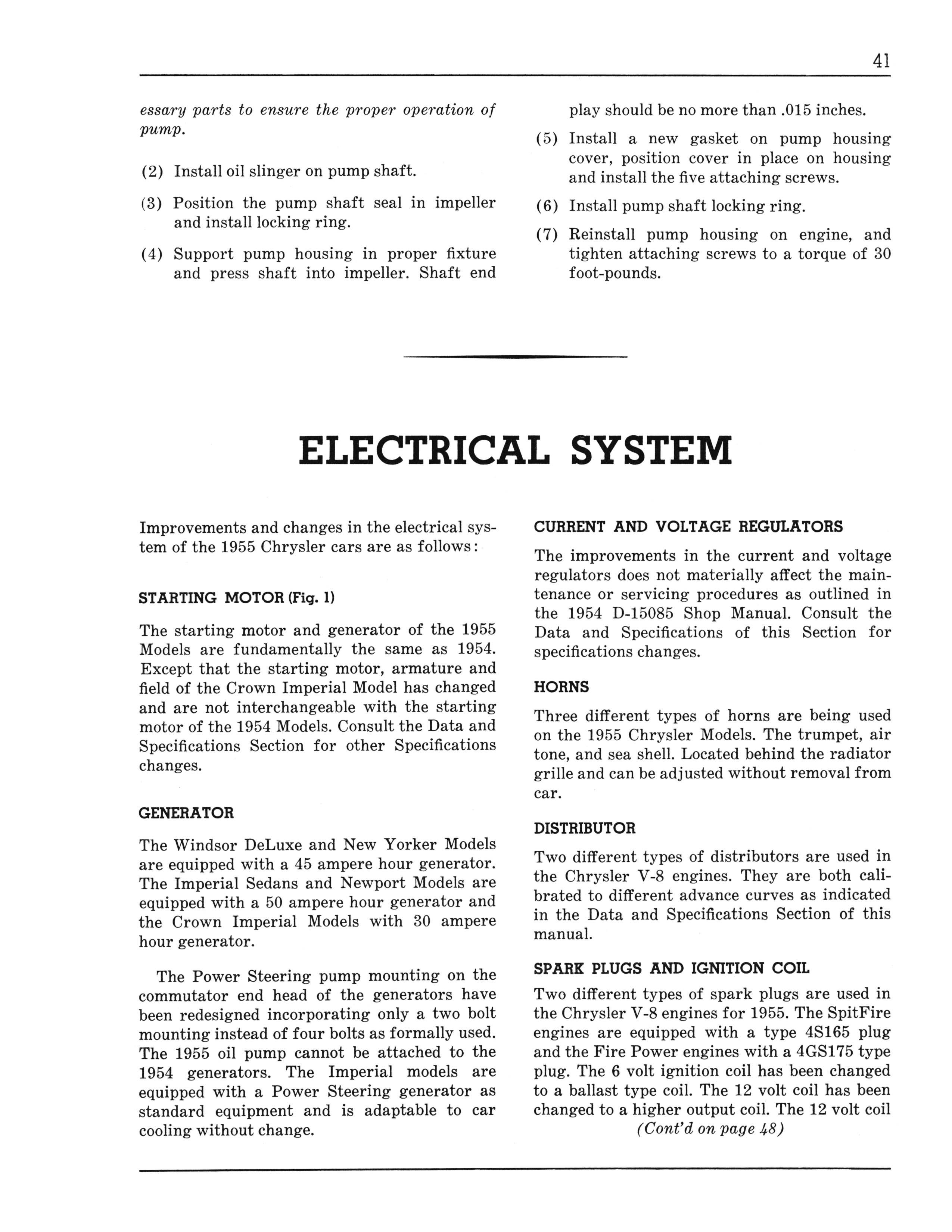

There are 12 pages in the Electrical System section of the '55 Factory Service Manual Preview. This section provides electrical system specifications, starter motor diagnosis and service procedures, an exploded picture of the starter motor, generator, distributor and voltage regulator specifications, switch repair, a detailed exploration of the '55 Chrysler dash, a circuit diagram for the horn, generator and ignition. Please use the navigation buttons at the top of each page to move around this section and the entire service manual. Click on the front cover icon to go back to the Table of Contents, the electrical system icon to return to this page, the printer icon to open a very large printable version of this page, or use the previous or next buttons to move back or forward one page. Click here if you need help with printing.
