Imperial "NAGS" Glass Reference Pages 1946-1983


Imperial Home Page -> Imperials by Year -> 1946 ->Imperial "NAGS" Glass Reference Pages

"NAGS" pages courtesy of Vic Phillips, Phillips Classic Auto Glass, Poplar Bluff, MO., USA
autoglass@acmenet.net
Vic has a warehouse full of NOS and high quality reproduction glass and has caused the reproduction of numerous windshields for the hobby using the best manufacturers available.
Scans of pages performed by Wayne Graefen, Texas.


When looking up your car, it is best to open two or three pages from those available. Scans were taken from five different books and the listings are arranged differently in different years.

Prefixes:
W is Windshield
V is Vent windows
P is Partition (limousine)
B is Back (rear)


Wayne Graefen
Kerrville, Texas


All 1957-1963 Imperial windshields and 1964-1966 Imperial convertible windshields are interchangable. (Custom, Crown, and LeBaron) (a W465 windshield) A standard 2-dr or 4-dr 1964-1966 Imperial windshield is different. Please be aware that there are two different shapes of the W465 windshield between 1957 and 1966. The original earlier style has a bubble area that bulges out slightly where the upper tinting is located. The other version is basically a straight line between the base of the windshield and the top of the windshield with no apparent bubble across the width of the windshield at the top.


Click on the pictures below to view full-size images, or view even larger, printable files by selecting the text links under the small image.

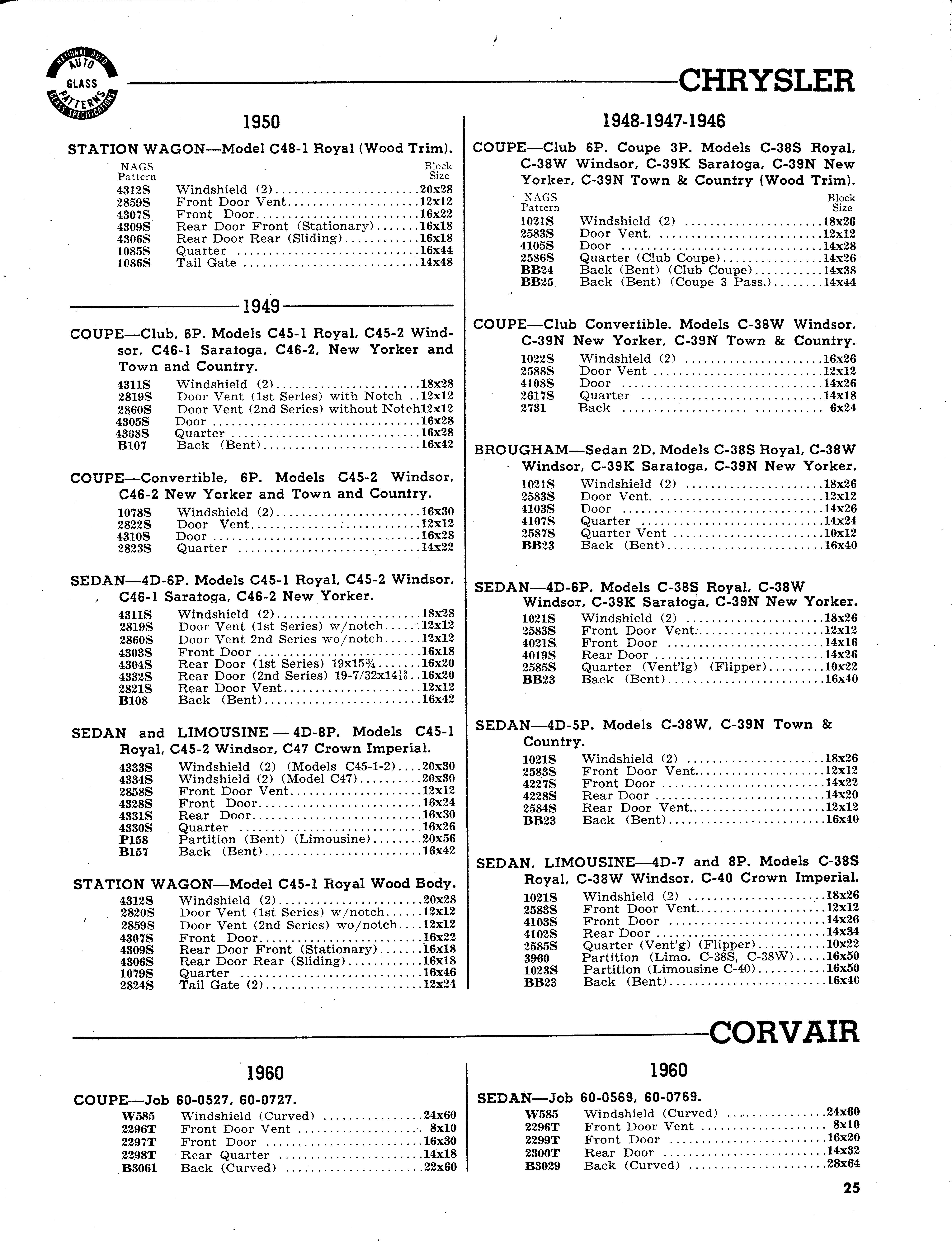

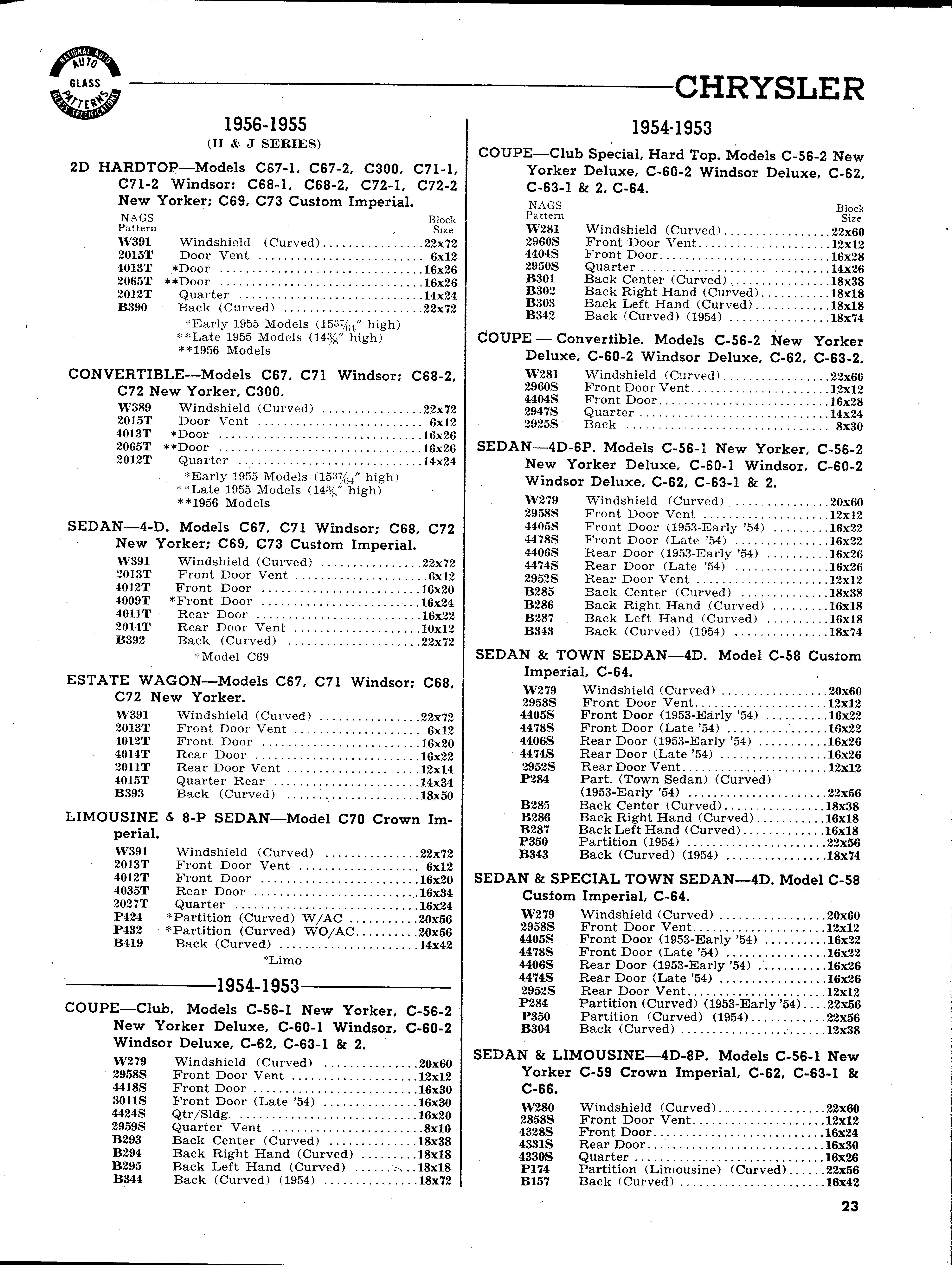

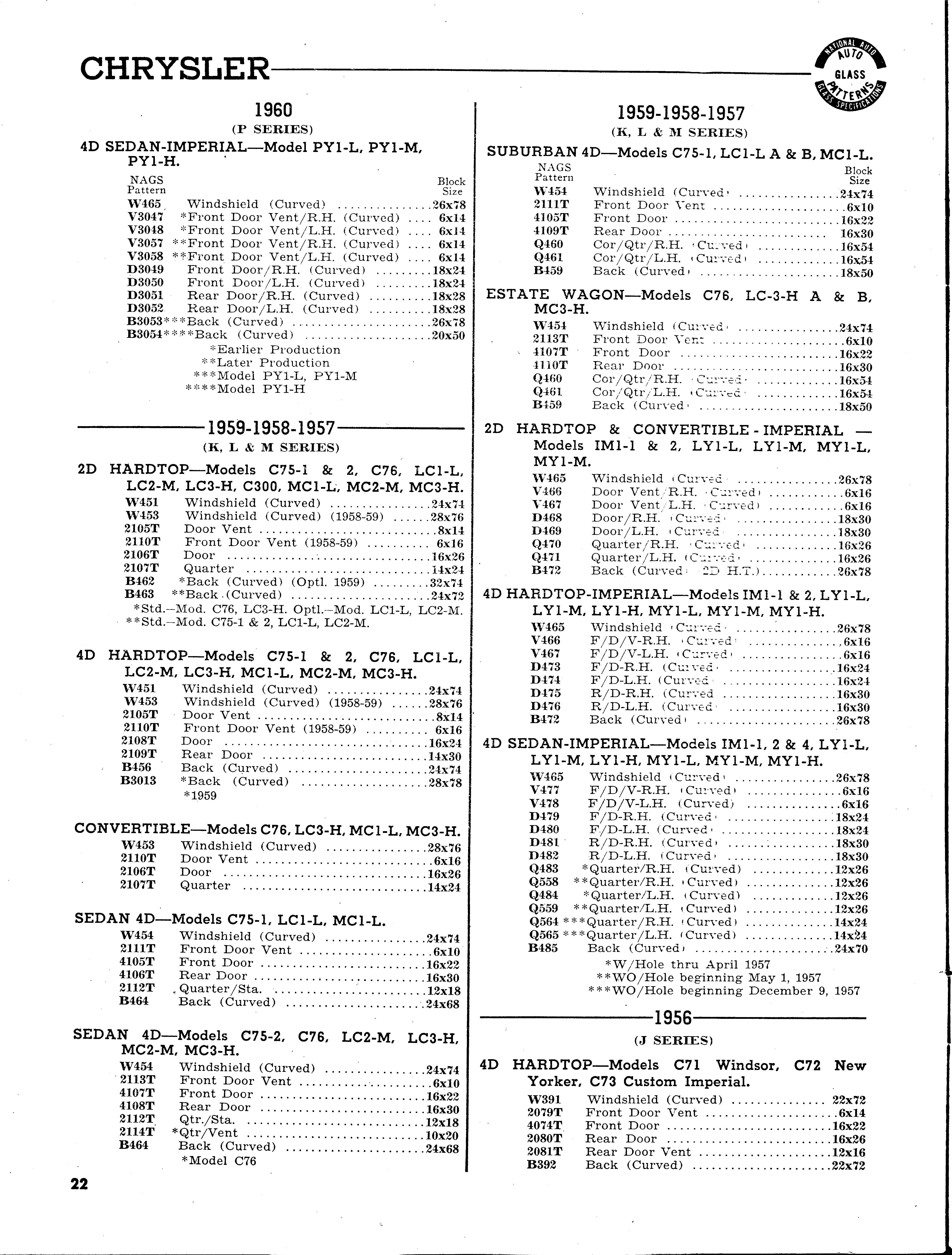

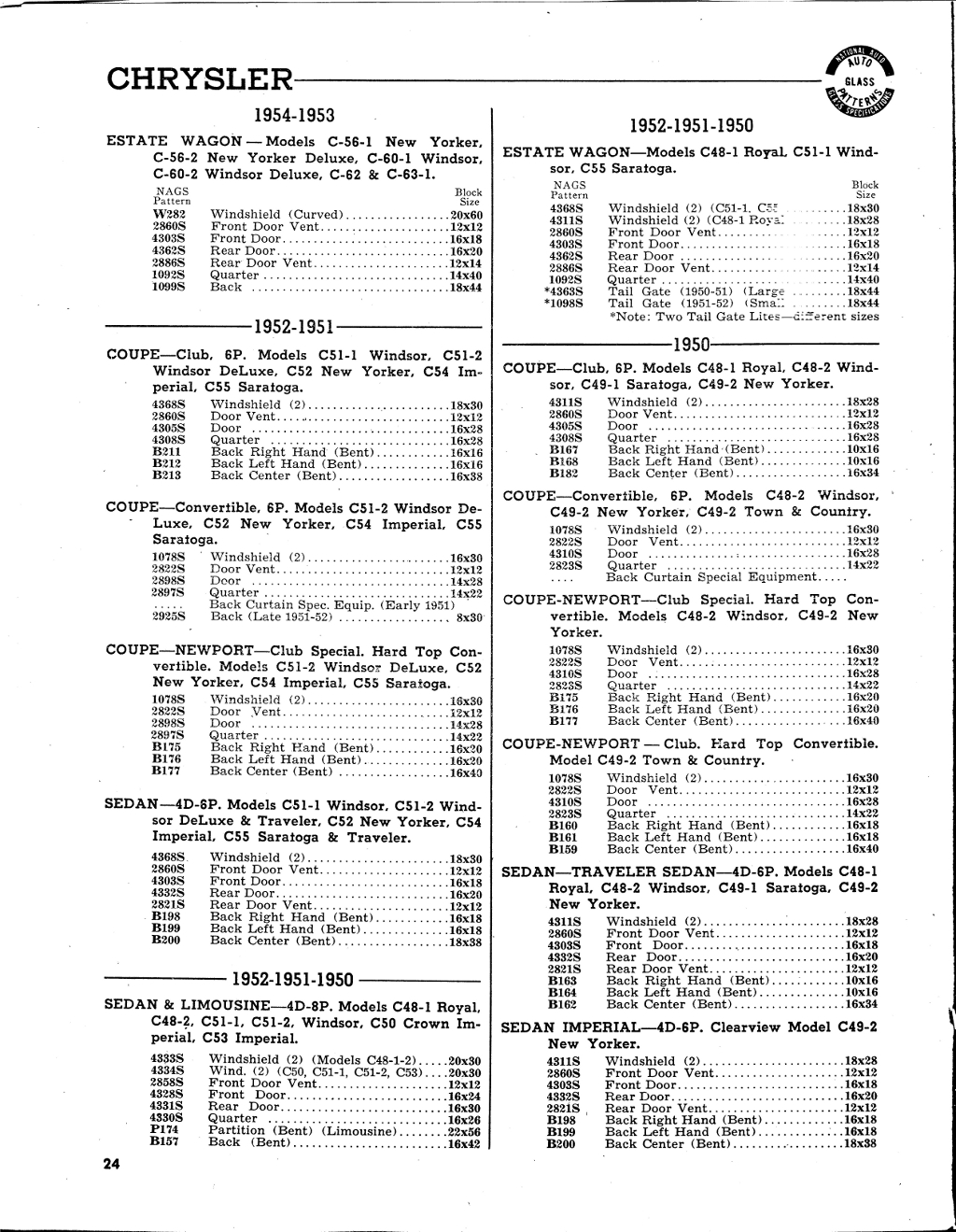

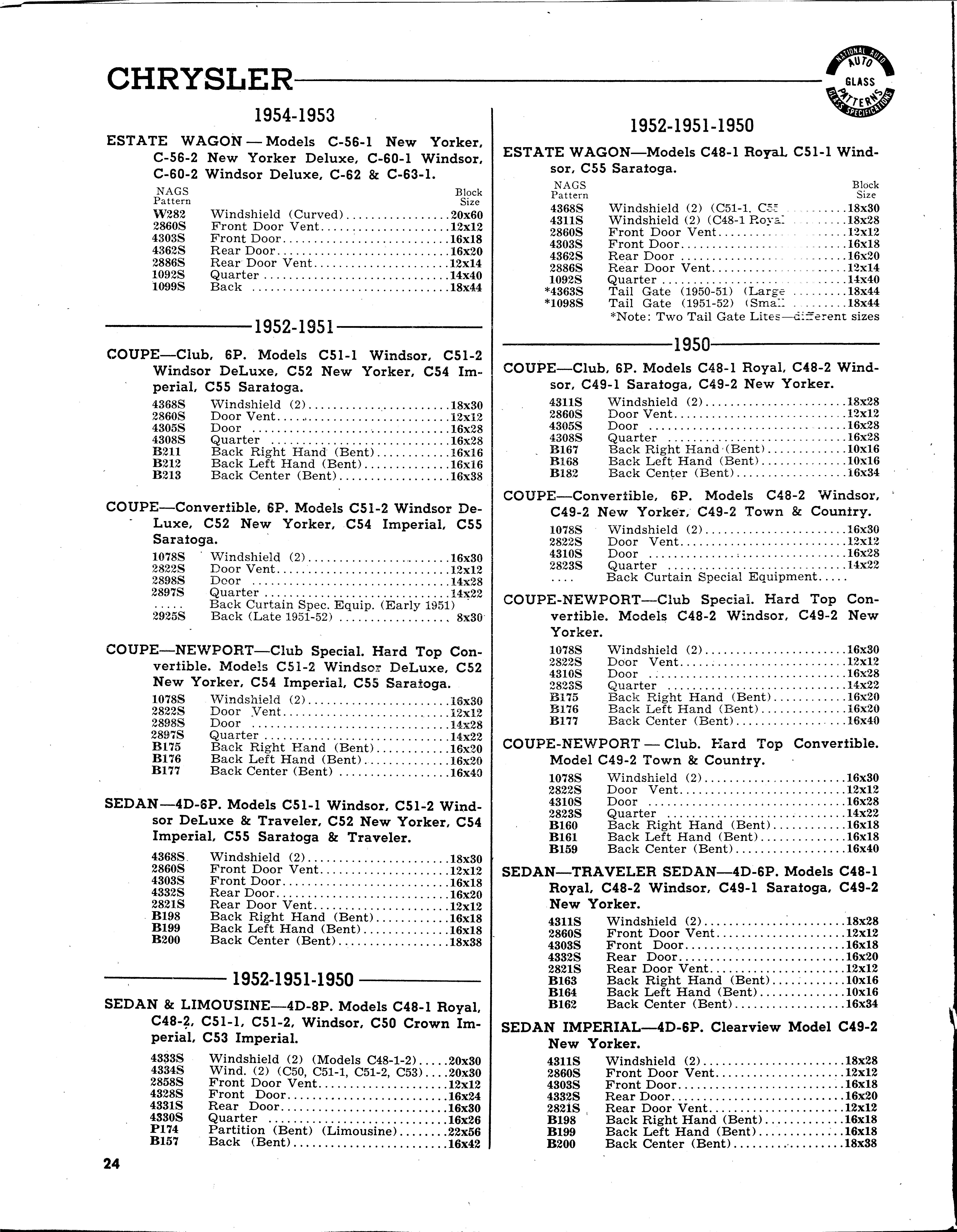

1946-1949 Glass 1950-1952 Glass 1953-1956 Glass 1956-1959 Glass

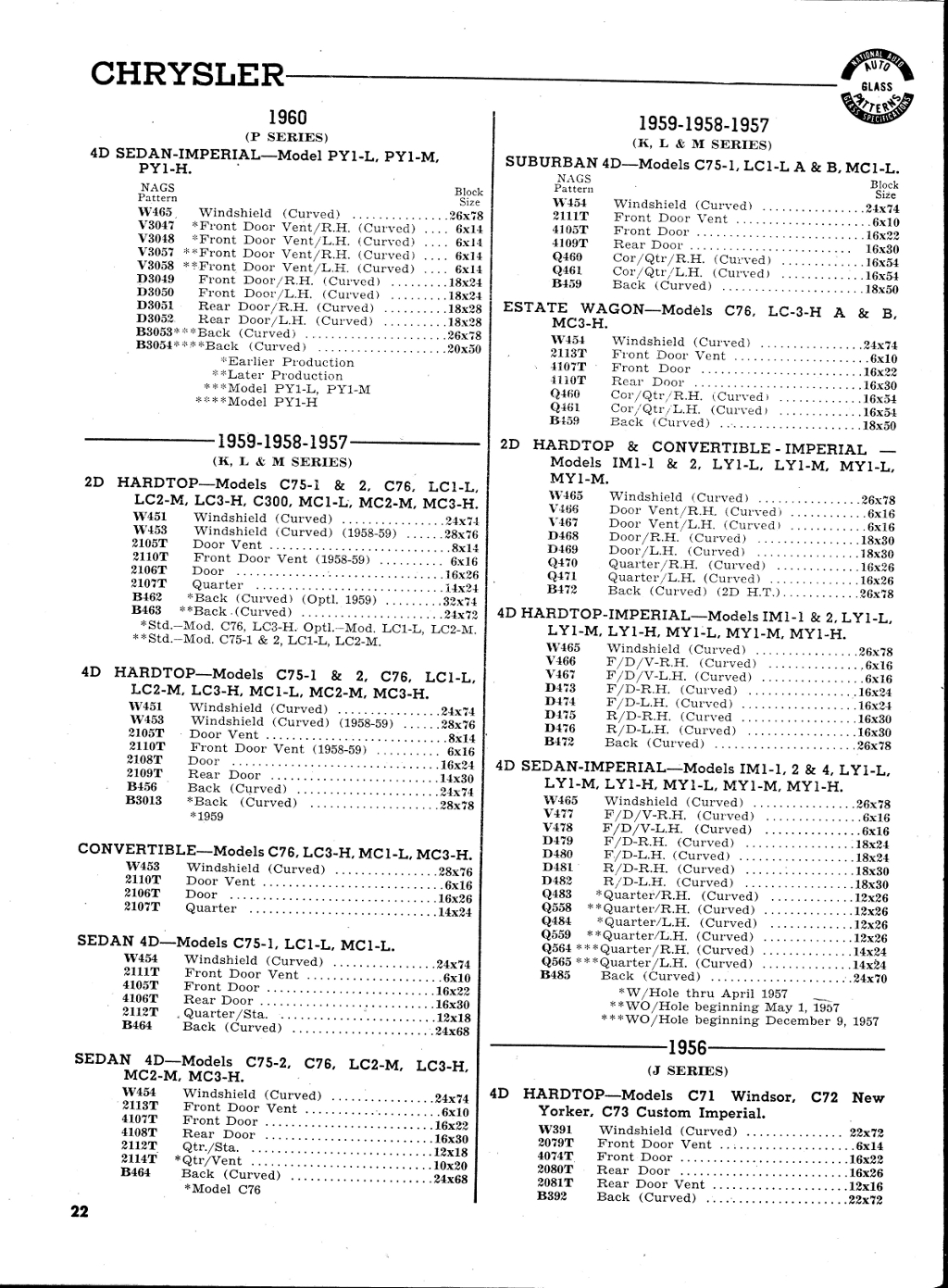

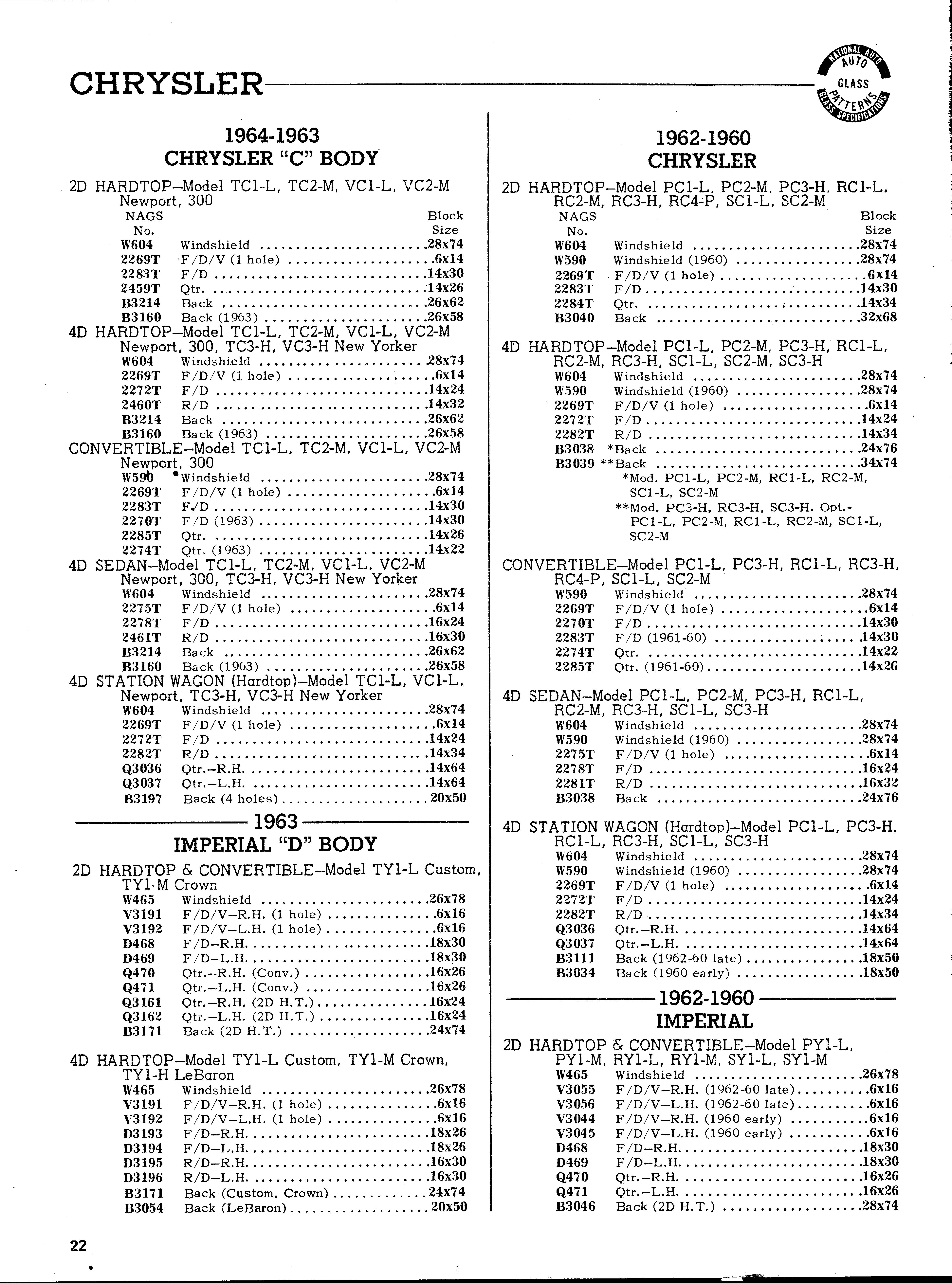

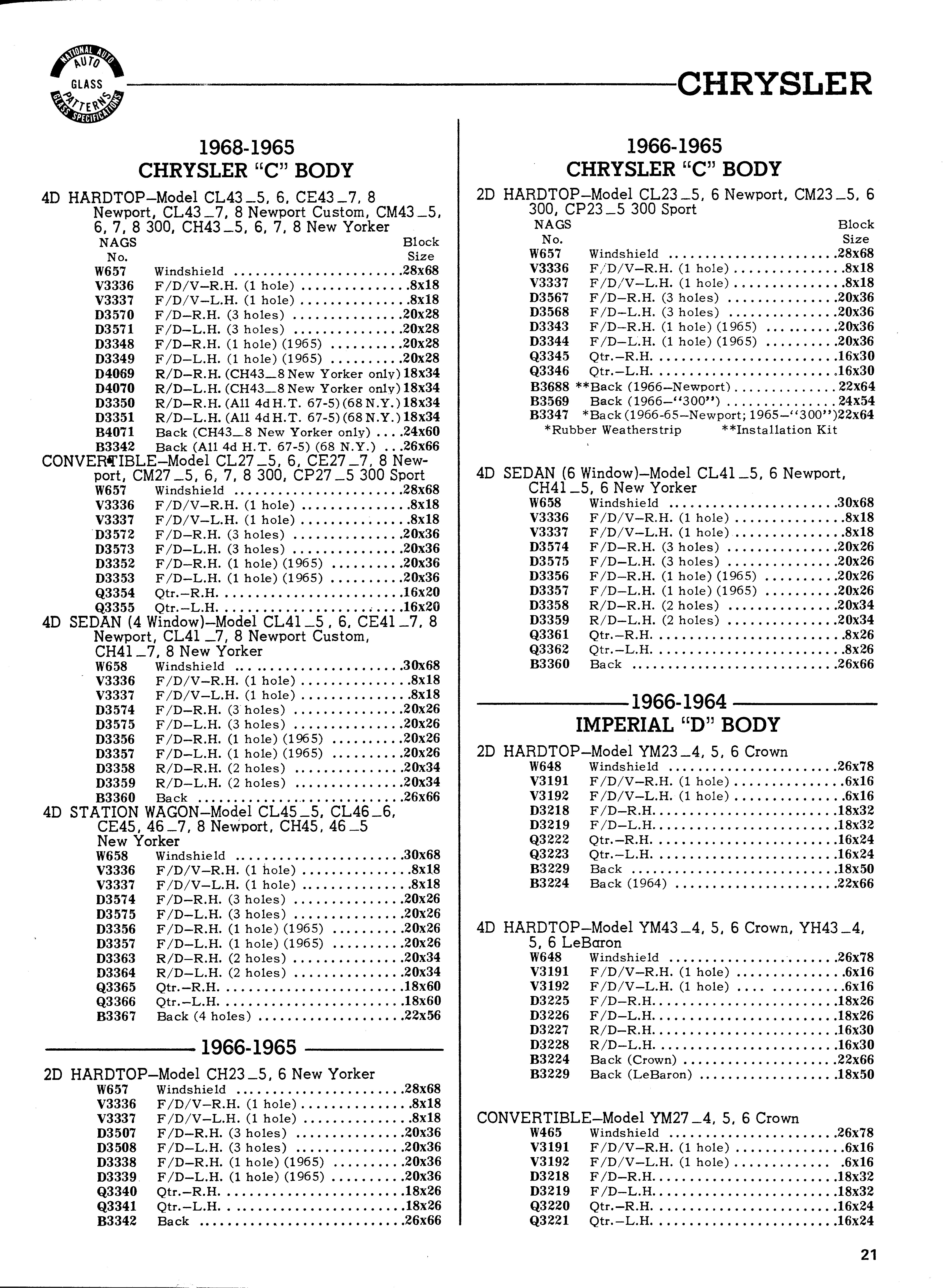

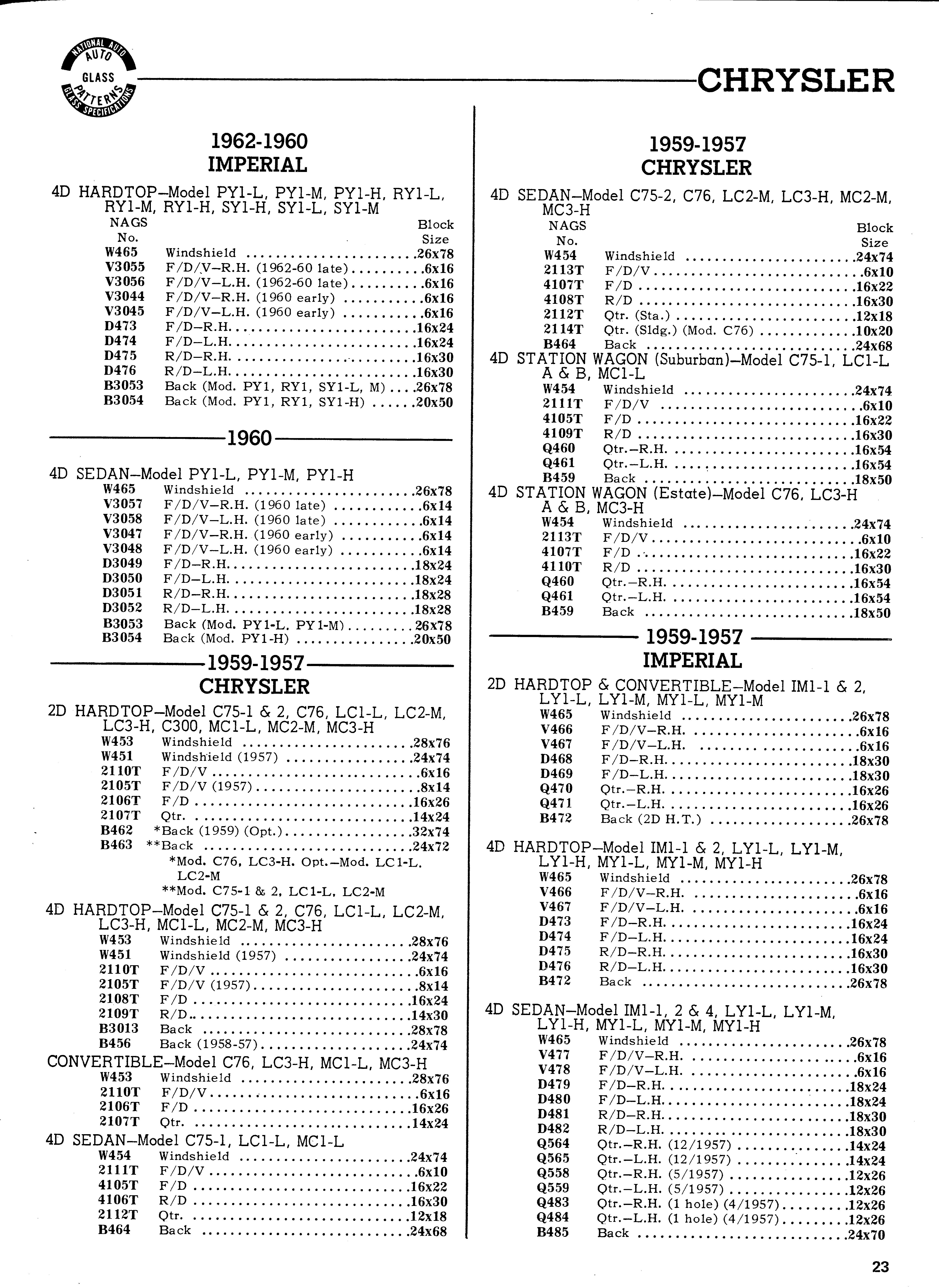

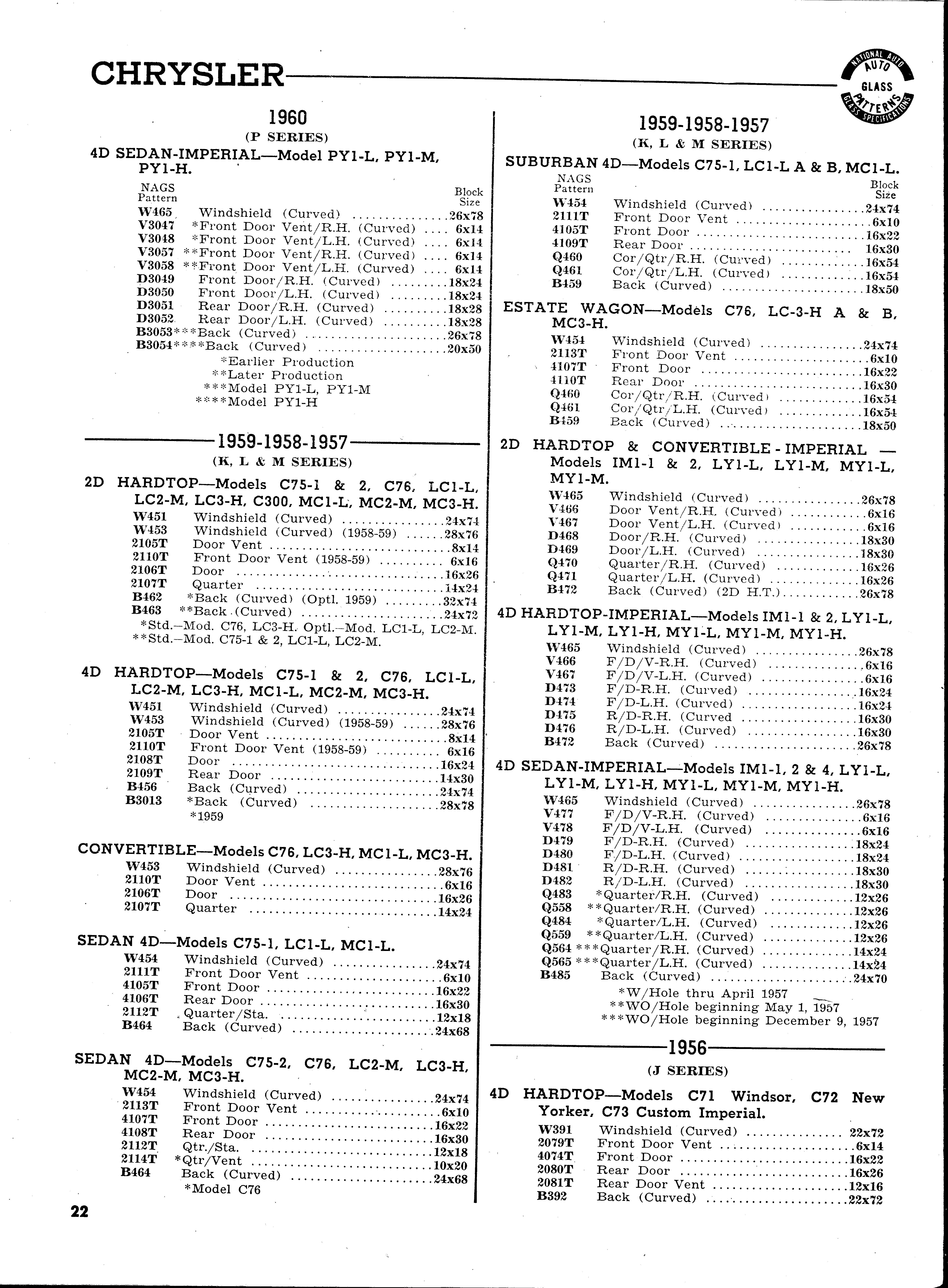

1957-1962 Glass 1959-1962 Glass 1960-1963 Glass 1964-1967 Glass

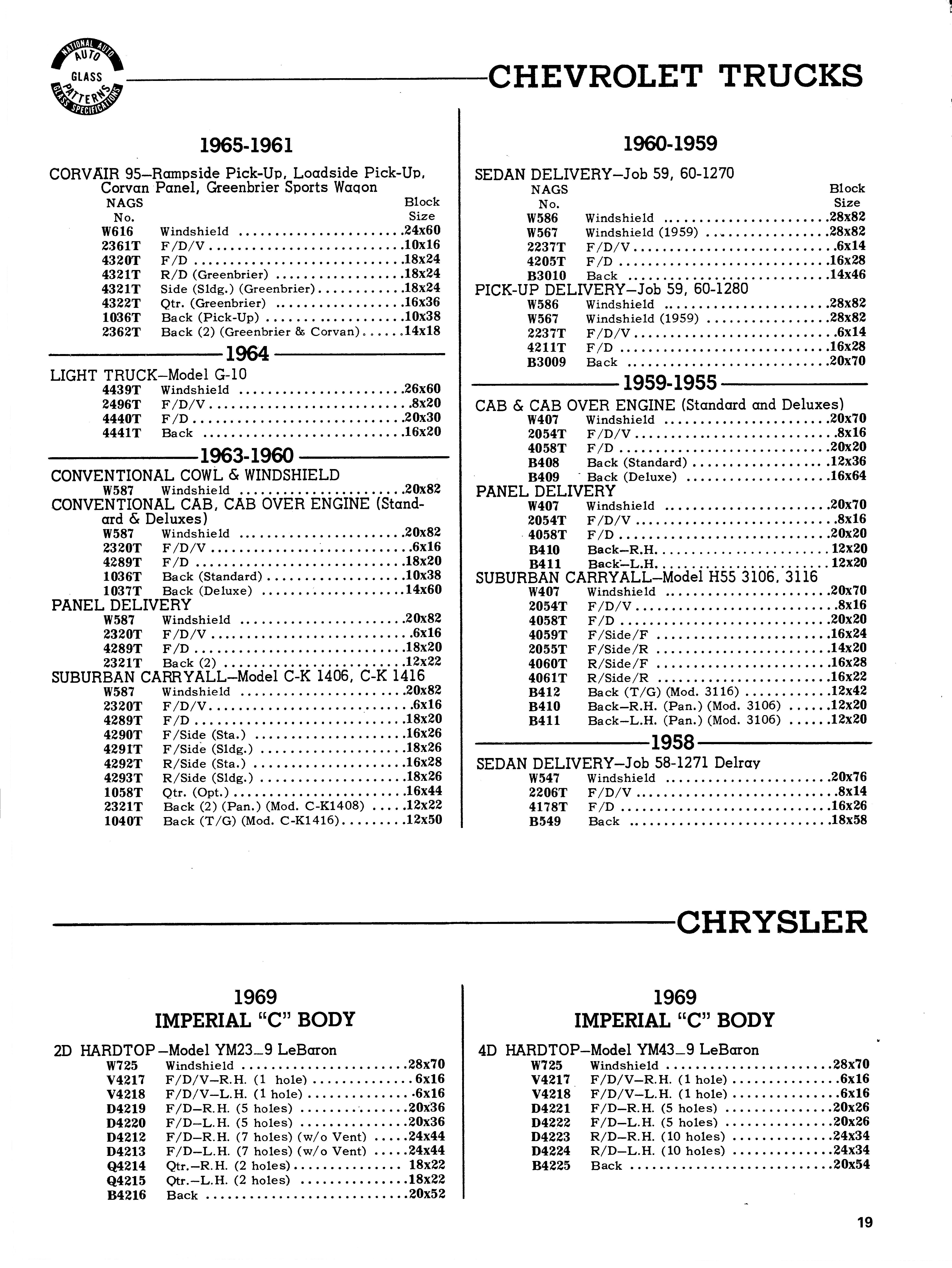

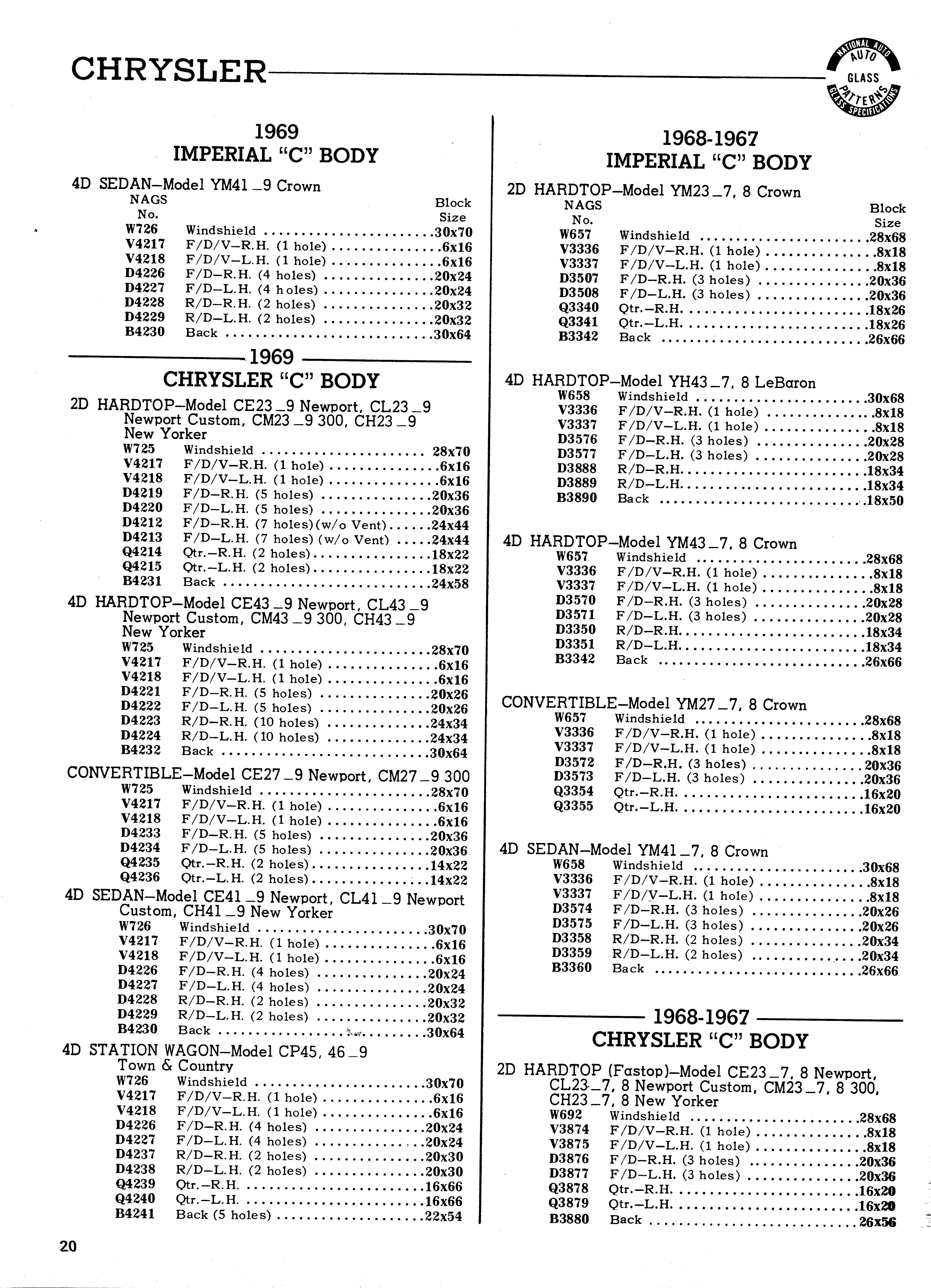

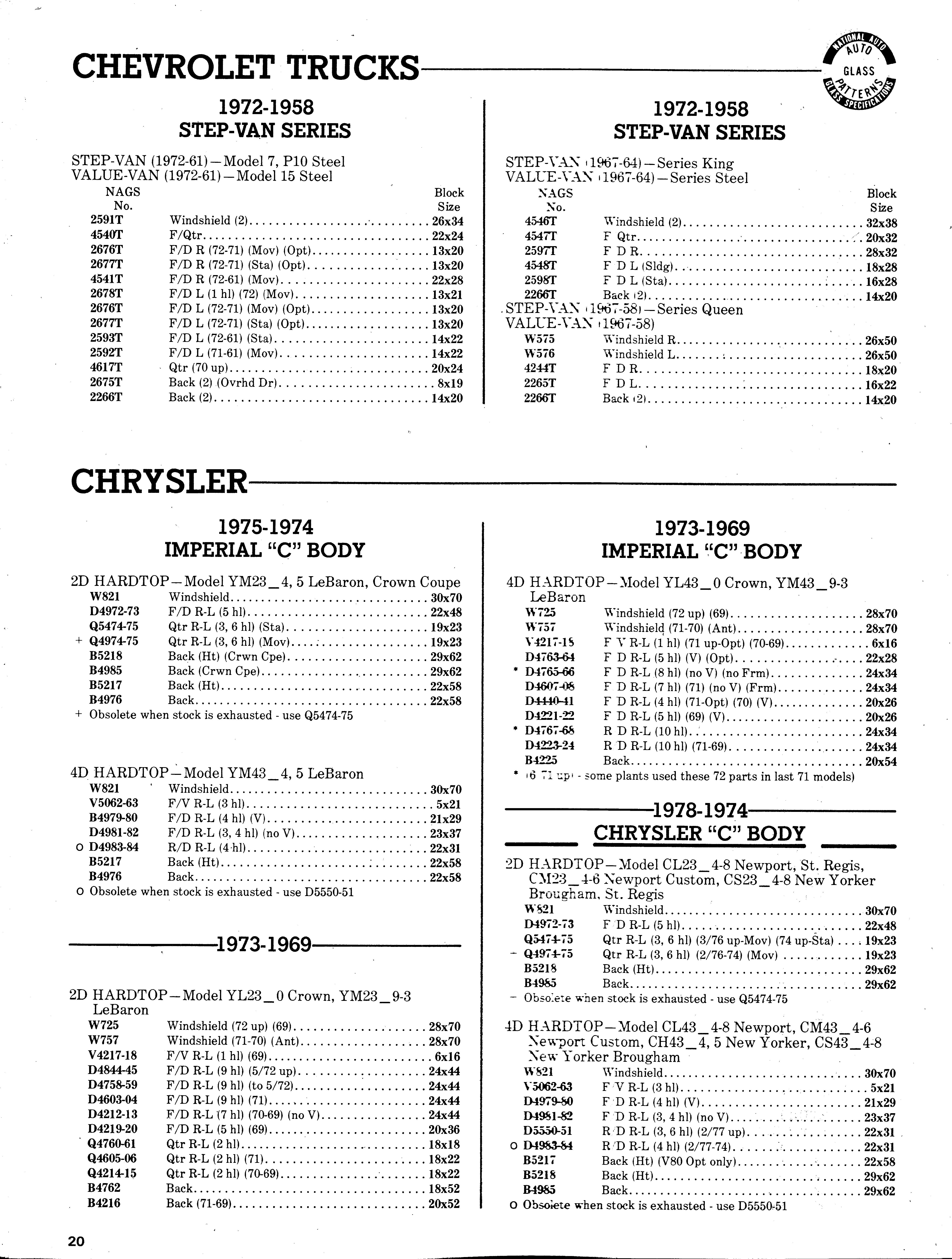

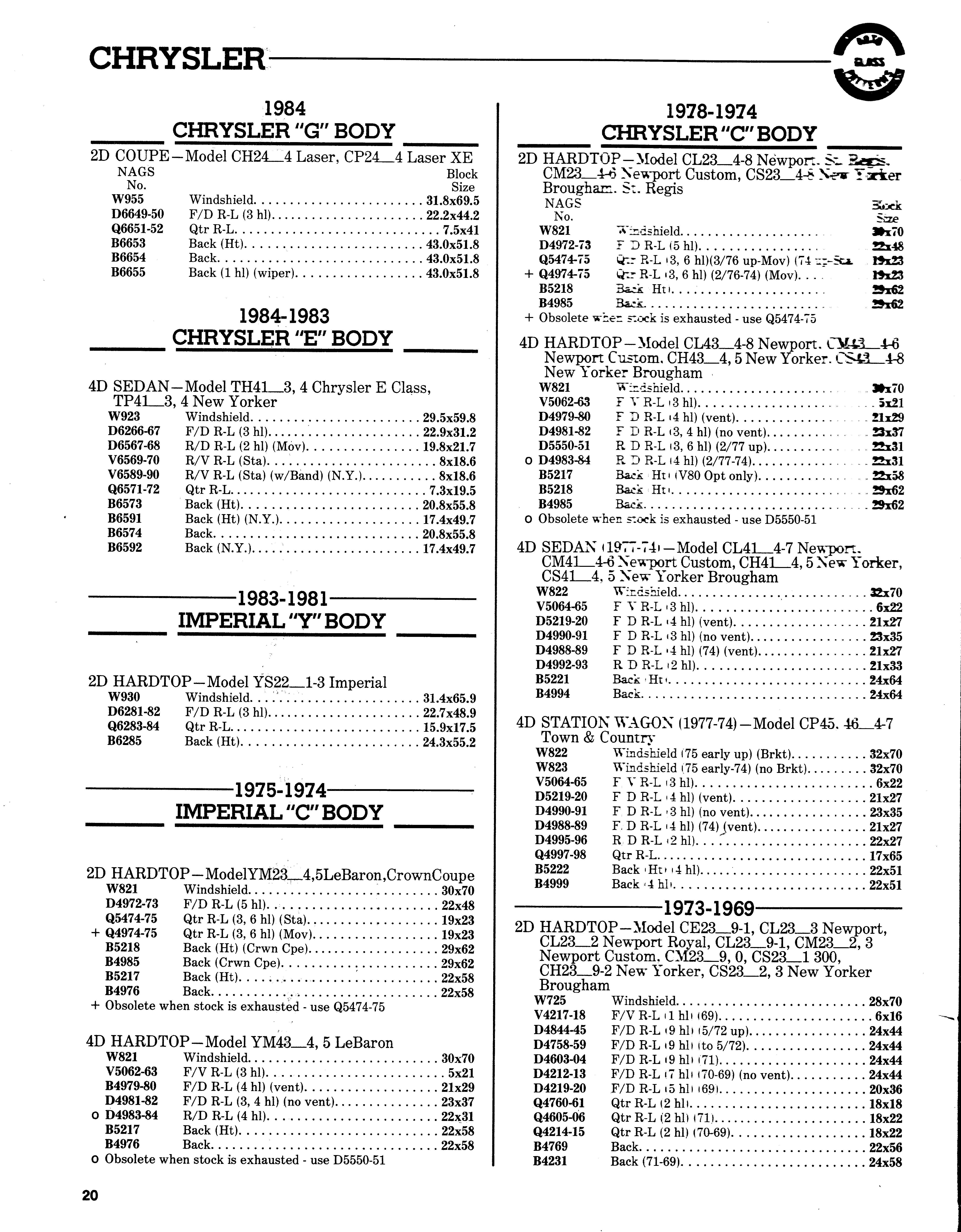

1967-1969 Glass 1969 Glass 1969-1975 Glass 1981-1983 Glass



Having trouble with printouts coming out way too small, or pieces of a document printing acro  ss   sev   eral  page   s?

Then go to our "How To Print Imperial Literature" page to learn how to print an item at the size you'd like.
