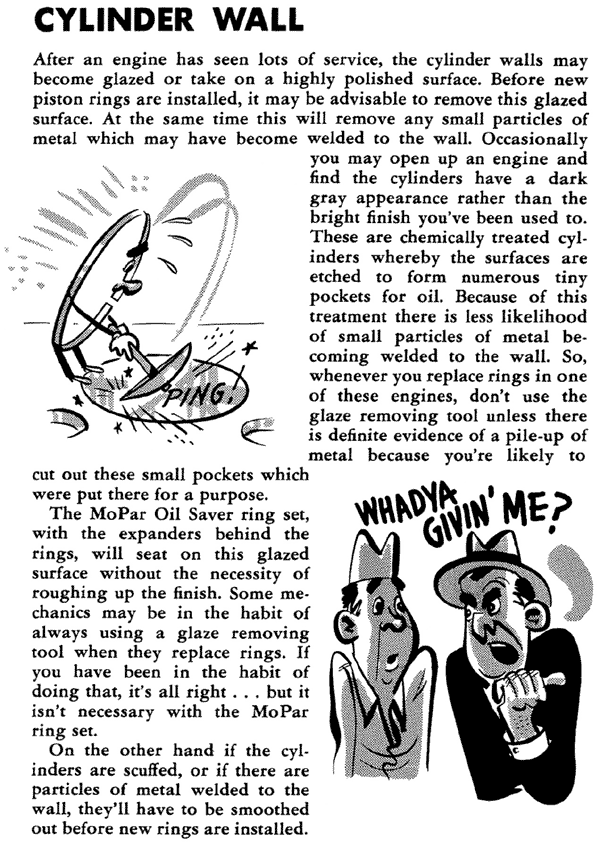

Move your way through the 1947 Imperial and Chrysler Reference Guide On High Oil Consumption by choosing your next page. You are currently on Page 18.
Front Cover Page 2 - Introduction To The Booklet Page 3 - Why Are There Rings On The Pistons? Page 4 - Why Are Rings Oiled? Page 5 - What Are Compression Rings? Page 6 - More On How Compression Rings Work Page 7 - How Oil Works In The Engine Compartment Page 8 - Oil Control Rings Page 9 - What Causes Oil Consumption? Page 10 - Why The Dipstick Reads "Add" Page 11 - Worn Rings & Improperly Sealed Rings Page 12 - What Does A Compression Test Show? Page 13 - More On The Compression Test Page 14 - Part 3 Of The Compression Test Page 15 - What Rings Look Like After Service Page 16 - How To Replace The Rings Page 17 - Ring Groove Clearance Page 18 - Cylinder Walls Page 19 - More On The Cylinder Wall Page 20 - Selecting The Correct Ring Page 21 - The NEW MoPar Ring Saver Kit Page 22 - Check Those Rod Bearings Page 23 - Table Of Piston Rings & Cylinder Head Bolts Back Cover
Go back to Page 17 Go on to Page 19
Close this window to return to the main page of the 1947 High Oil Consumption booklet.

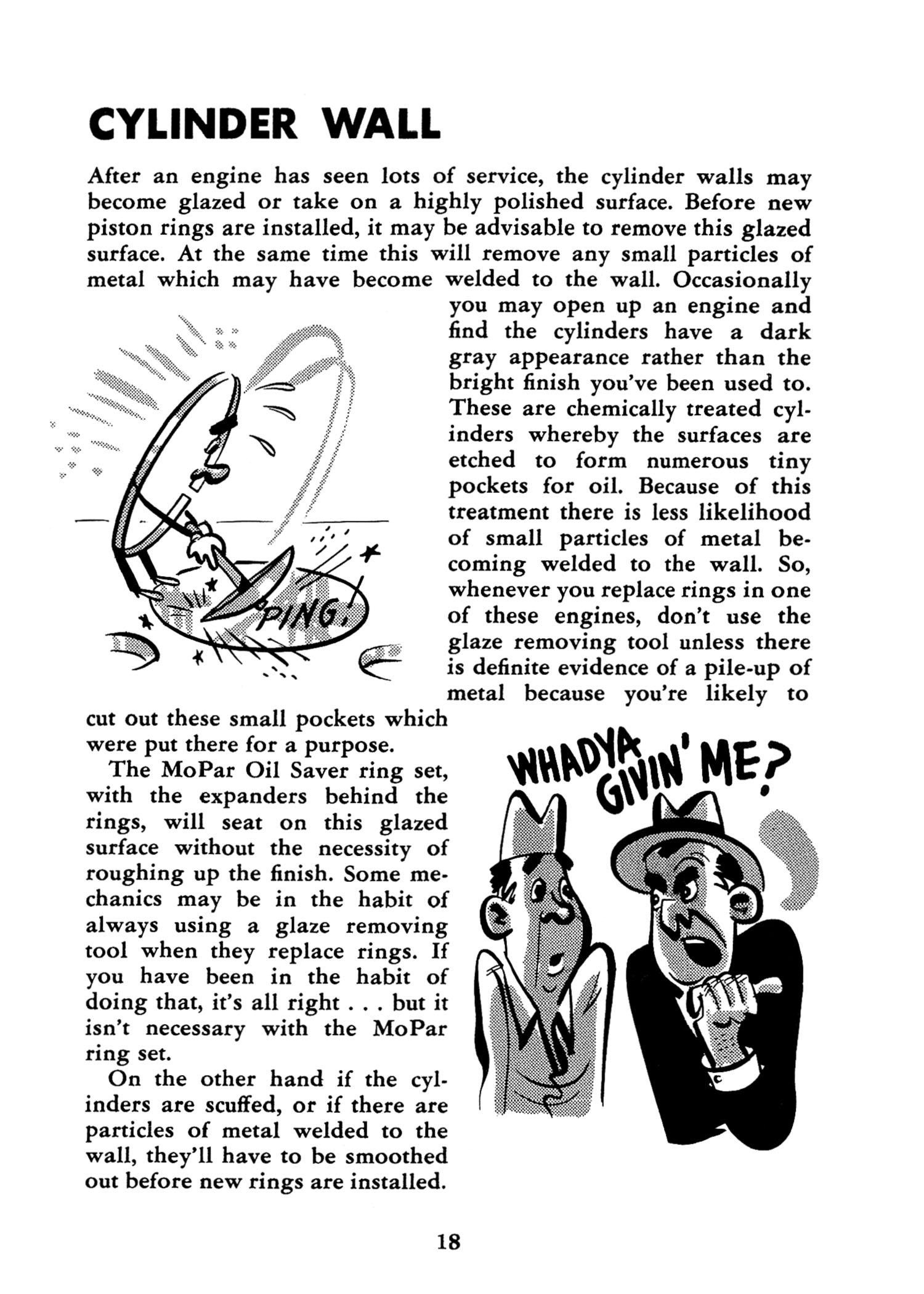

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
