Imperial Exhaust Bending Instructions


Imperial Home Page -> Repair -> Exhaust -> Bending Instructions



(Click on any small image to view a larger size)

51-52 Right, Exc. Crown Conv.

Larger, printable version

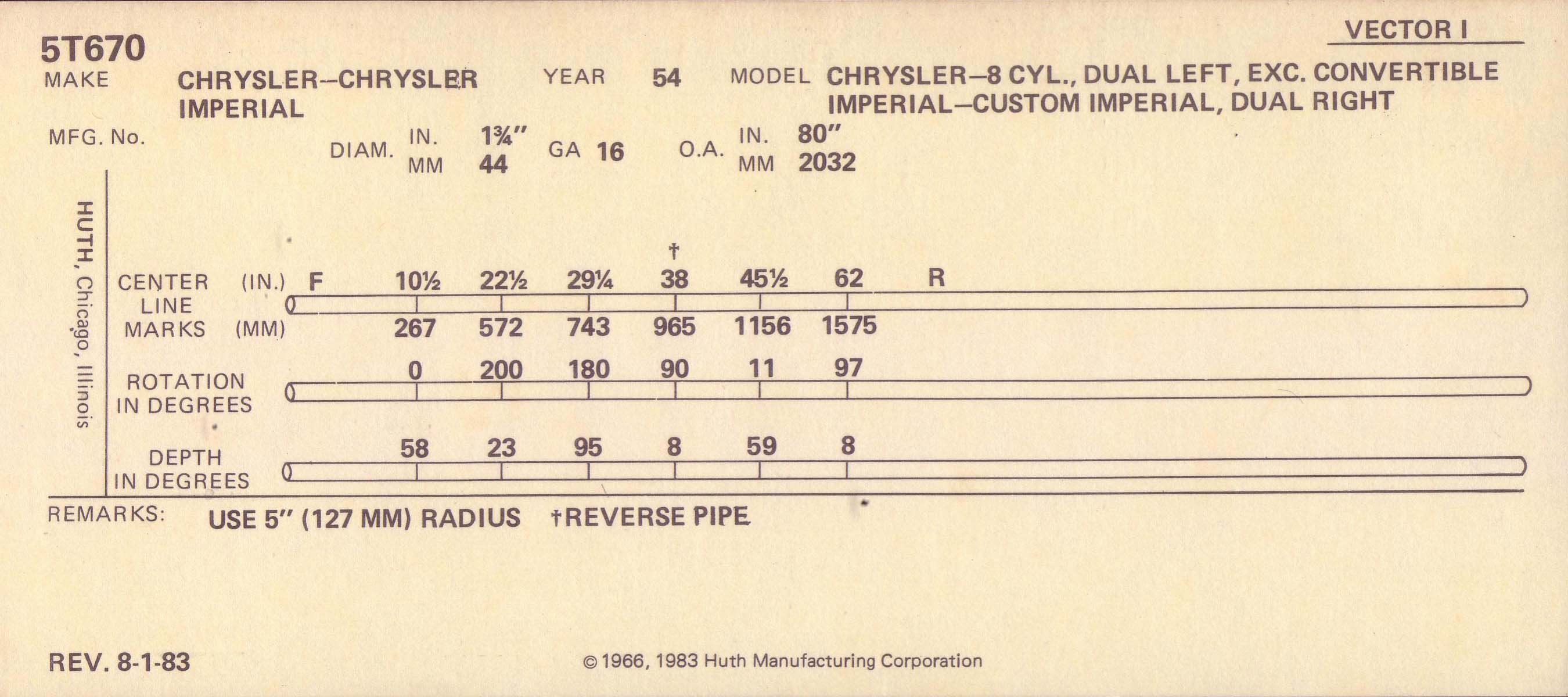

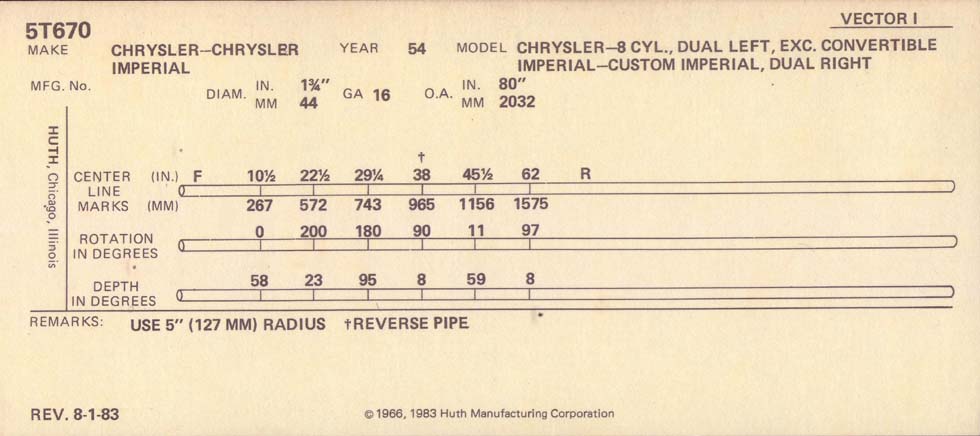

54 Custom, Dual Right

Larger, printable version

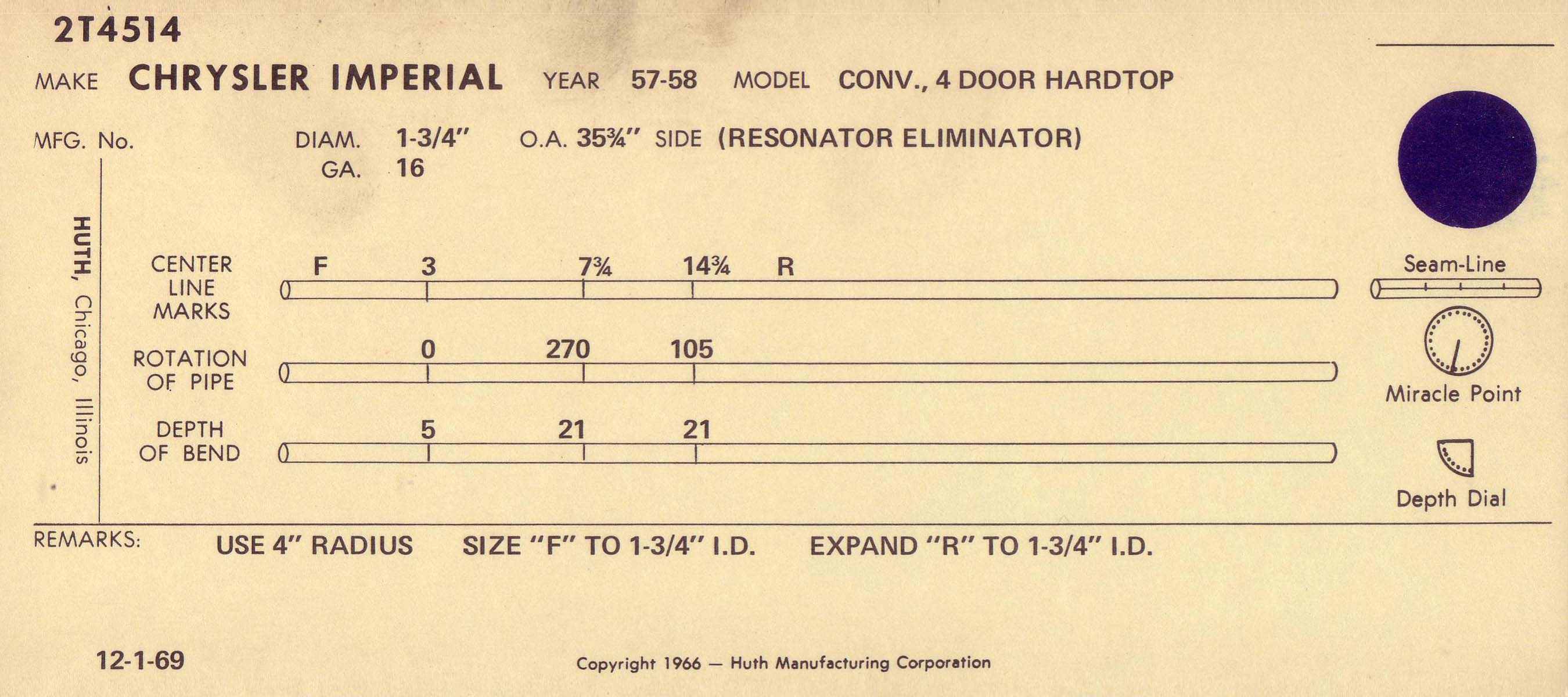

57-58 Conv., 4 Door Hardtop

Larger, printable version

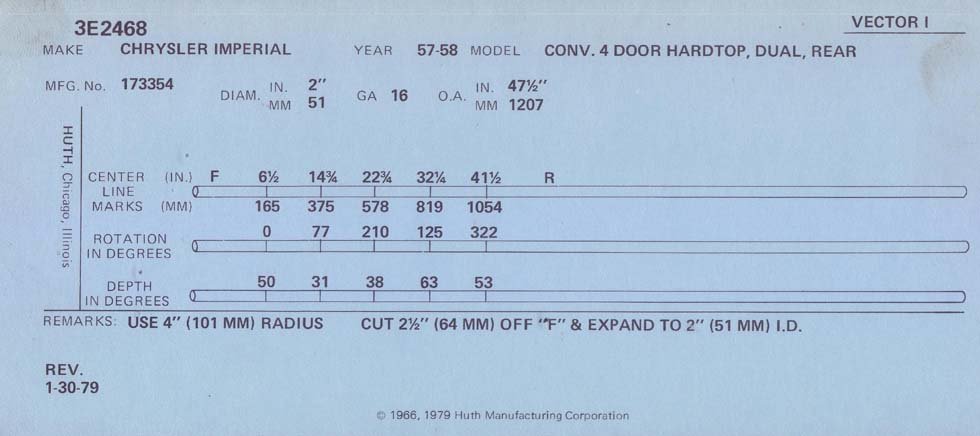

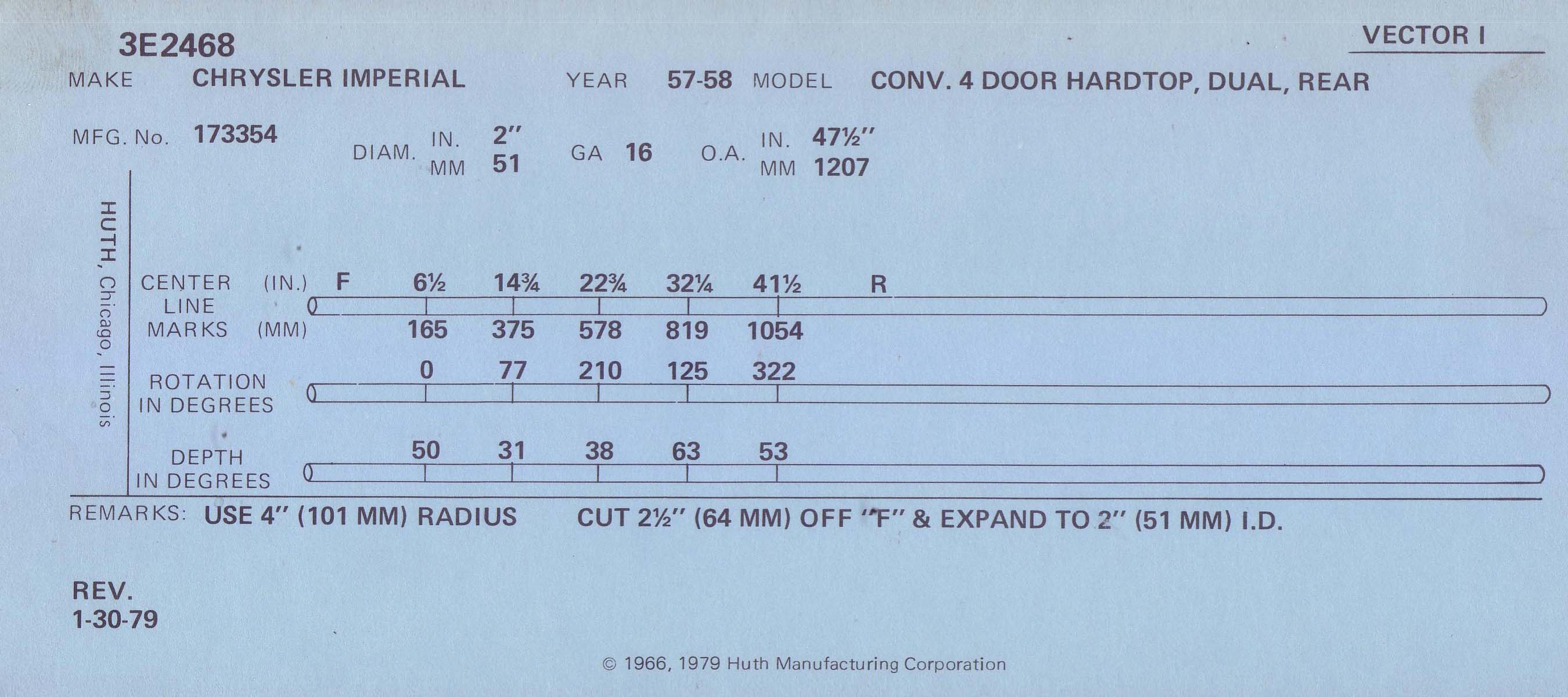

57-58 Conv. 4 Door, Dual, Rear

Larger, printable version

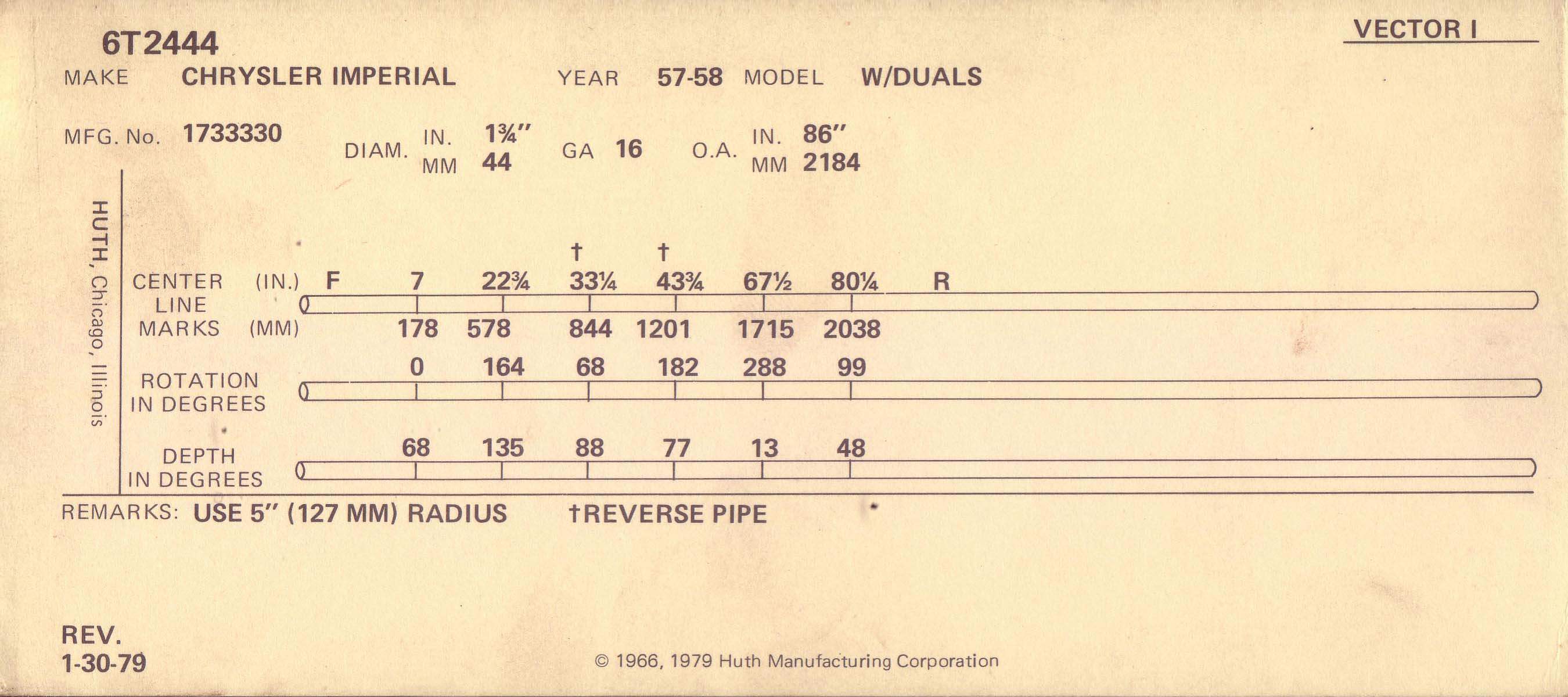

57-58 With Duals

Larger, printable version

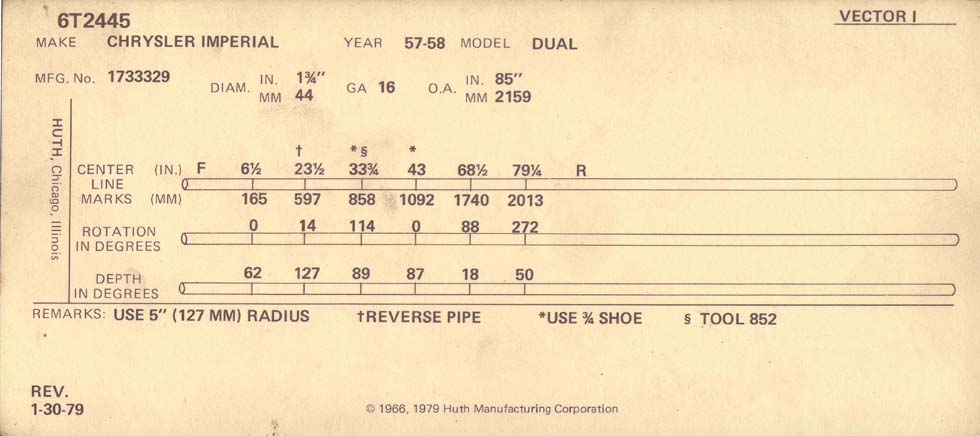

57-58 Dual

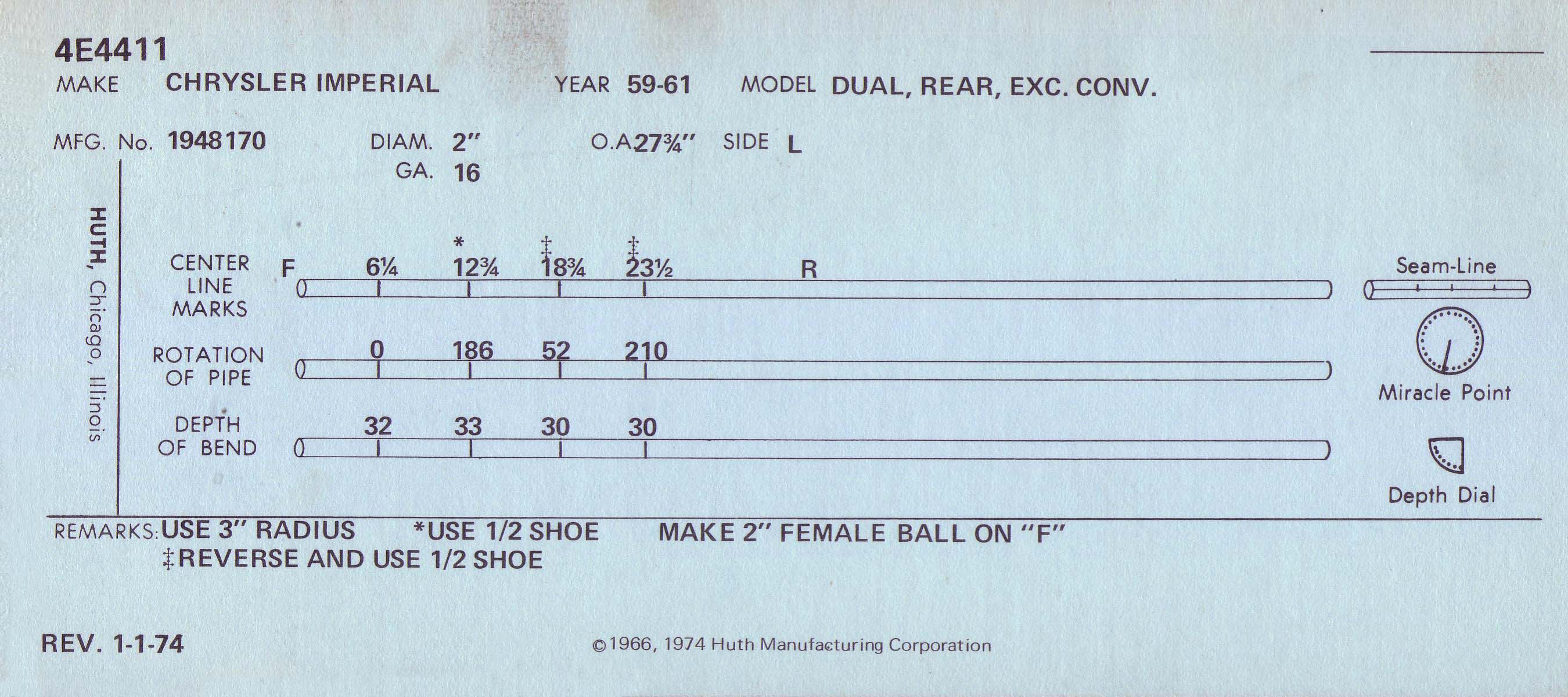

59-61 Dual, Rear, Exc. Conv.

Larger, printable version

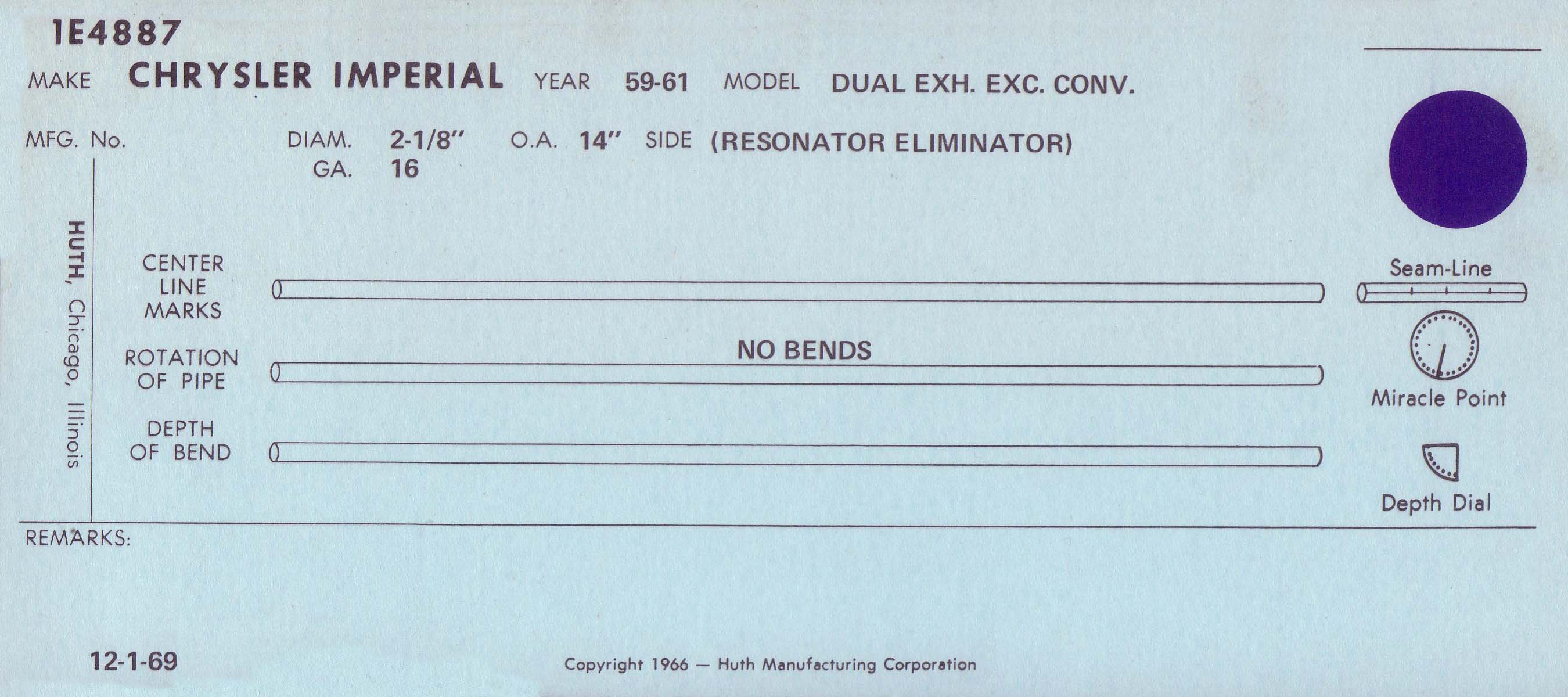

59-61 Dual Exh. Exc. Conv.

Larger, printable version

59-61 Dual, Rear, Exc. Conv.

Larger, printable version

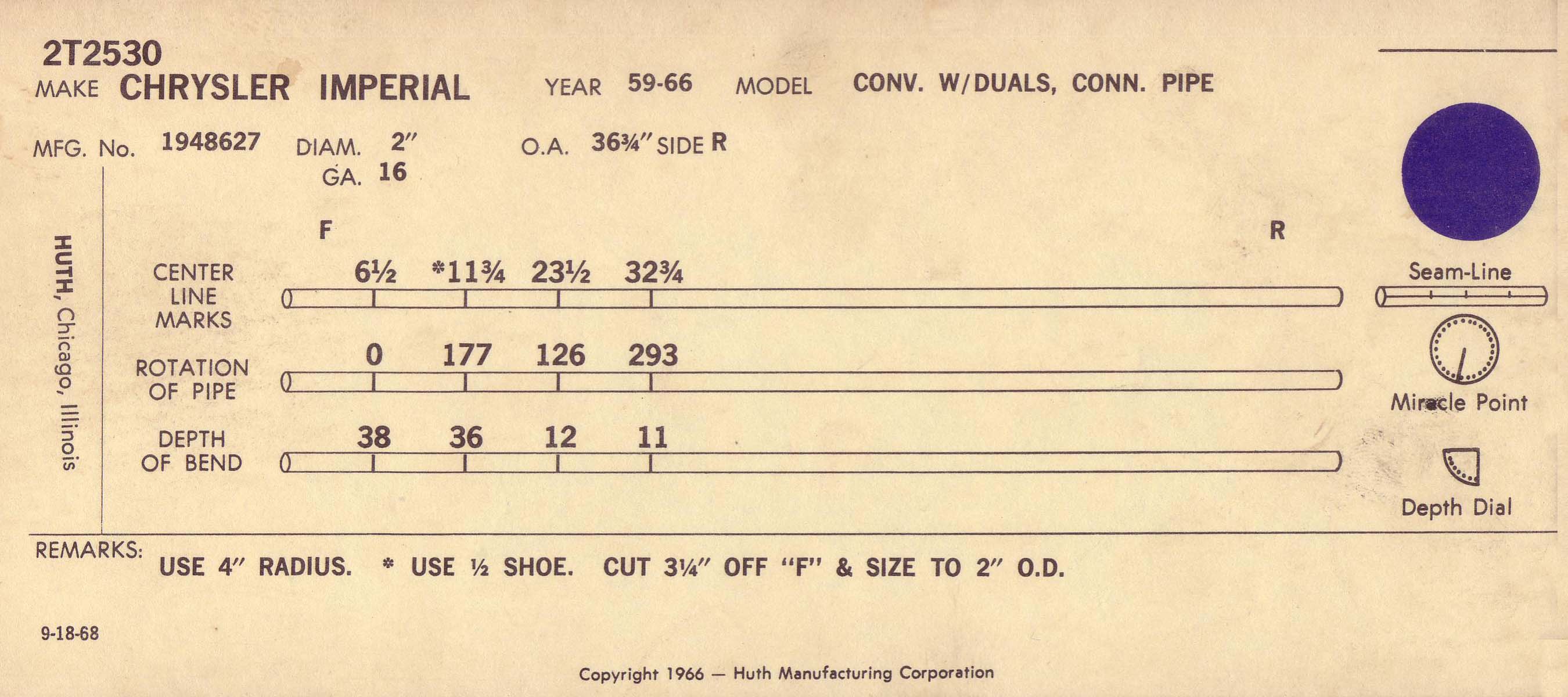

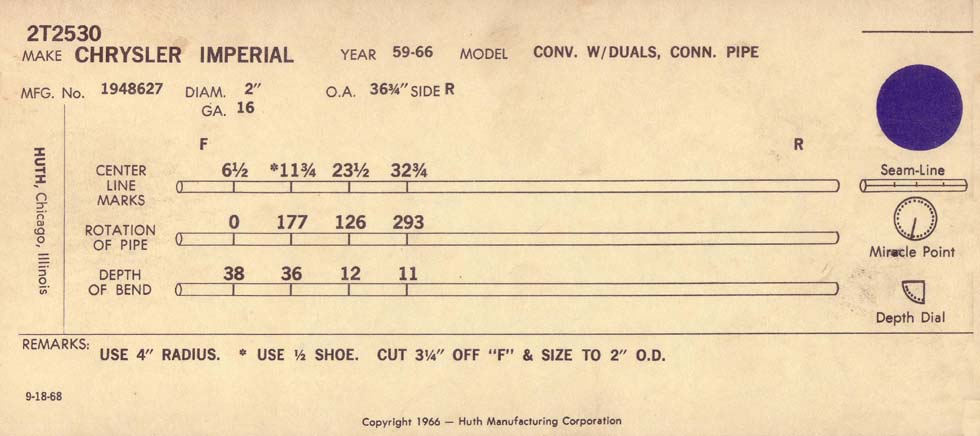

59-66 Conv. With Duals, Conn. Pipe

Larger, printable version

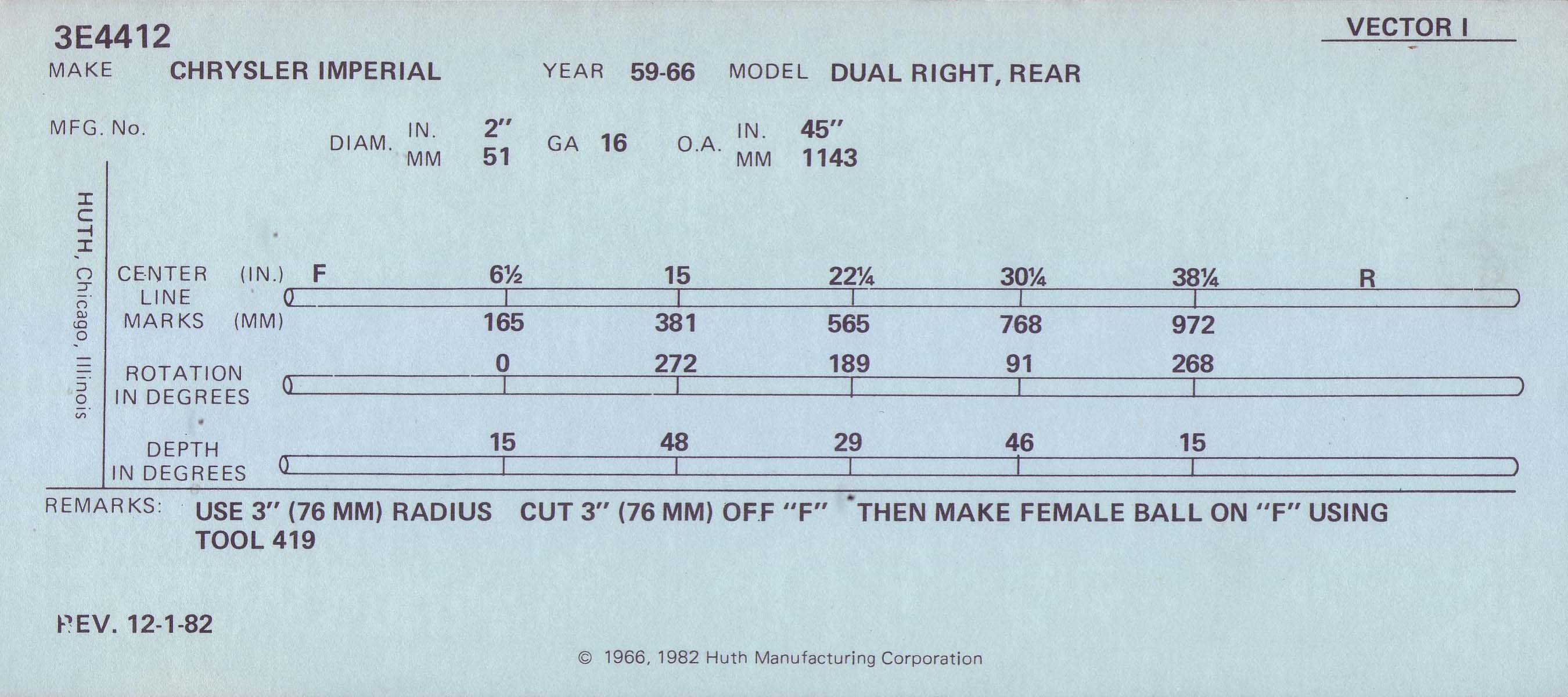

59-66 Dual Right, Rear

Larger, printable version

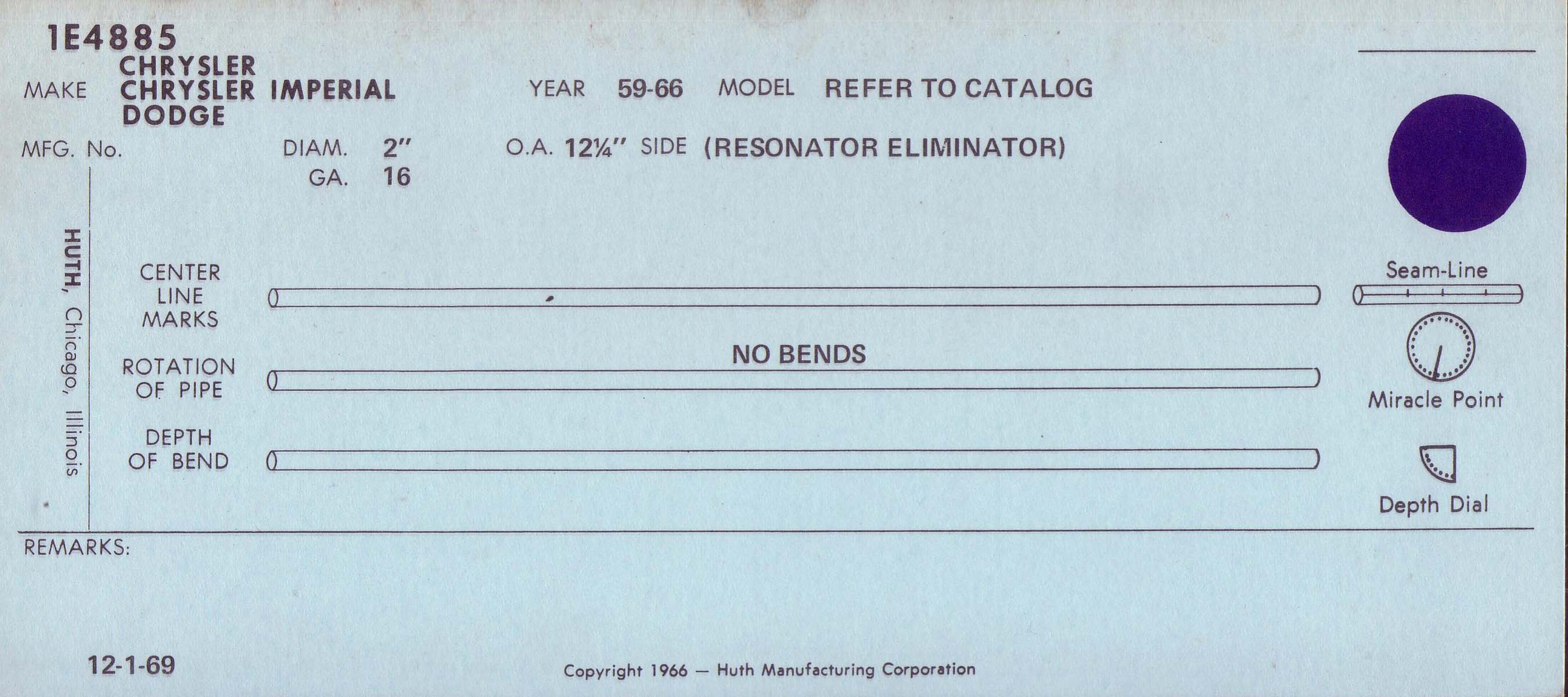

59-66 Resonator Eliminator

Larger, printable version

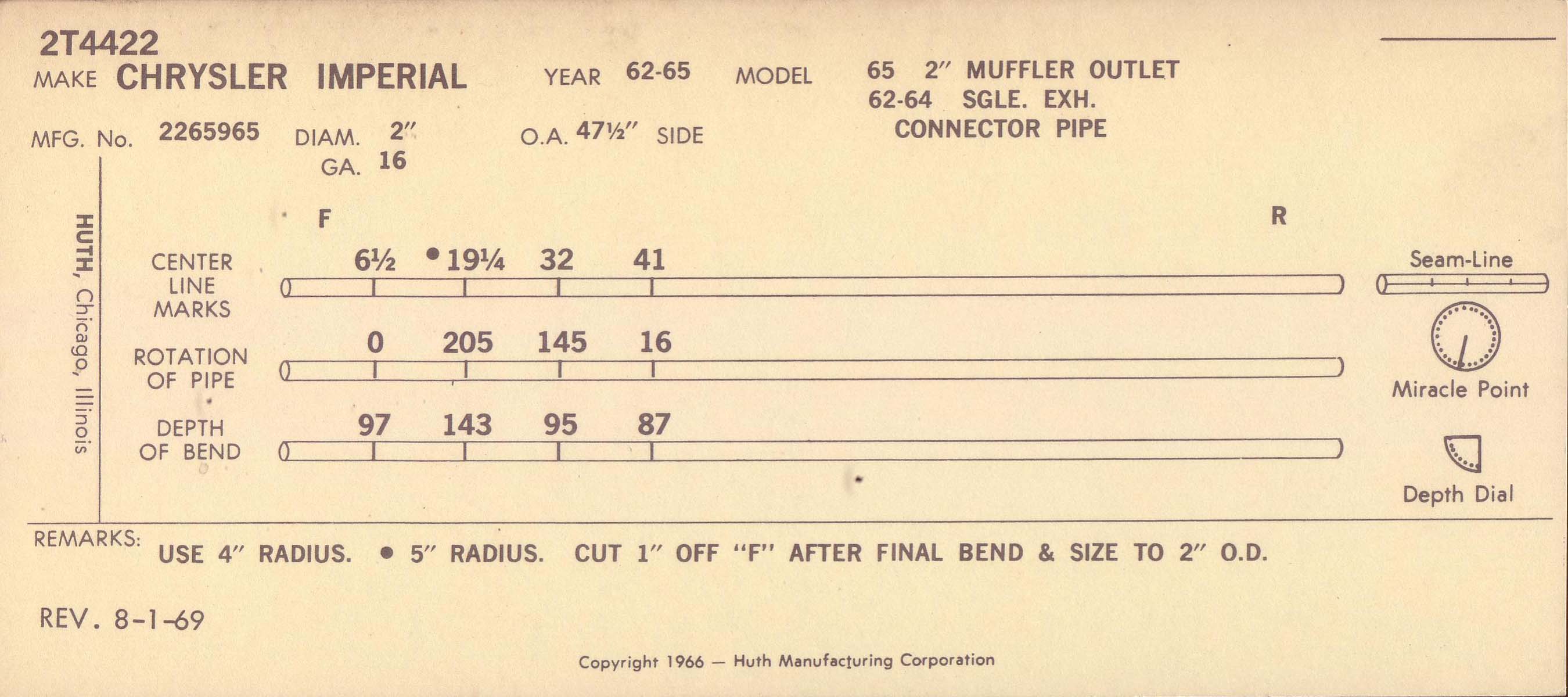

62-65 Sgle. Exh. Conn. Pipe

Larger, printable version

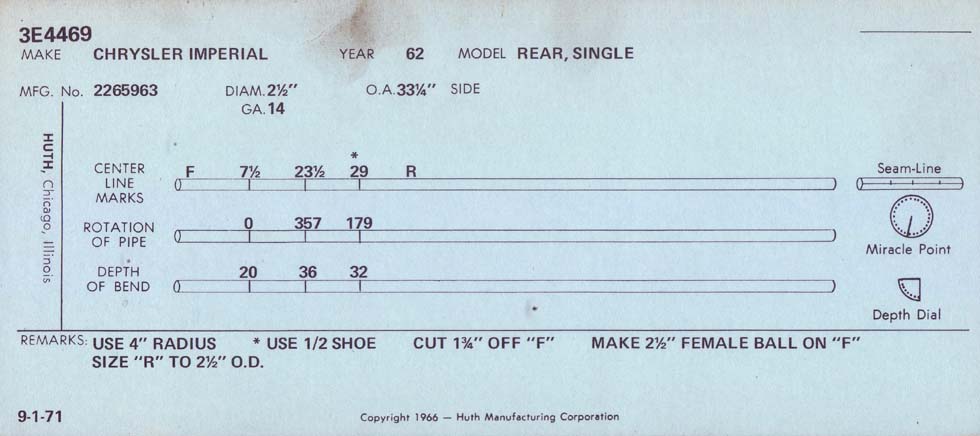

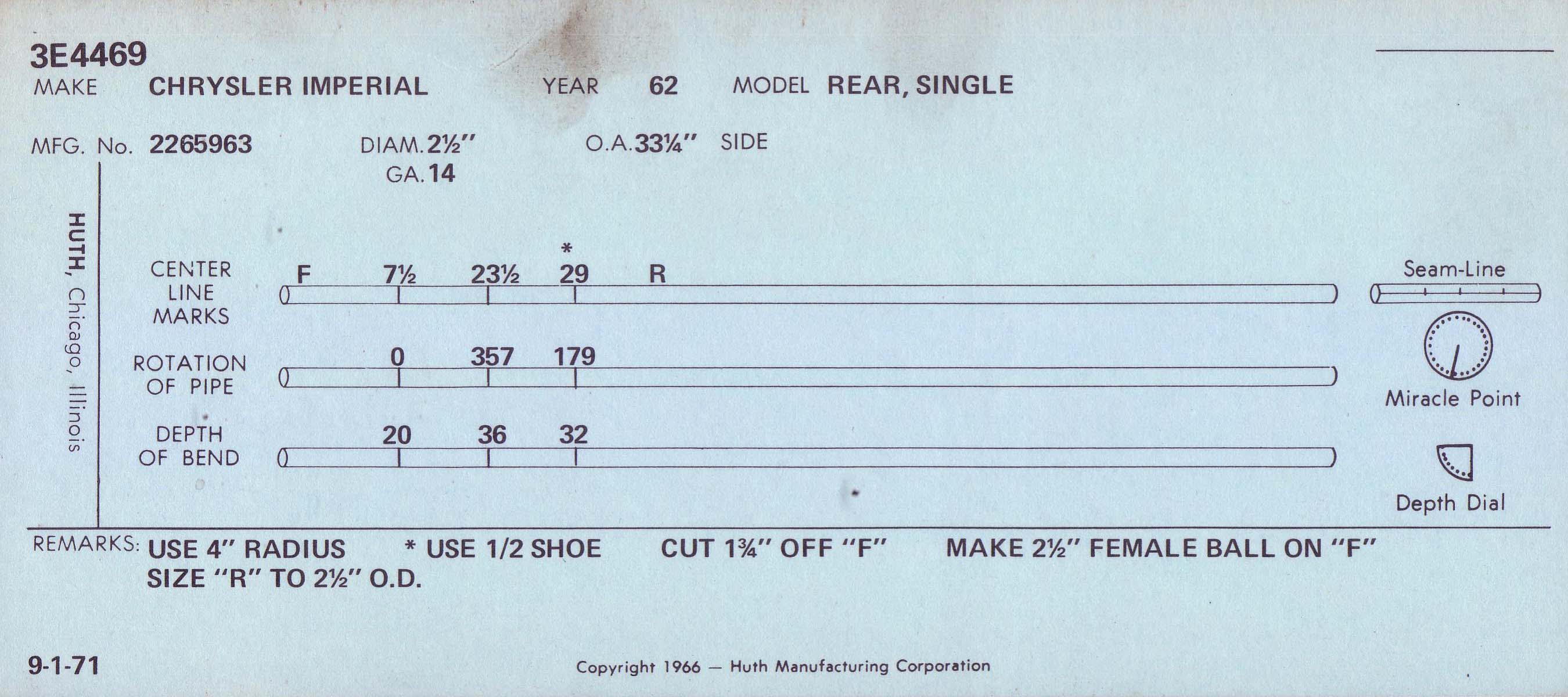

62 Rear, Single

Larger, printable version

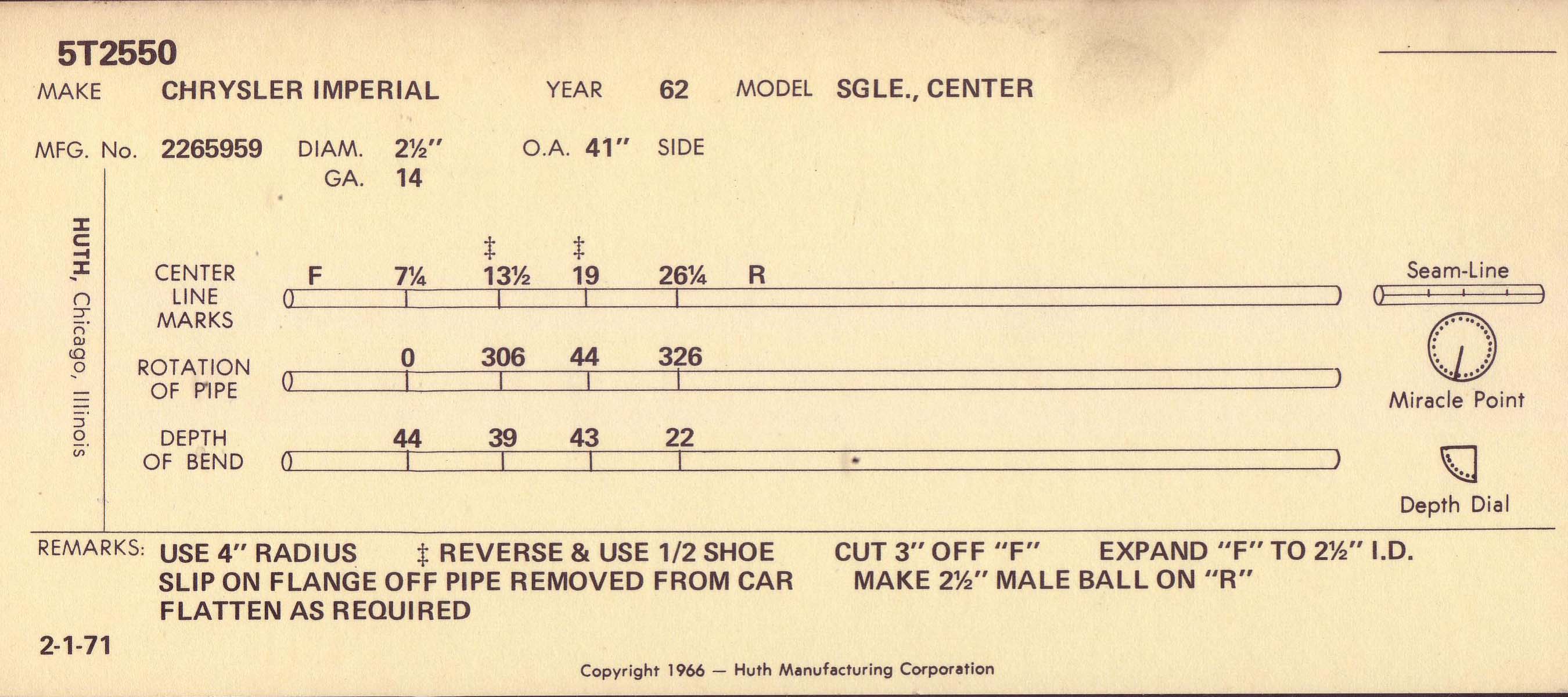

62 Single, Center

Larger, printable version

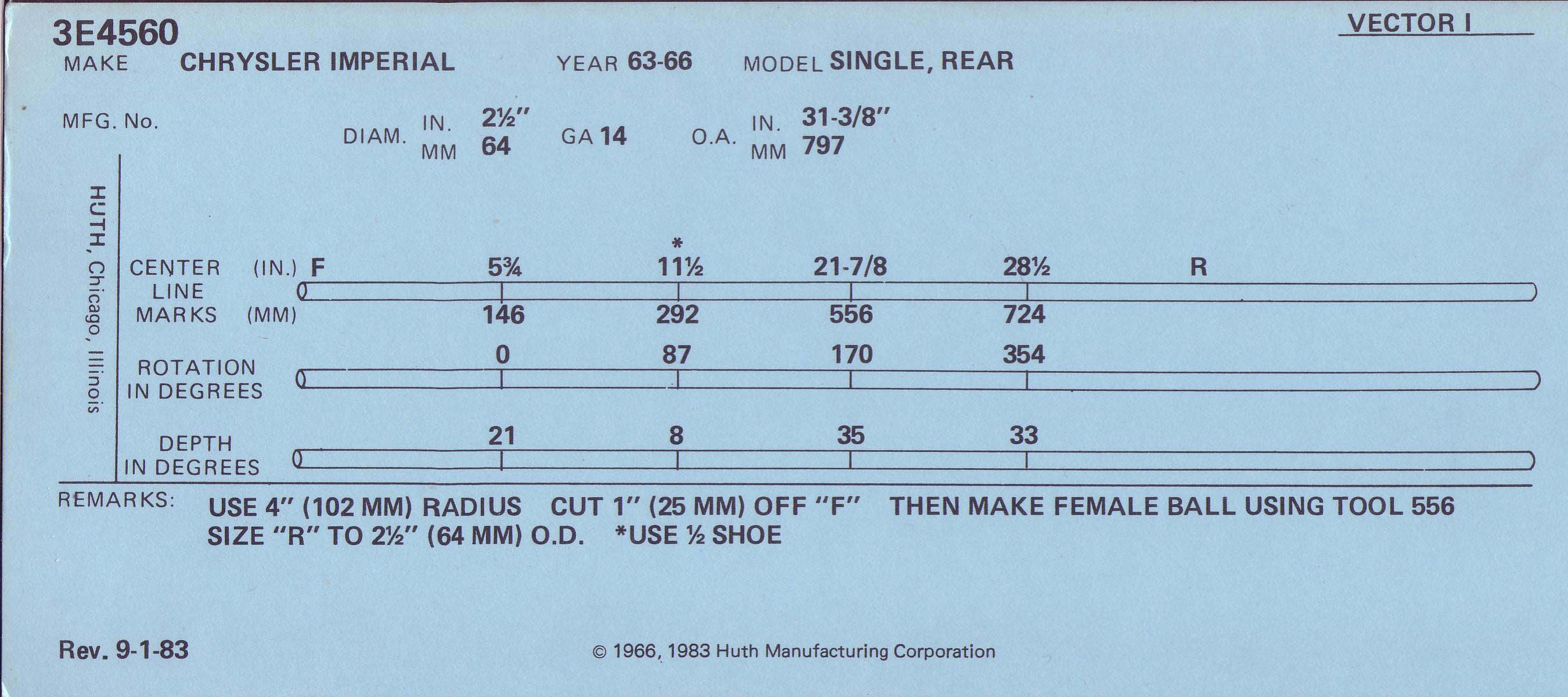

63-66 Single, Rear

Larger, printable version

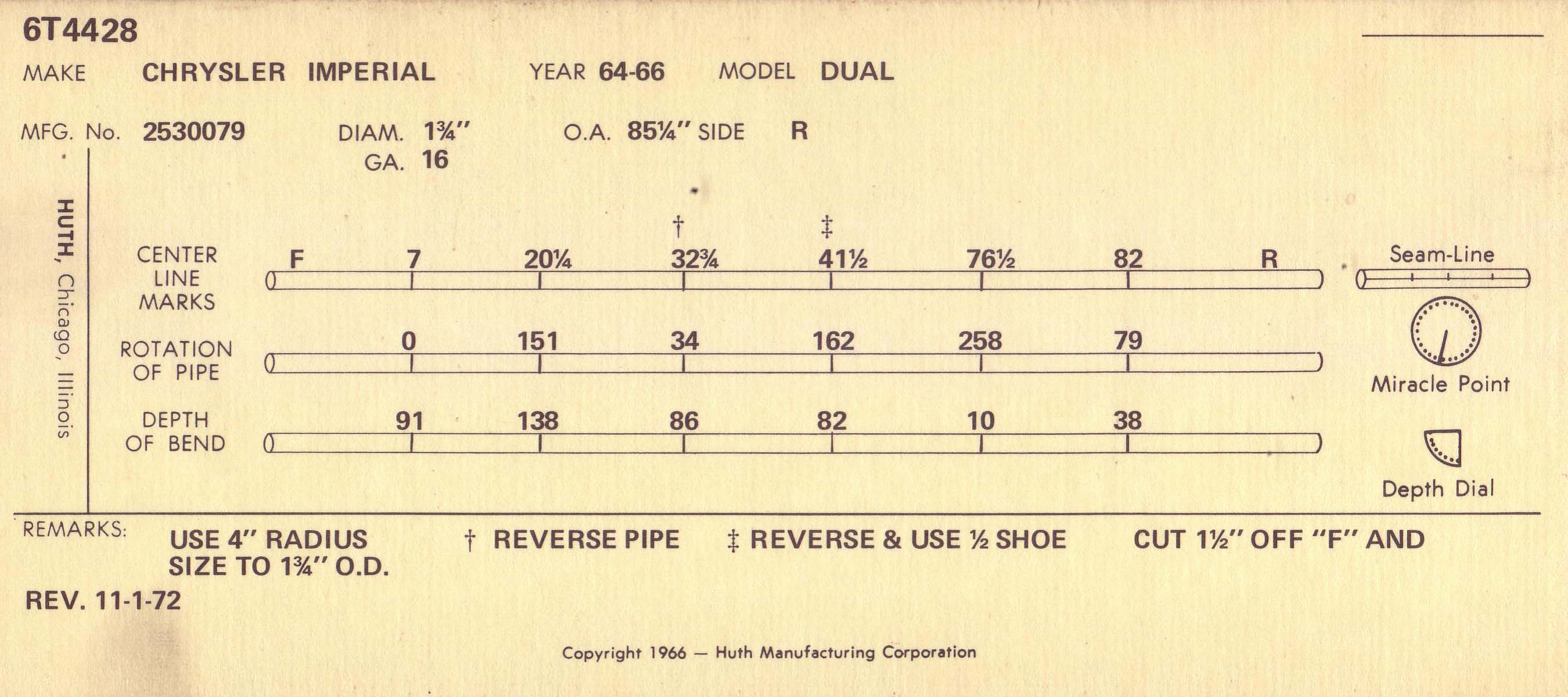

64-66 Dual, Right

Larger, printable version

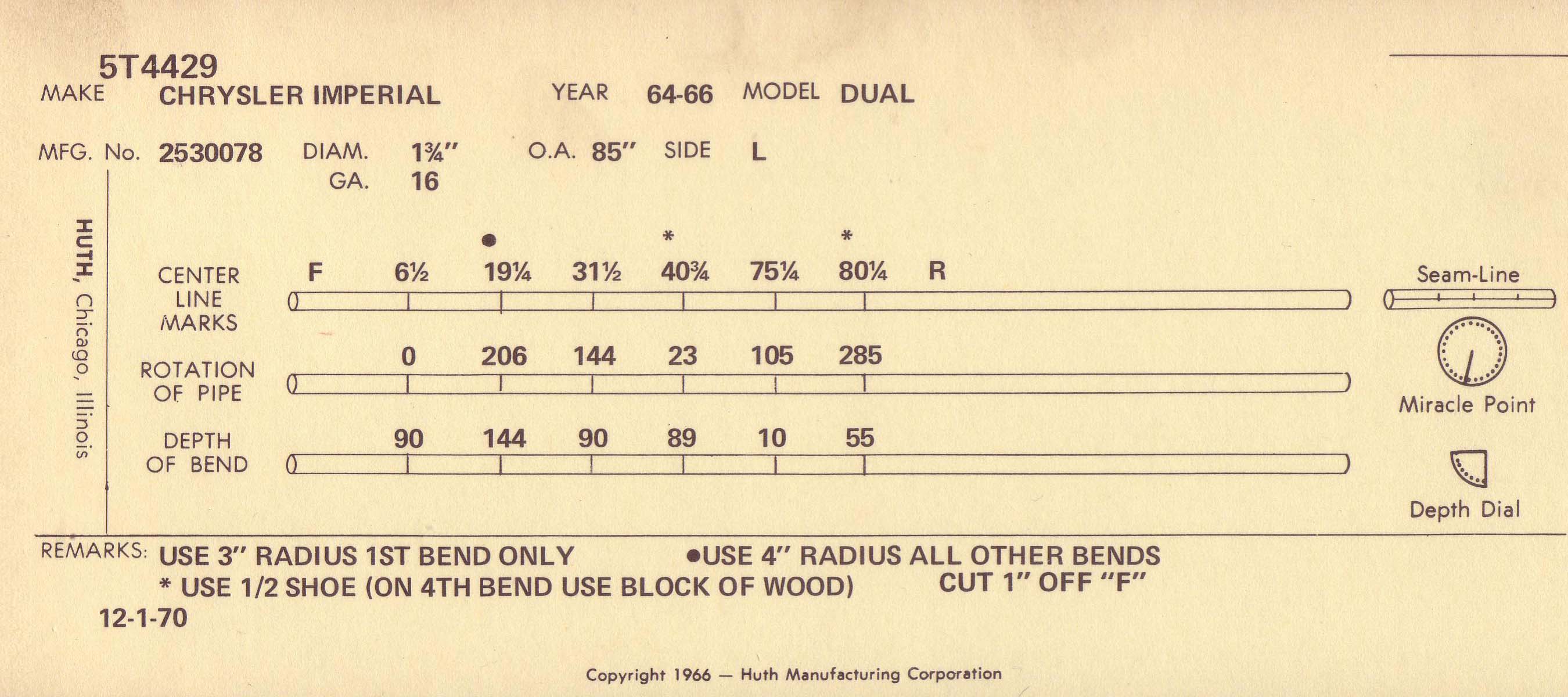

64-66 Dual, Left

Larger, printable version

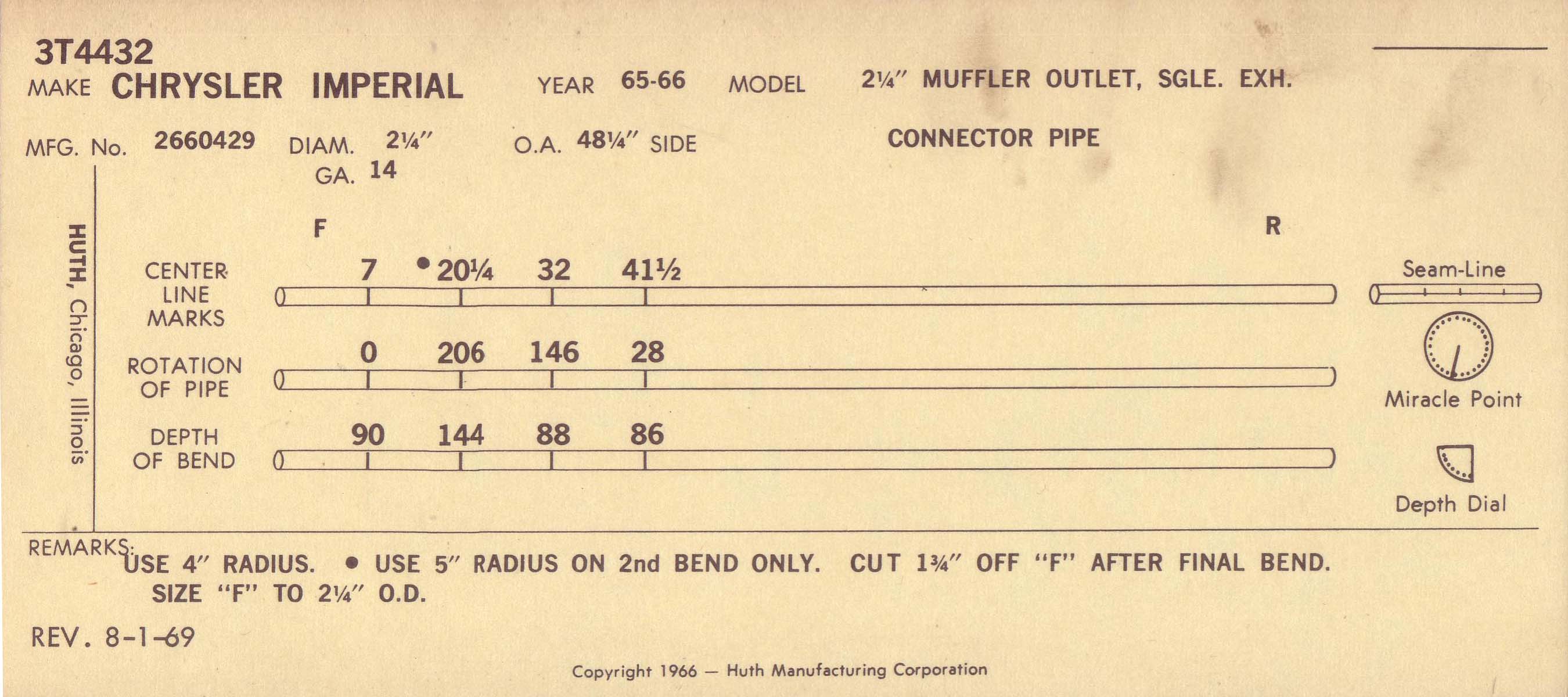

65-66 2.25 Muffler Outlet, Sgle. Exh.

Larger, printable version

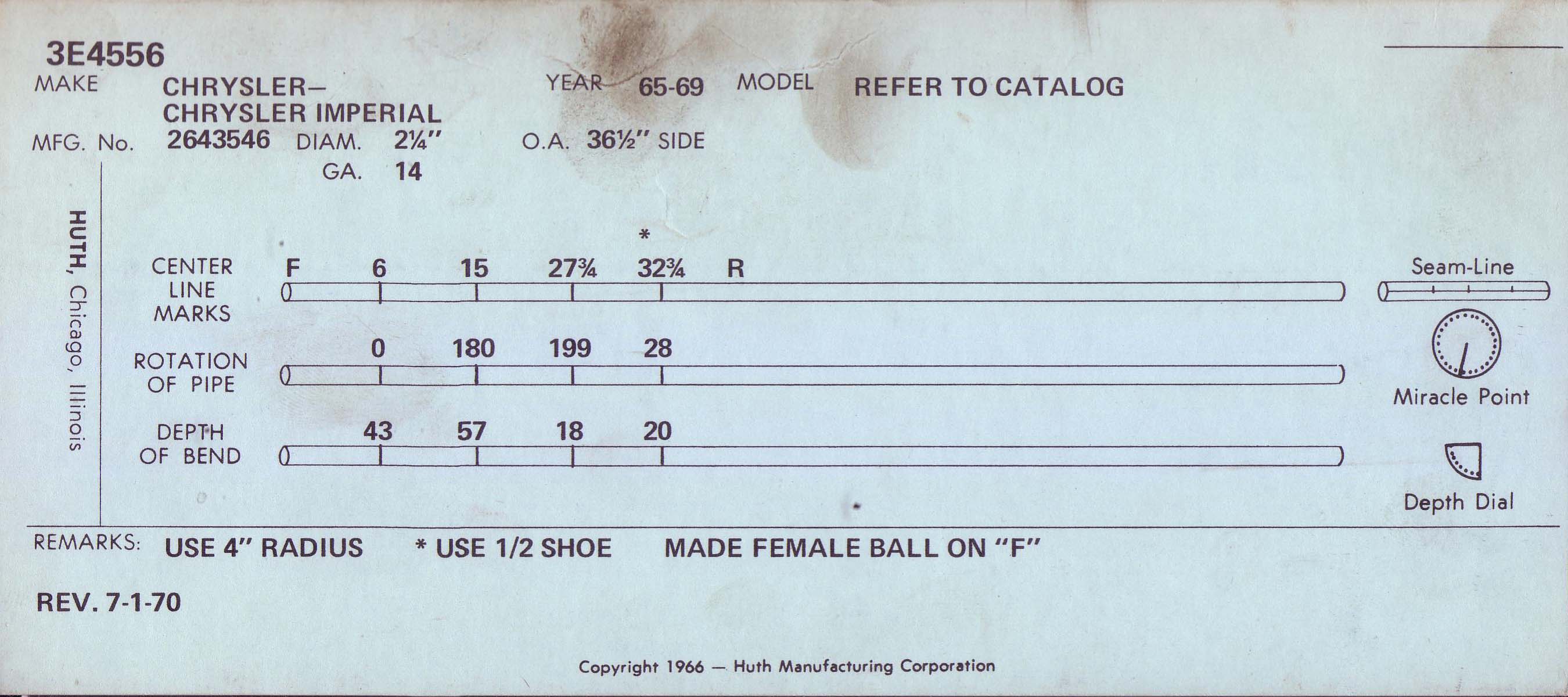

65-69 All

Larger, printable version

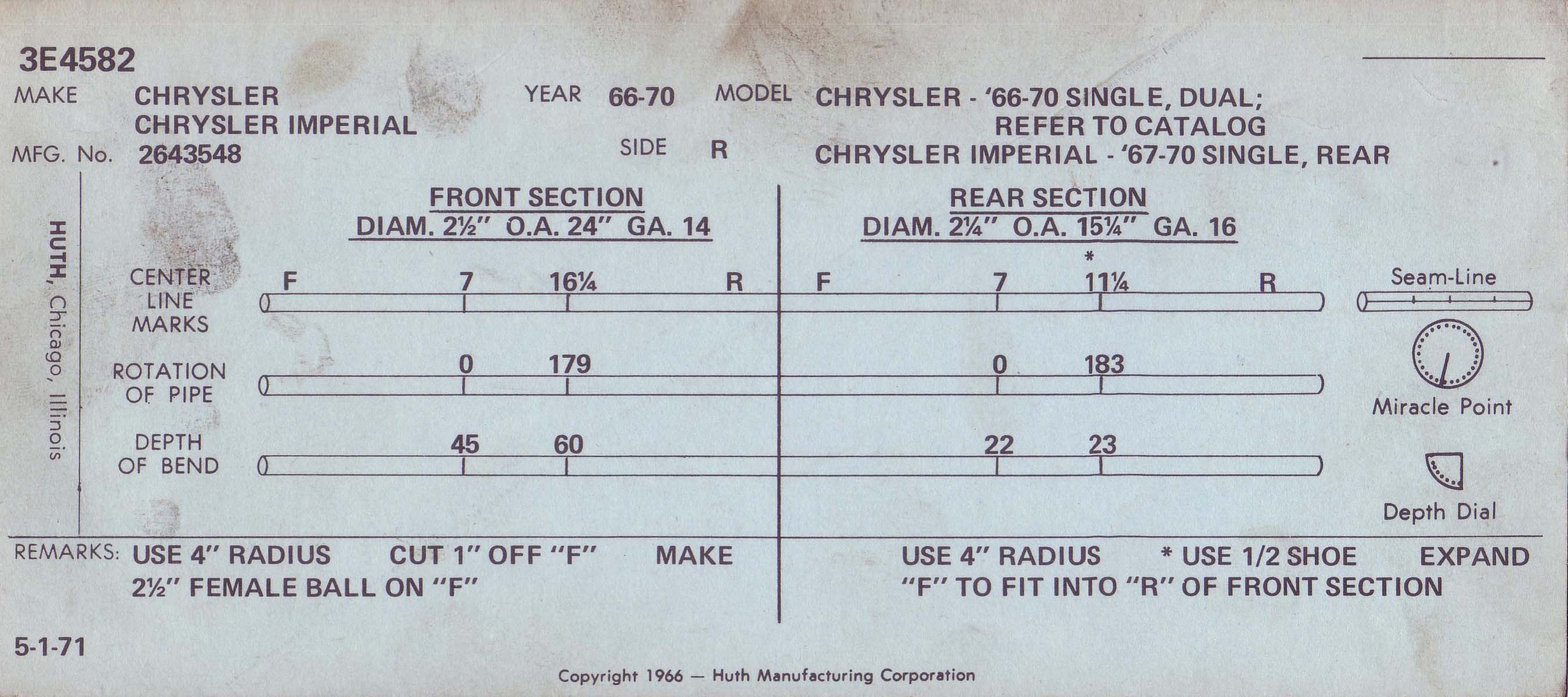

67-70 Single, Rear

Larger, printable version

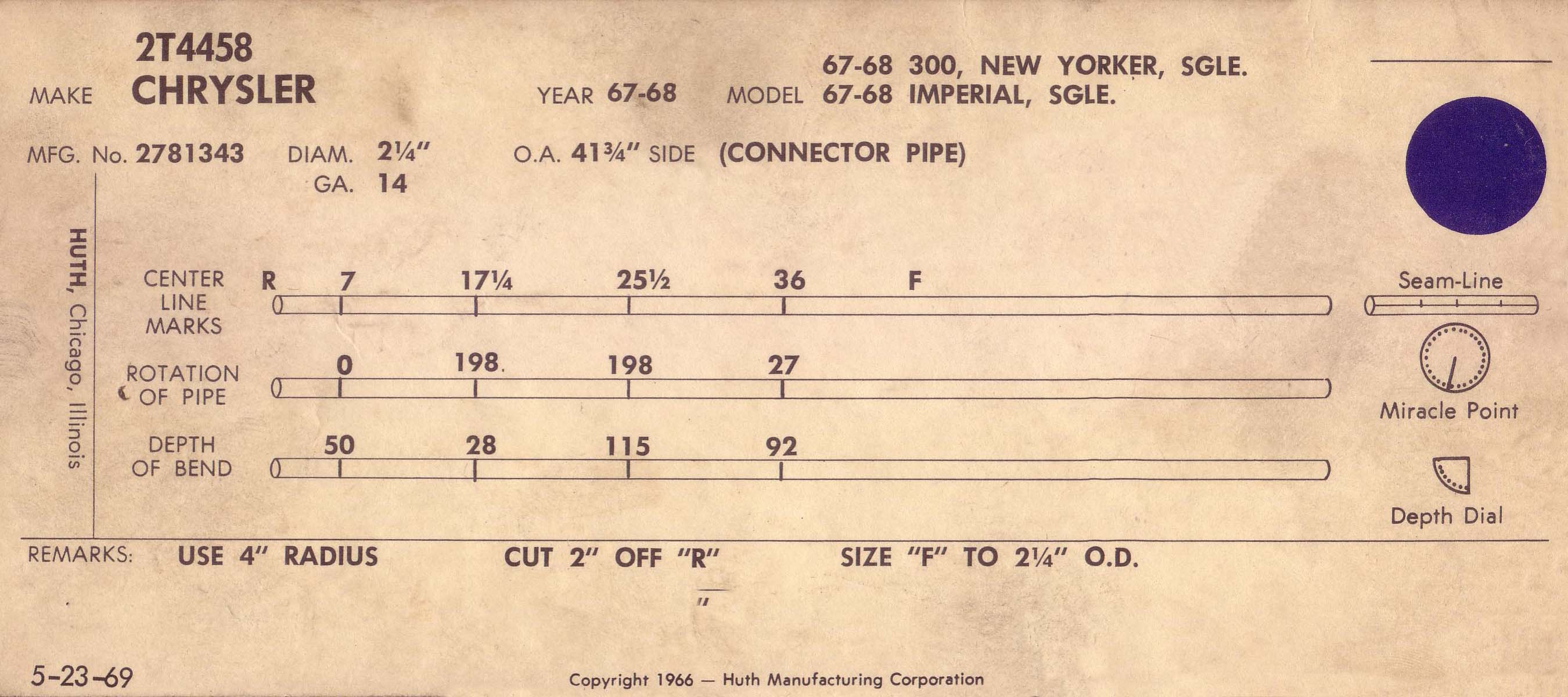

67-68 Single Conn. Pipe

Larger, printable version

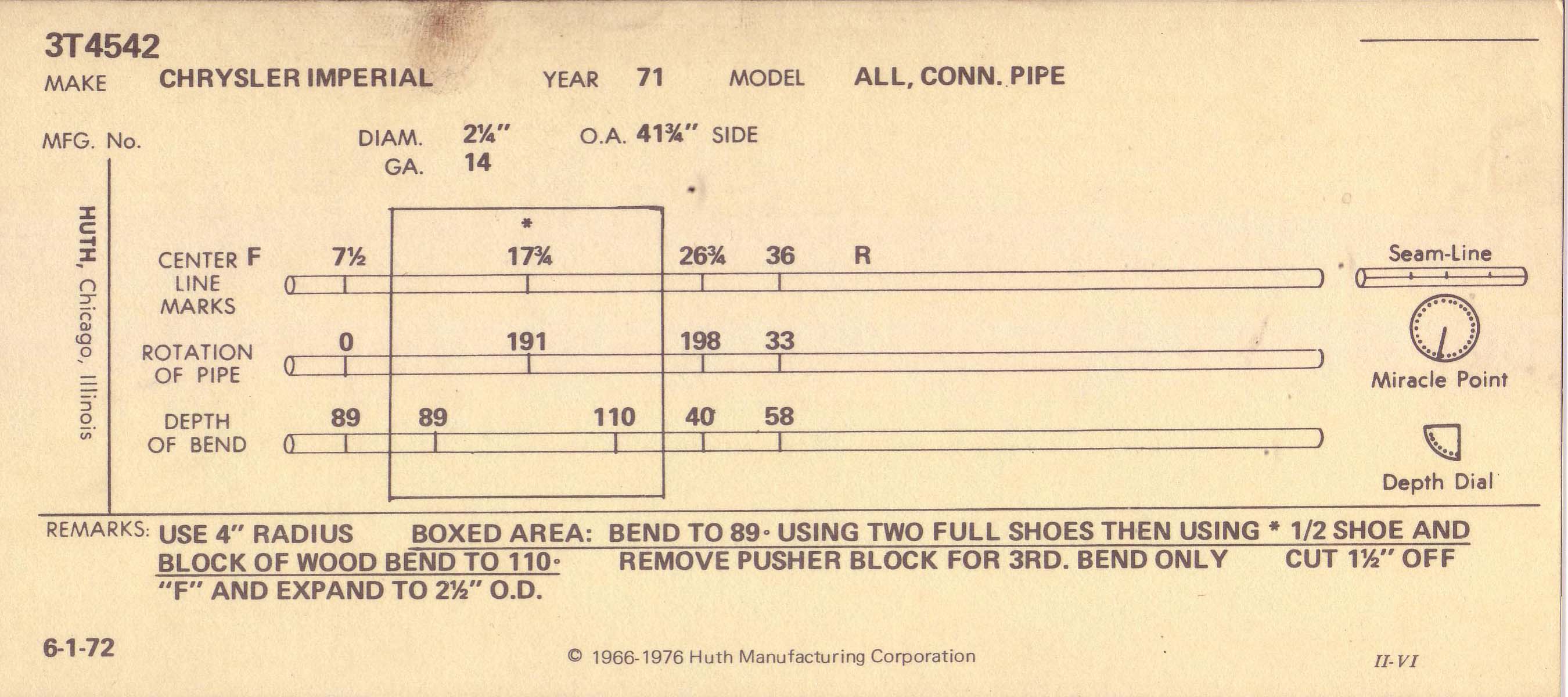

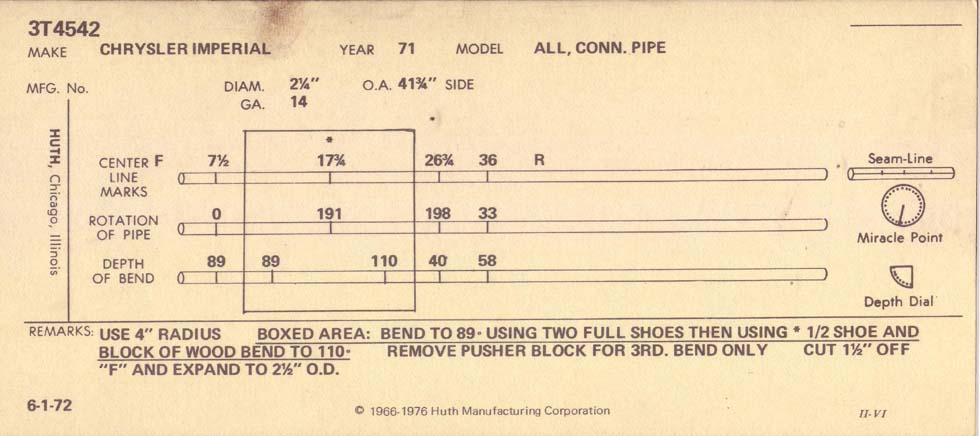

71 All, Conn. Pipe

Larger, printable version

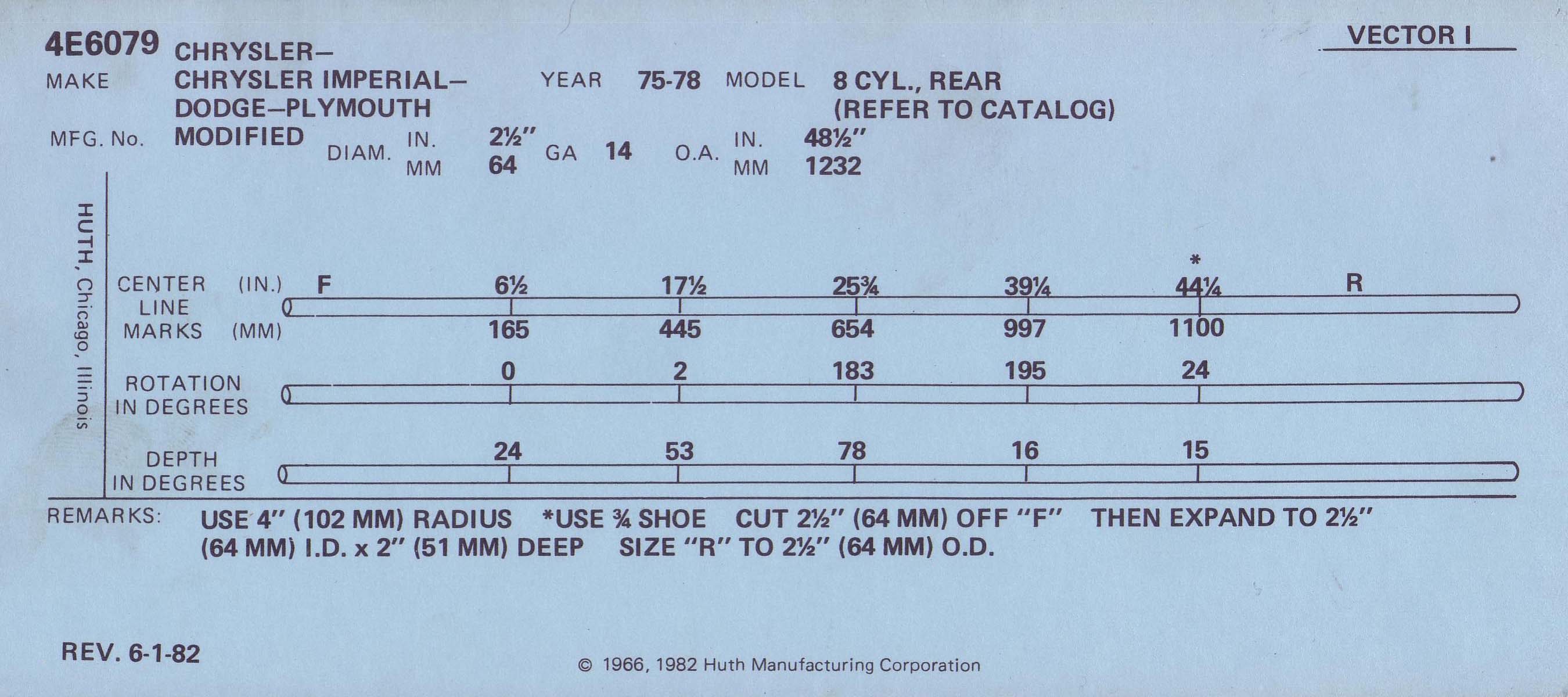

75-78 All, Rear

Larger, printable version



Having trouble with printouts coming out way too small, or pieces of a document printing acro  ss   sev   eral  page   s?

Then go to our "How To Print Imperial Literature" page to learn how to print an item at the size you'd like.
