1981-1983 Imperial Carburetor Retrofit Manual




Imperial Home Page -> Repair -> Fuel -> 1981-1983 -> Retrofit Manual




This page includes scans of the entire 1981 - 1982 - 1983 Model Year Imperial Carburetor Retrofit Instruction Manual. In each case, you can choose from viewable (approx. 100 K file sizes) or printable (approx. 500 K file sizes) scans.



We also have a number of pictures of a dealer installed carburetor conversion on Dan Wing's 1983 Imperial.





Revisions (Read First)

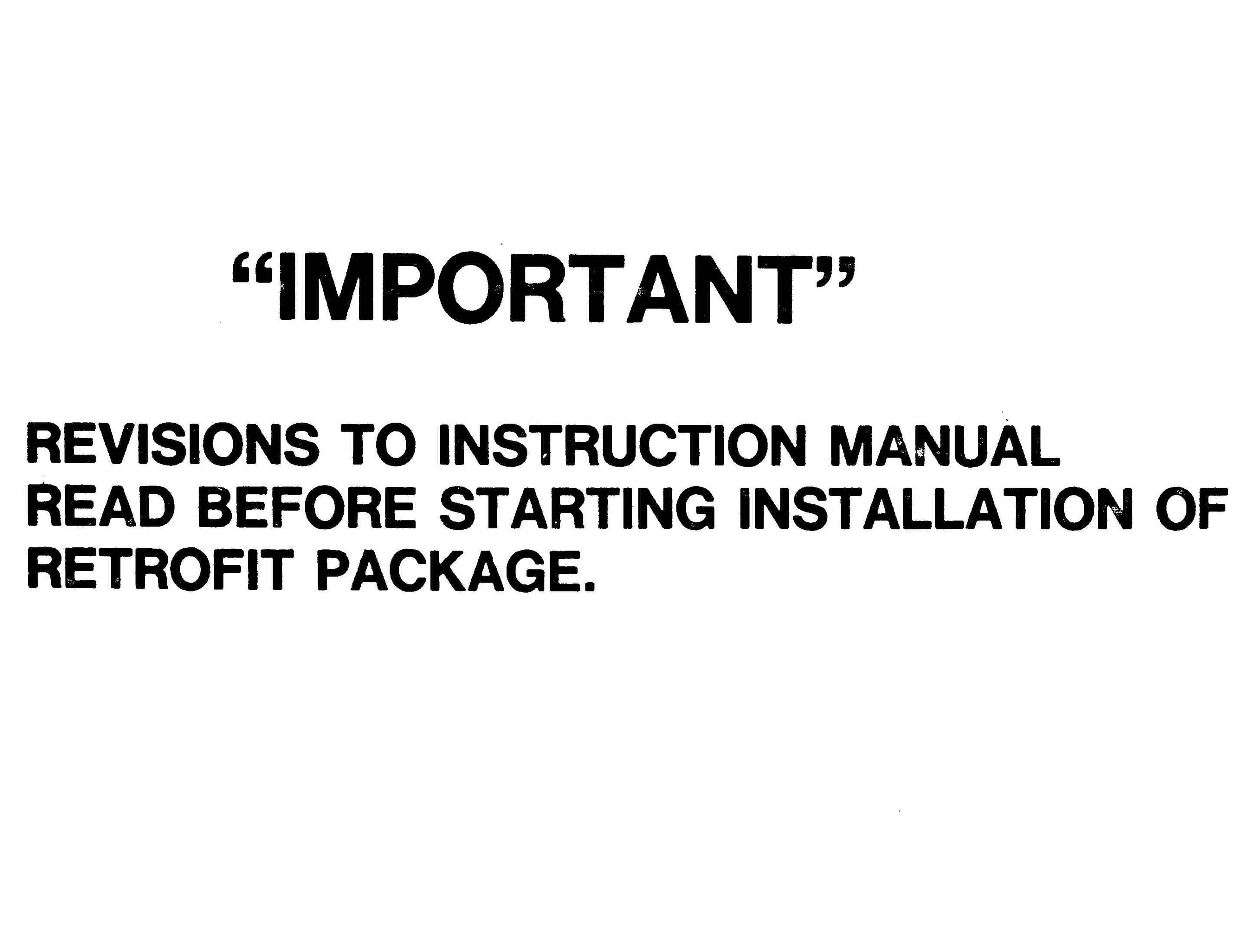

Rev. 01:  Important Revisions.  (Viewable / Printable)

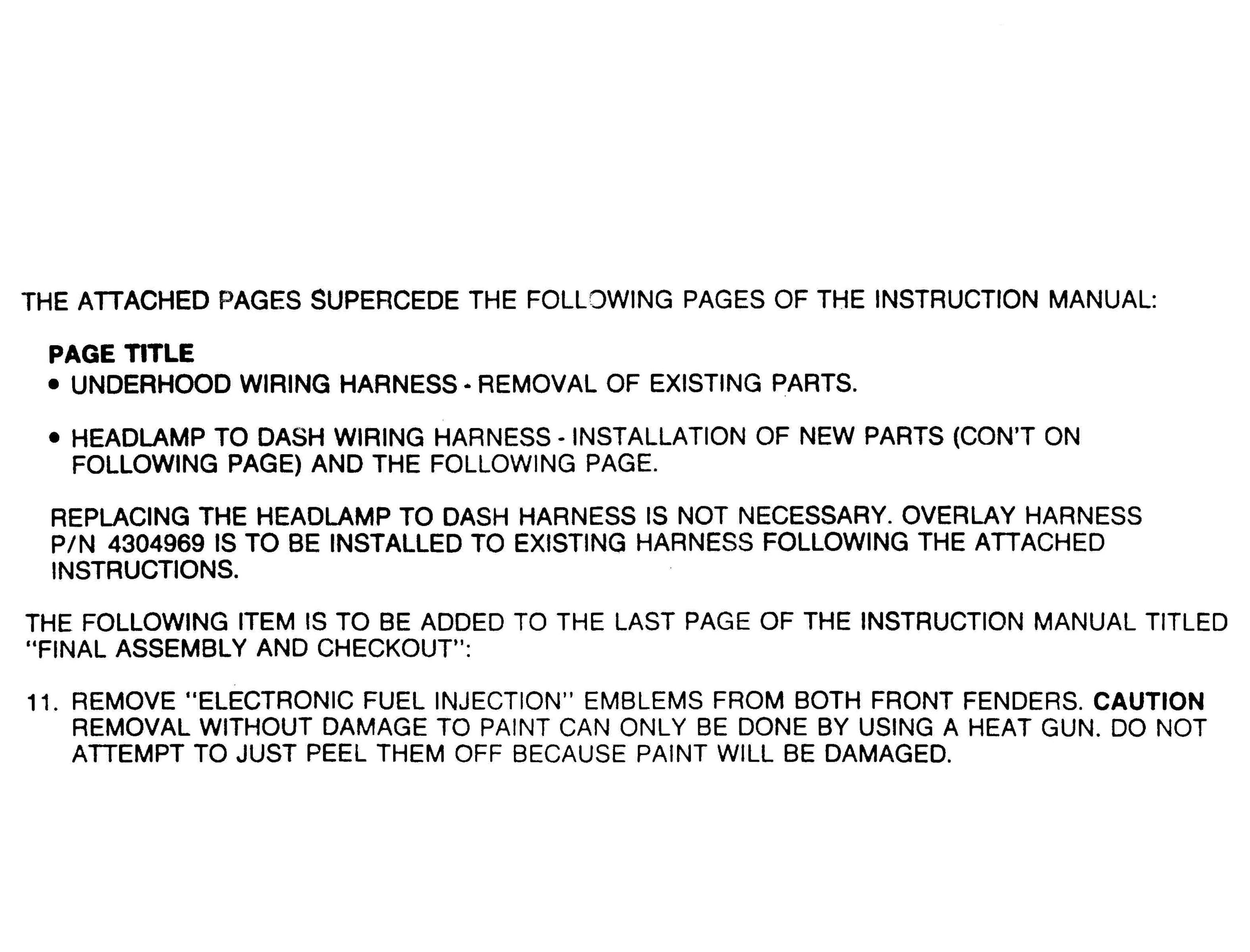

Rev. 02:  Addition to "Final Assembly".  (Viewable / Printable)

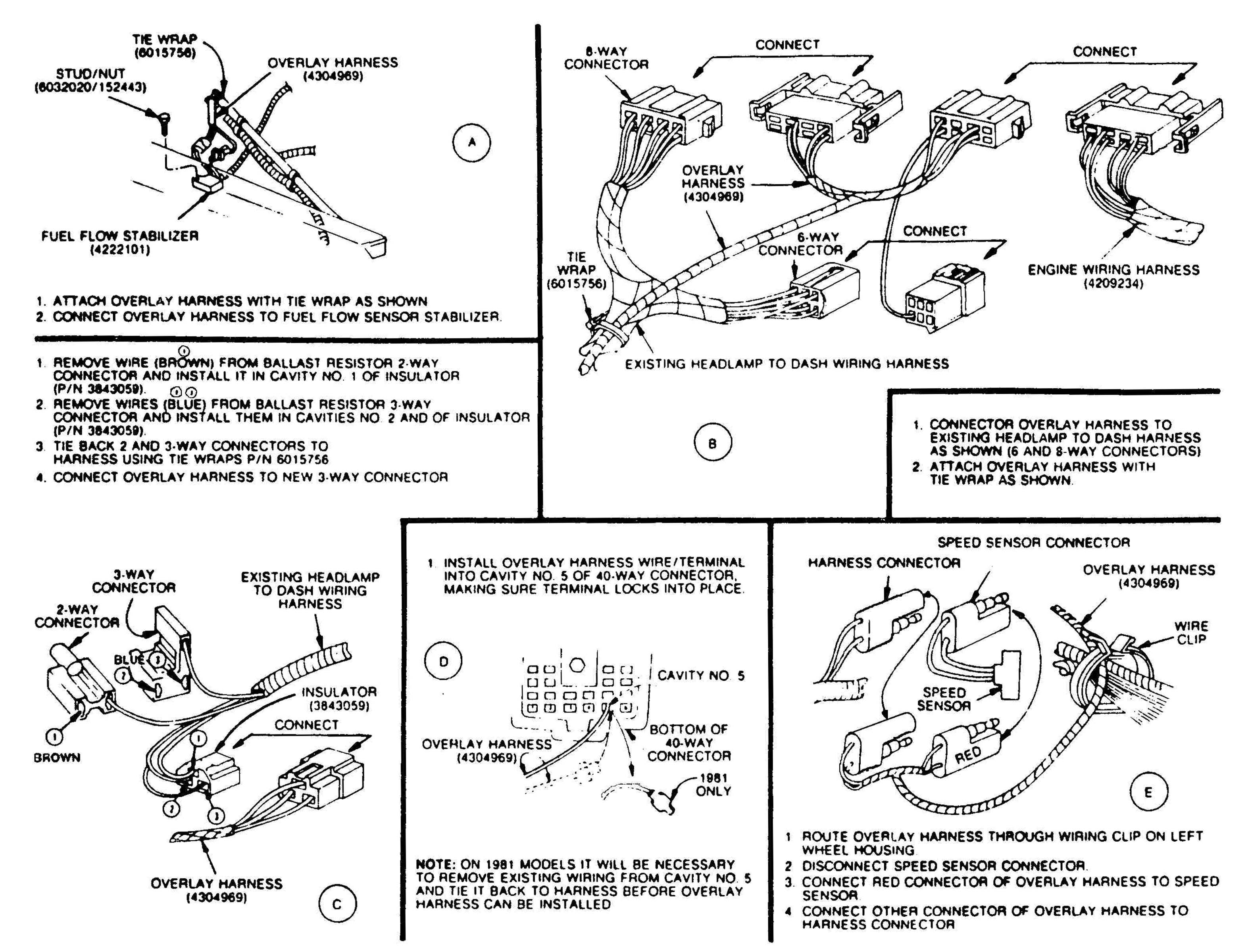

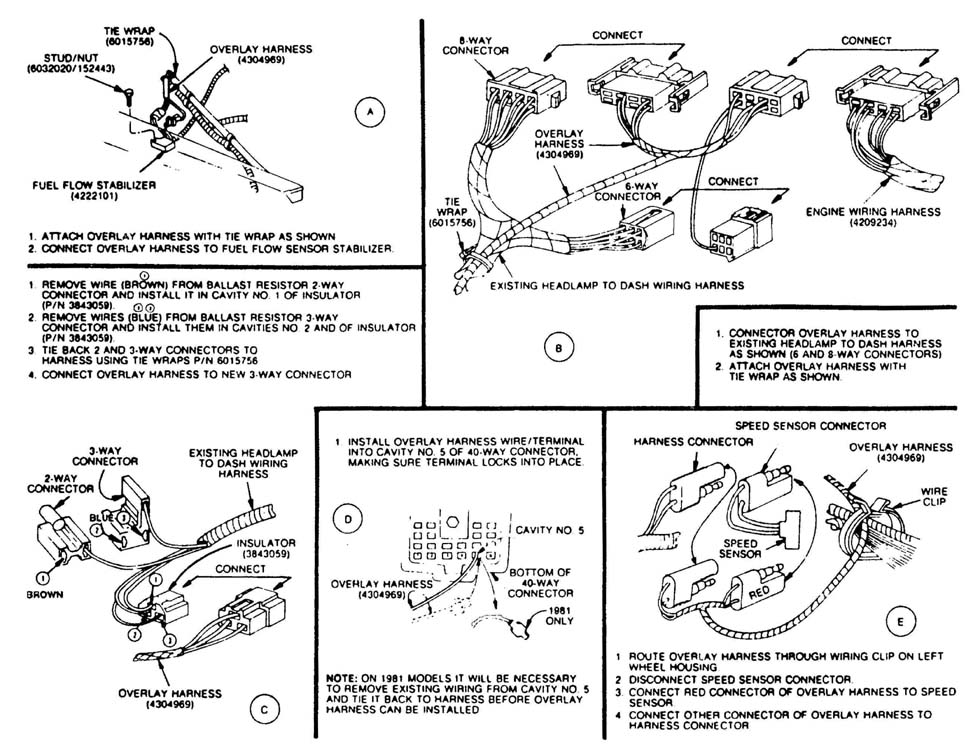

Rev. 03:  Wiring Changes.  (Viewable / Printable)

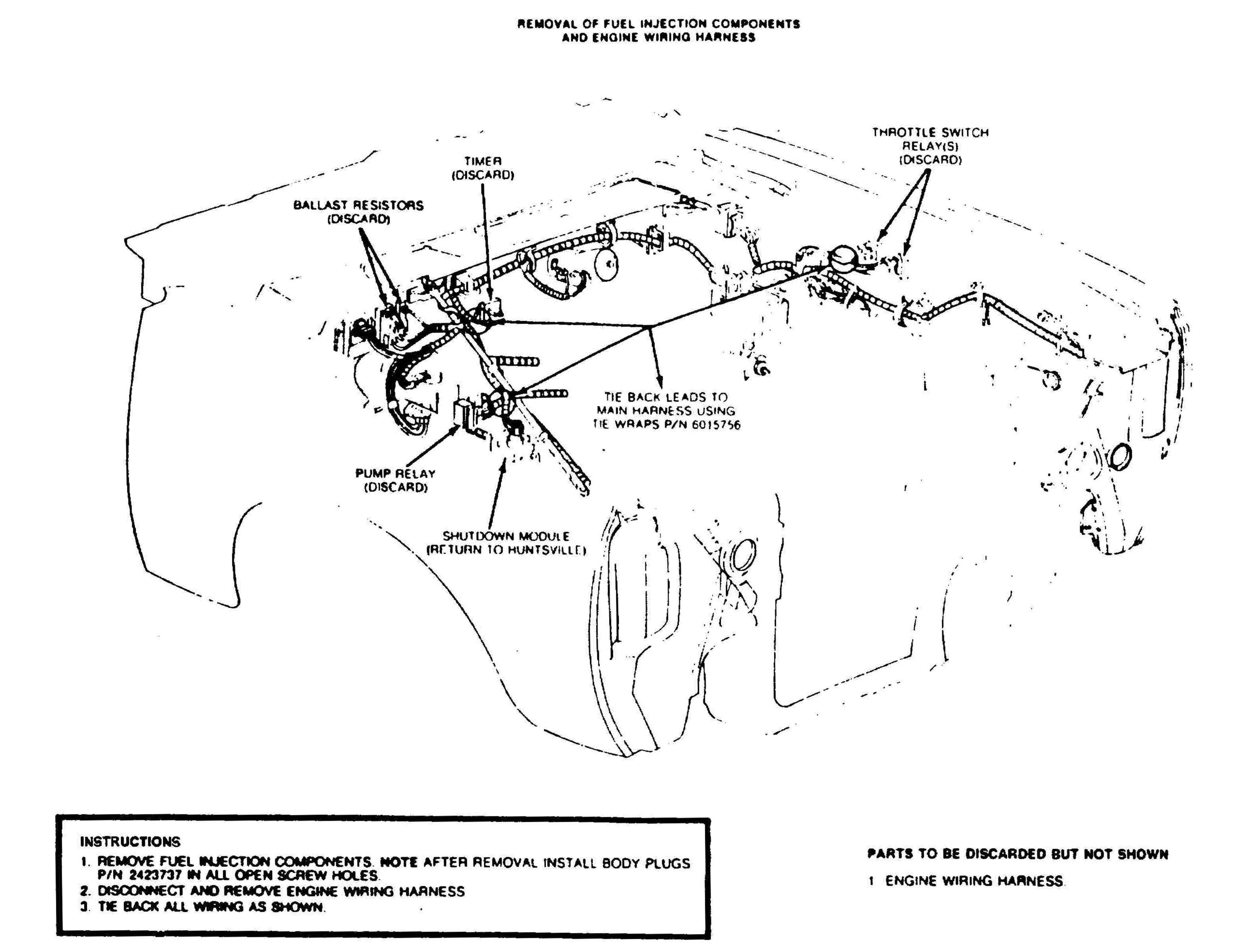

Rev. 04:  Removal of Components, Engine Wiring Harness.  (Viewable / Printable)

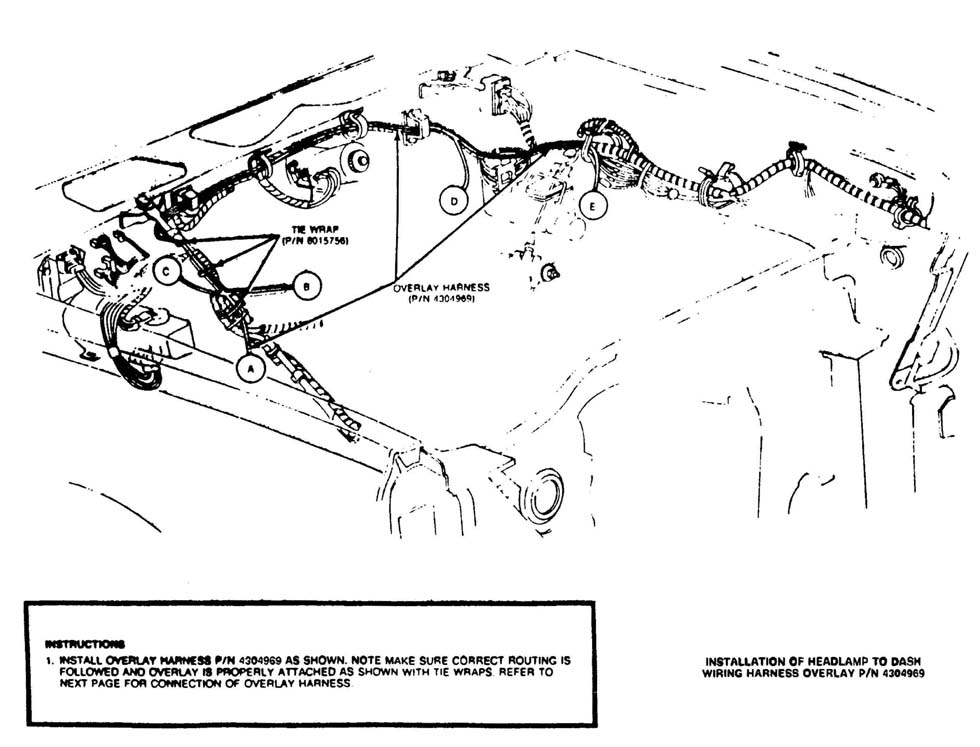

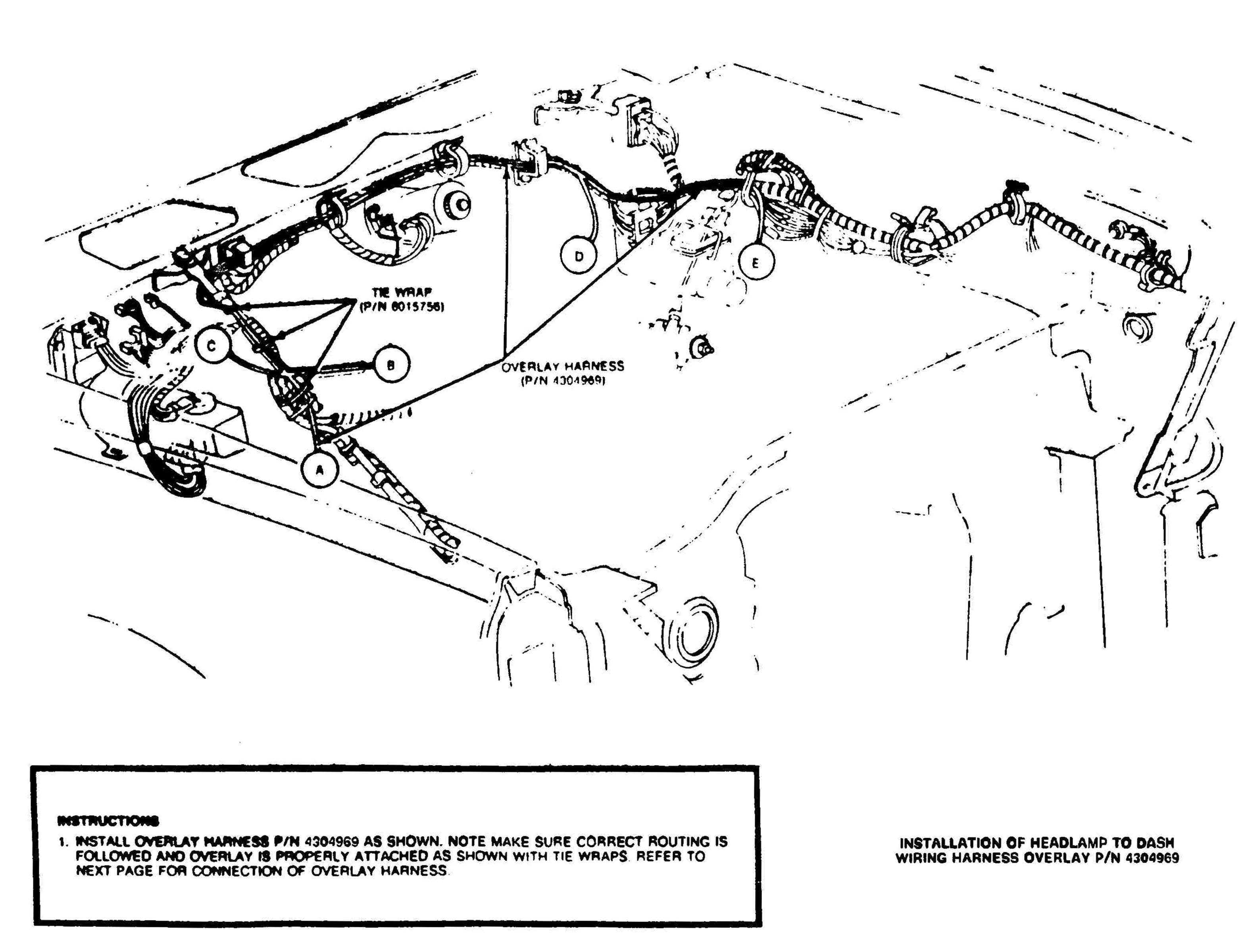

Rev. 05:  Headlamp to Dash Wiring Harness.  (Viewable / Printable)



Retrofit Manual

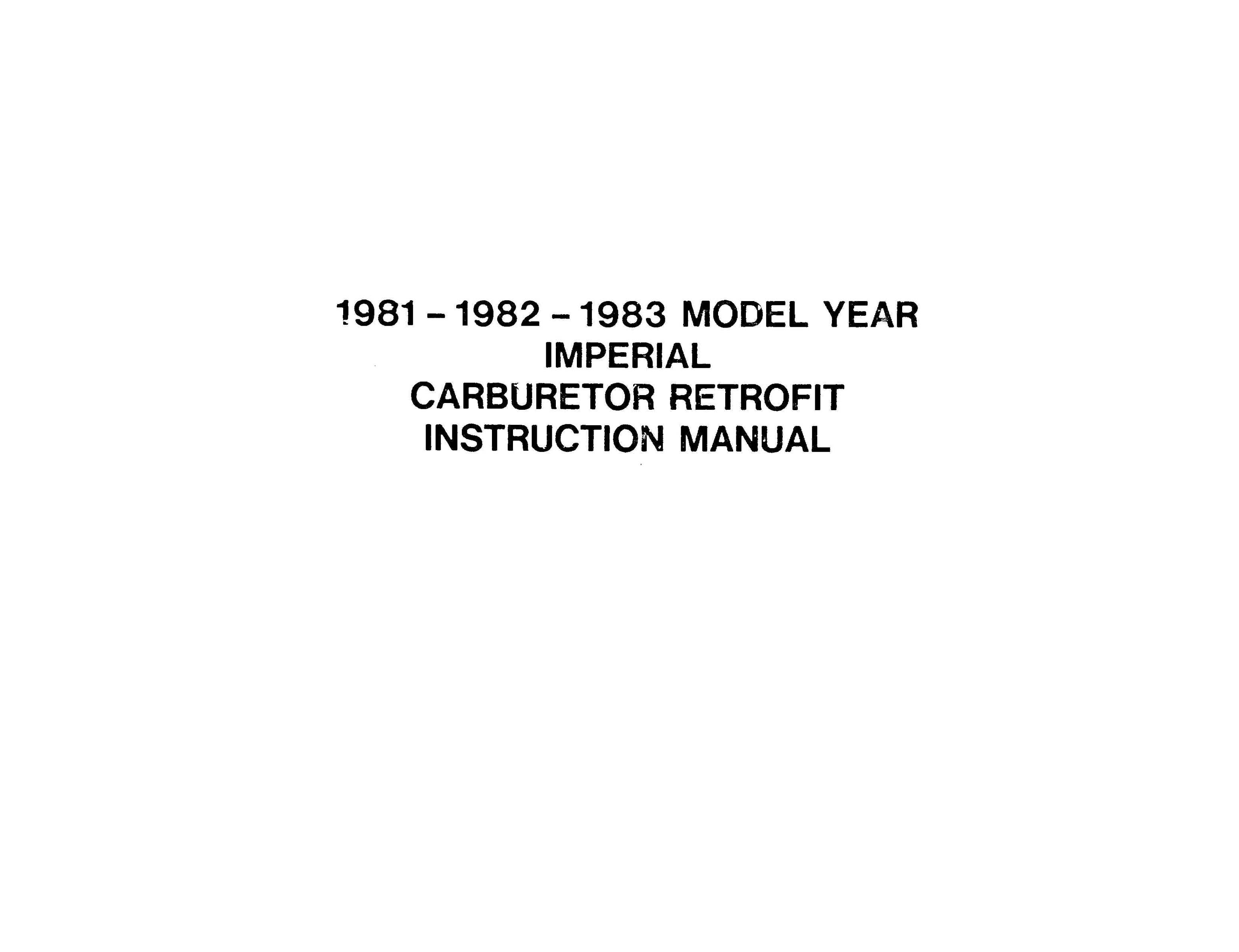

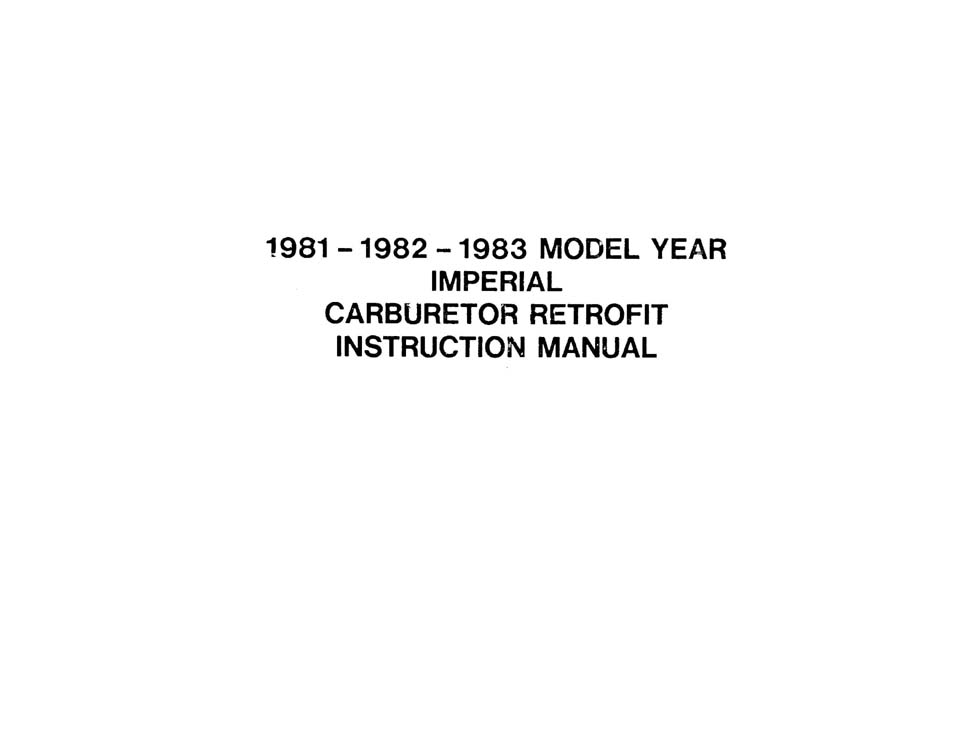

Page 01:  Cover.  (Viewable / Printable)

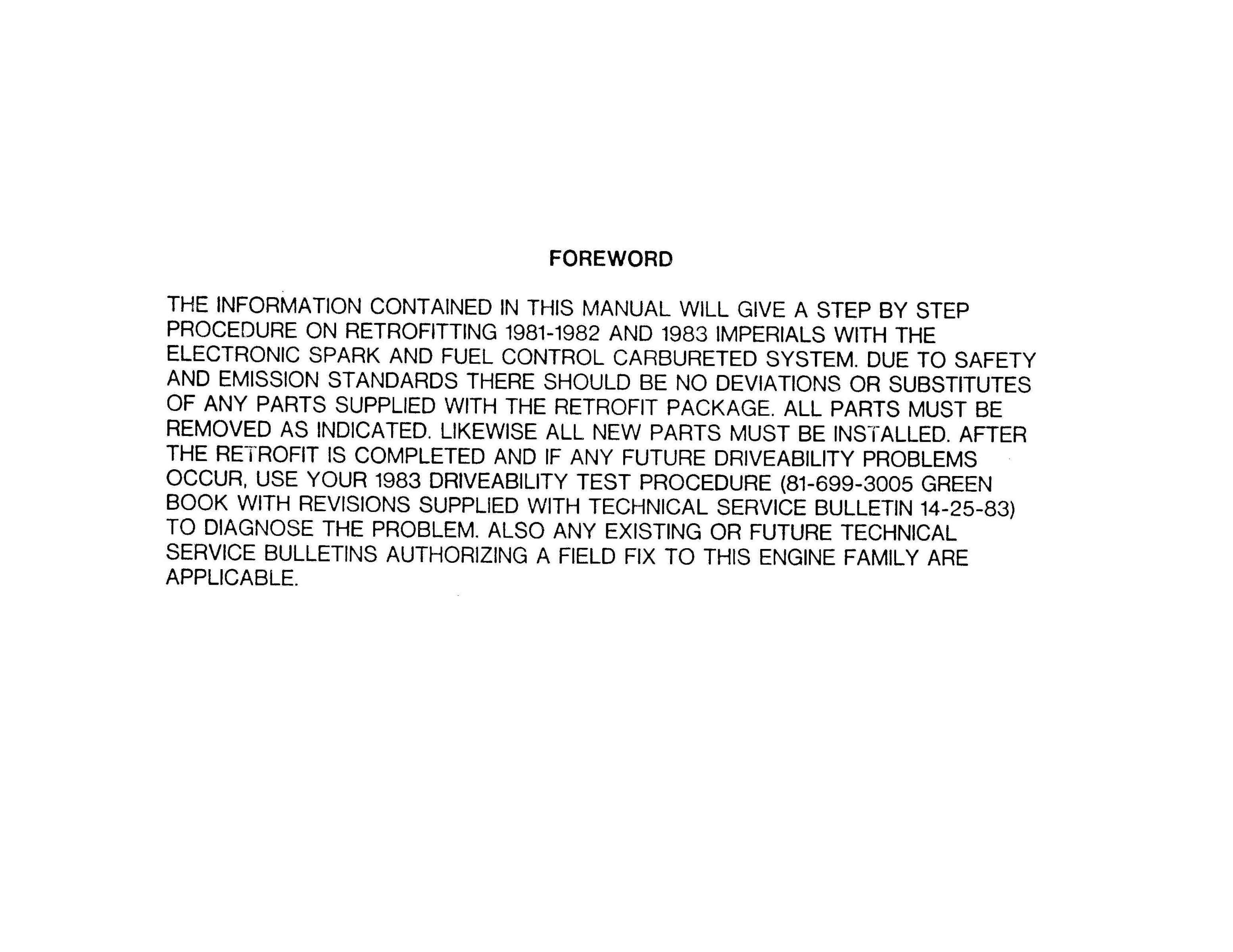

Page 02:  Foreward.  (Viewable / Printable)

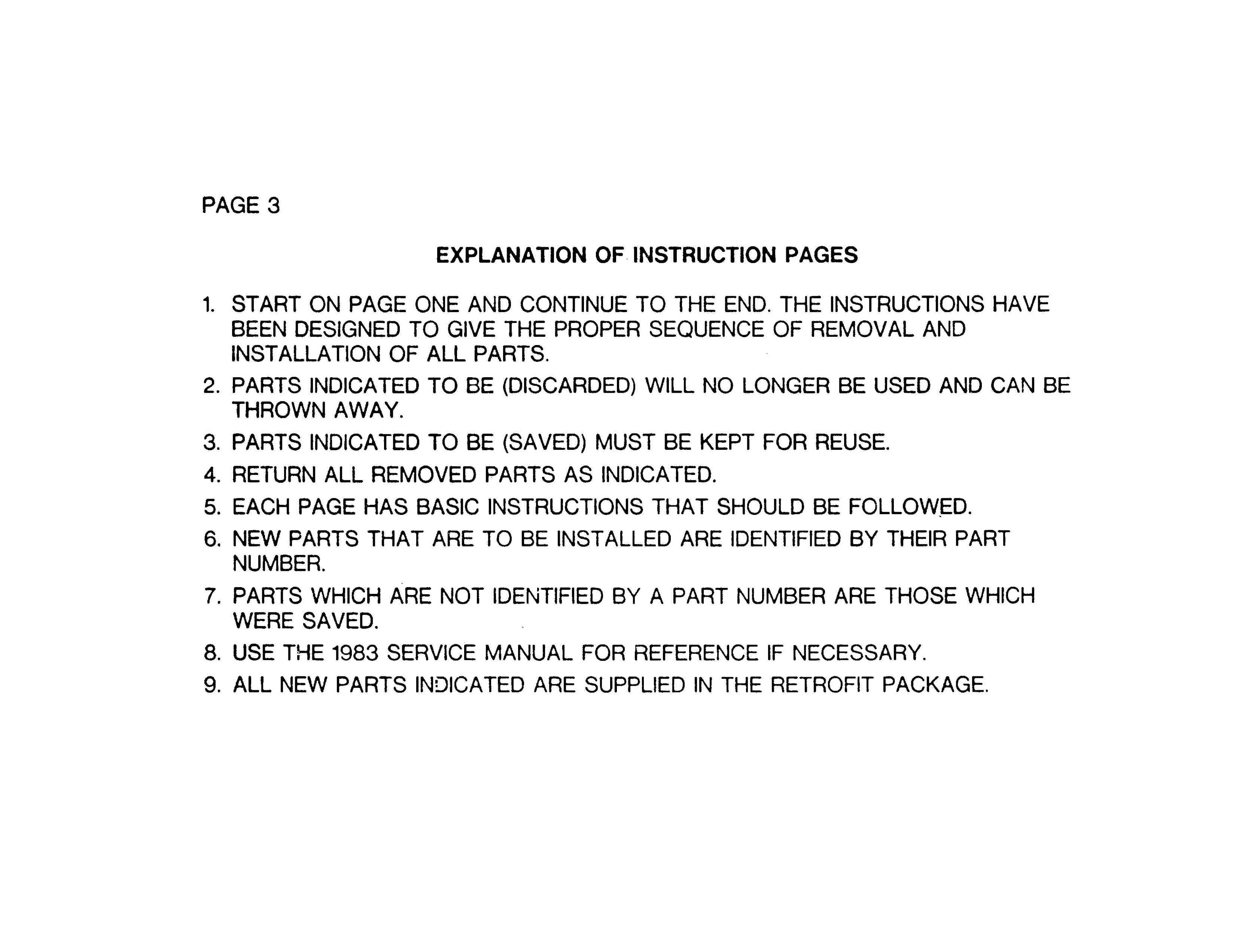

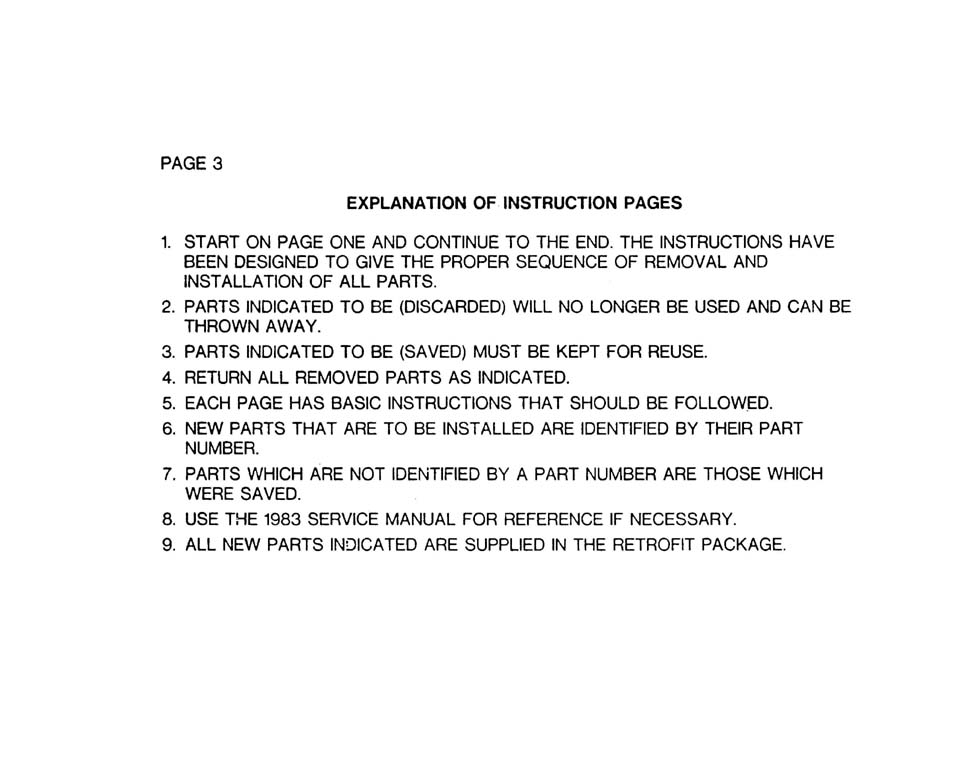

Page 03:  Explanation of Instruction Pages.  (Viewable / Printable)

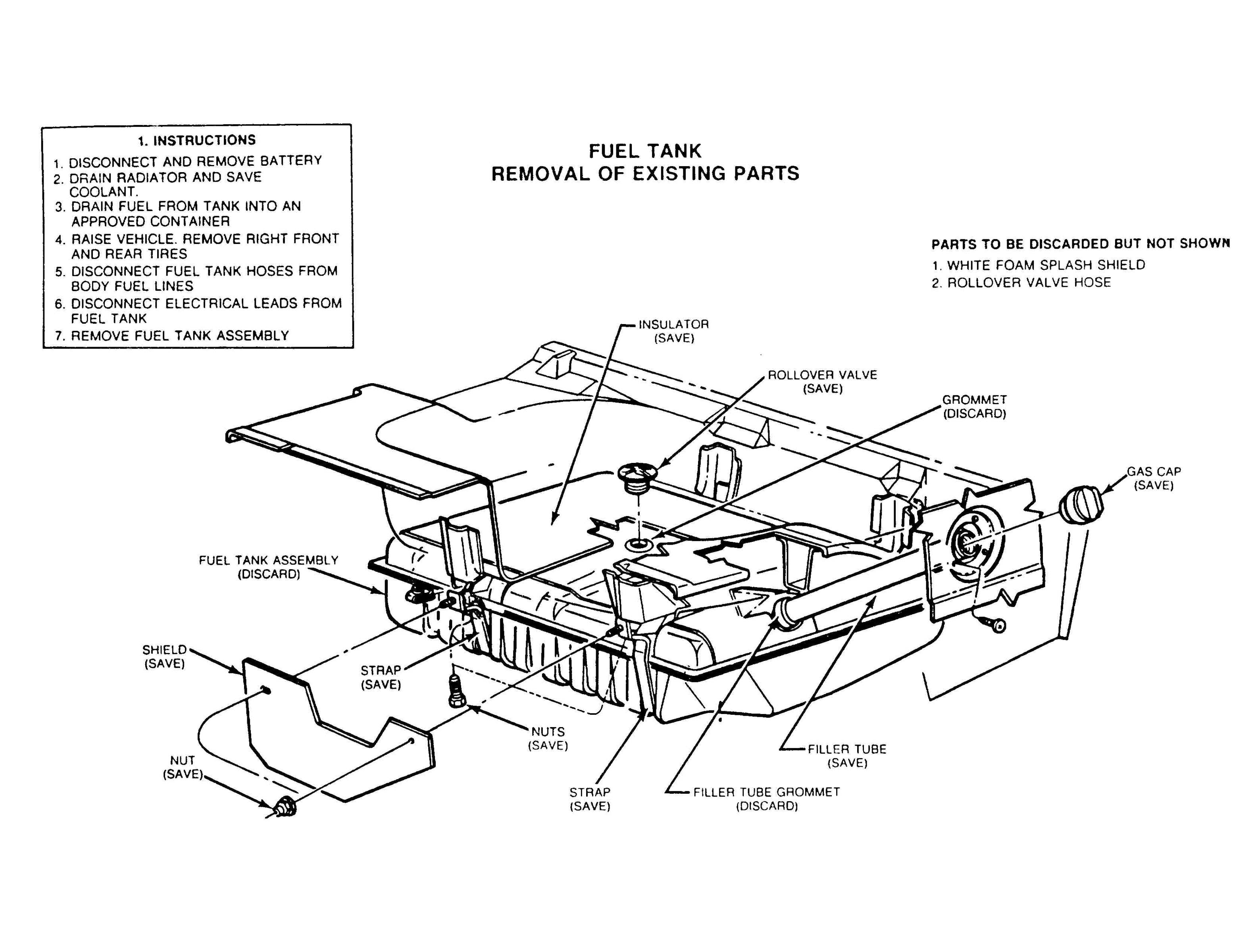

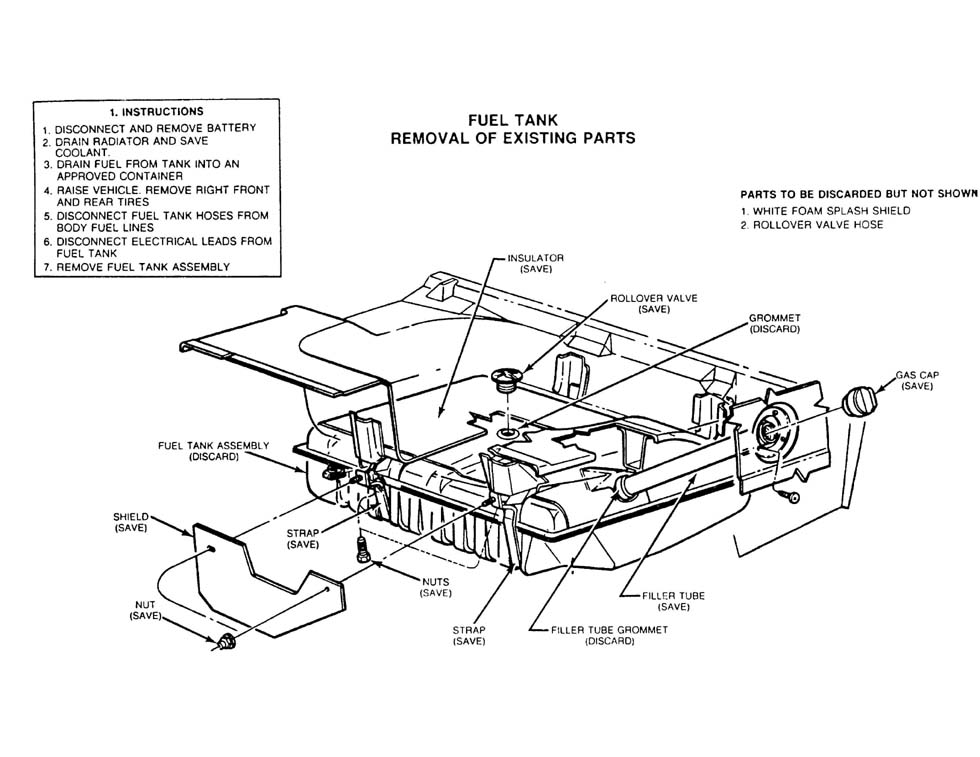

Page 04:  Fuel Tank, Removal.  (Viewable / Printable)

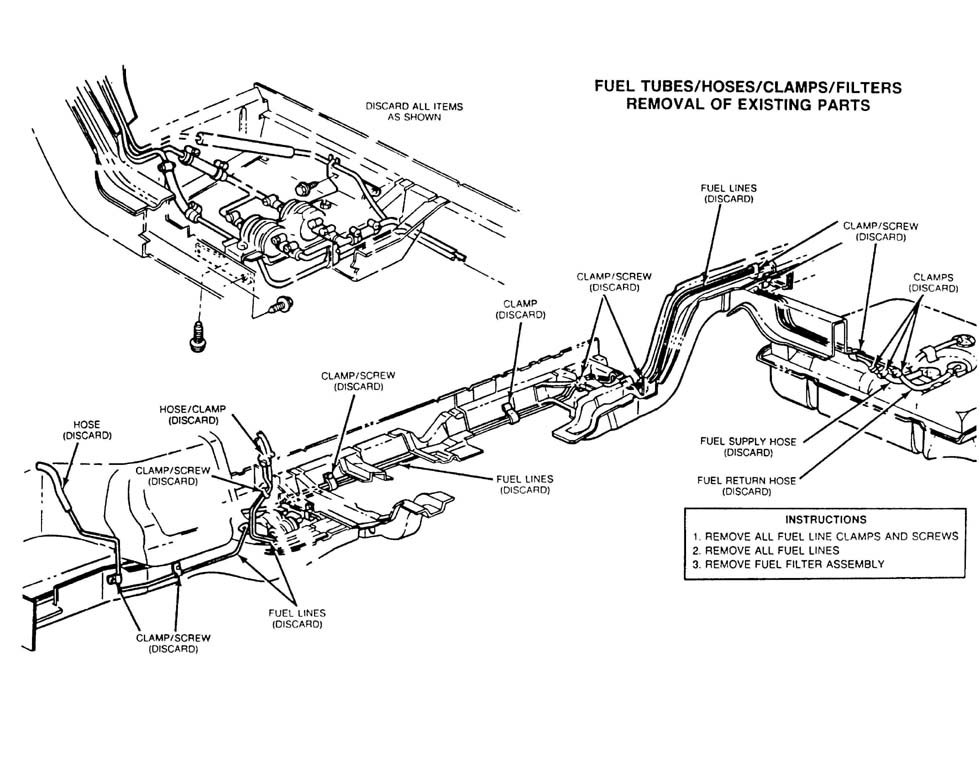

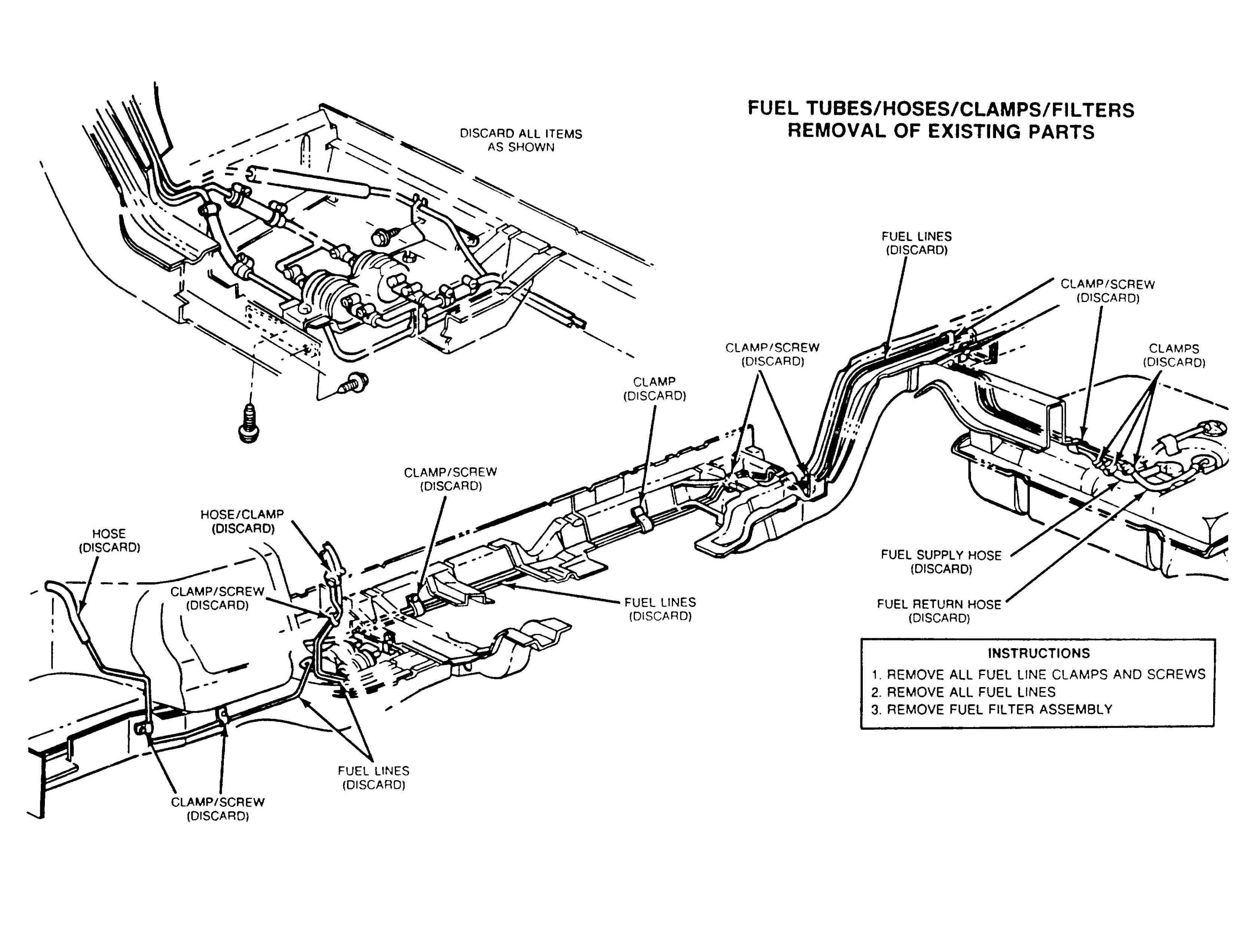

Page 05:  Fuel Tubes/Hoses/Clamps/Filters, Removal.  (Viewable / Printable)

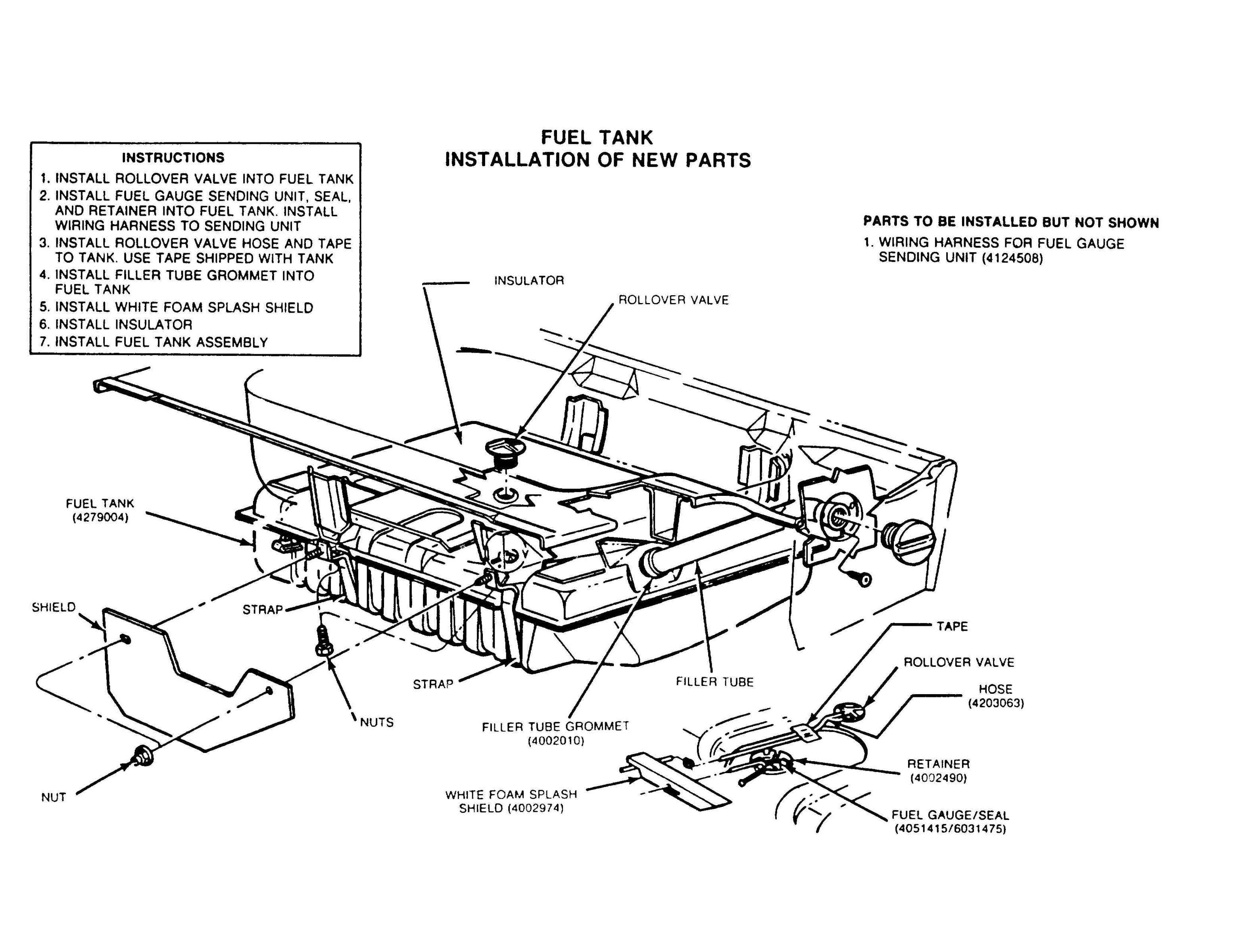

Page 06:  Fuel Tank, Installation.  (Viewable / Printable)

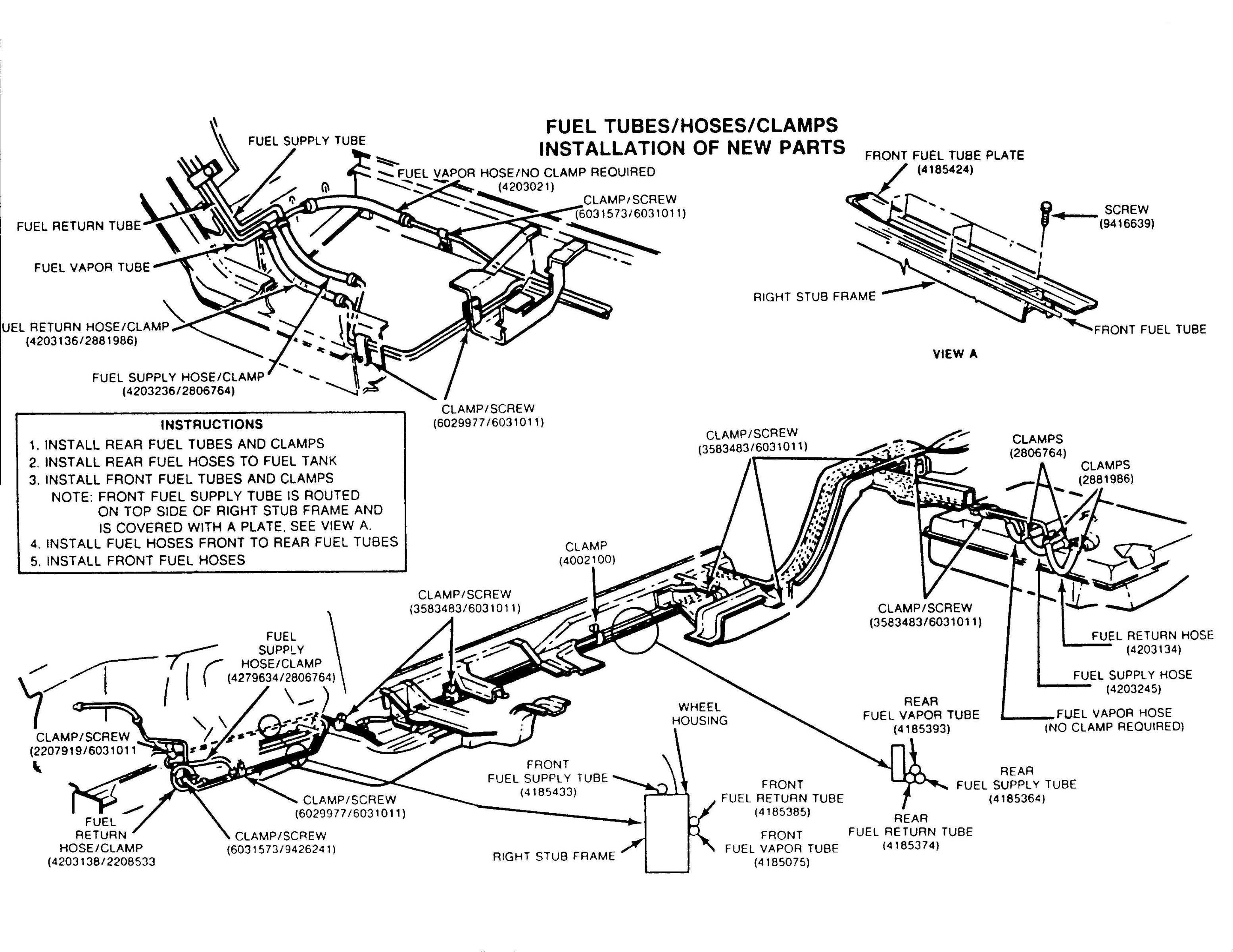

Page 07:  Fuel Tubes/Hoses/Clamps, Installation.  (Viewable / Printable)

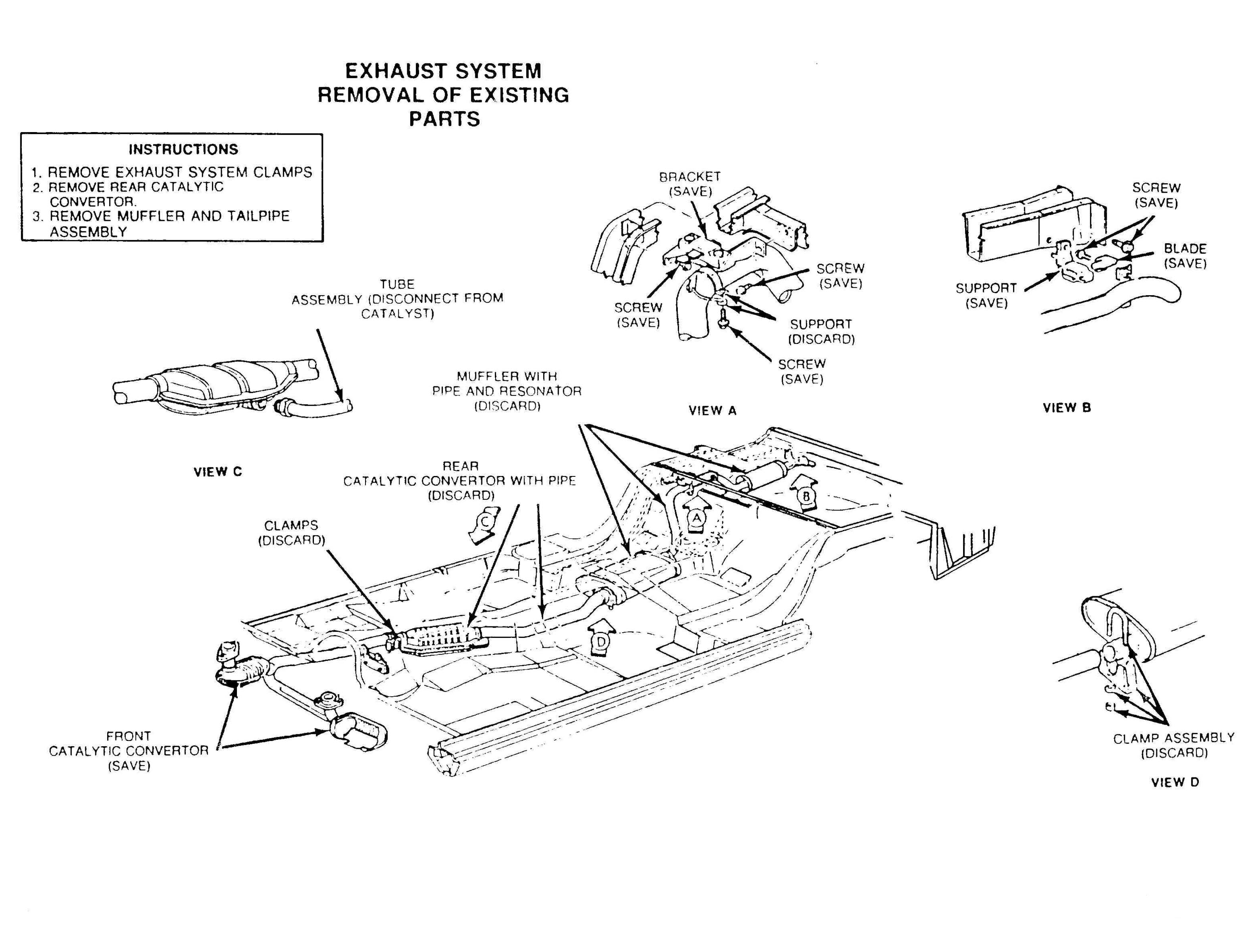

Page 08:  Exhaust System, Removal.  (Viewable / Printable)

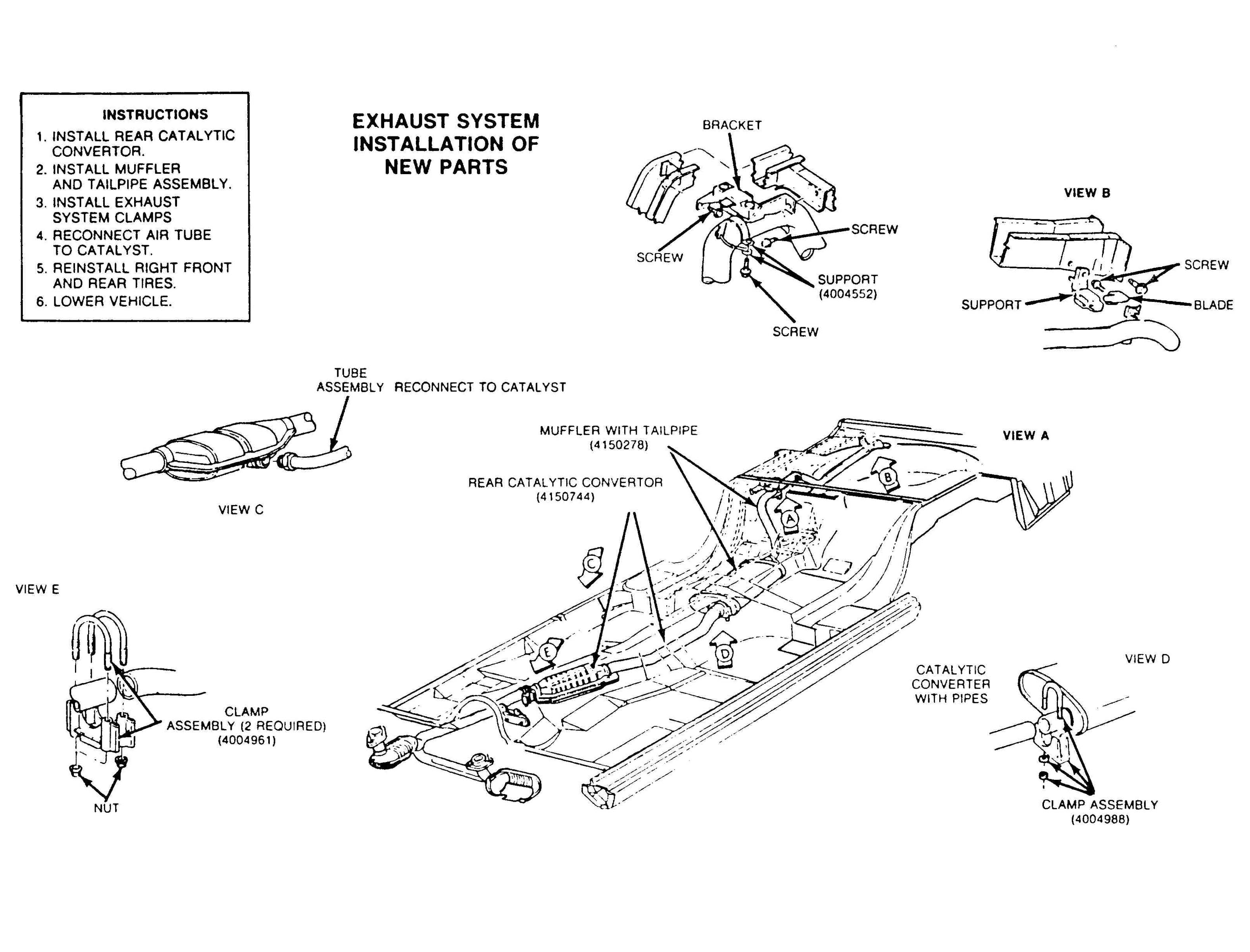

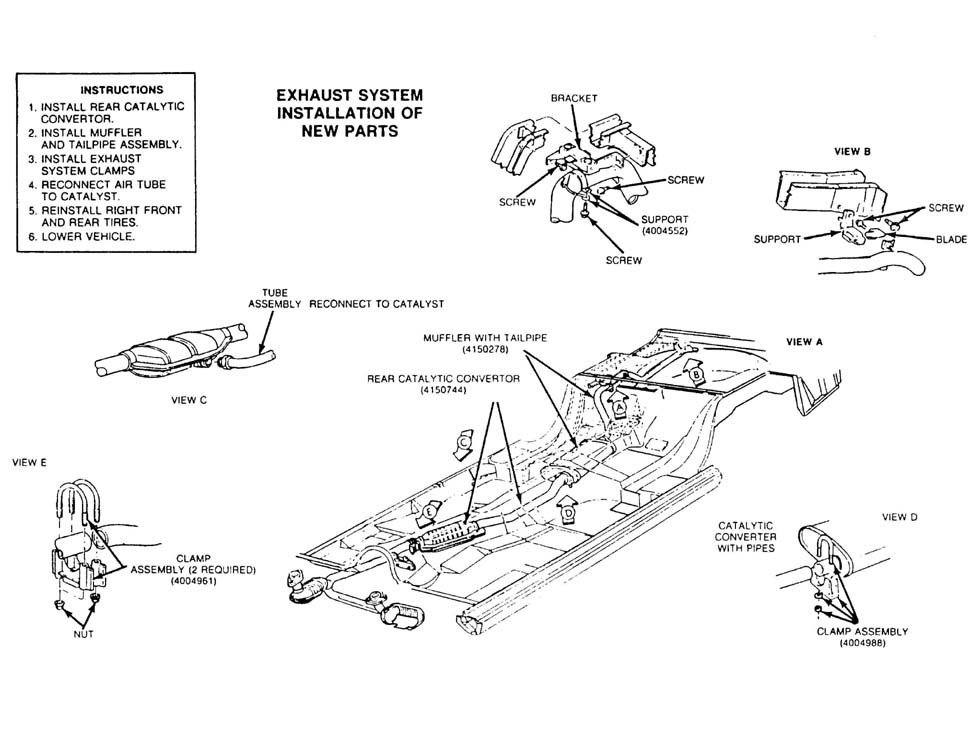

Page 09:  Exhaust System, Installation.  (Viewable / Printable)

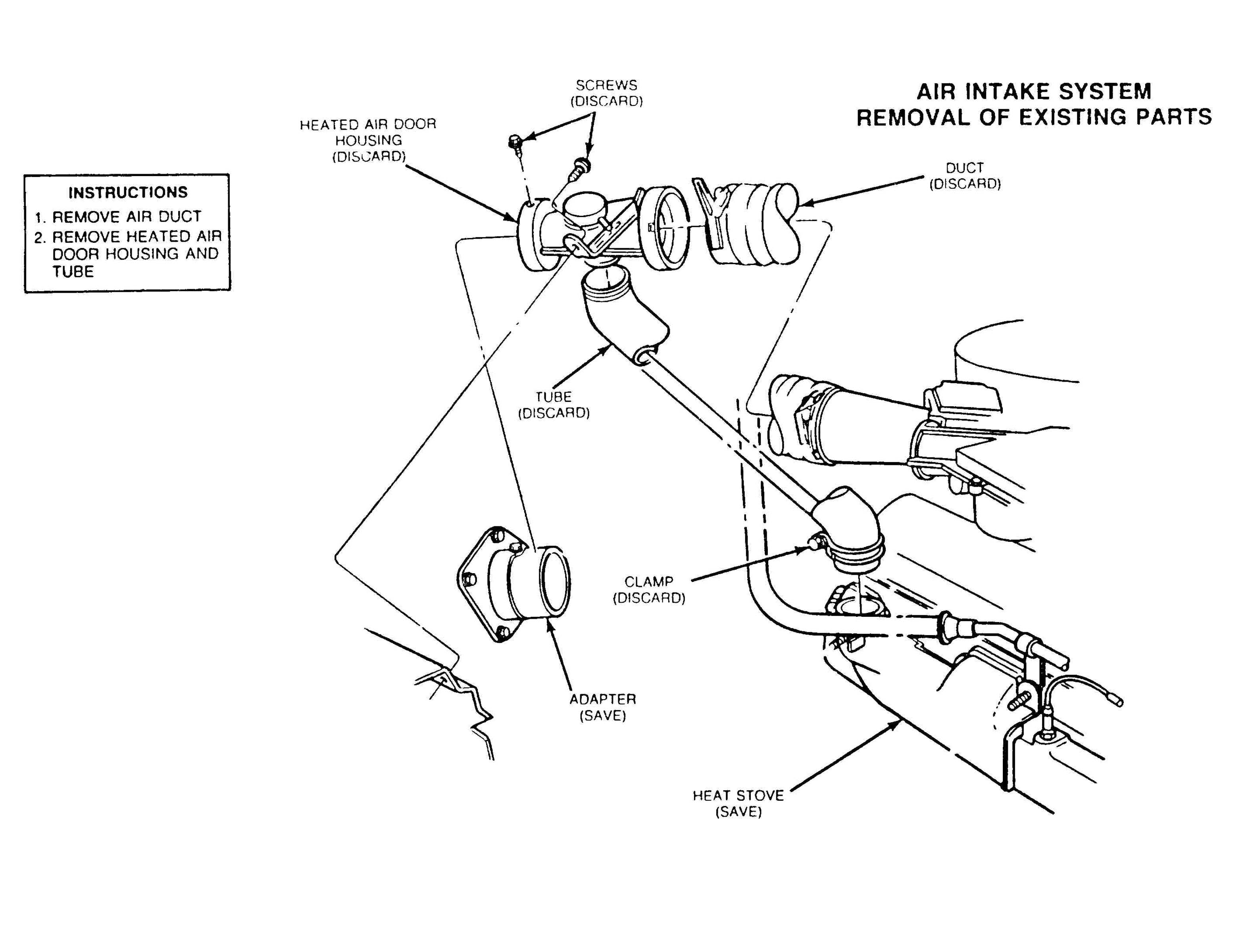

Page 10:  Air Intake System, Removal.  (Viewable / Printable)

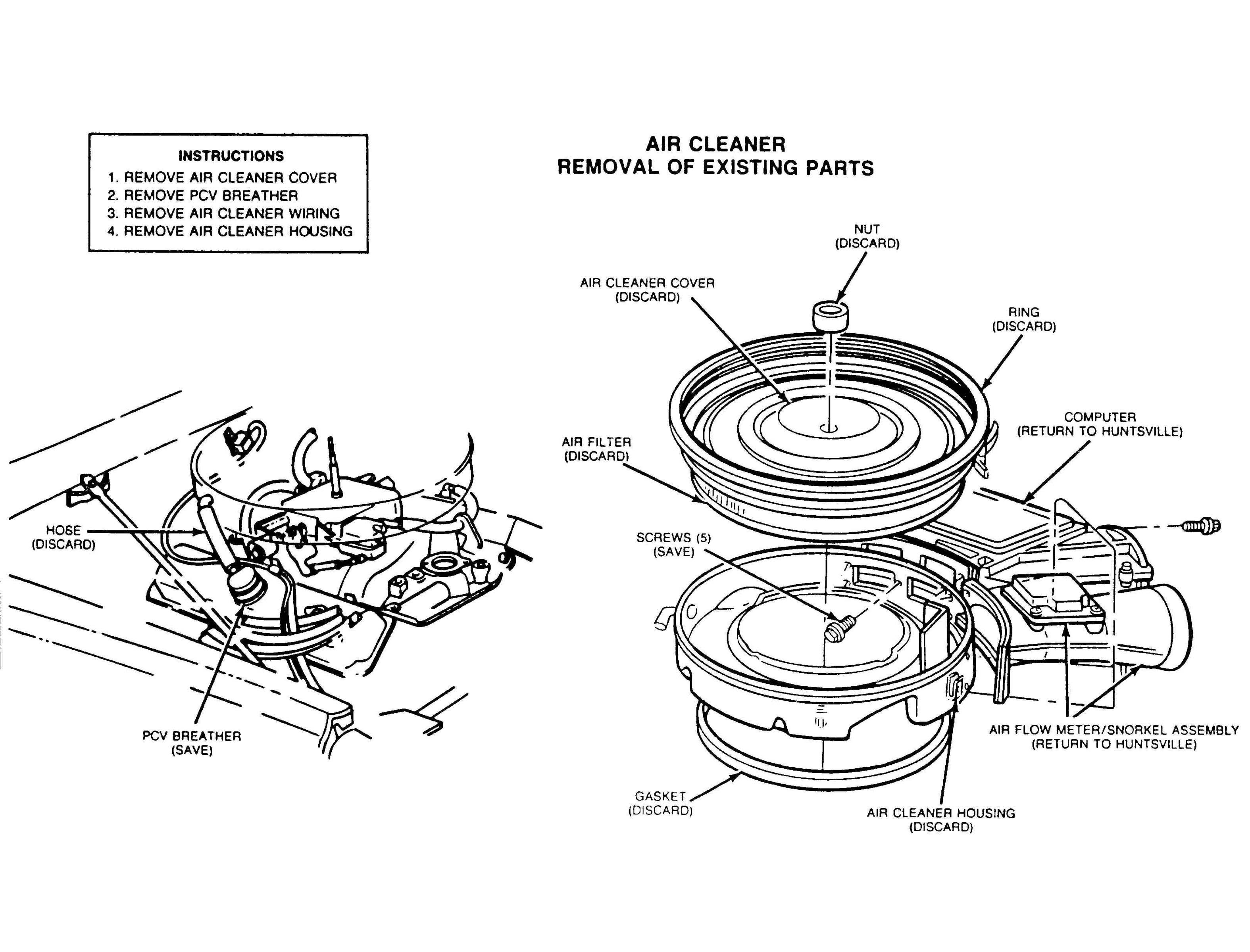

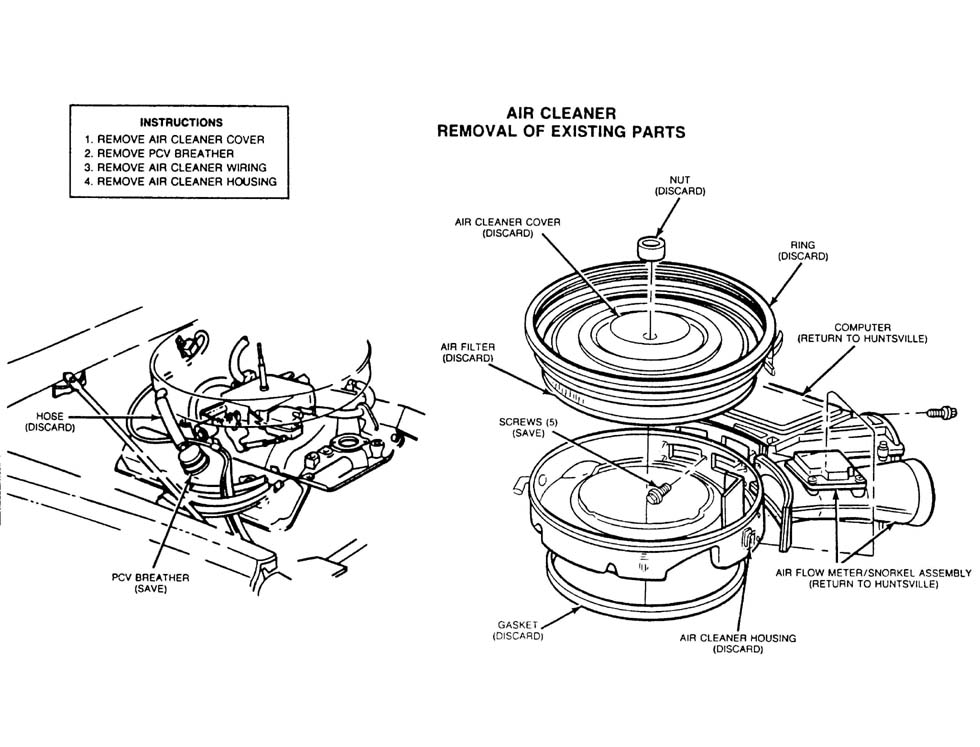

Page 11:  Air Cleaner, Removal.  (Viewable / Printable)

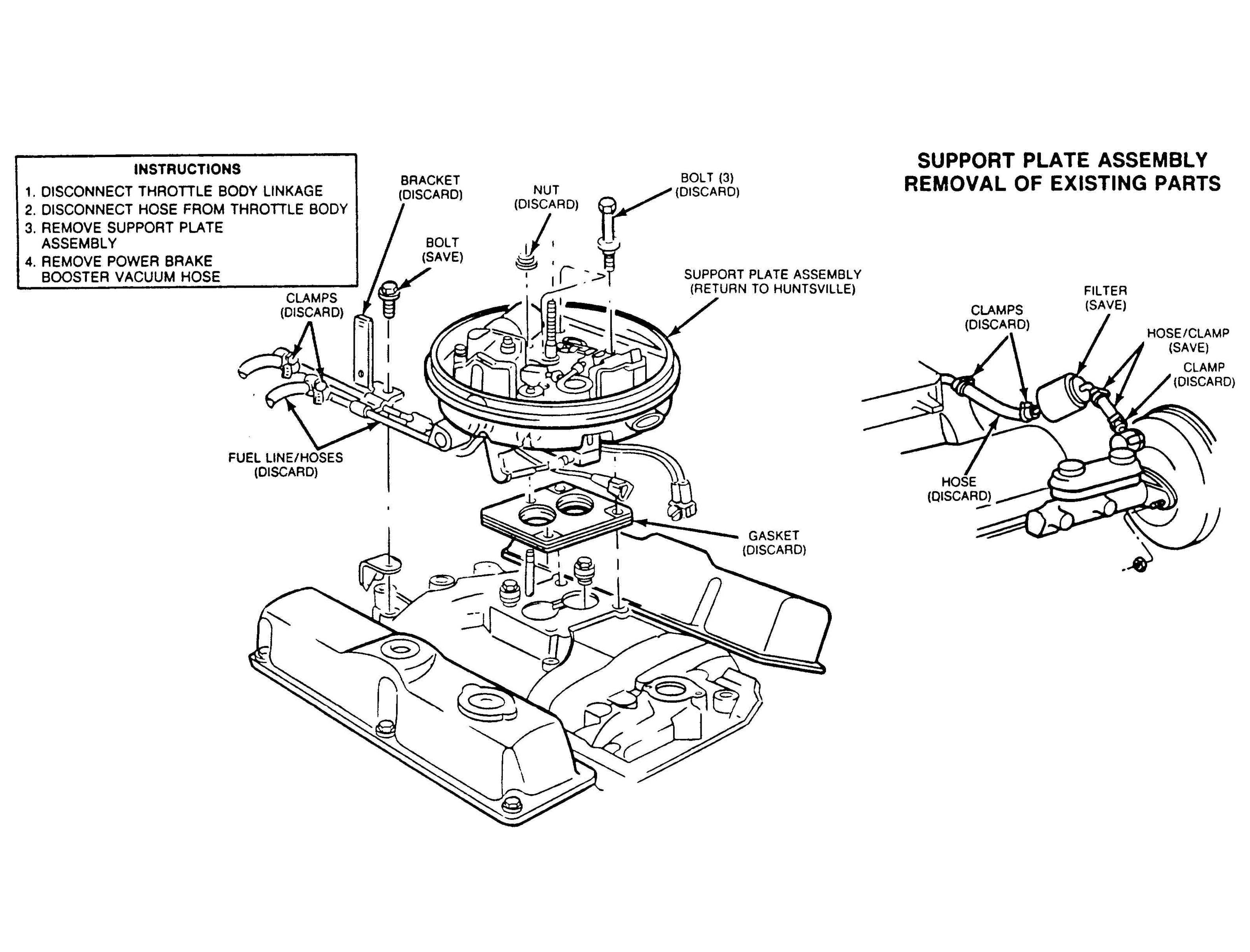

Page 12:  Support Plate Assembly, Removal.  (Viewable / Printable)

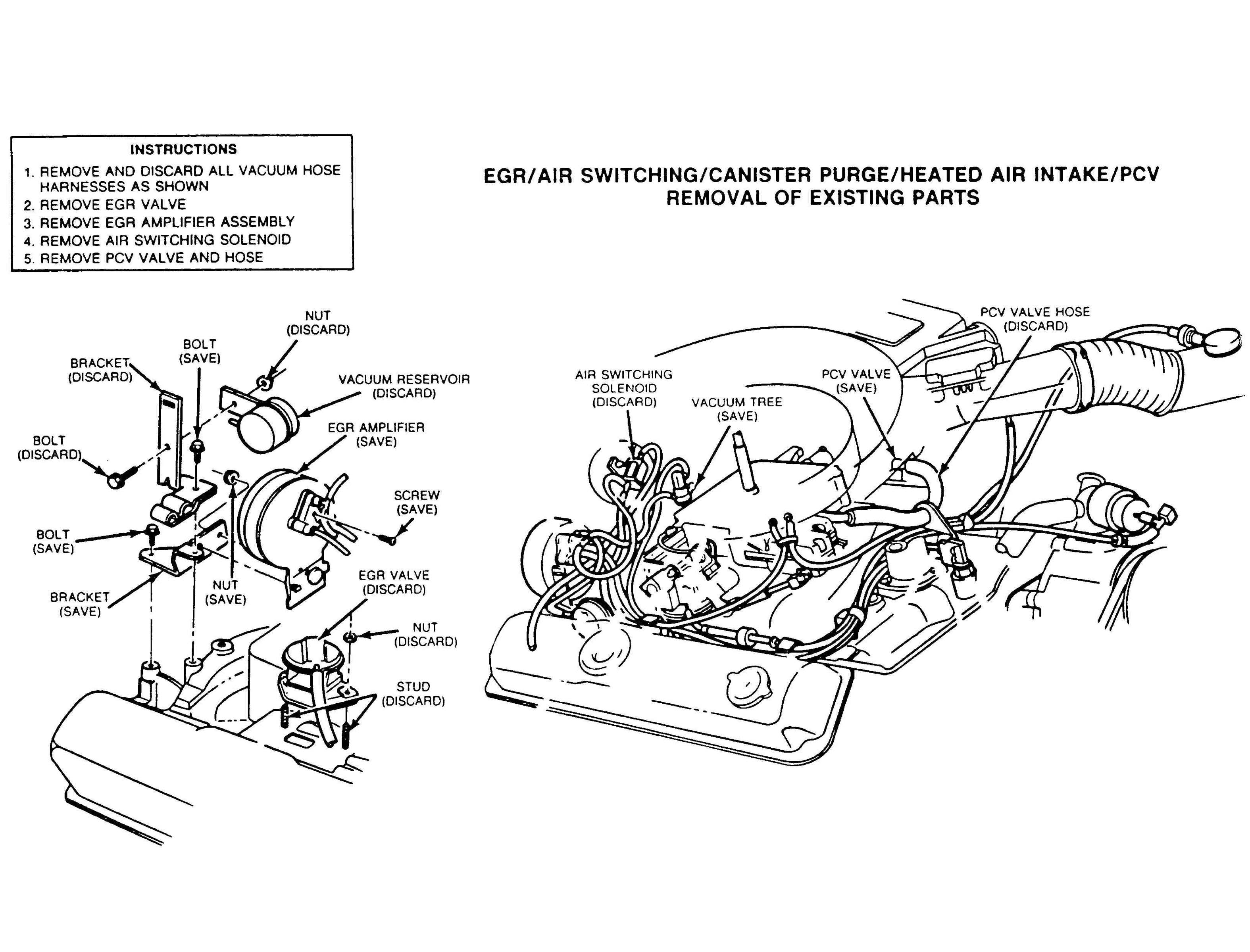

Page 13:  EGR/Air Switching/Canister Purge/Heated Air Intake/PCV, Removal.  (Viewable / Printable)

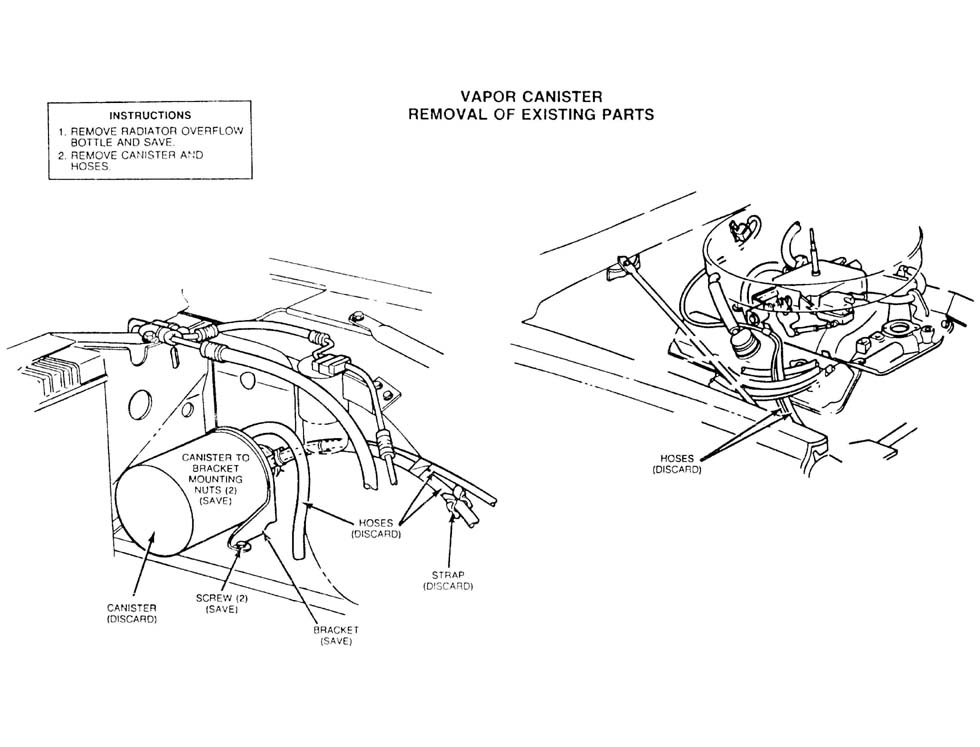

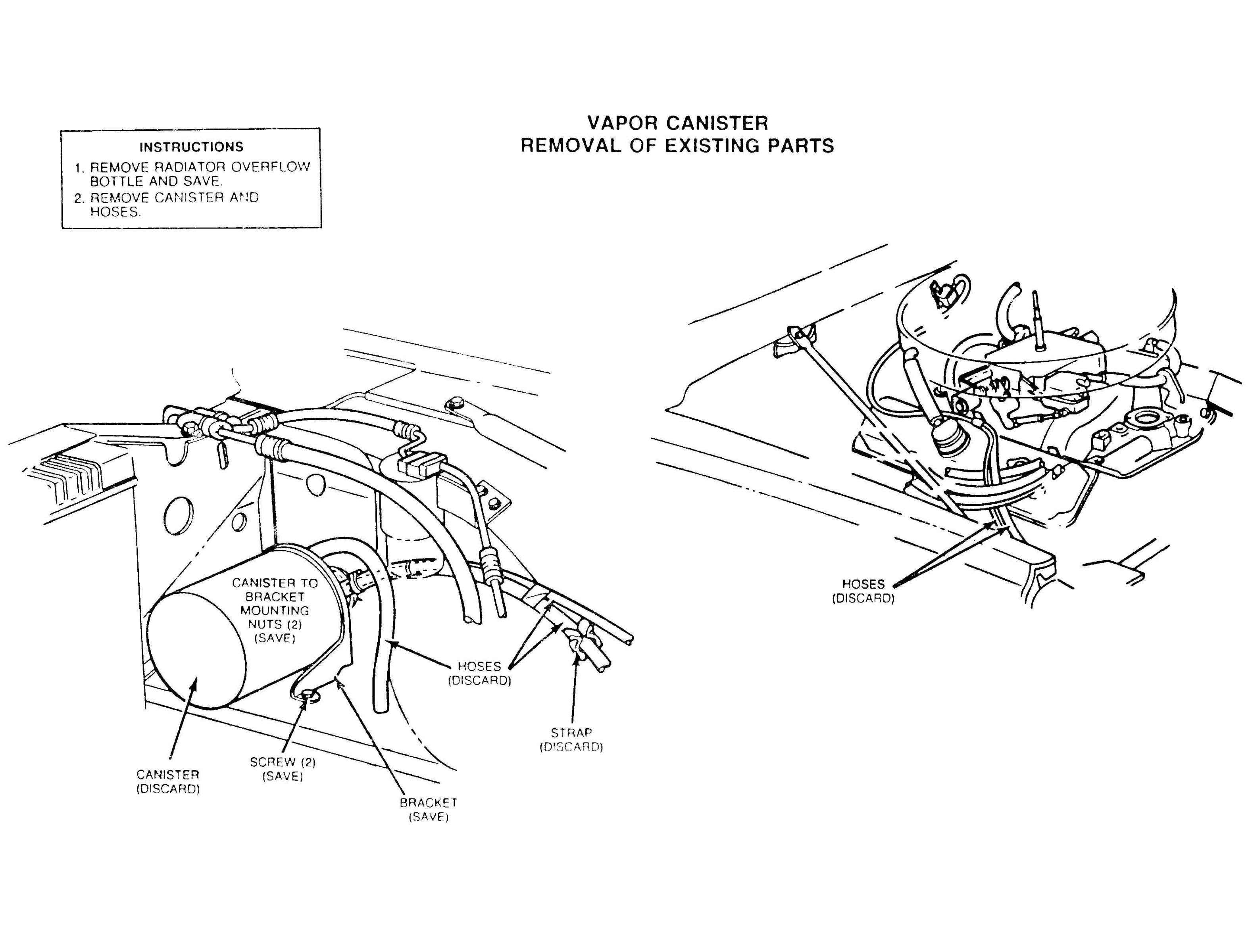

Page 14:  Vapor Canister, Removal.  (Viewable / Printable)

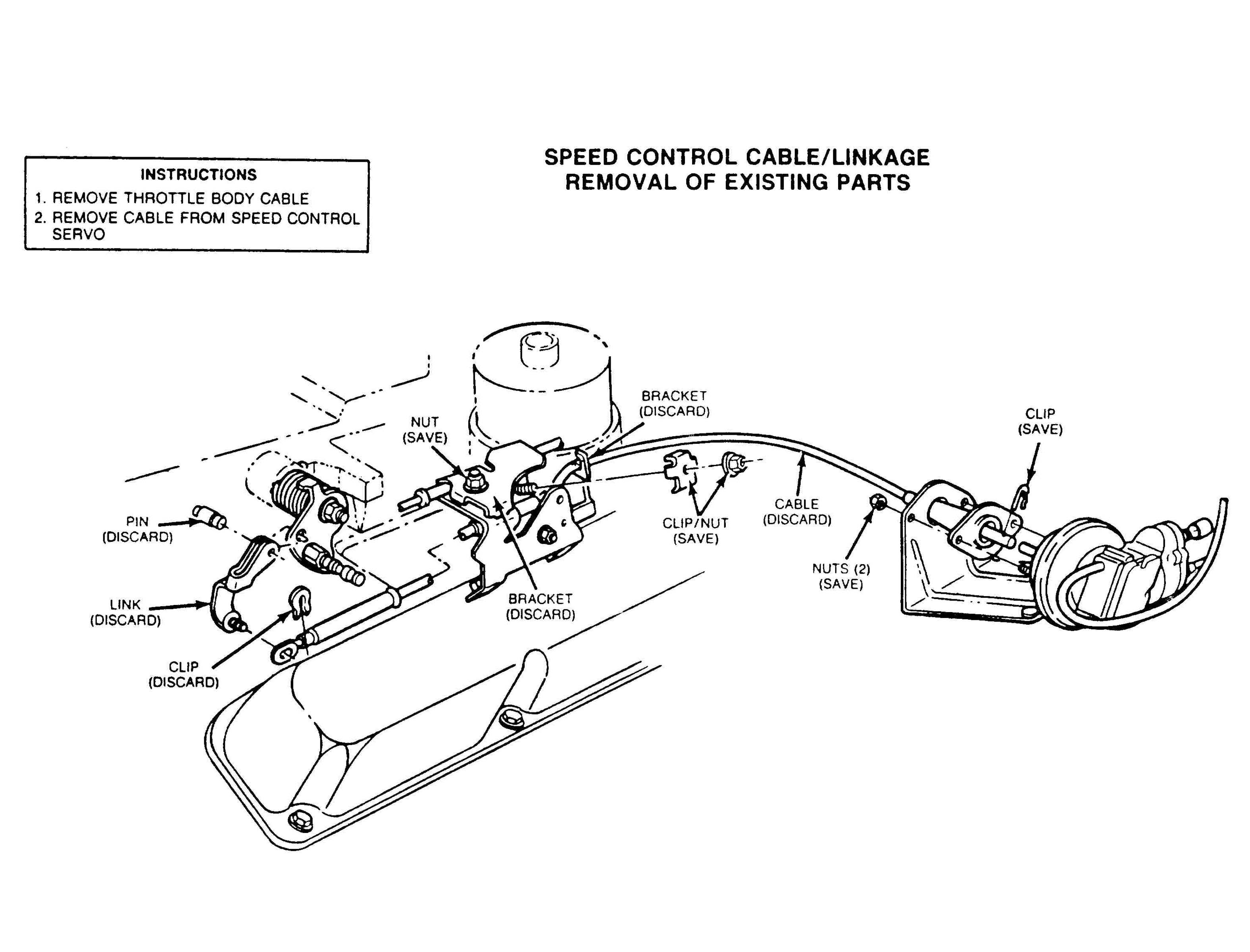

Page 15:  Speed Control Cable/Linkage, Removal.  (Viewable / Printable)

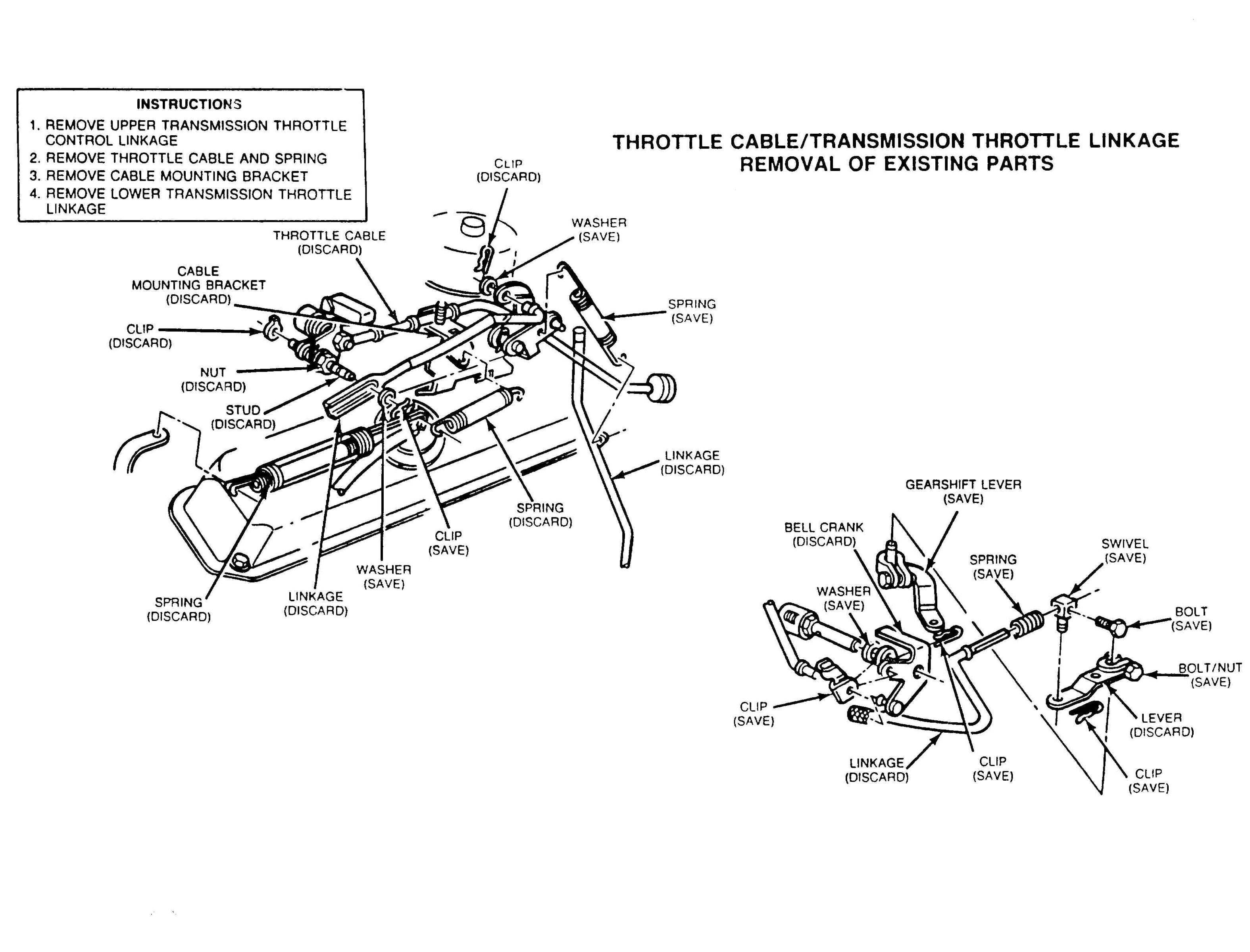

Page 16:  Throttle Cable/Transmission Throttle Linkage, Removal.  (Viewable / Printable)

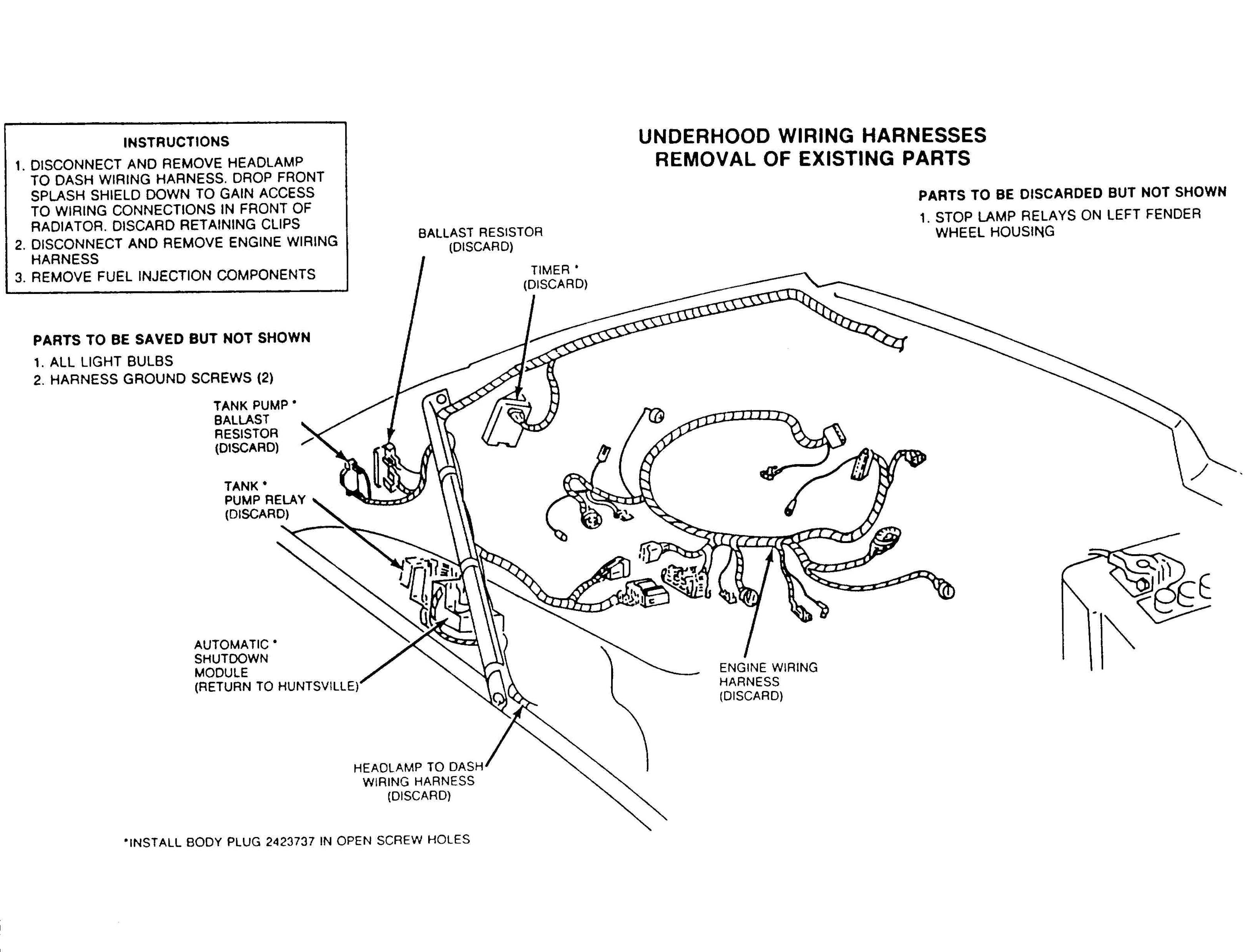

Page 17:  Underhood Wiring Harnesses, Removal.  (Viewable / Printable)

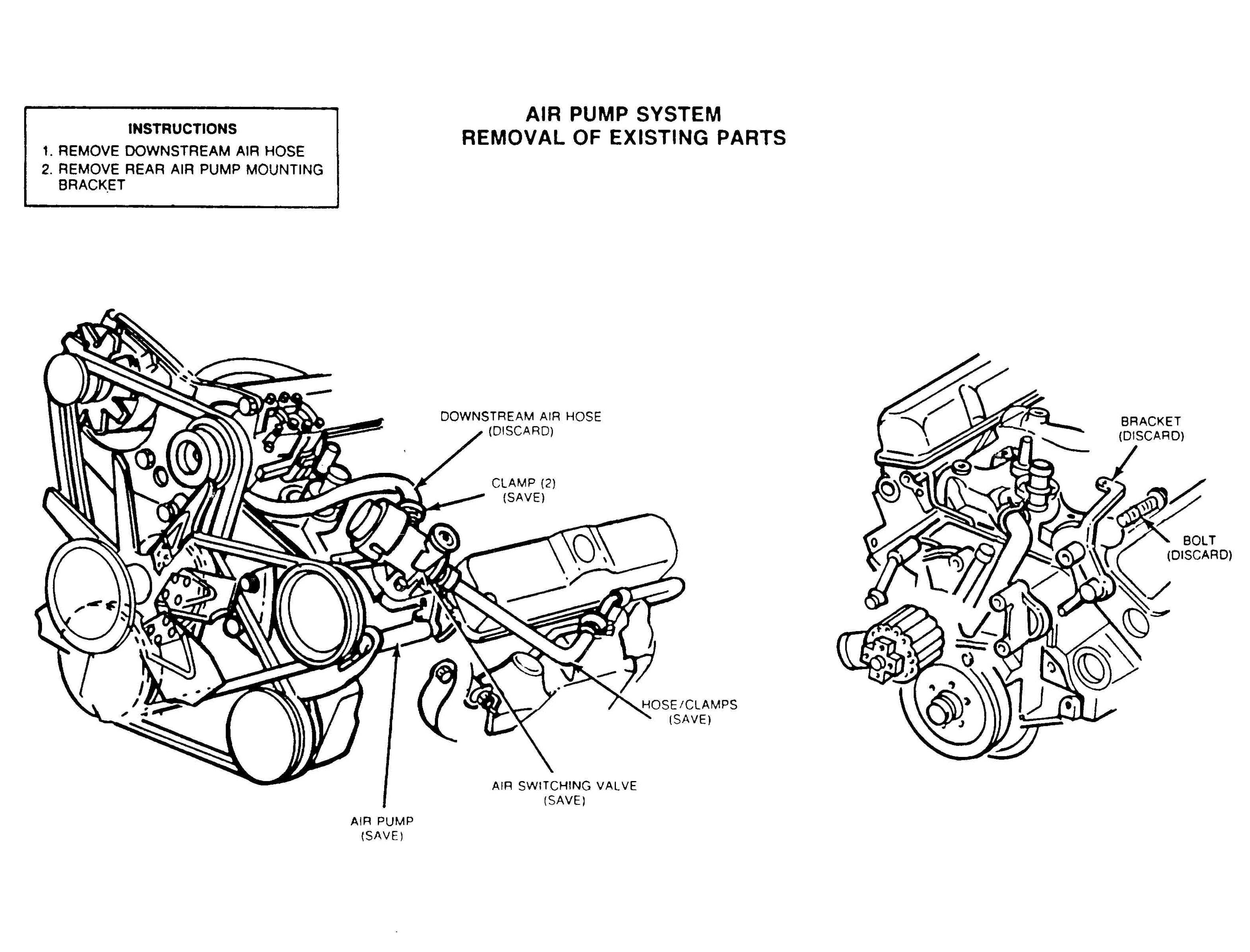

Page 18:  Air Pump System, Removal.  (Viewable / Printable)

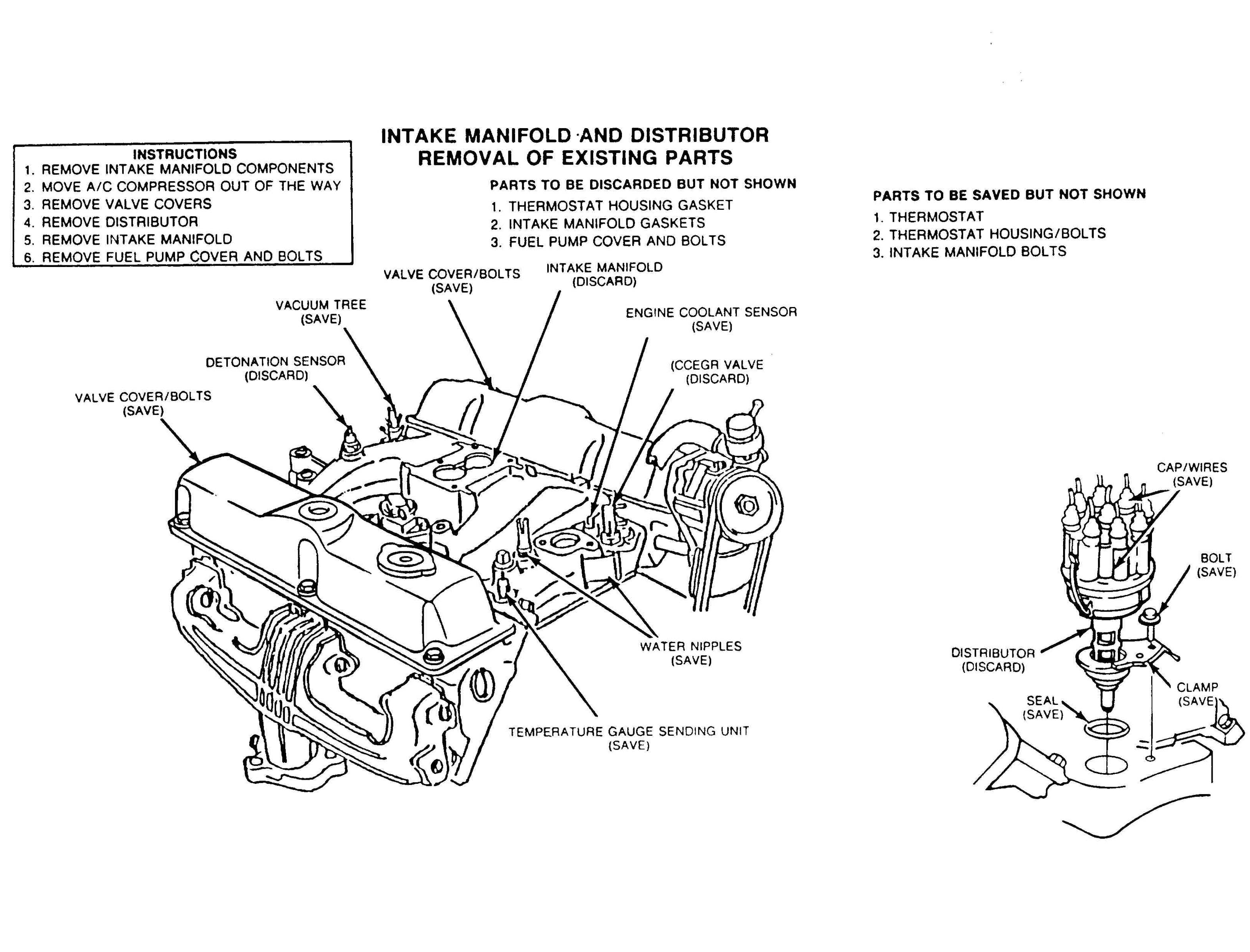

Page 19:  Intake Manifold and Distributor, Removal.  (Viewable / Printable)

Page 20:  Intake Manifold, Installation.  (Viewable / Printable)

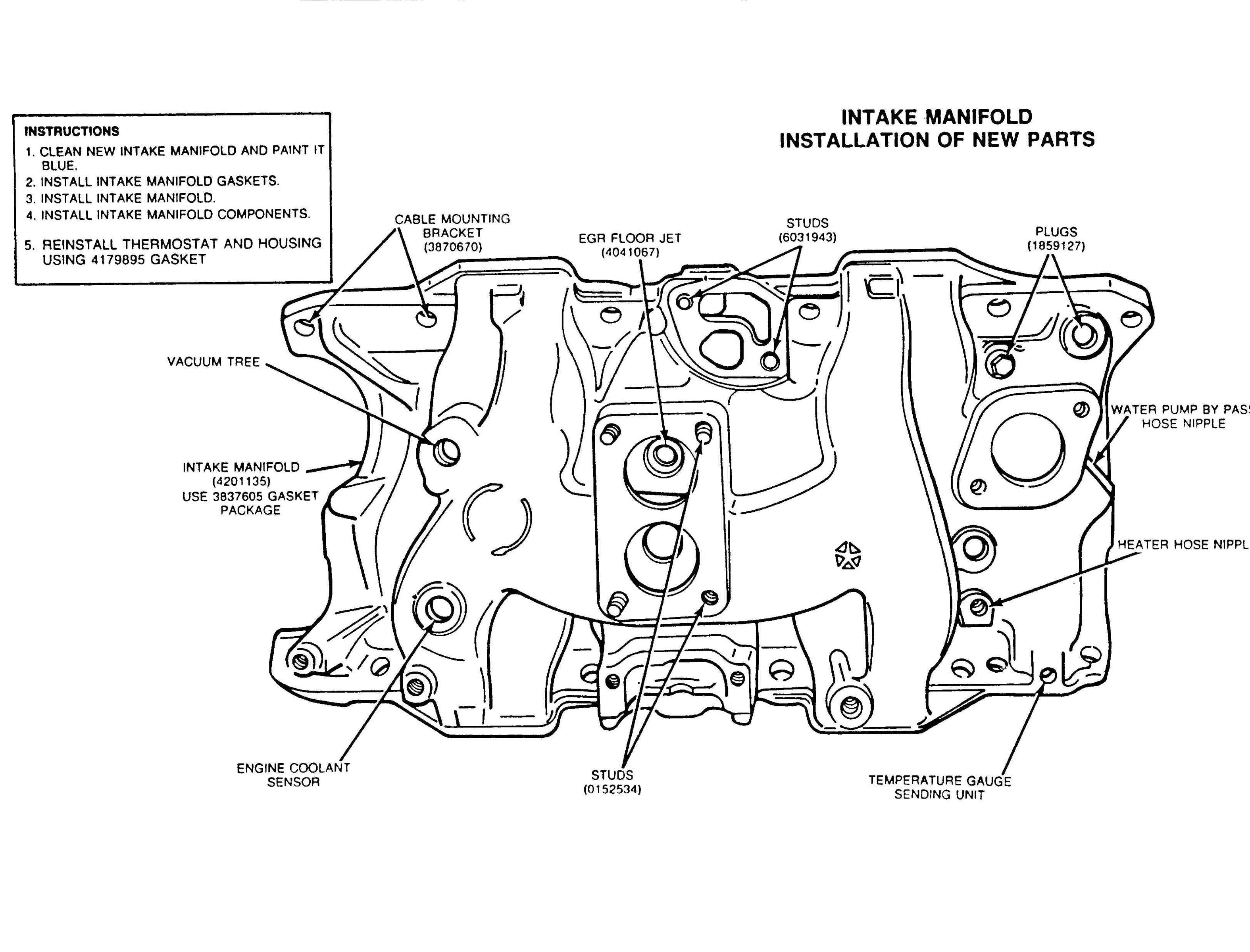

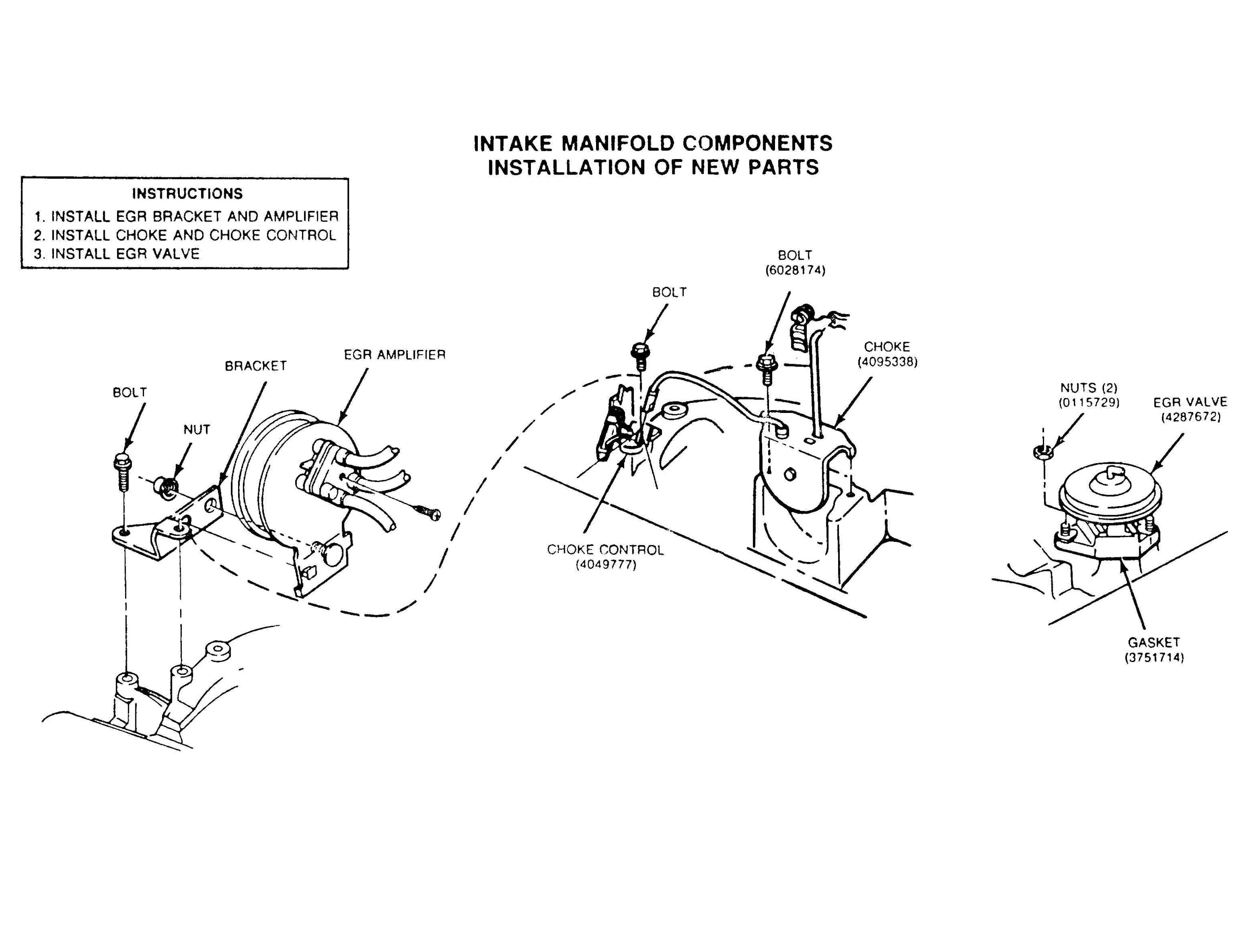

Page 21:  Intake Manifold Components, Installation.  (Viewable / Printable)

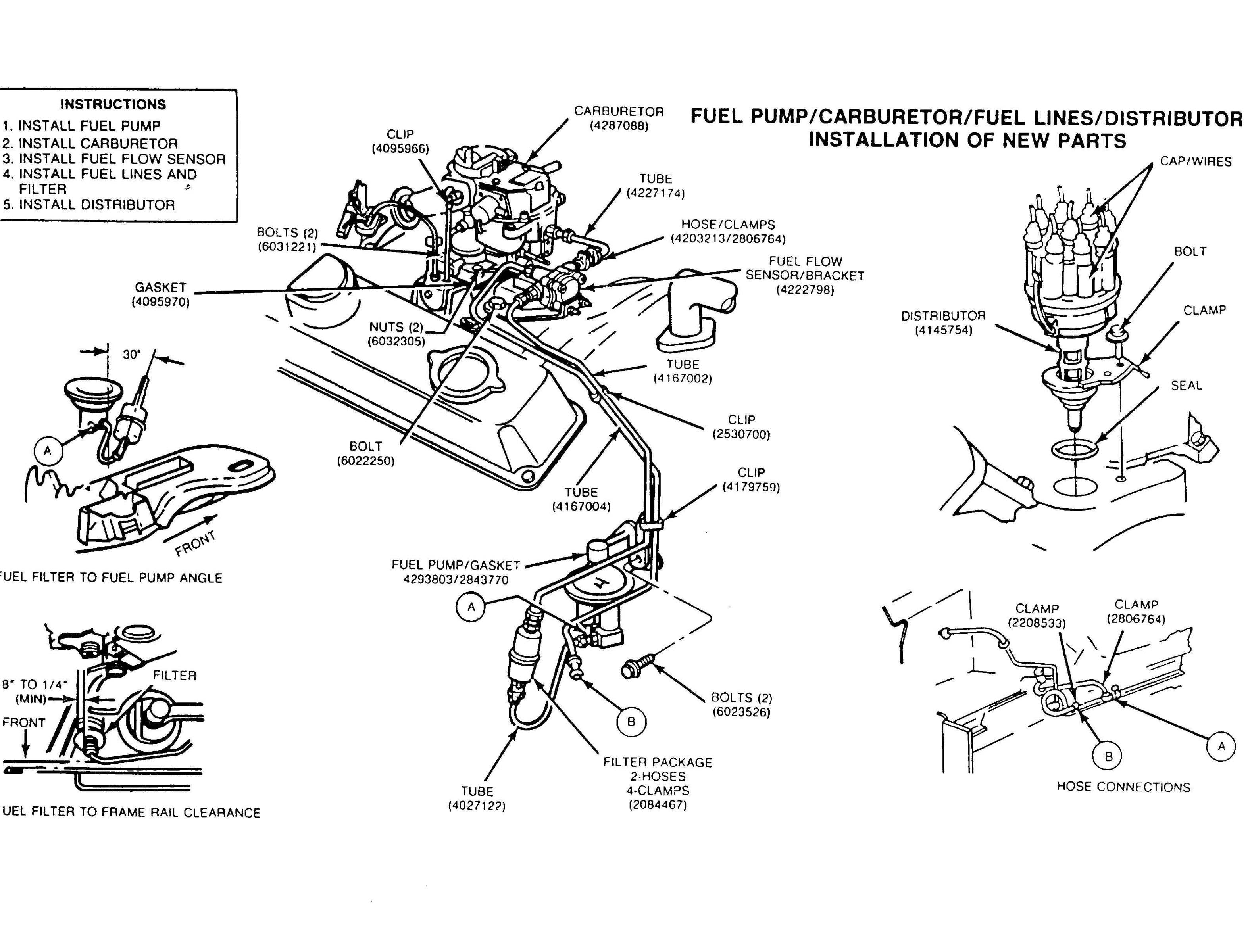

Page 22:  Fuel Pump/Carburetor/Fuel Lines/Distributor, Installation.  (Viewable / Printable)

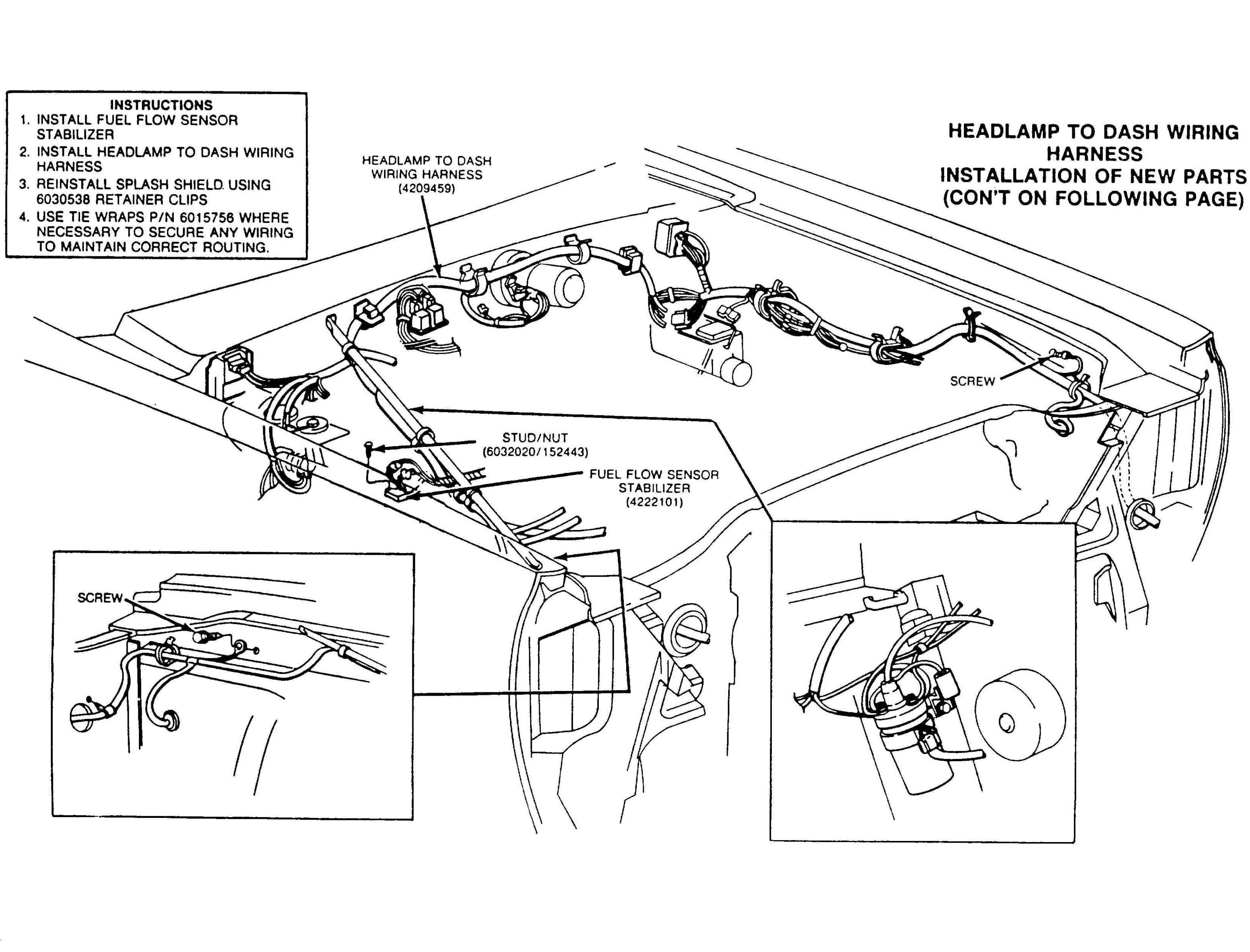

Page 23:  Headlamp to Dash Wiring Harness, Installation.  (Viewable / Printable)

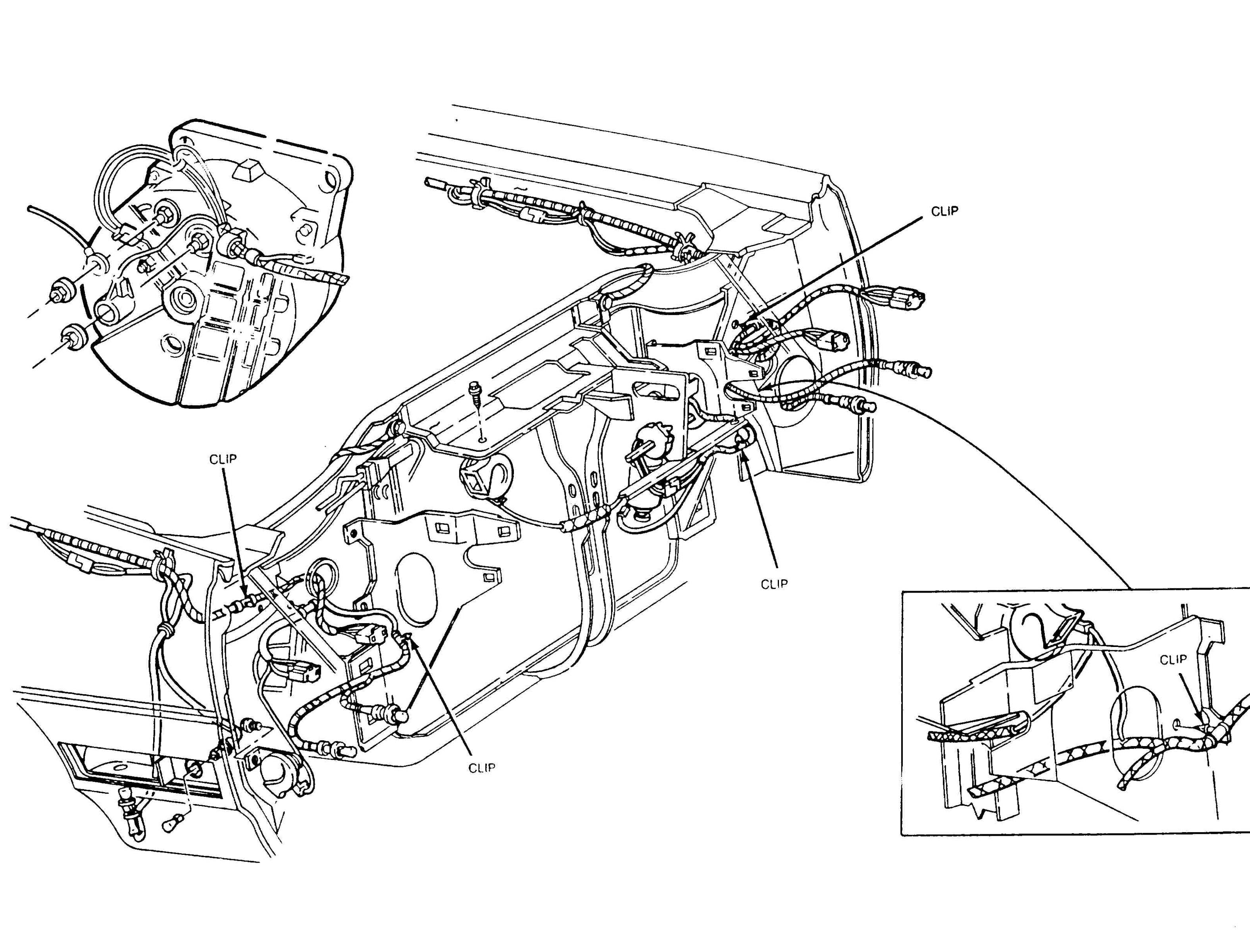

Page 24:  Headlamp to Dash Wiring Harness, Installation (Cont'd).  (Viewable / Printable)

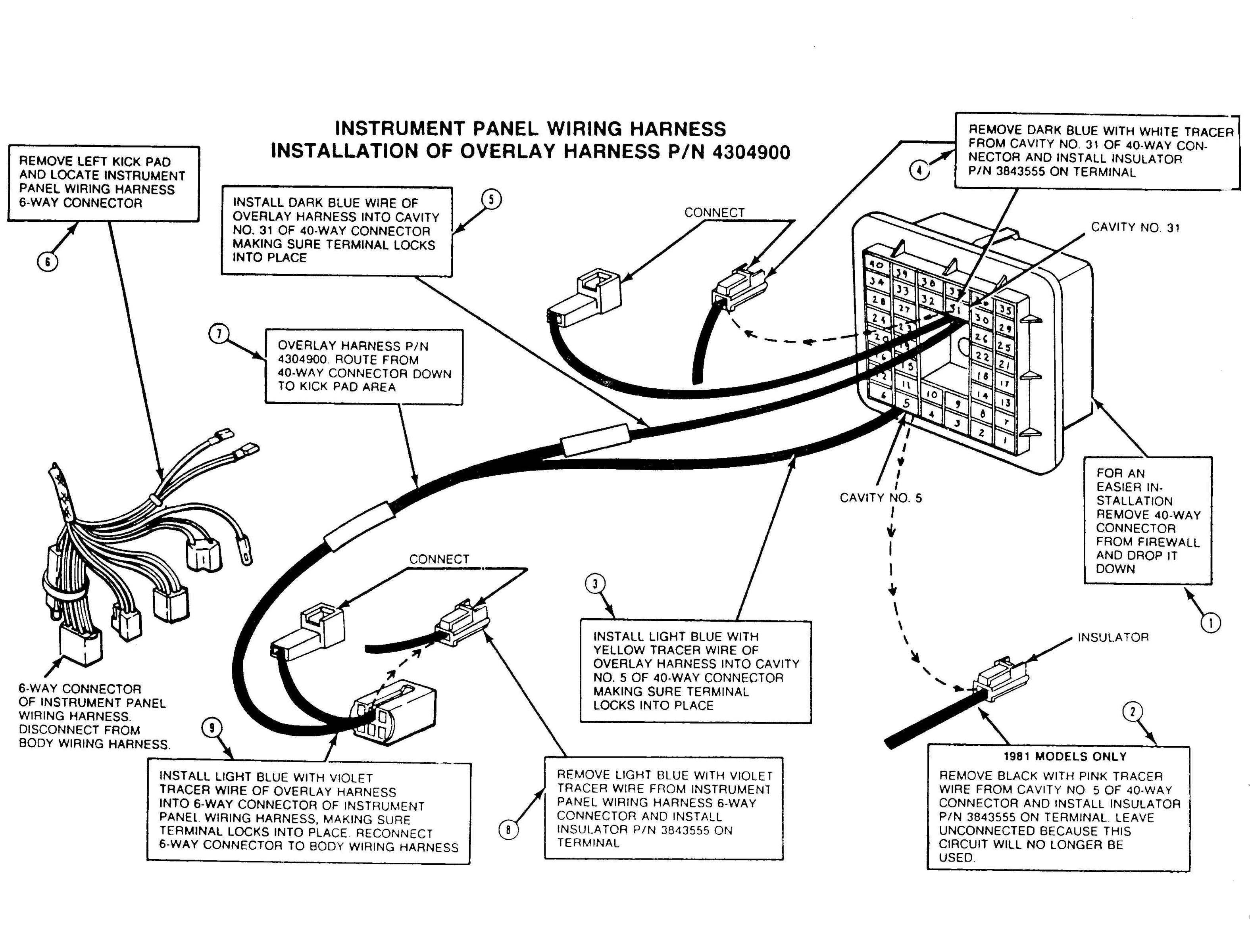

Page 25:  Instrument Panel Wiring Harness, Installation.  (Viewable / Printable)

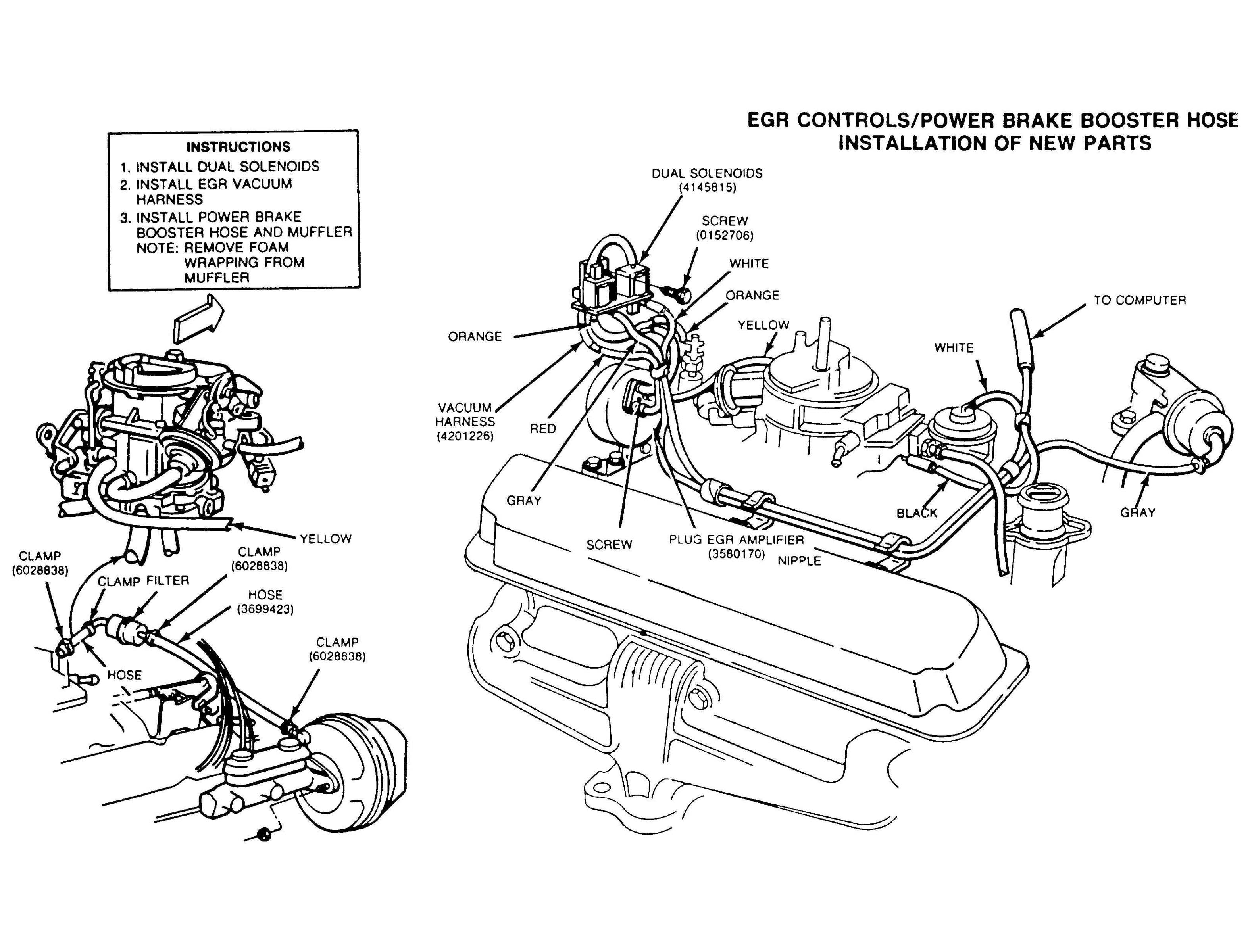

Page 26:  EGR Controls/Power Brake Booster Hose, Installation.  (Viewable / Printable)

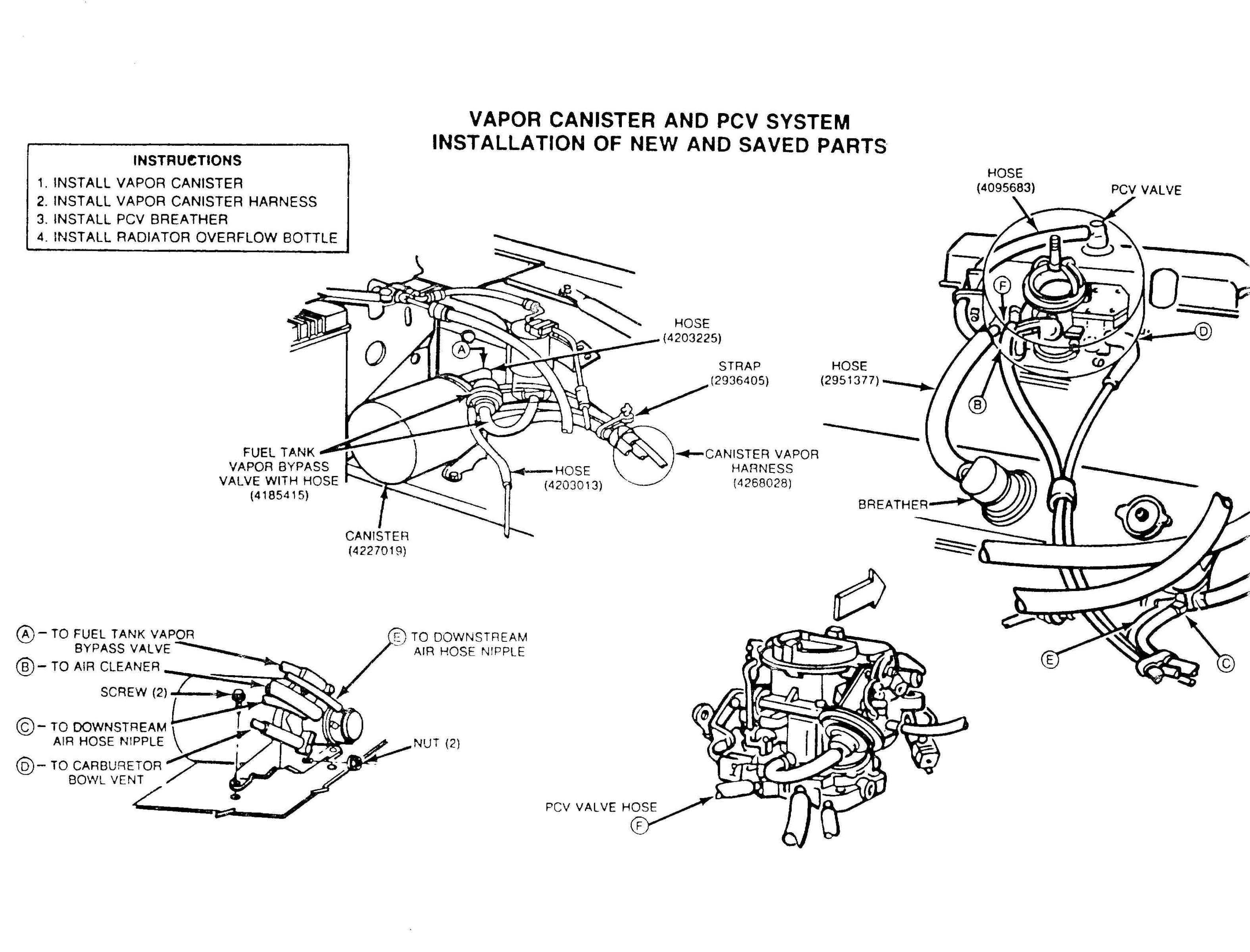

Page 27:  Vapor Canister and PCV System, Installation.  (Viewable / Printable)

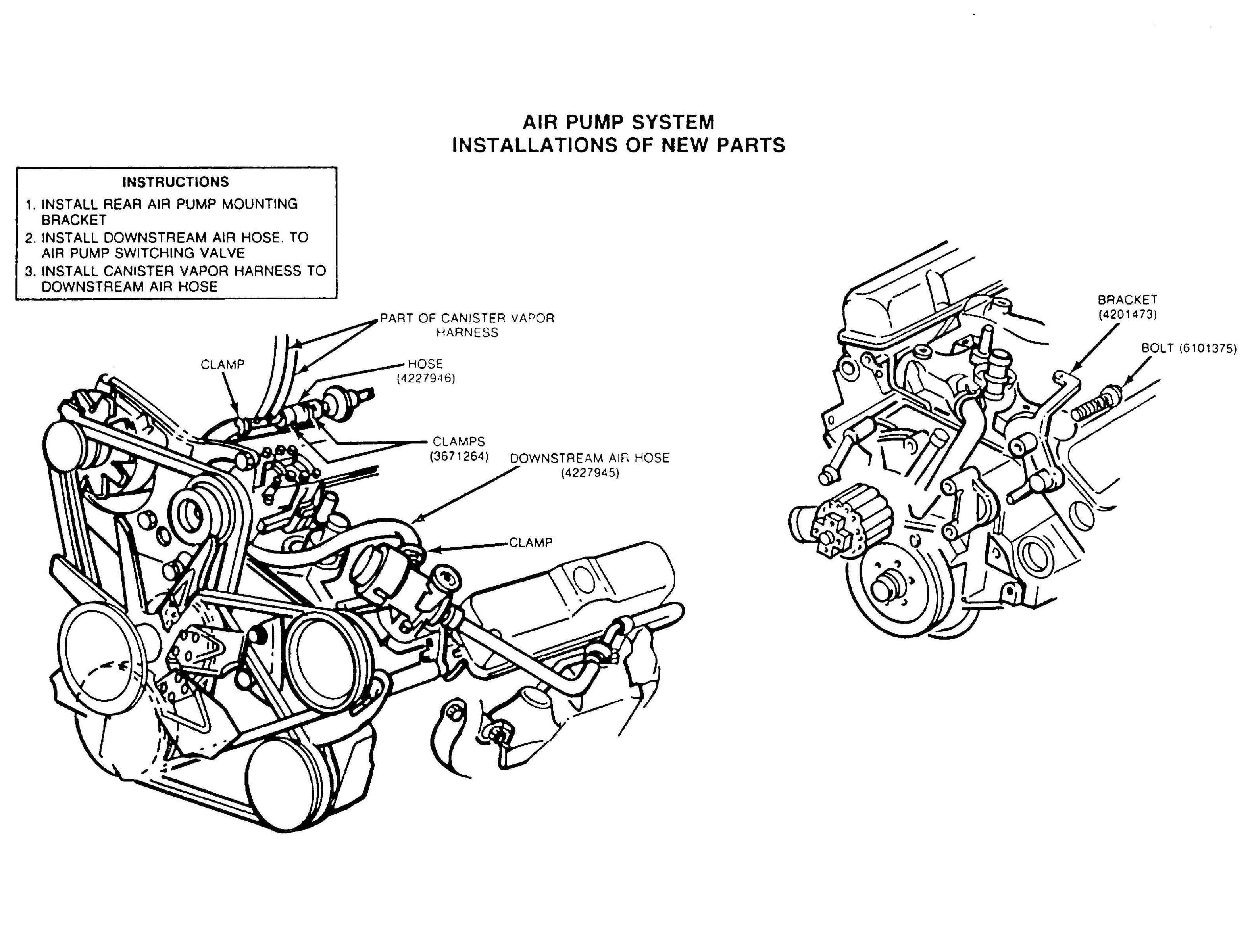

Page 28:  Air Pump System, Installation.  (Viewable / Printable)

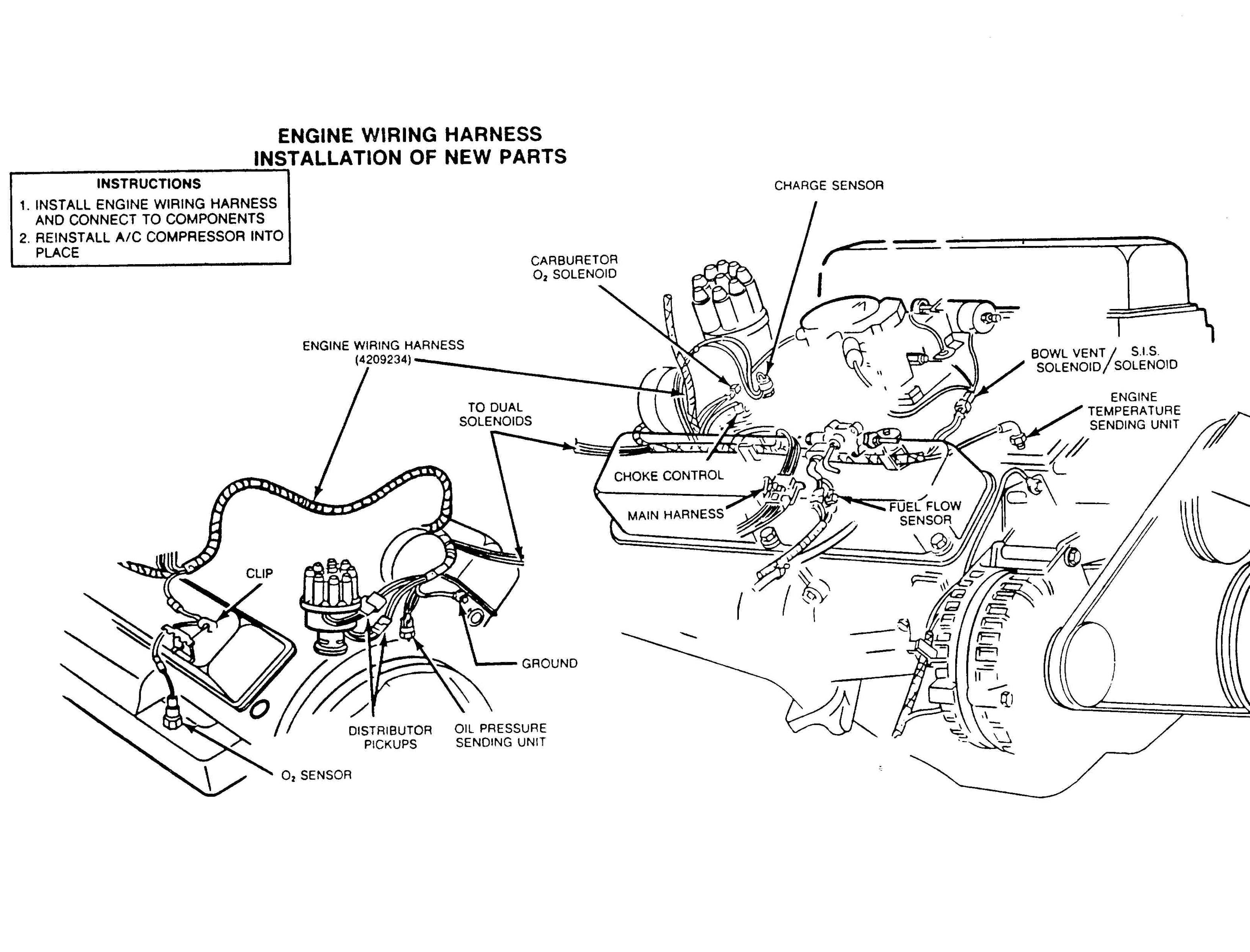

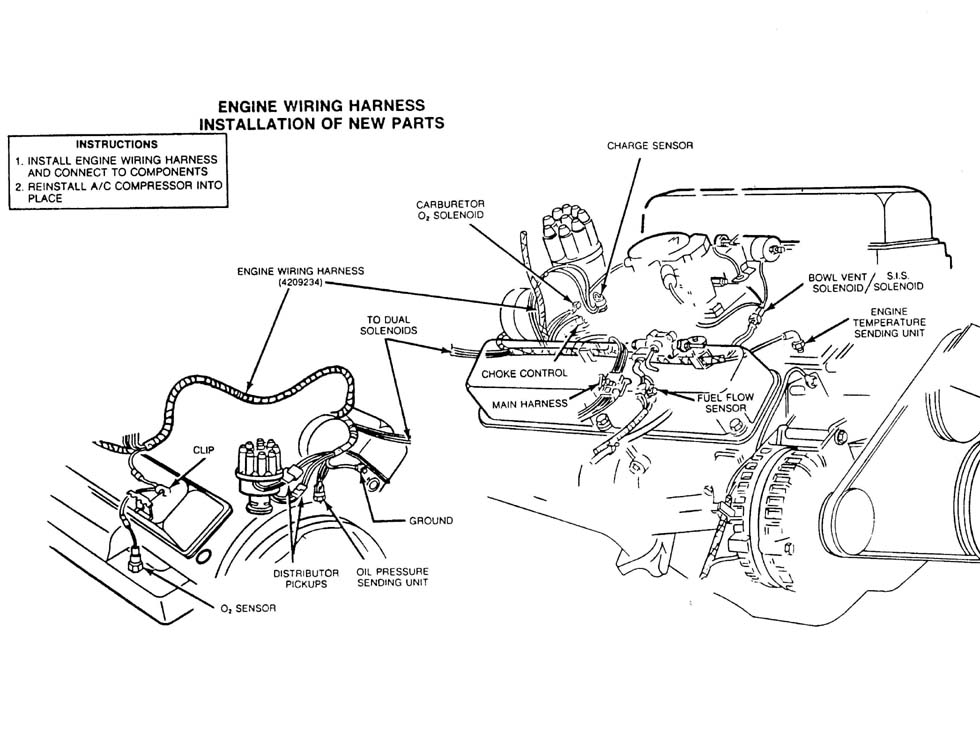

Page 29:  Engine Wiring Harness, Installation.  (Viewable / Printable)

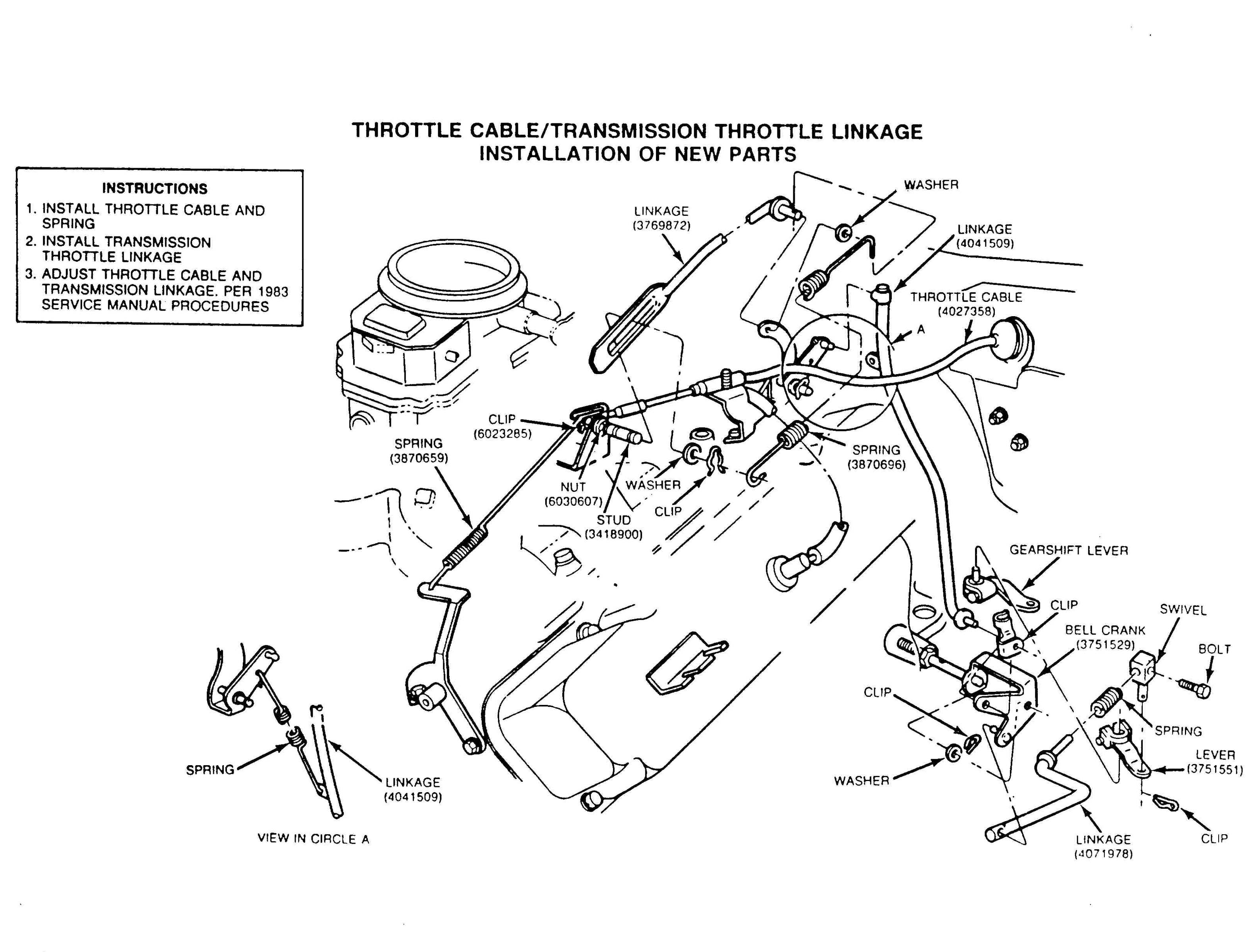

Page 30:  Throttle Cable/Transmission Throttle Linkage, Installation.  (Viewable / Printable)

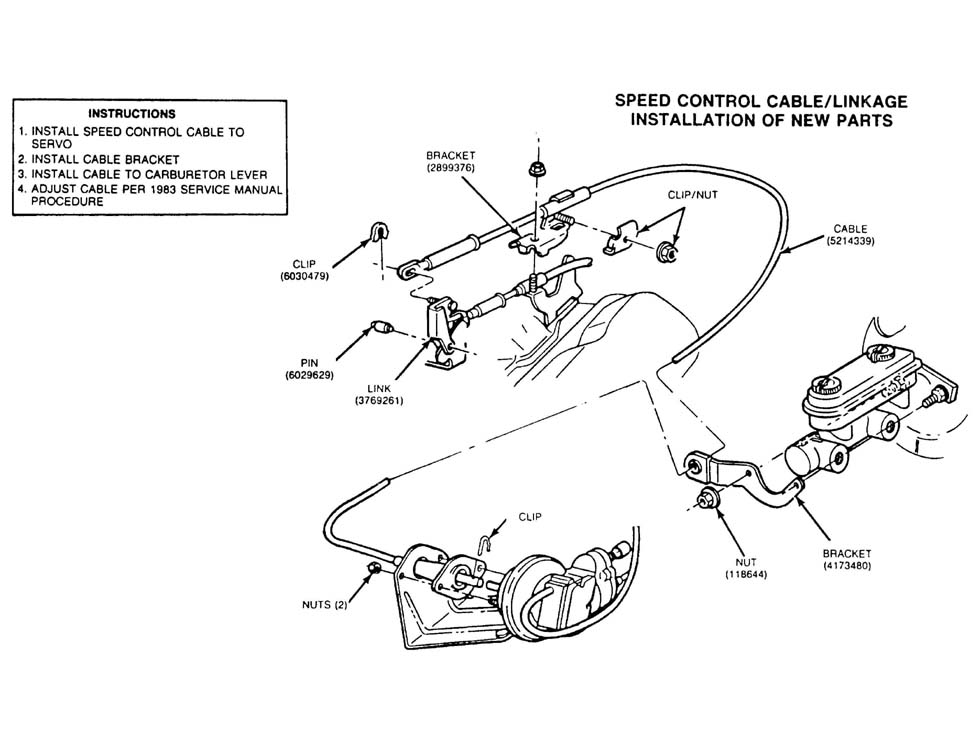

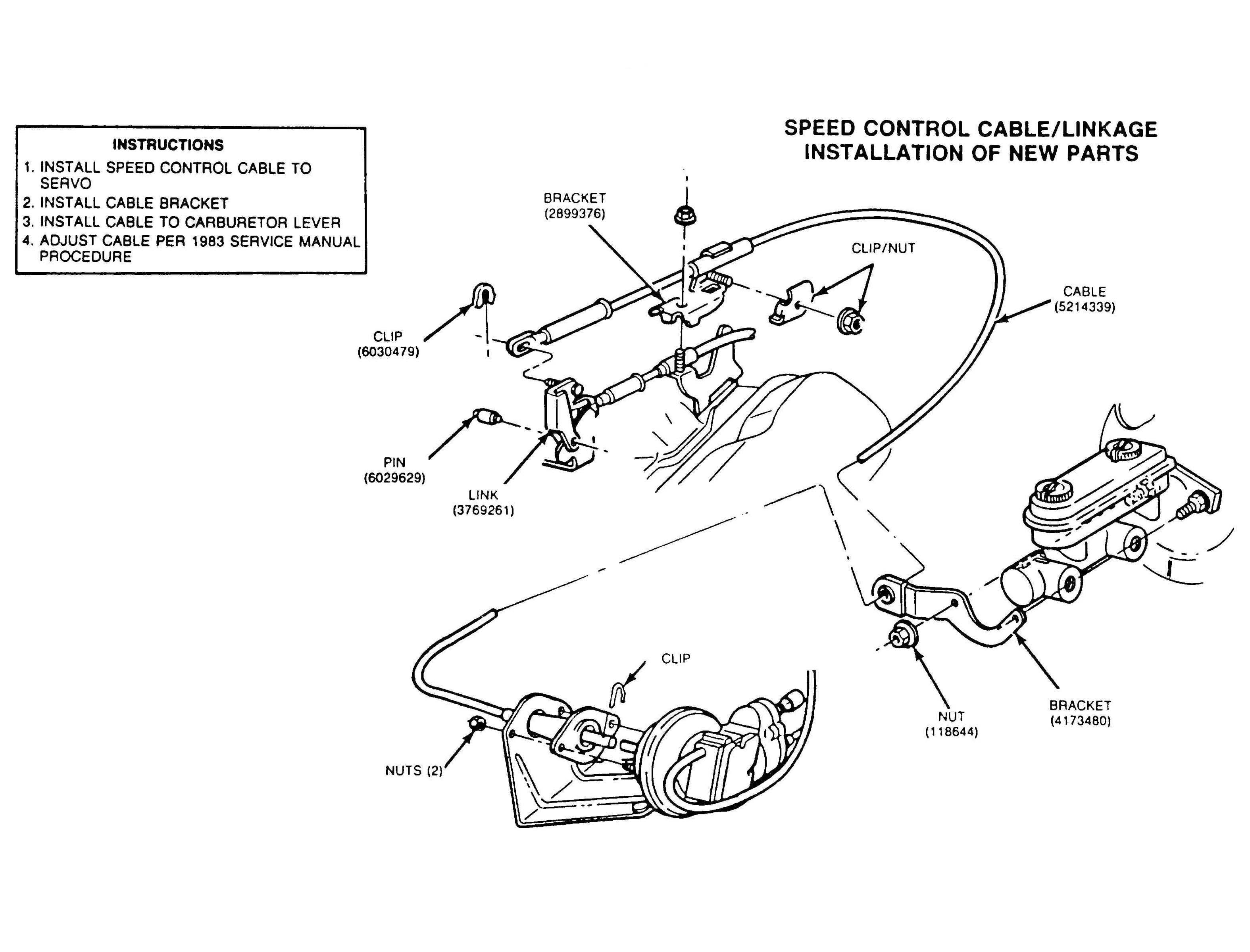

Page 31:  Speed Control Cable/Linkage, Installation.  (Viewable / Printable)

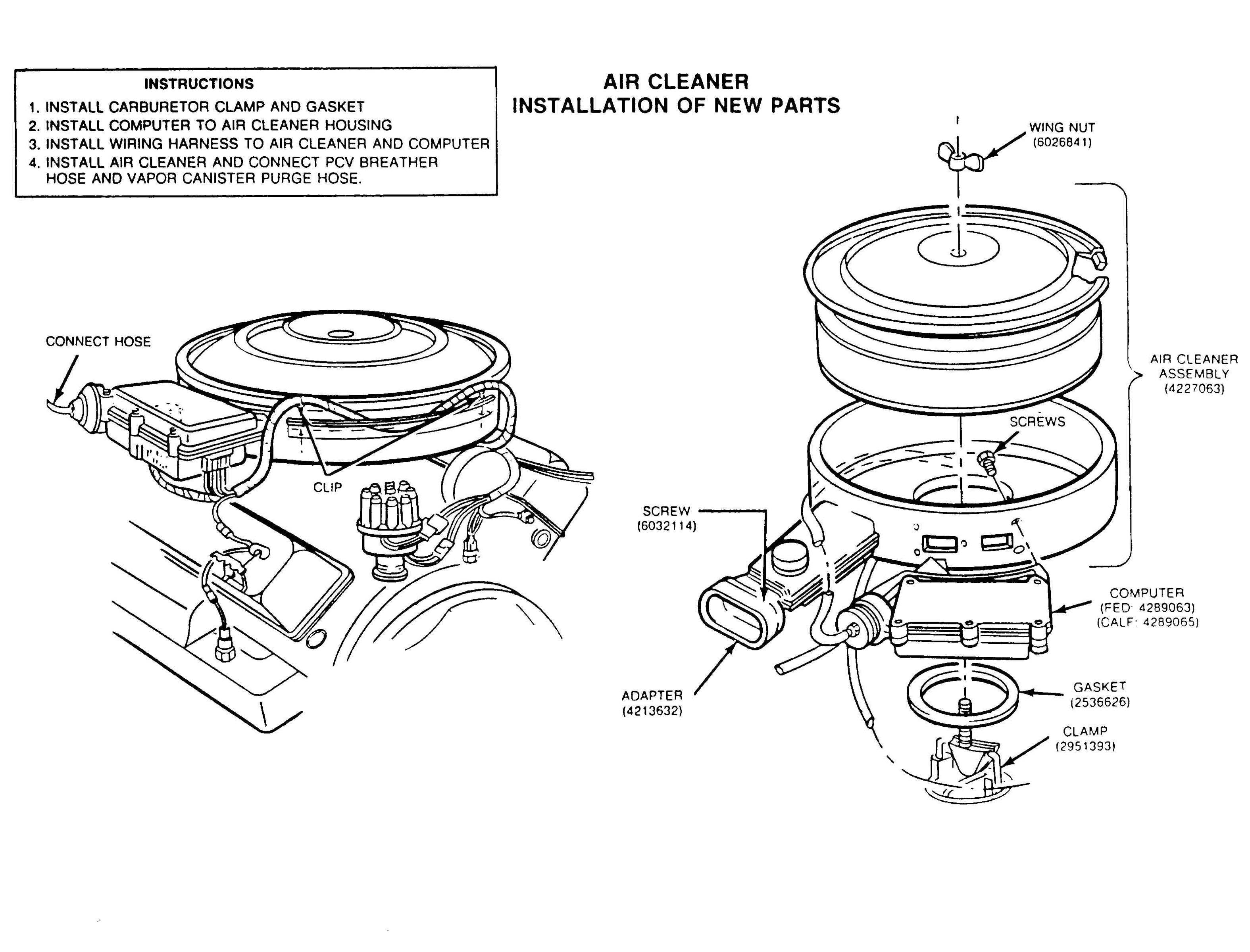

Page 32:  Air Cleaner, Installation.  (Viewable / Printable)

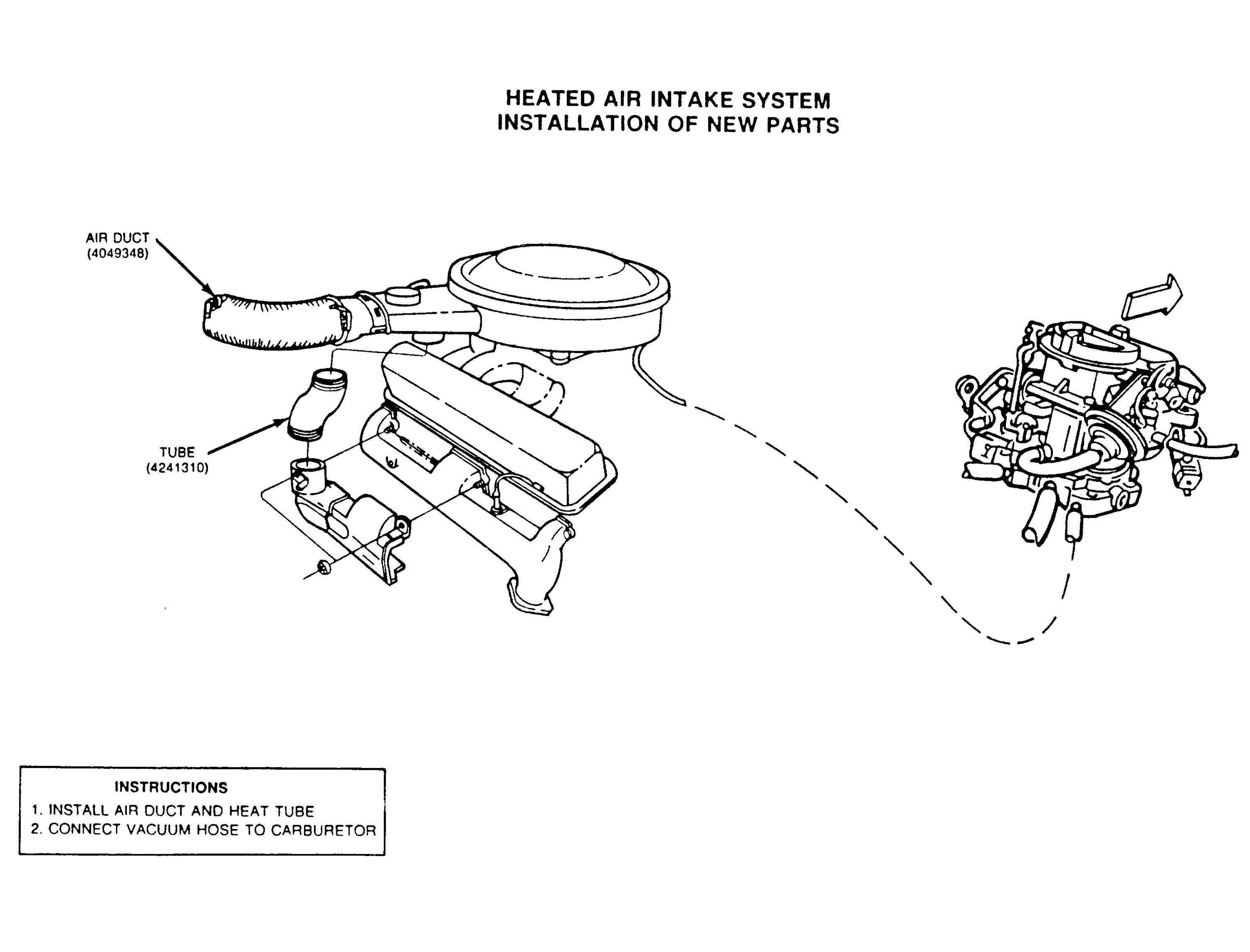

Page 33:  Heated Air Intake System, Installation.  (Viewable / Printable)

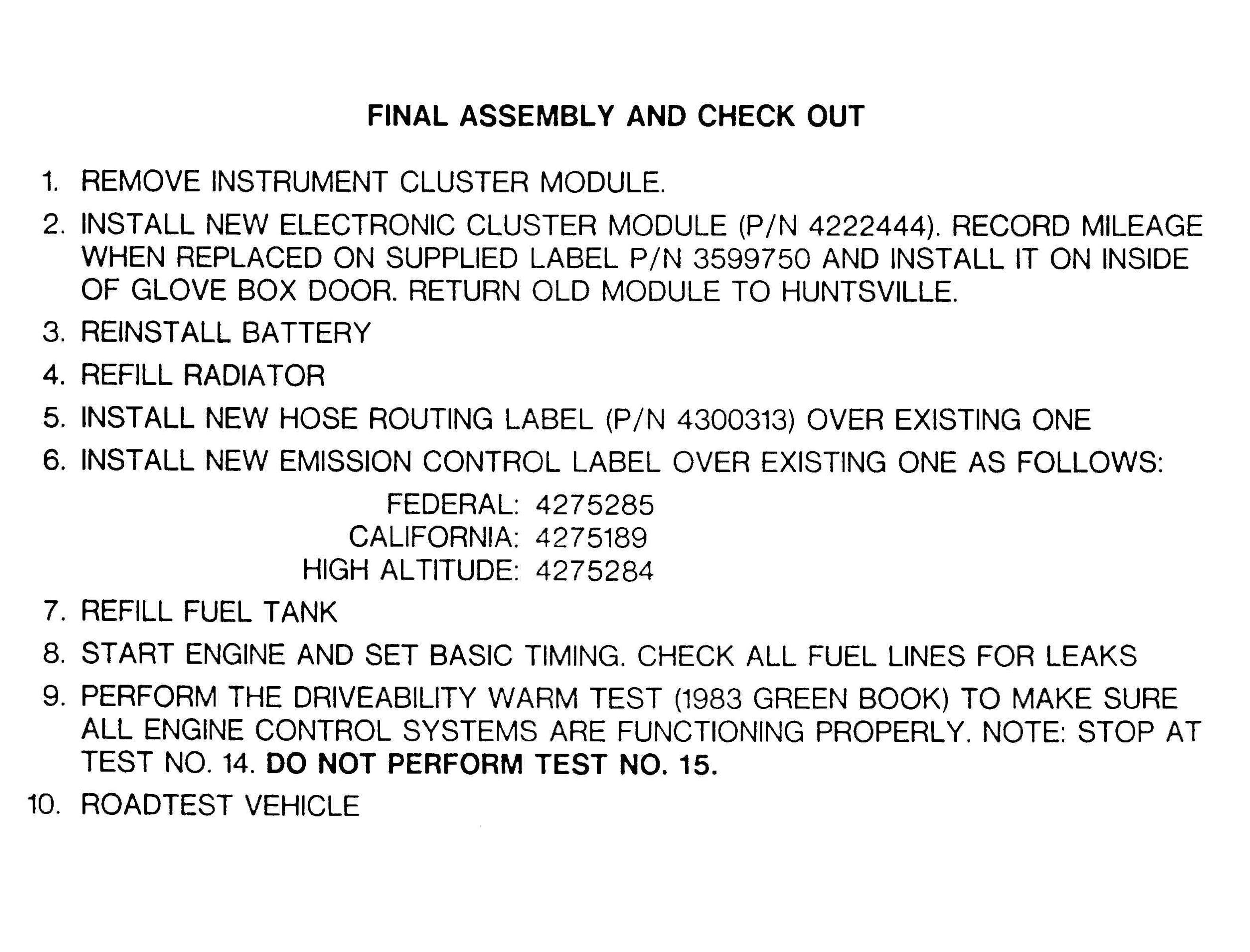

Page 34:  Final Assembly and Check Out.  (Viewable / Printable)

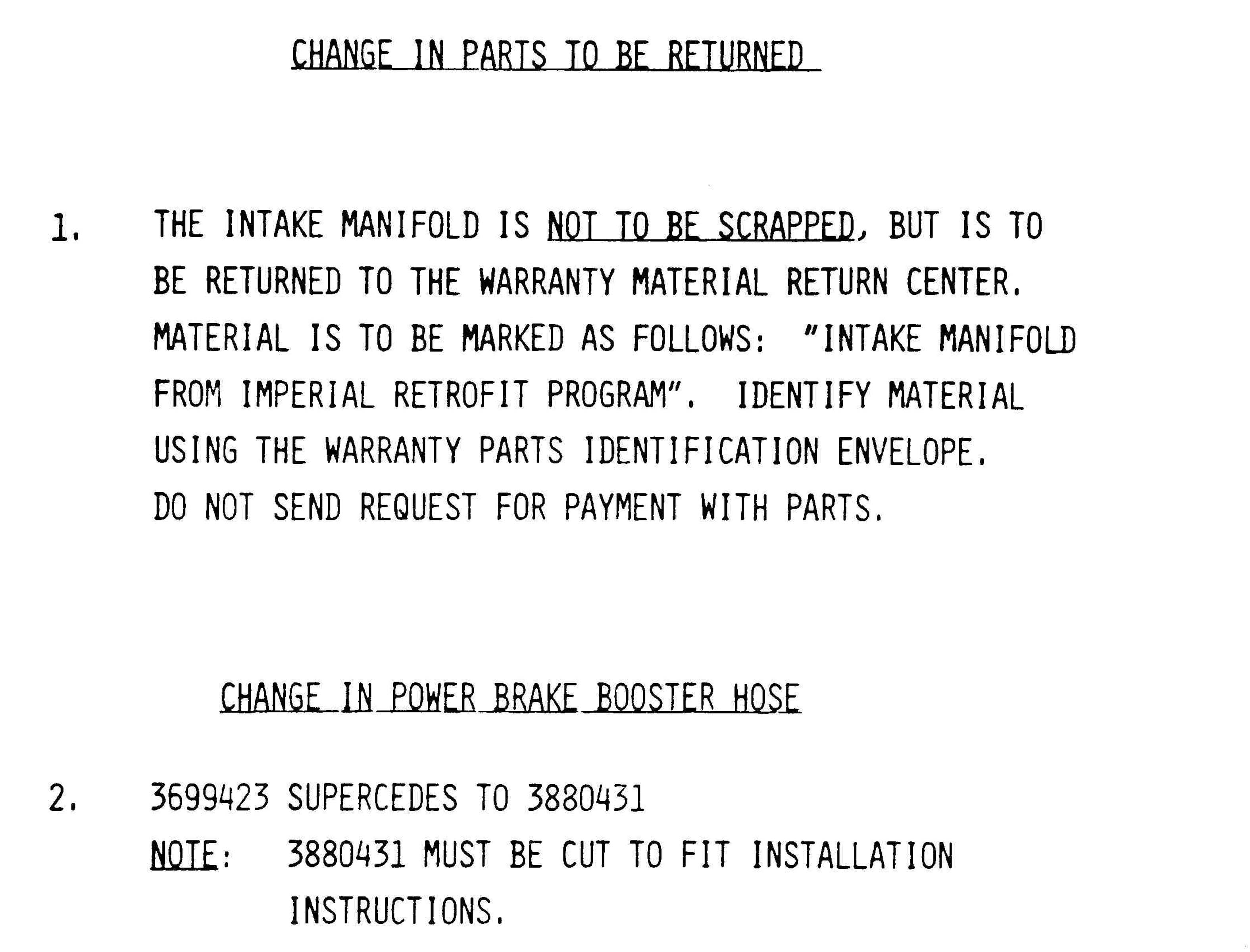

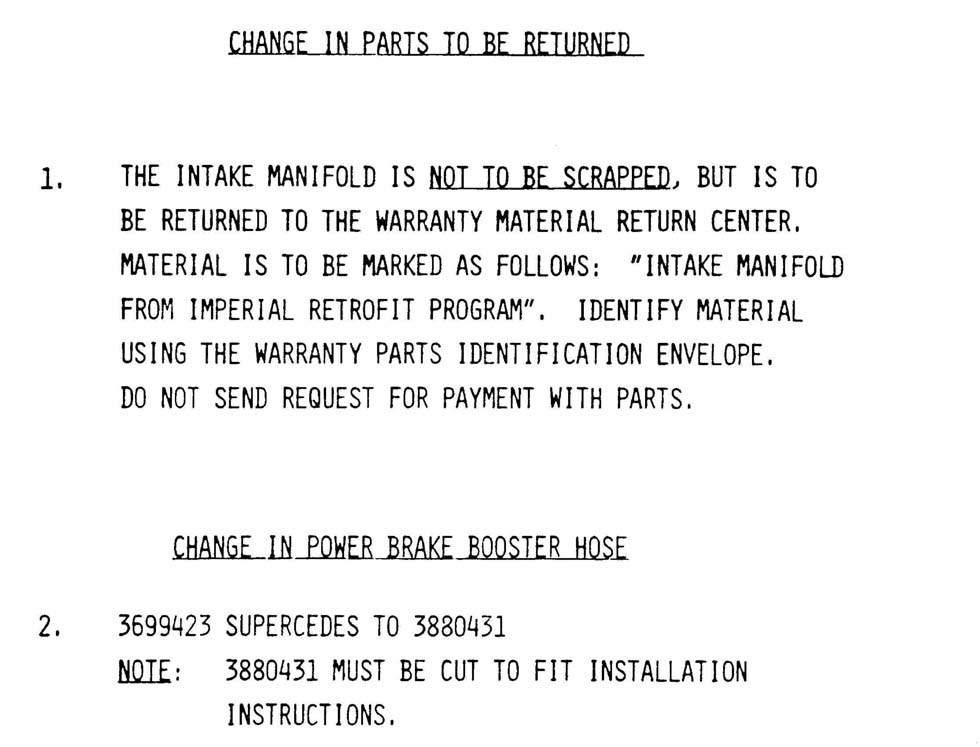

Page 35:  Change in Parts to be Returned.  (Viewable / Printable)
