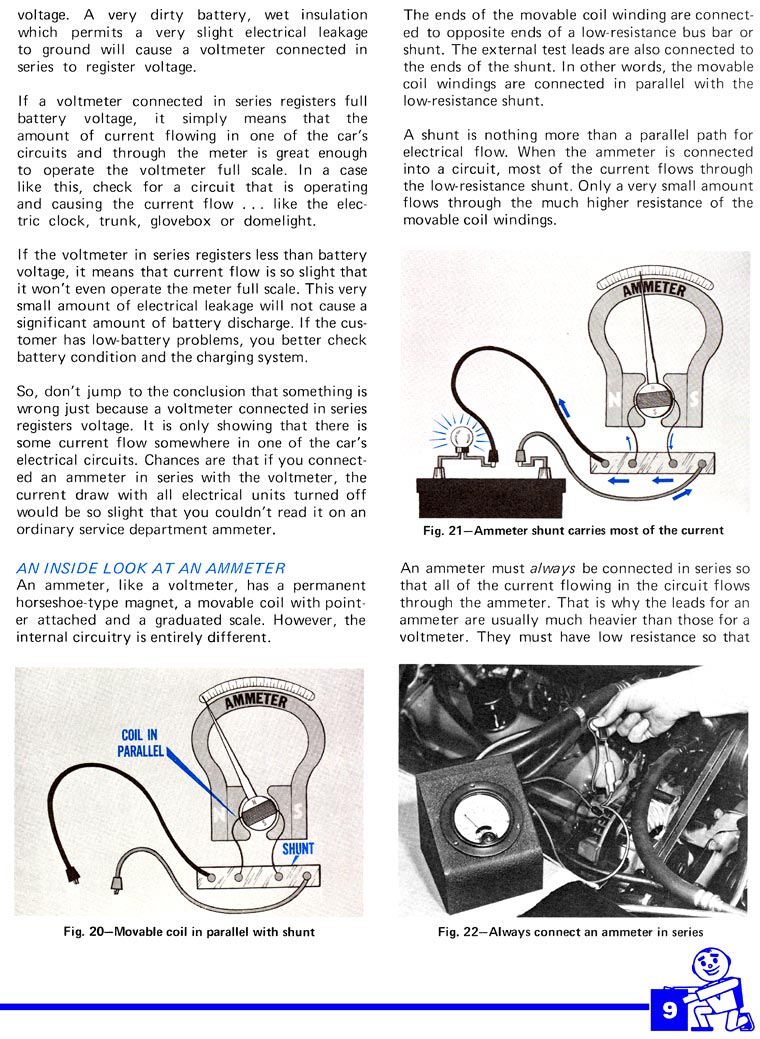

Move your way through the 1973 Chrysler Electrical Circuit Reference Guide by choosing your next page. You are currently on Page 9.
Front Cover Introduction Page & Table of Contents Page 1 - How To Use An Electrical Testers & The Various Types Used Page 2 - Test Light Troubleshooting Tactics Page 3 - How To Make Your Own Test Tool & How To Test For A Blown Fuse Page 4 - How To Use A Jumper As A Test Tool Page 5 - Common Ground Problems & How To Fix Them Page 6 - Explanation Of A Voltmeter & What Goes On Inside Of One Page 7 - How To Connect The Voltmeter In Parallel Page 8 - How To Connect The Voltmeter In Series Page 9 - How An Ammeter Works & A Look Inside Page 10 - How To Use The Voltmeter And Ammeter Together Page 11 - How To Use An Ohmeter & What A Drop In Voltage Means Page 12 - Battery Testing Basics Page 13 - How To Conduct A Battery Load Test Back Cover & Test Questions
Go back to Page 8 Go on to Page 10
Close this window to return to the 1973 Chrysler Electrical Circuit's Table of Contents.
We also have a much larger, printable version of this page available. This booklet was originally 8.5" x 11".
