Move your way through the 1972 Imperial and Chrysler Seat Belt Warning System Reference Guide by choosing your next page. You are currently on Page 12.
Front Cover Introduction Page & Table of Contents Page 1 - Understanding How The System Works Page 2 - The Circuit Starts At The Ignition Switch & The Ground Circuit Page 3 - How The Relay Switch Works & The Passenger Side Of The Circuit Page 4 - The IMPERIAL Diode Page 5 - Belt Retractors & Seat Switch Details Page 6 - The Switch Has A Built In Clutch Page 7 - Servicing Tips and Troubleshooting Page 8 - The Eight-Step Quickie Checklist Page 9 - Steps Four Through Eight Of The Checklist Page 10 - Troubleshooting Procedures Number One Page 11 - Troubleshooting Procedure Number One Continued and Number Two Page 12 - Troubleshooting Procedure Number Two Continued and Procedure Number Three Page 13 - Troubleshooting Procedures Number Four Through Eight Back Cover
Go back to the Page 11 Go on to Page 13
Close this window to return to 1972 Seat Belt Warning System's Table of Contents.

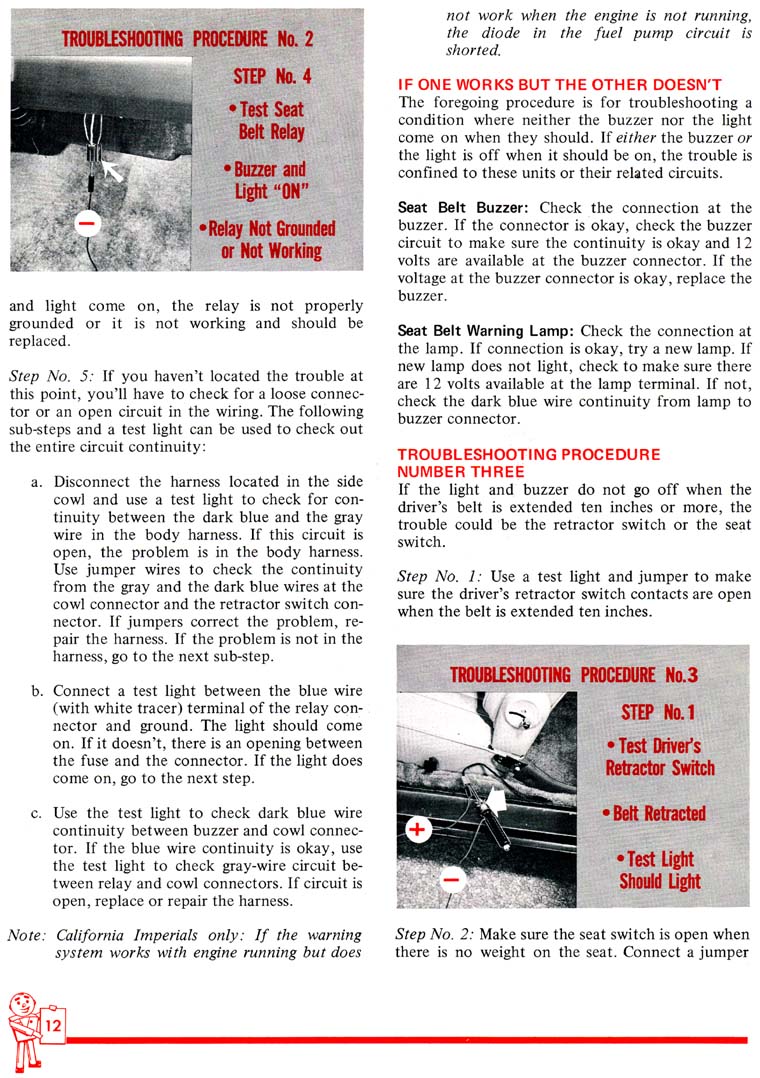

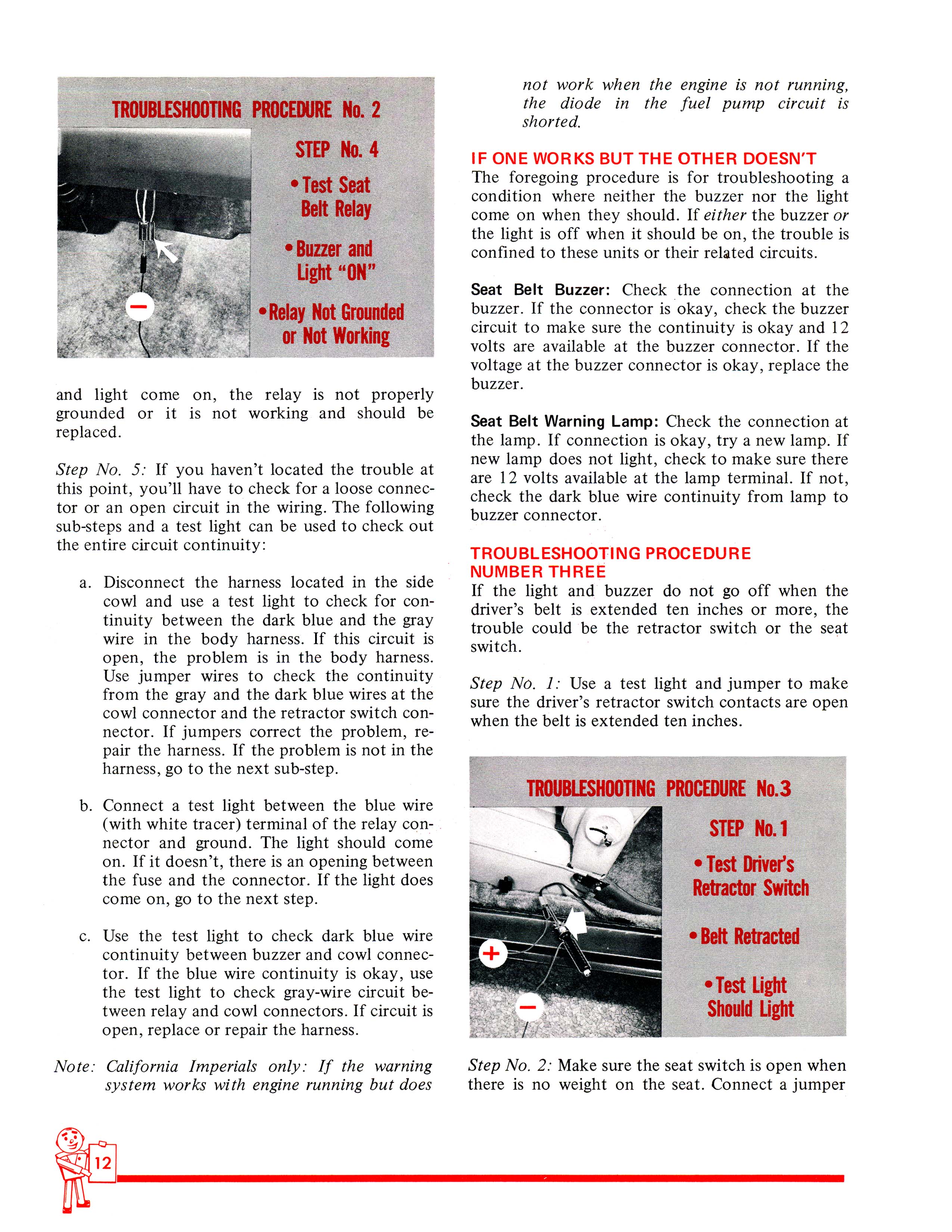

We also have a much larger, printable version of this page available. This booklet was originally 8.5" x 11".
