Move your way through the 1972 Imperial and Chrysler Seat Belt Warning System Reference Guide by choosing your next page. You are currently on Page 10.
Front Cover Introduction Page & Table of Contents Page 1 - Understanding How The System Works Page 2 - The Circuit Starts At The Ignition Switch & The Ground Circuit Page 3 - How The Relay Switch Works & The Passenger Side Of The Circuit Page 4 - The IMPERIAL Diode Page 5 - Belt Retractors & Seat Switch Details Page 6 - The Switch Has A Built In Clutch Page 7 - Servicing Tips and Troubleshooting Page 8 - The Eight-Step Quickie Checklist Page 9 - Steps Four Through Eight Of The Checklist Page 10 - Troubleshooting Procedures Number One Page 11 - Troubleshooting Procedure Number One Continued and Number Two Page 12 - Troubleshooting Procedure Number Two Continued and Procedure Number Three Page 13 - Troubleshooting Procedures Number Four Through Eight Back Cover
Go back to the Page 9 Go on to Page 11
Close this window to return to 1972 Seat Belt Warning System's Table of Contents.

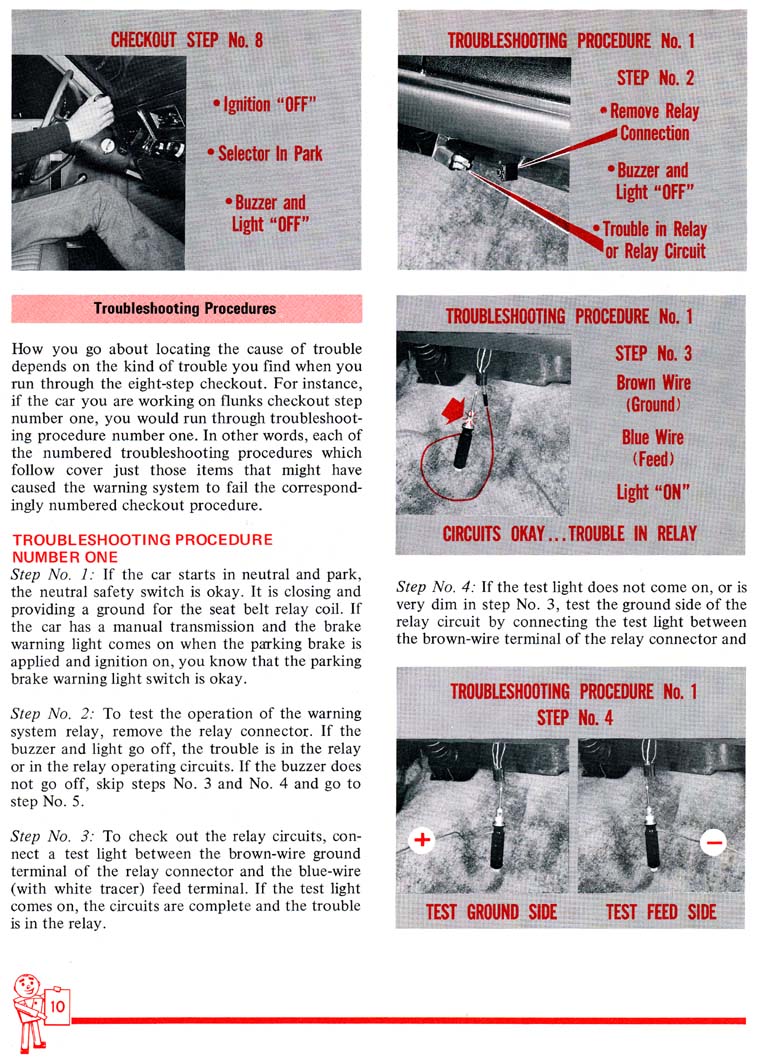

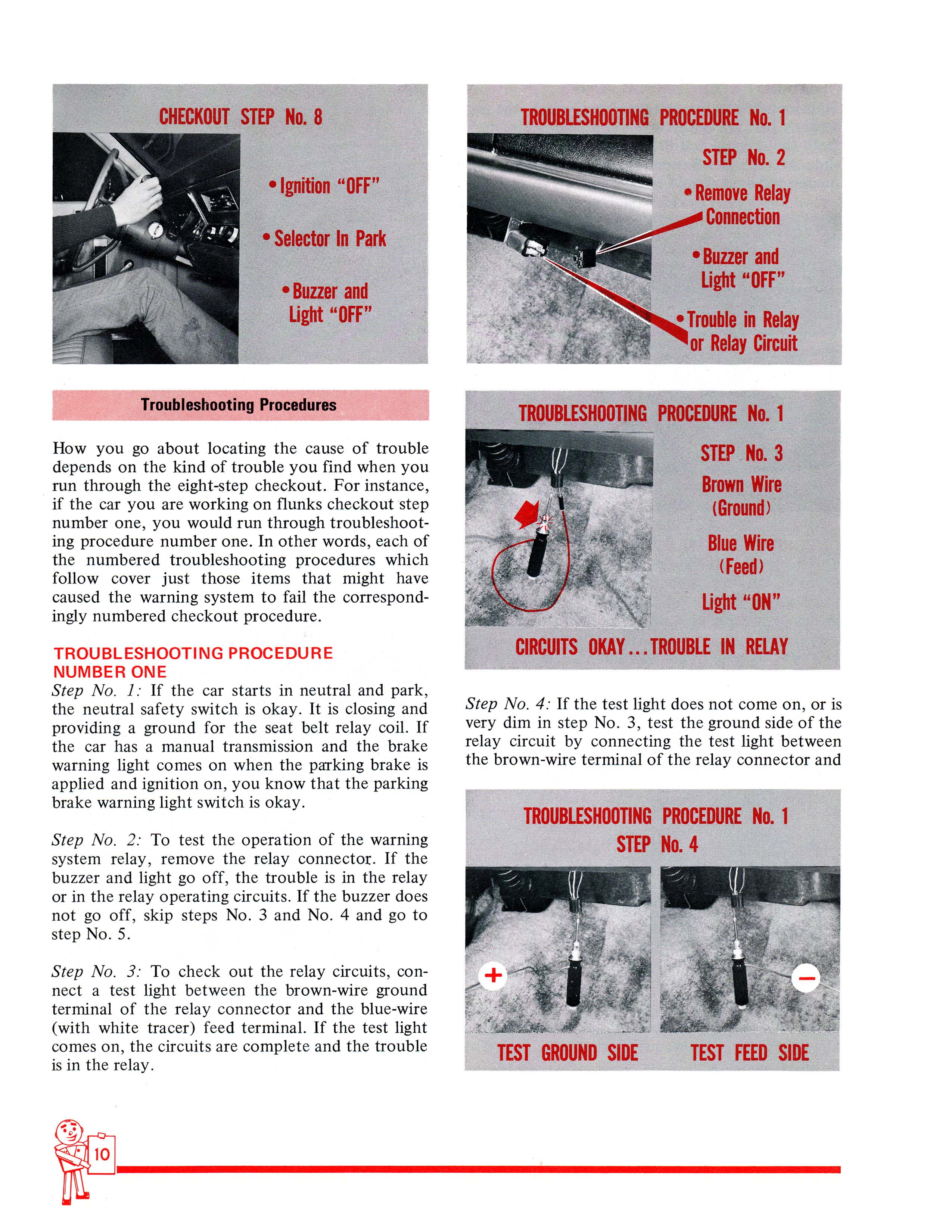

We also have a much larger, printable version of this page available. This booklet was originally 8.5" x 11".
