Move your way through the 1971 Auto-Temp II Service Guide by choosing your next page from the drop-down bar. You are currently on Page 13.

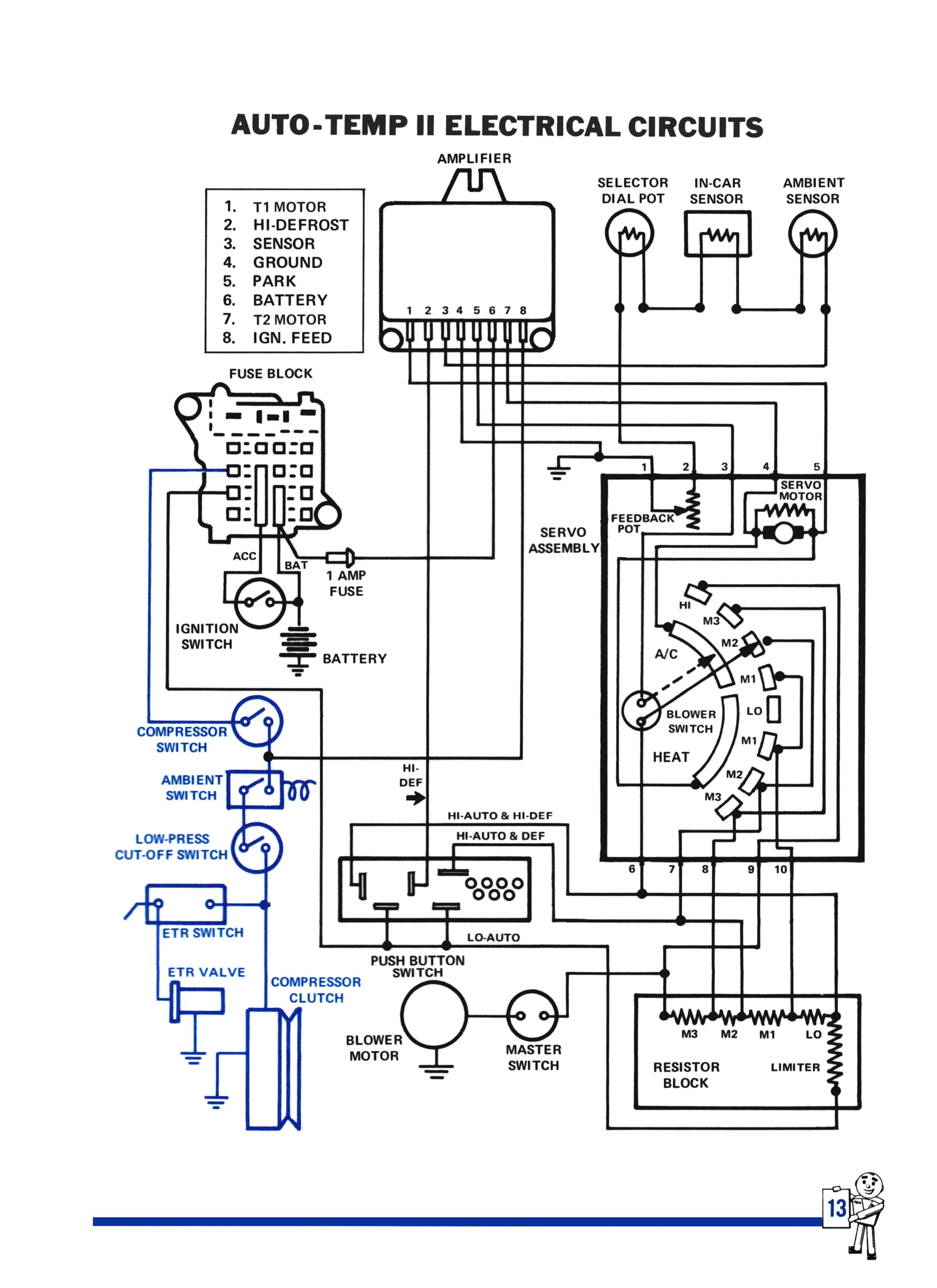

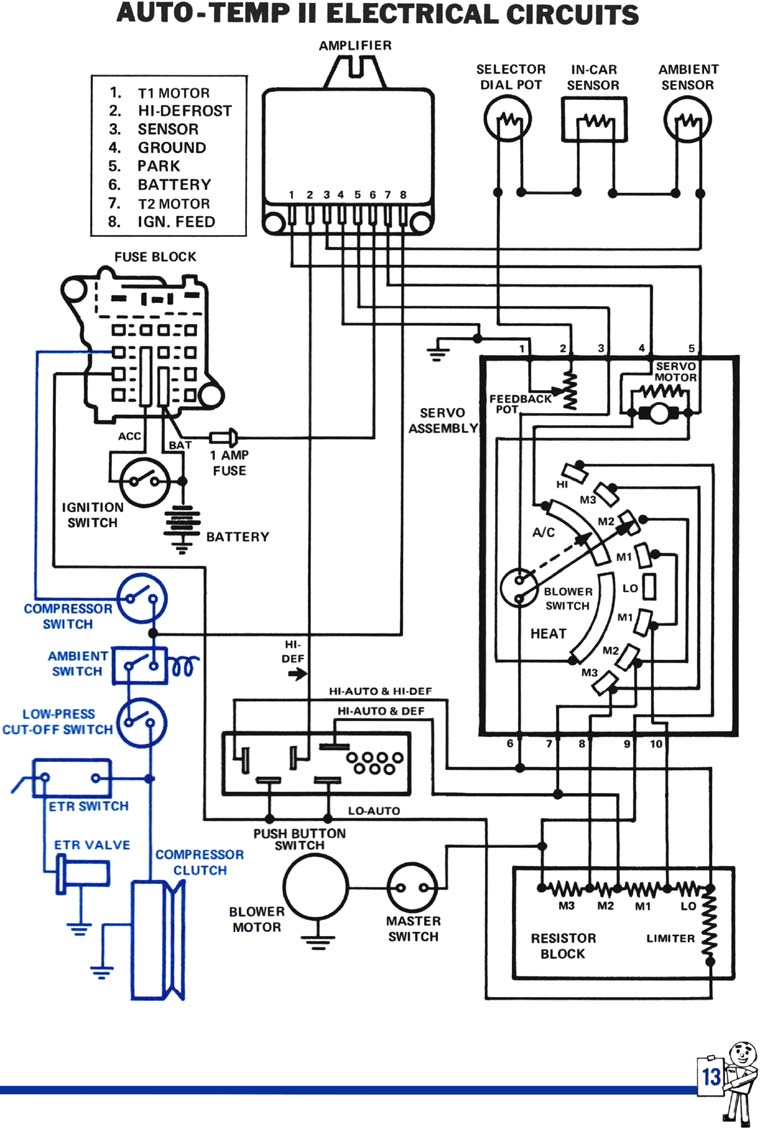

Front Cover Introduction To The Booklet & Table of Contents Page 1 - Information On The Servo & General System Arrangements Page 2 - Auto-Temp II Controls Page 3 - Temperature Sensors & Selector Page 4 - Amplifier & Compressor Controls Page 5 - Switches Connect In Series & Servo Assembly Page 6 - Lockout Switch & Resistors Control Speed Page 7 - Vacuum Transfer Switch Page 8 - How The Spool Works & The Vacuum Is Routed To Actuator Page 9 - Auto-Temp II System Operation Page 10 - System Conditions In Off Position, Lo-Auto & Hi-Auto Page 11 - Auto Door Positions & Defroster Door Operation Page 12 - System Conditions In Defrost or Hi-Defrost & Auto-Temp II Tester Page 13 - Electrical Schematic For The Auto-Temp II System Back Cover
