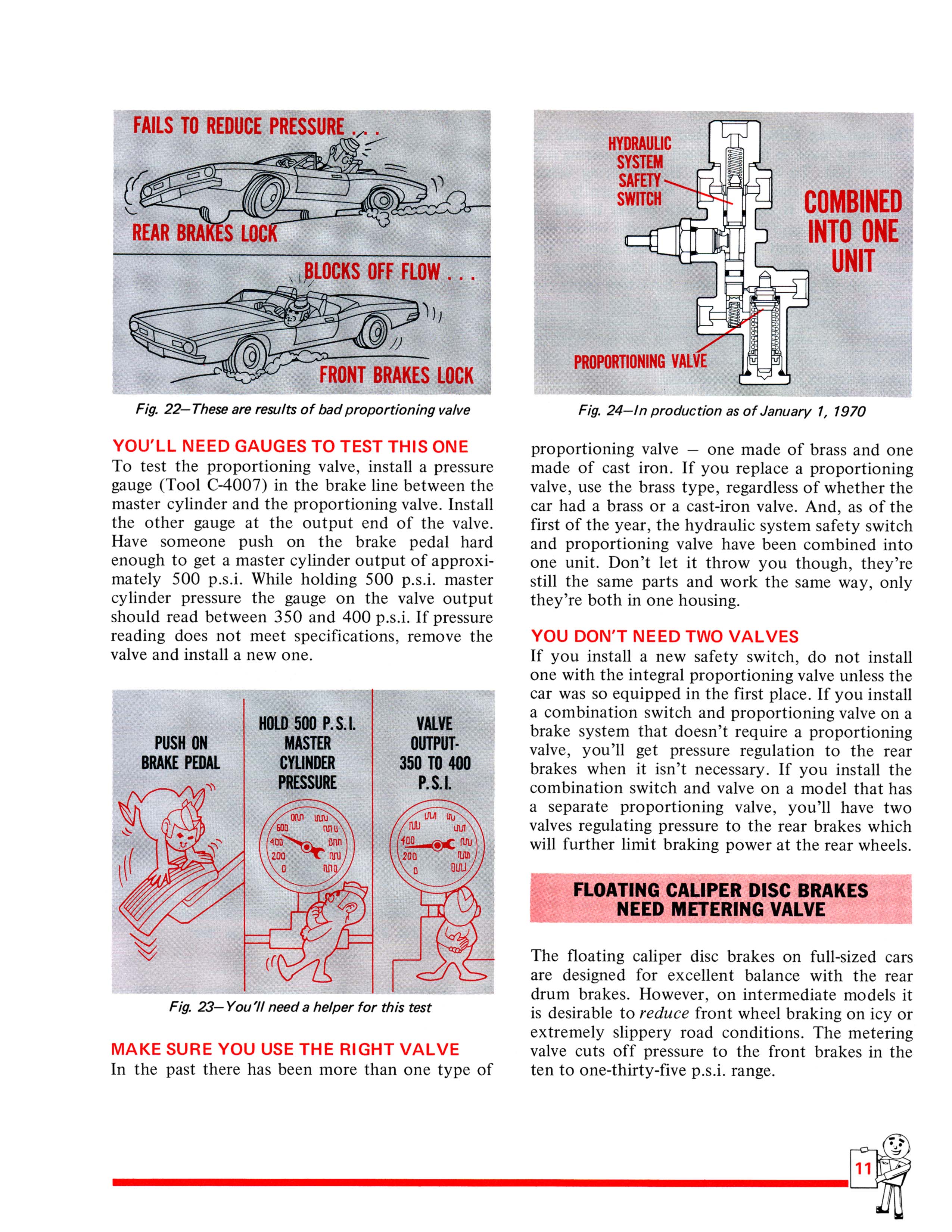

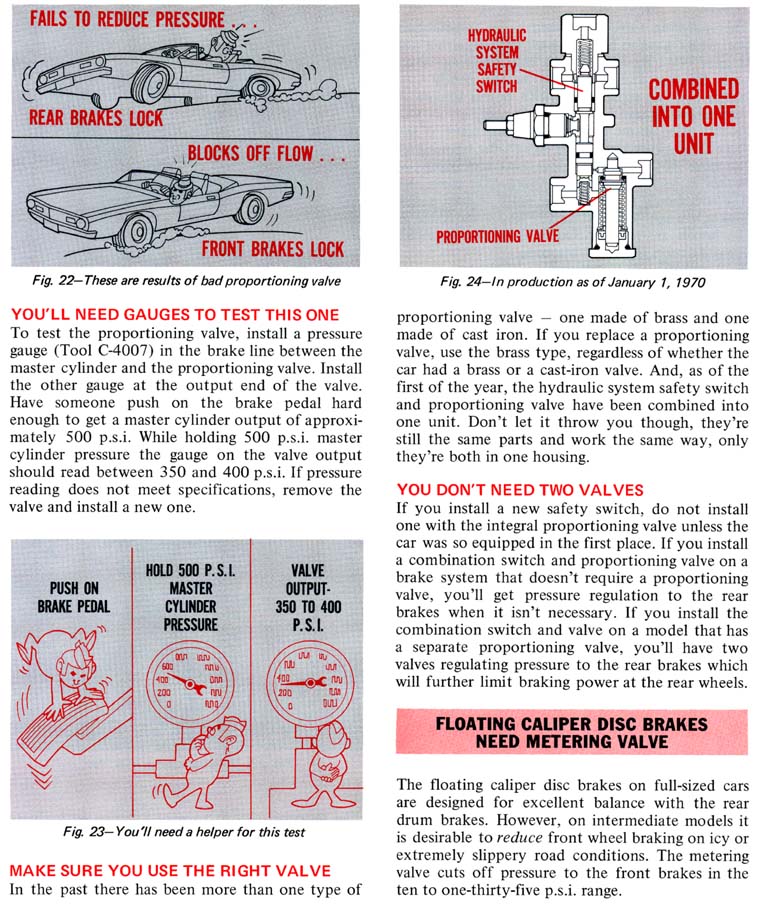

Move your way through the 1970 Hydraulic Brake Service Guide by choosing your next page. You are currently on Page 11.
Front Cover Introduction Page Page 1 - Table Of Contents Page 2 - Master Cylinder Information Page 3 - Disc and Drum Master Cylinders Page 4 - Ports - Compensating and Filler Page 5 - Pressure Loss In Hydraulic Systems Page 6 - Cover And Gasket, Diagnosis And Service Page 7 - Use Manuals And Bench-Bleeding Page 8 - Hydraulic Brake System Controls Page 9 - Safety Switch Information Page 10 - Proportioning Valve Page 11 - Floating Caliper Disc Brakes Needs A Metering Valve Page 12 - Bleeding With A Metering Valve Page 13 - 1970 Master Cylinder Identification Chart Back Cover
Go back to Page 10 Go on to Page 12
Close this window to return to the 1970 Hydraulic Brake Table of Contents.
We also have a much larger, printable version of this page available. This booklet was originally 8.5" x 11".
