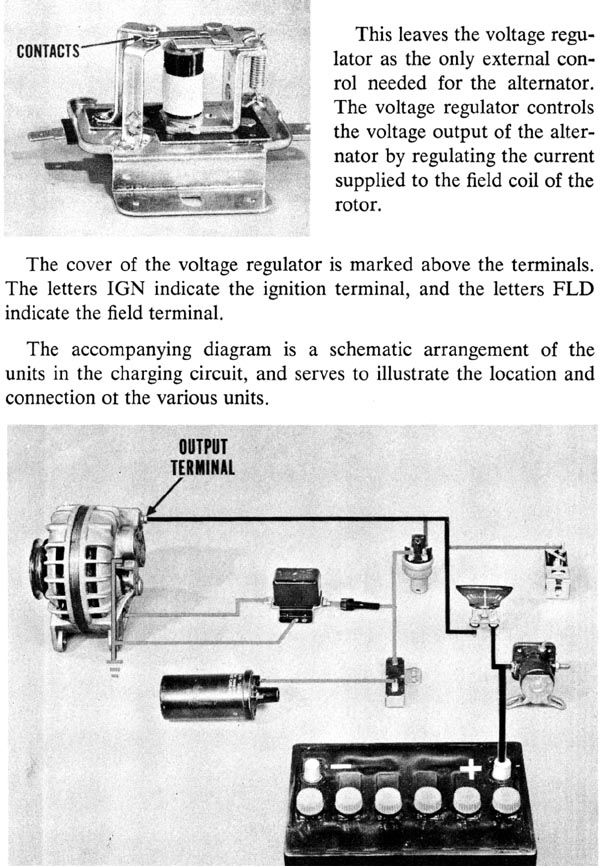

Move your way through the 1960 Chrysler Reference Guide On Alternator Service by choosing your next page. You are currently on Page 8.
Front Cover Page 2 - Introduction To The Booklet Page 3 - Table Of Contents Page 4 - Description Of The Alternator Page 5 - How The Alternator Operates Page 6 - Part 2 On How The Alternator Operates Page 7 - Output Control Page 8 - More On Output Control Page 9 - Function Of The Ammeter Page 10 - Maintenance Of The Alternator Page 11 - Tests Of The Alternator Page 12 - Circuit Resistance Test Page 13 - Current Output Test Page 14 - More On The Current Output Test Page 15 - Field Current Draw Page 16 - Voltage Regulator Test Page 17 - Voltage Regulator Adjustment Page 18 - More On The Voltage Regulator Adjustment Page 19 - Alternator Bench Test Page 20 - Part 2 Of The Alternator Bench Test Page 21- The Rectifier Test Page 22 - Replacing A Rectifier Page 23 - Stator Test & The Conclusion Back Cover and Booklet Questions
Go back to Page 7 Go on to Page 9

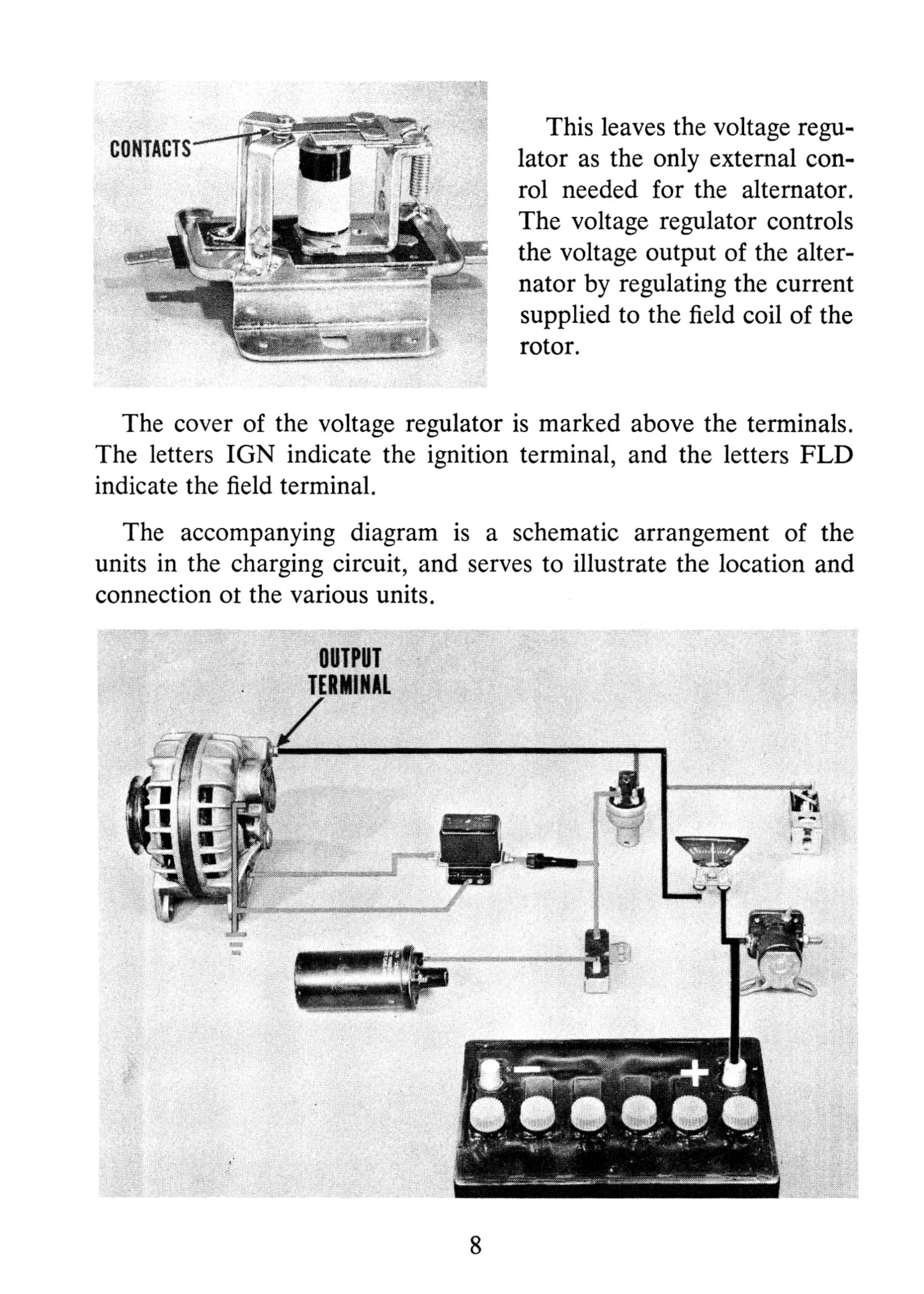

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
