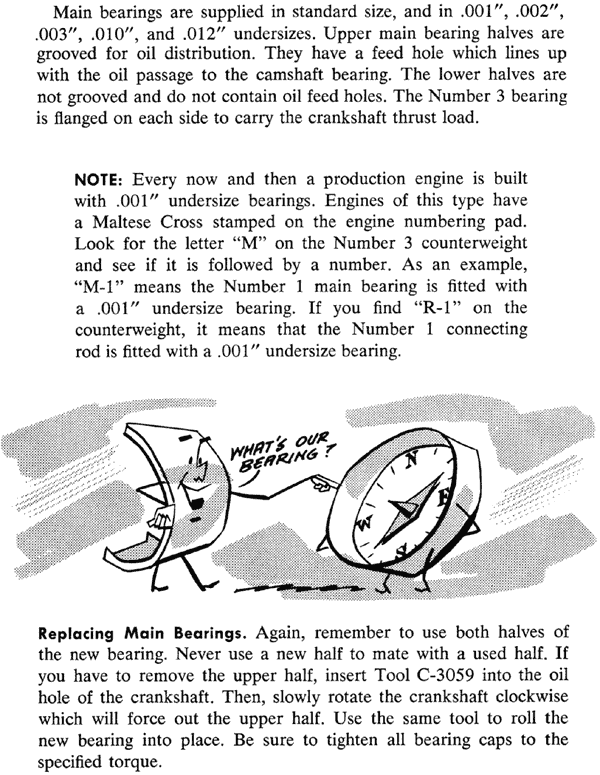

Move your way through the 1959 Chrysler Reference Guide On Valve and Bearing Service by choosing your next page. You are currently on Page 18.
Front Cover Page 2 - Introduction To The Booklet Page 3 - Table Of Contents Page 4 - Valve Reconditioning Page 5 - Inspecting The Valves & Guides Page 6 - More On The Valves & Guides Page 7 - Refacing The Valves Page 8 - Refacing The Valve Seats Page 9 - Inspecting The Seat Widths Page 10 - Hydraulic Tappets Page 11 - Valve Springs Page 12 - Installing The Valves Page 13 - How To Measure Install Spring Height Page 14 - Bearing Reconditioning : Connecting Rods Page 15 - Inspecting The Journals, Measuring The Clearance & The Shim Method Page 16 - Do Not Turn The Shim Page 17 - Main Bearings & Their Clearance Page 18 - Replacing The Main Bearings Page 19 - Rear Main Bearing Oil Seal & Engine Reassembly Page 20 - Push Rod Installation Page 21 - More On Push Rod Installation Page 22 - A Final Word Page 23 - Mr. Tech With A Trusty Chrysler Mechanic Back Cover and Booklet Questions
Go back to Page 17 Go on to Page 19

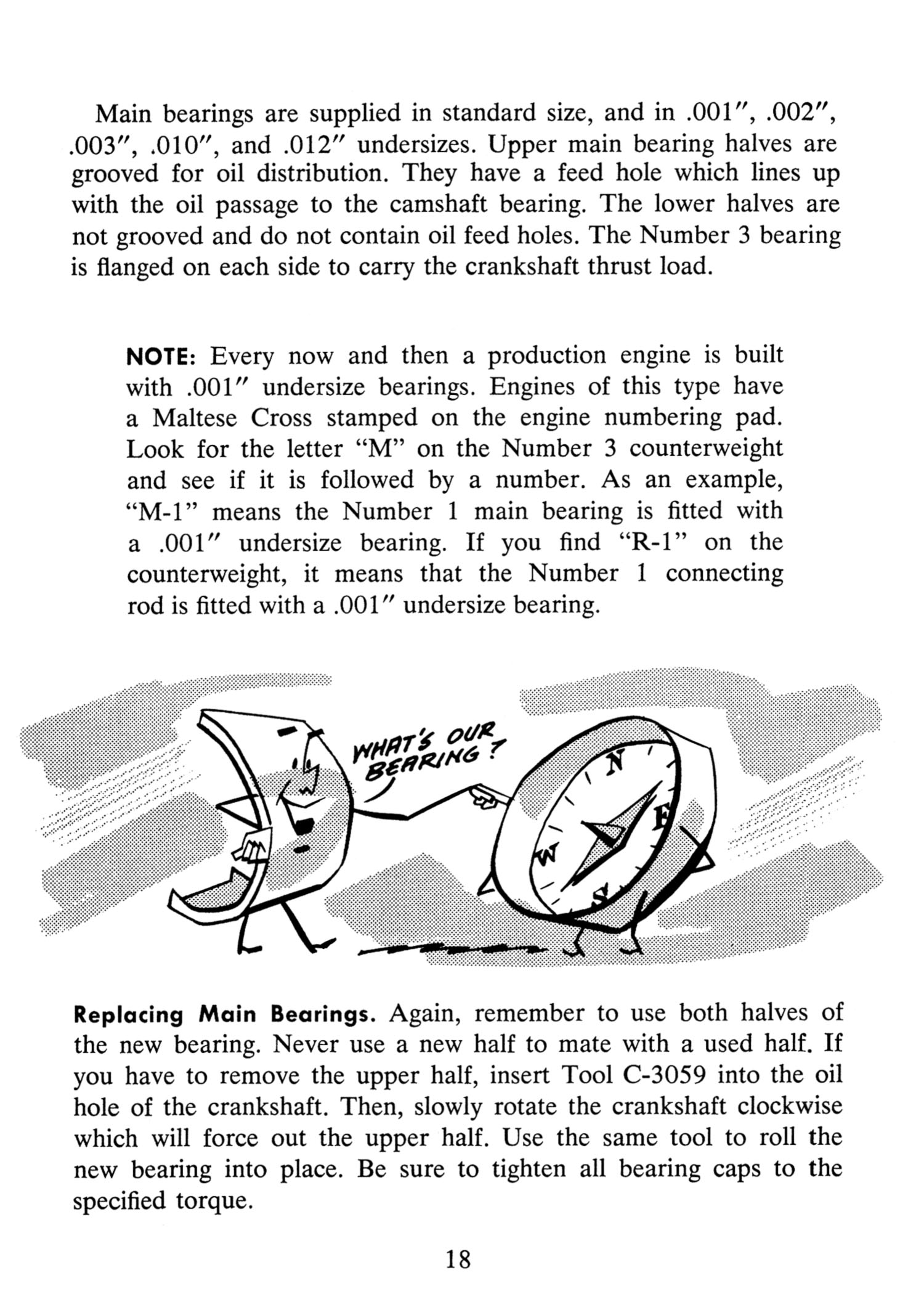

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
Close this window to return to Chrysler's 1959 Valve and Bearing Service Table of Contents.
