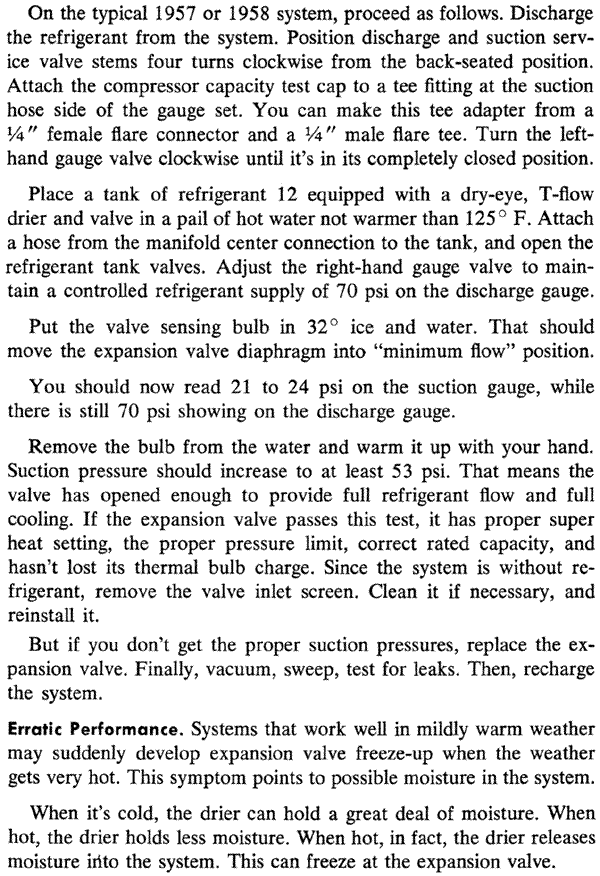

Move your way through the 1958 Chrysler Reference Guide On Air Conditioning Service by choosing your next page. You are currently on Page 29.
Front Cover Page 2 - Introduction To The Booklet Page 3 - Table Of Contents Page 4 - Features Of The 1958 Air Conditioning : Increased Air Flow Page 5 - Function Of The Components Page 6 - Compressor, Condenser & Receiver-Drier-Strainer Page 7 - Function Of The Expansion Valve Page 8 - Function Of The Evaporator, Magnetic Clutch & Thermal Switch Page 9 - Effect Of Humidity On The Unit Page 10 - Differences Between Home Air Conditioning & Car Air Conditioning Page 11 - Visual Inspection Of The Air Conditioning Unit Page 12 - How To Check The Controls Page 13 - More On Checking The Air Conditoning Internal Controls Page 14 - More Performance Checks Page 15 - Thermal Switch Test Page 16 - More On The Thermal Switch Page 17 - Performance Tests: Introduction Page 18 - Performance Tests: Discharge Pressures Page 19 - Part 3 Of The Performance Checks Page 20 & 21 - Performance Temperature Chart Page 22 - Problems With The Unit Not Cooling & Blower Housing Insulation Page 23 - Clutch Slippage Page 24 - Compressor Capacity Test Page 25 - Install Test Cap Page 26 - More On The Test Cap Installation Page 27 - Expansion Valve Test Page28 - What Is Needed For The Expansion Valve Test & How To Set It Up Page 29 - More On The Expanion Valve Test Page 30 - How To Dry A Wet System Page 31 - Summmary Back Cover & Questionnaire
Go back to Page 28 Go on to Page 30

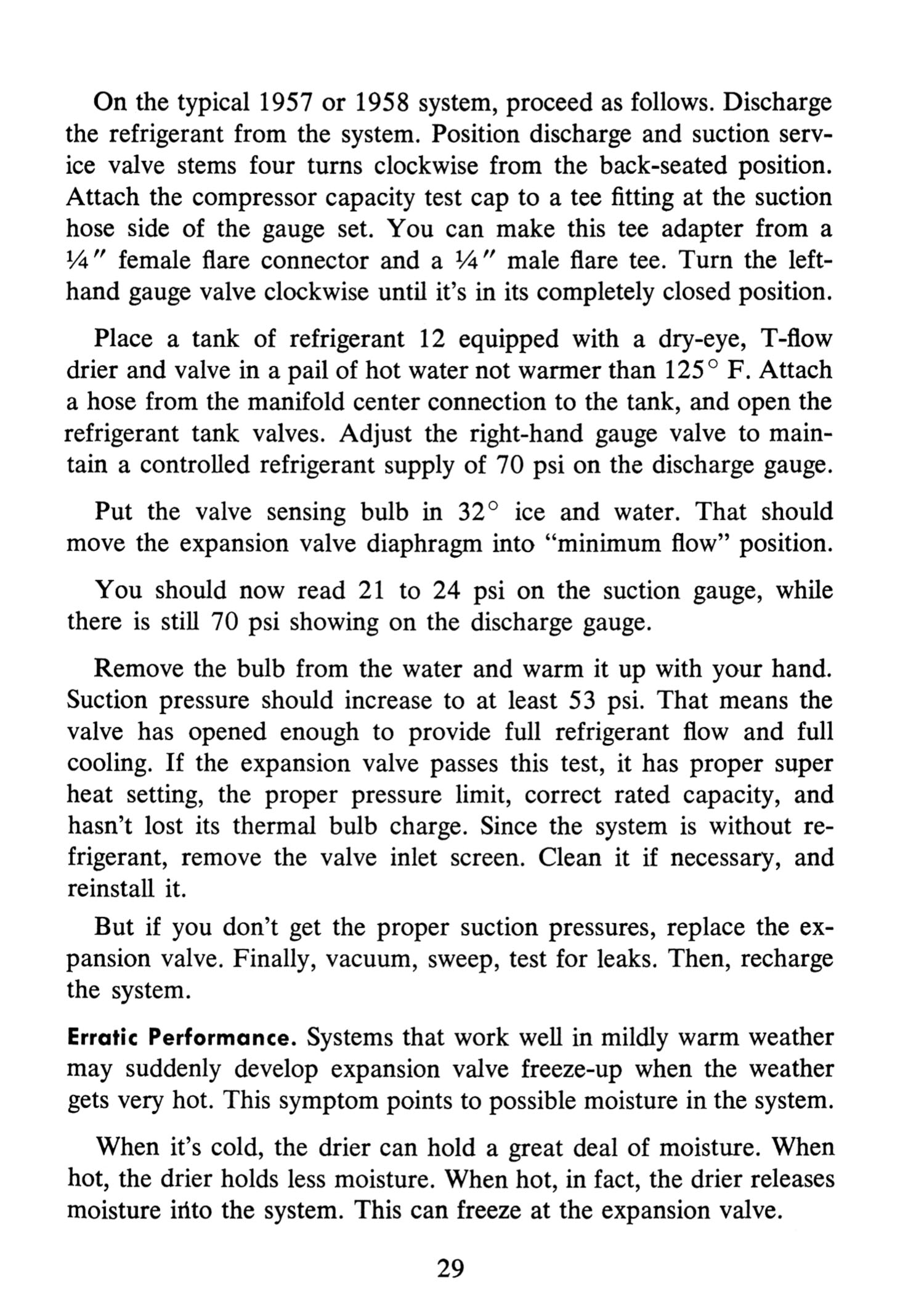

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
Close this window to return to Chrysler's 1958 Air Conditioning Service Table of Contents.
