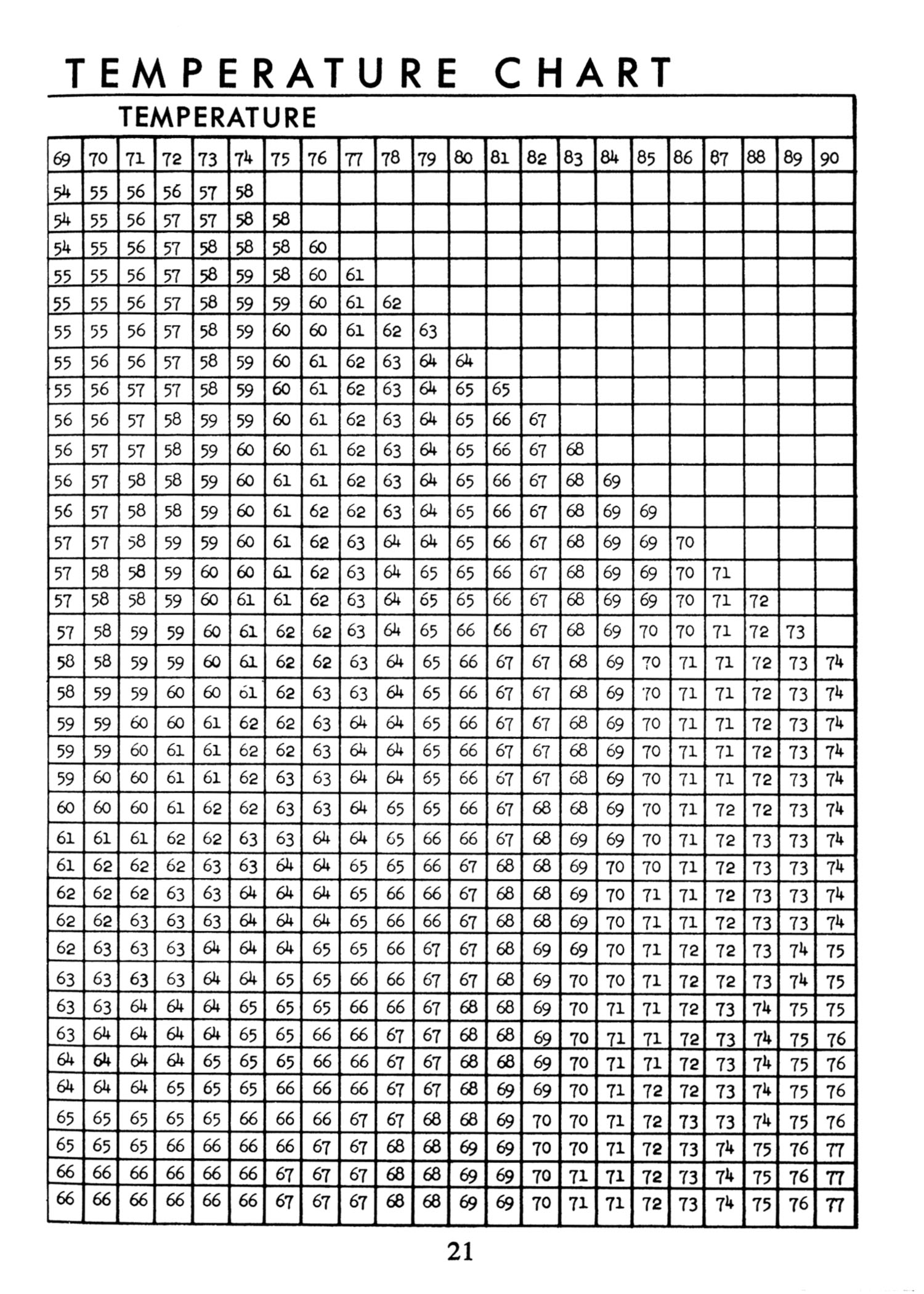

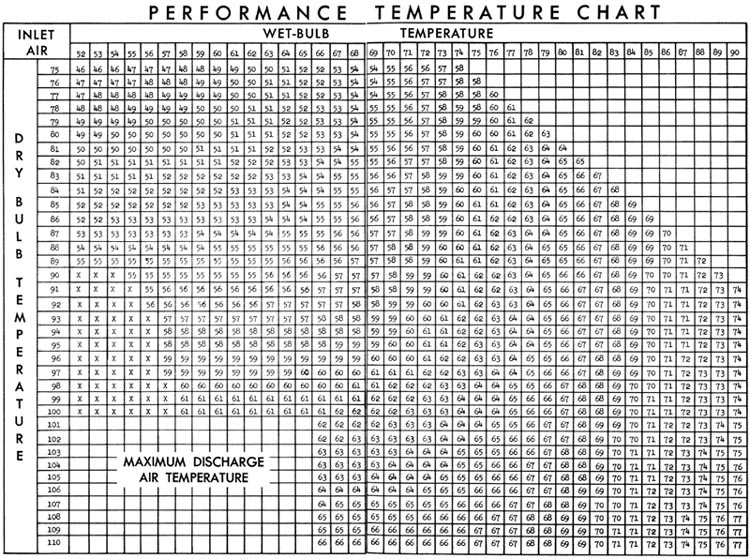

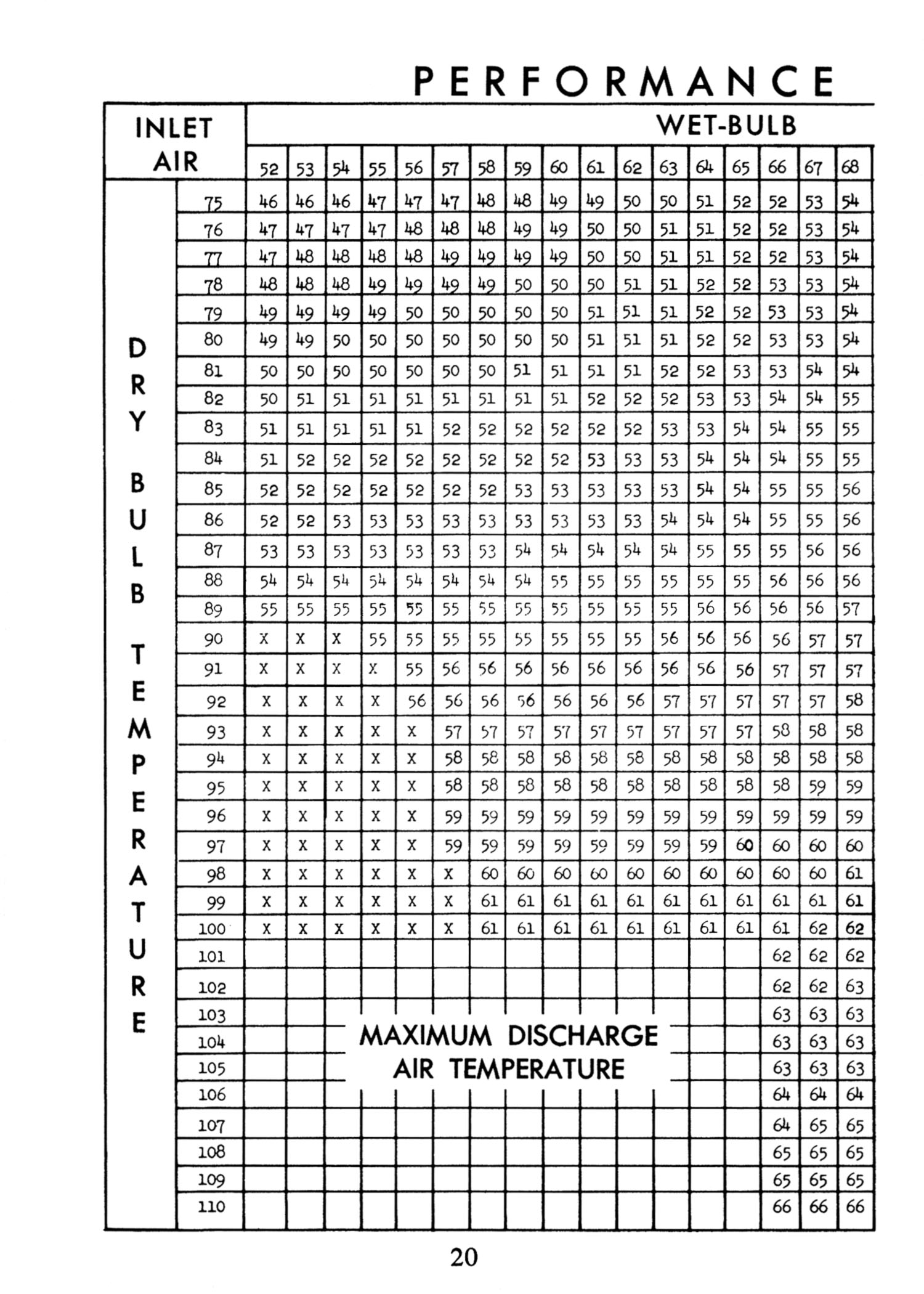

Move your way through the 1958 Chrysler Reference Guide On Air Conditioning Service by choosing your next page. You are currently on Pages 20 & 21.
