Move your way through the 1956 Imperial and Chrysler Vibration Diagnosis Reference Guide by choosing your next page. You are currently on Page 27.

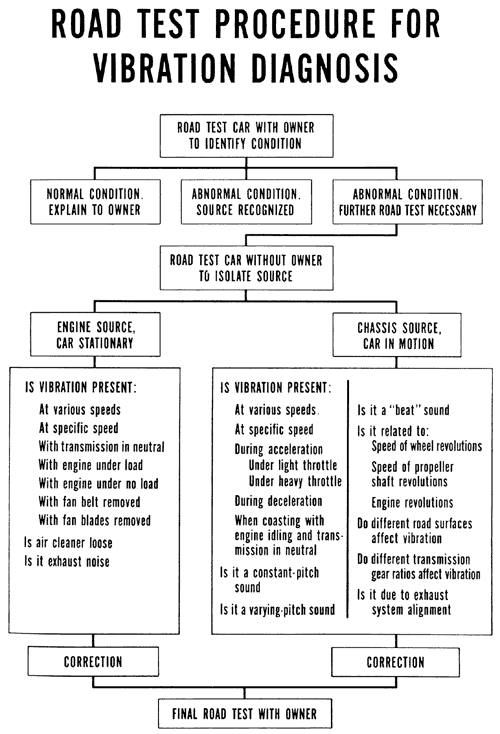

Front Cover Page 2 - Introduction To The Vibration Diagnosis Booklet Page 3 - Table Of Contents & Vibration Fundamentals Page 4 - Vibration Fundamentals Continued & You Can See Sound! Page 5 - You Can Feel Vibrations & Sympathetic Vibrations Page 6 - How To Describe A Vibration Page 7 - Characteristics Of Rear Axle Whine & Beat Vibration Page 8 - Road Test Procedures Page 9 - Getting The Facts From The Car's Owner & What To Do With No Owner Page 10 - More Road Test Procedures Page 11 - Seperating Engine Noises From Chassis Sources Page 12 - Disconnecting The Fan Belt & How To Isolating Chassis Conditions Page 13 - Propeller Shaft And Rear Universal Joint Angularity Page 14 - More Information On Prop Shafts & U-Joint Angularity Page 15 - Summary Page 16 & 17 - Chassis Vibration Diagnosis Chart Page 18 & 19 - Chassis Vibration Diagnosis Chart Continued Page 20 & 21 - The Third Part Of The Chassis Vibration Diagnosis Chart Page 22 & 23 - Engine Vibration Diagnosis Chart Page 24 & 25 - Engine Vibration Diagnosis Chart Continued Page 26 - Don't Forget To Use A Portable Tachometer Page 27 - Flow Chart For Use In Diagnosing Vibrations Back Cover Including The Technician's Quiz
Go back to Page 26 Go on to the Back Cover
Close this window to return to 1956 Vibration Diagnosis' Table of Contents.

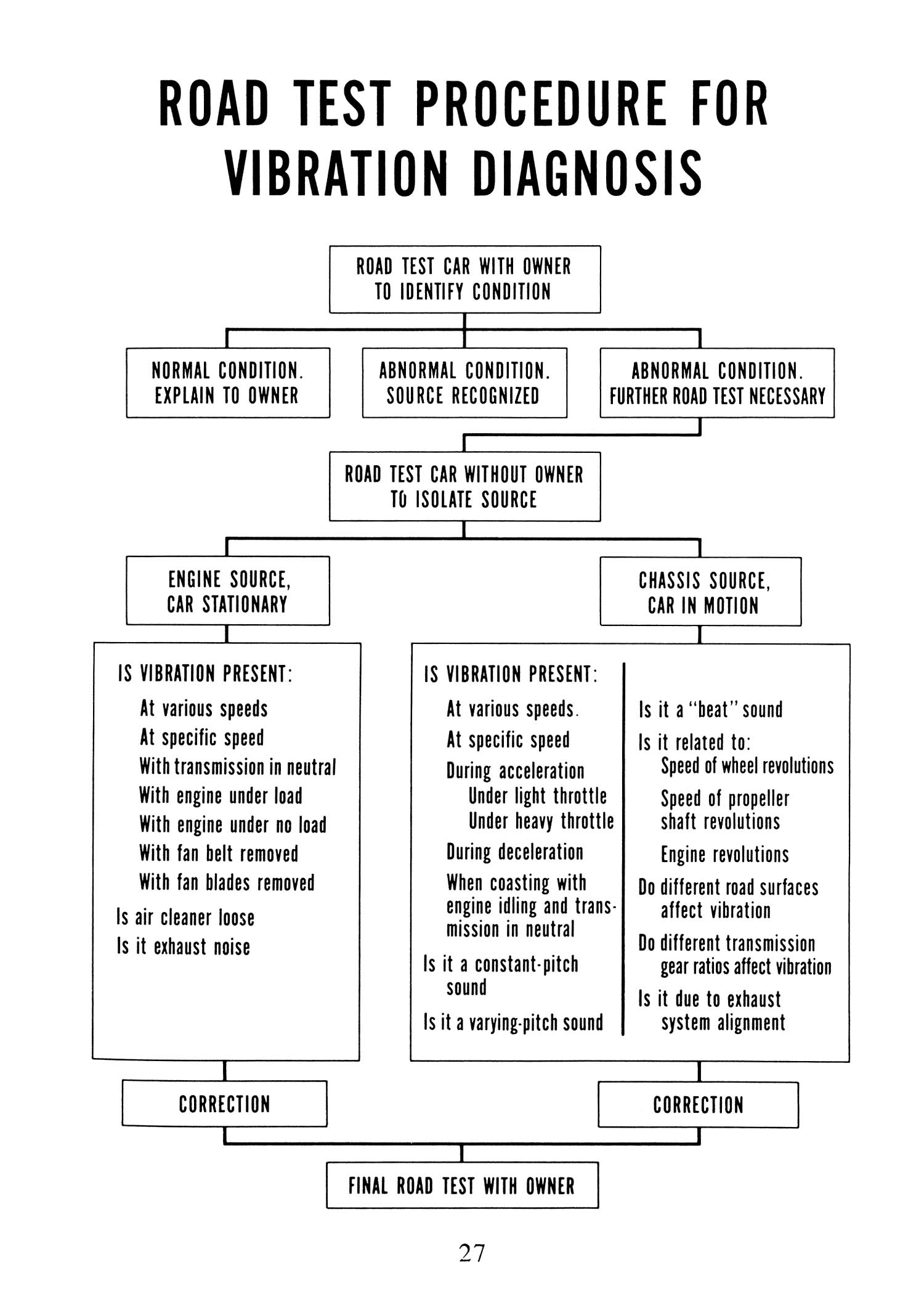

We also have a much larger, printable version of this page available. This booklet was originally 8.5" x 11".
