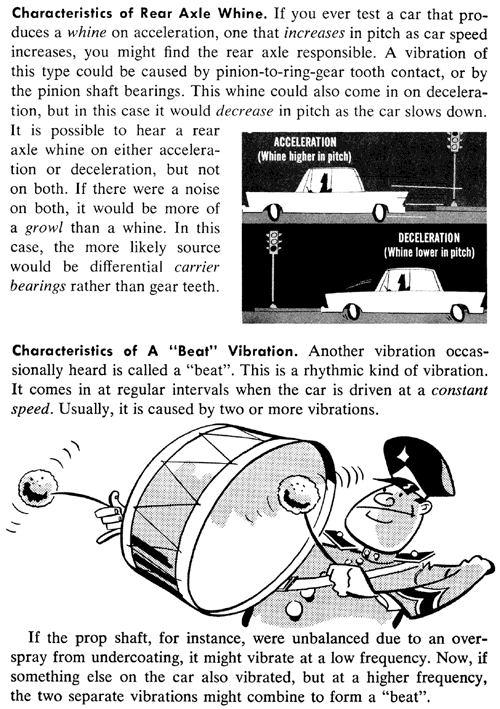

Move your way through the 1956 Imperial and Chrysler Vibration Diagnosis Reference Guide by choosing your next page. You are currently on Page 7.
Front Cover Page 2 - Introduction To The Vibration Diagnosis Booklet Page 3 - Table Of Contents & Vibration Fundamentals Page 4 - Vibration Fundamentals Continued & You Can See Sound! Page 5 - You Can Feel Vibrations & Sympathetic Vibrations Page 6 - How To Describe A Vibration Page 7 - Characteristics Of Rear Axle Whine & Beat Vibration Page 8 - Road Test Procedures Page 9 - Getting The Facts From The Car's Owner & What To Do With No Owner Page 10 - More Road Test Procedures Page 11 - Seperating Engine Noises From Chassis Sources Page 12 - Disconnecting The Fan Belt & How To Isolating Chassis Conditions Page 13 - Propeller Shaft And Rear Universal Joint Angularity Page 14 - More Information On Prop Shafts & U-Joint Angularity Page 15 - Summary Page 16 & 17 - Chassis Vibration Diagnosis Chart Page 18 & 19 - Chassis Vibration Diagnosis Chart Continued Page 20 & 21 - The Third Part Of The Chassis Vibration Diagnosis Chart Page 22 & 23 - Engine Vibration Diagnosis Chart Page 24 & 25 - Engine Vibration Diagnosis Chart Continued Page 26 - Don't Forget To Use A Portable Tachometer Page 27 - Flow Chart For Use In Diagnosing Vibrations Back Cover Including The Technician's Quiz
Go back to Page 6 Go on to Page 8
Close this window to return to 1956 Vibration Diagnosis' Table of Contents.

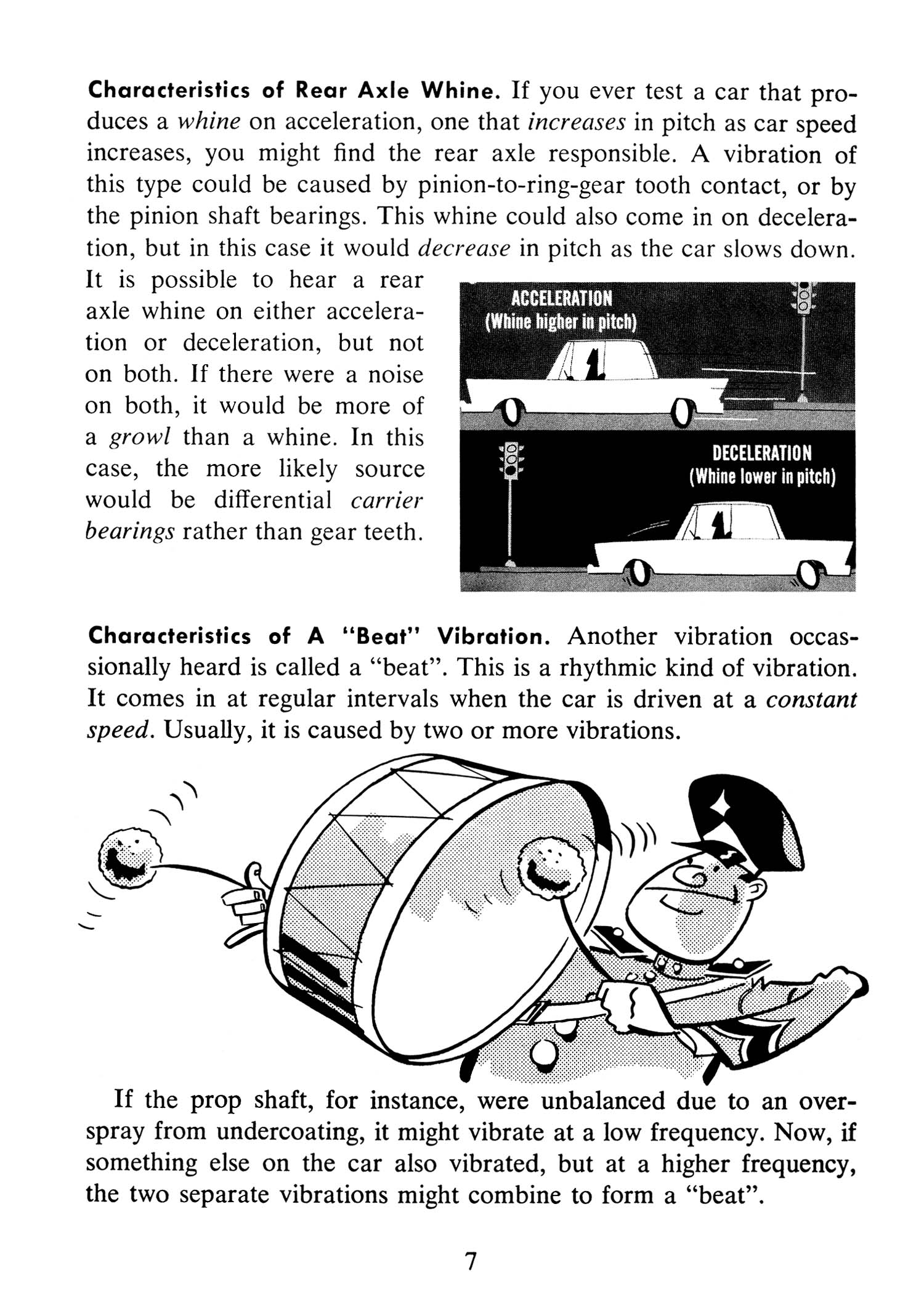

We also have a much larger, printable version of this page available. This booklet was originally 8.5" x 11".
