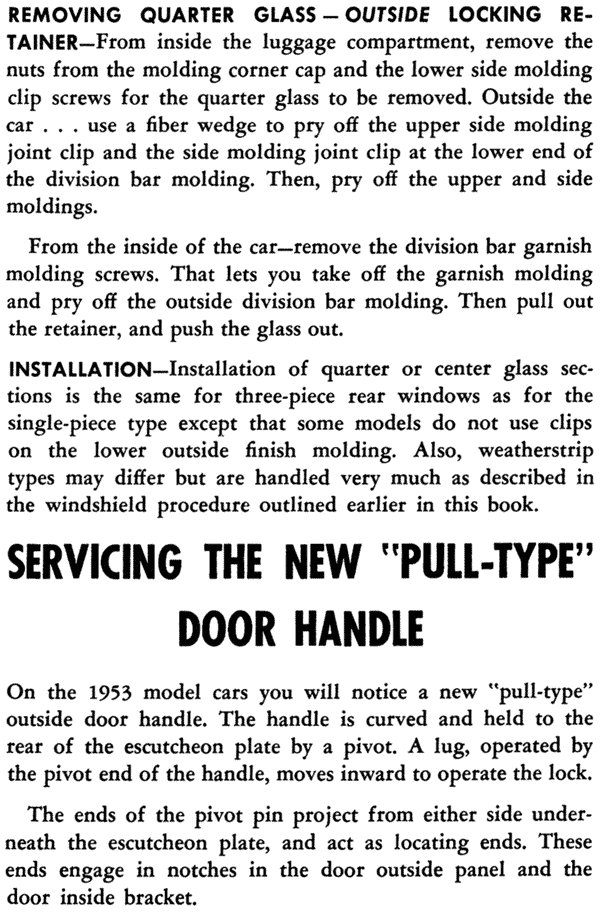

Move your way through the 1952 Chrysler Reference Guide On Windshield & Rear Window Service by choosing your next page. You are currently on Page 28.
Front Cover Page 2 - Introduction To The Booklet Page 3 - Table Of Contents Page 4 - The 3 Windshield Weatherstrip Features Page 5 - 2-Piece Type, With Separate Inside Retainer Page 6 - 2-Piece Type With Seperate, Outside Retainer Page 7 - 1-Piece, Integral-Locking Retainer Type Page 8 - Summary Of Weatherstrip Types Page 9 - Removing & Installing The Windshield Page 10 - Removing The Windshield - Inside Locking Retainer Page 11 - Caution Needed For Removing Windshields Page 12 - Installing The Windshield - Inside Locking Retainer Page 13 - More On Installing The Weatherstipping Page 14 - Assembly Part 3 Page 15 - Weatherstrip Installation Tools Page 16 - Installation Instructions Part 5 Page 17 - Removing The Windshield - Outside Locking Retainer Page 18 - Installing The Windshield - Outside Locking Retainer Page 19 - Removing The Windshield - Integral Locking Retainer Page 20 - Installing The Windshield - Integral Locking Retainer Page 21 - Part 2 Of Installing The Integral Locking Retainer Windshield Page 22 - Removing & Installing The Rear Window Page 23 - 5 Types Of Rear Window Weatherstripping Page 24 - Removal & Installation Of The Rear Window Page 25 - 3-Piece Rear Window & Removing A Quarter Window Page 26 - Installing A Quarter Window - Integral Retainer Weatherstrip Page 27 - Installing A Center Glass & Removing A Quarter Glass - Inside Locking Retainer Page 28 - Removing & Installing The Outside Locking Retainer Weatherstipping Page 29 - Servicing The "Pull-Type" Door Handle Page 30 - Chrylser & De Soto Door Handle Removal Tips Page 31 - Booklet Test Questions Back Cover
Go back to Page 27 Go on to Page 29

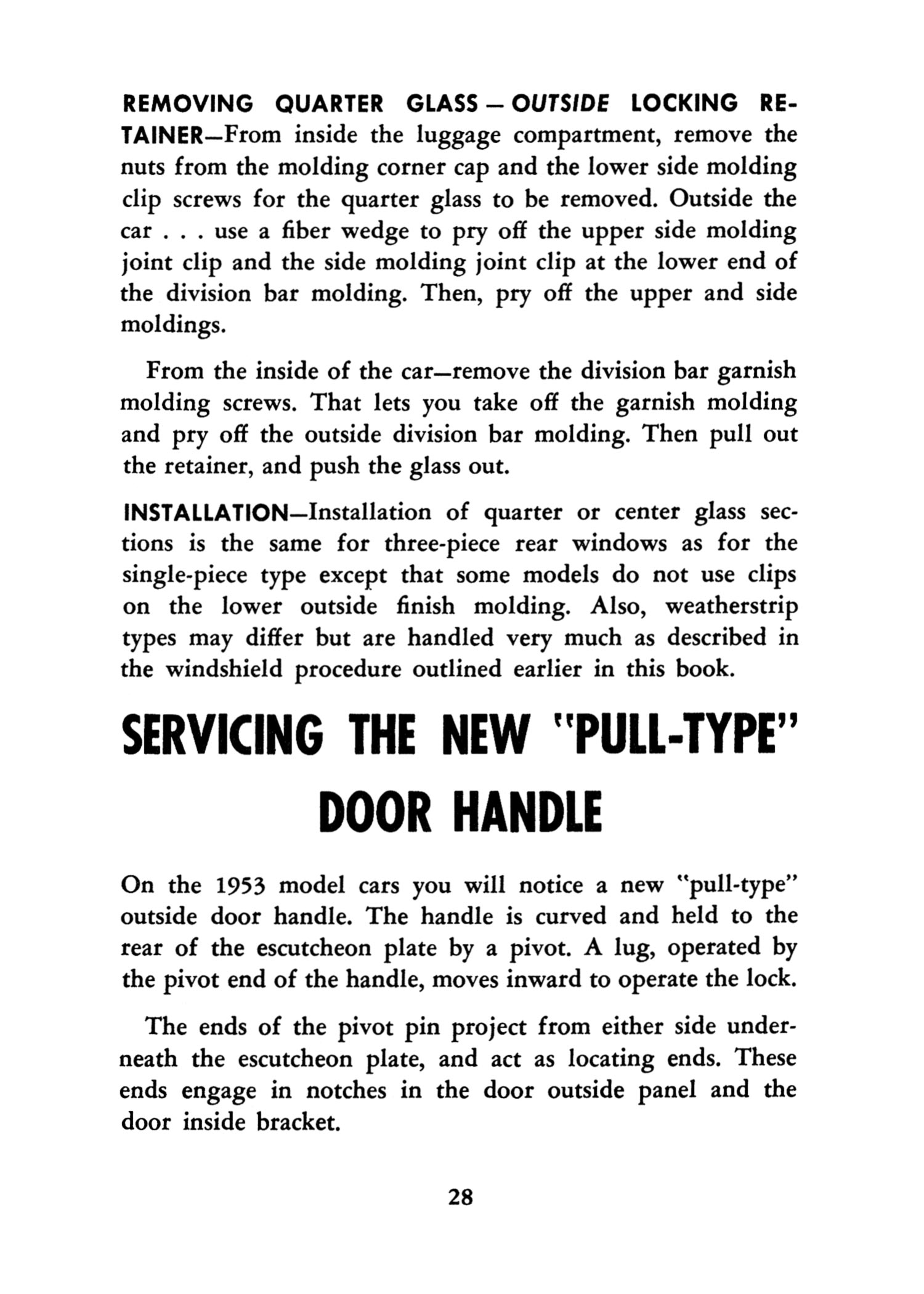

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
Close this window to return to Chrysler's 1952 Windshield & Rear Window Service Table of Contents.
