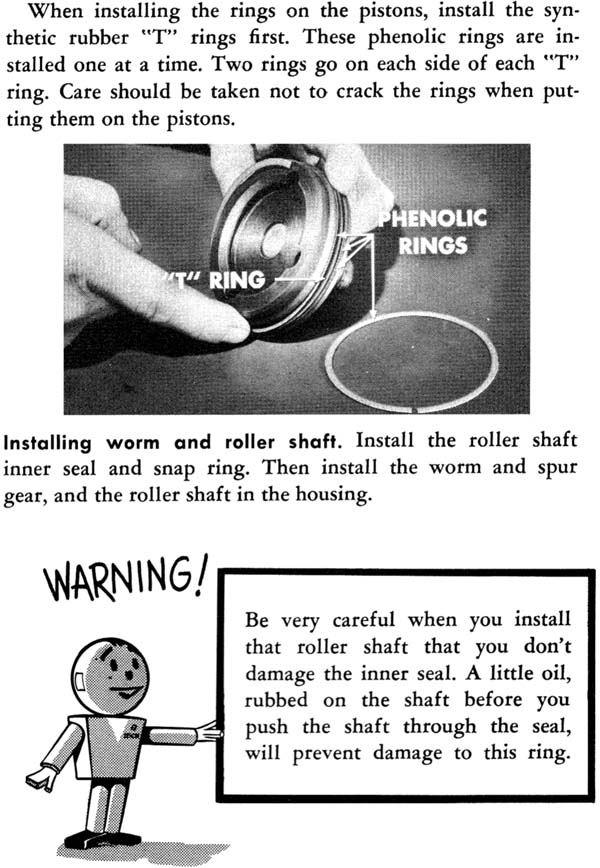

Move your way through the 1952 Chrysler Reference Guide On Hydraulic Power Steering by choosing your next page. You are currently on Page 15.
Front Cover Page 2 - Introduction To The Booklet Page 3 - Table Of Contents Page 4 - Removing The Unit From Your Chrysler Page 5 - Front & Engine Compartment Details Page 6 - Removing The Complete Steering Column Page 7 - Disassembly Of The Unit Page 8 - Removing The Power Cylinders Page 9 - Removing The Pistons Page 10 - Removal Of The Worm & Roller Shaft Page 11 - Valve Body Disassembly Page 12 - Action Of The Dashpod Page 13 - Cleaning & Inspecting The Unit Page 14 - Assembly Of The Unit Page 15 - Installing The Worm & Roller Shaft Page 16 - Adjusting The Backlash In The Worm & Roller Shaft Page 17 - Installing & Adjusting The Piston Page 18 - Assembling & Installing Valve Body Page 19 - Installation Of The Unit Page 20 - More On Installing The Unit Page 21 - Part 3 Of Installing The Unit Page 22 - More Installing The Unit Page 23 - Spur Gear Adjustment Page 24 - Reservoir & Oil Pump Assembly Page 25 - Removing & Repairing The Pump Page 26 - Bleeding The System Of Air Page 27 - Grade Of Oil To Use Back Cover & Booklet Questions
Go back to Page 14 Go on to Page 16

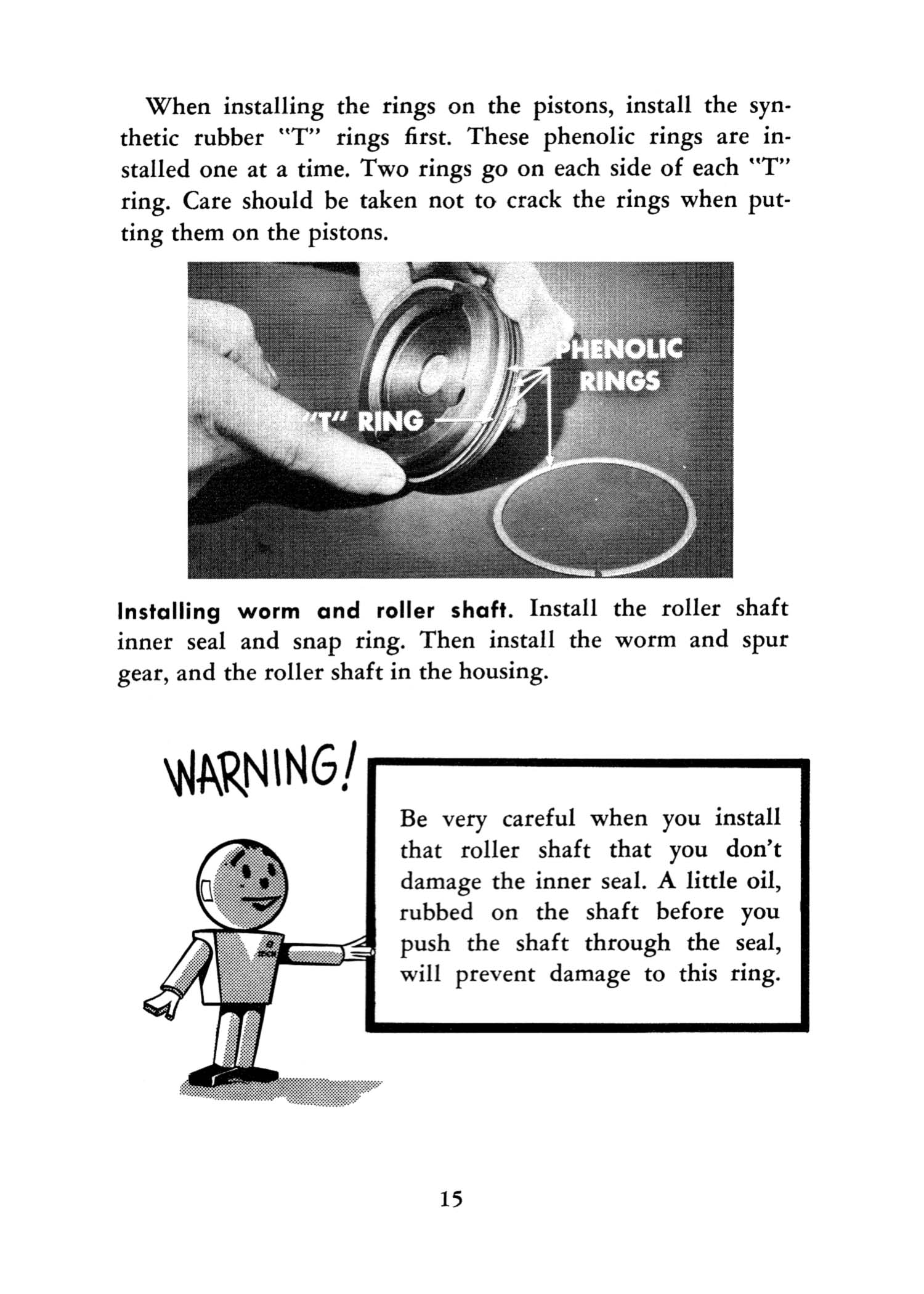

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
Close this window to return to Chrysler's 1952 Hydraulic Power Steering Table of Contents.
