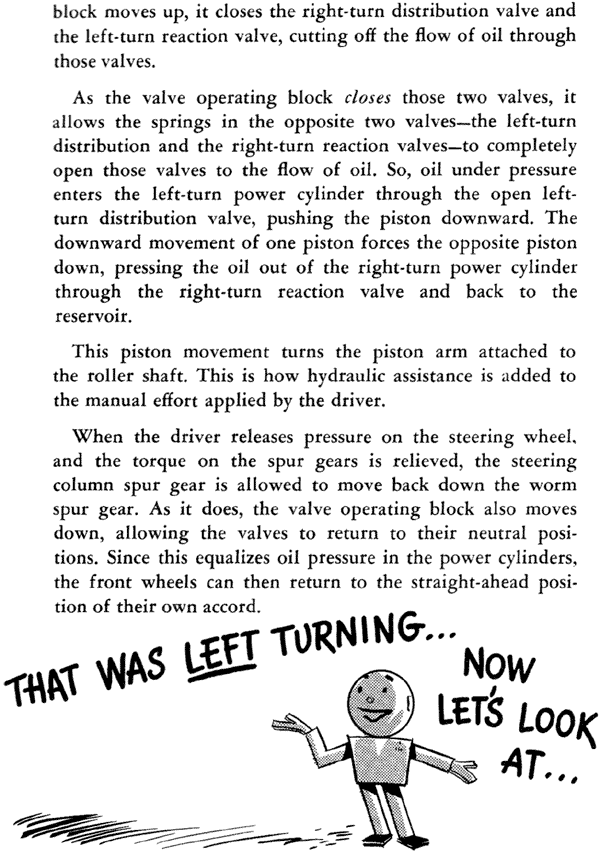

Move your way through the 1952 Chrysler Reference Guide On Hydraulic Power Steering by choosing your next page. You are currently on Page 21.
Front Cover Page 2 - Introduction To The Booklet Page 3 - Table Of Contents Page 4 - Differences Between Power Steering & Conventional Steering Page 5 - More On The Differences Between The 2 Systems Page 6 - Power Steering System Specifics Page 7 - Full Control Of The Wheels With Power Steering Page 8 - Units Of The Power Steering System Page 9 - Pressure Relief Valve Page 10 - Oil & Aluminum Type Reservoirs Page 11 - Pressed Steel Reservoir & Hoses Page 12 - Valve Body Assembly Page 13 - More On The Pressure Relief Valve Page 14 - Valve Operating Block Page 15 - "O" Rings & Seals, Steering Column Assembly Page 16 - Power Cylinders Page 17 - Steering Arm & Roller Shaft Page 18 - Operation Of The Hydraulic Power Steering System Page 19 - Operation Of The Neutral Setting Page 20 - Operation Of The Left-Turn Position Page 21 - More On Operation Of The Left-Hand Turn Page 22 - Operation Of The Right-Turn Position Page 23 - Diagnosis Of General Operation Problems Page 24 - Broken Pump Drive Coupling Page 25 - Flow Control Valve Stuck & Pistons Rings Broken Page 26 - Noise During Operation & Cold Weather Problems Page 27 - Snapping Noises Page 28 - More Diagnosis Page 29 - Spur Gear Adjustments Page 30 - Oil Leaks Page 31 - Repairing The Seal At The End Of The Roller Shaft Page 32 - More General Repairs Page 33 - Tightening Reference Page 34 - Booklet Questionnaire Page 35 - Picture Of Mr. Tech Back Cover
Go back to Page 20 Go on to Page 22

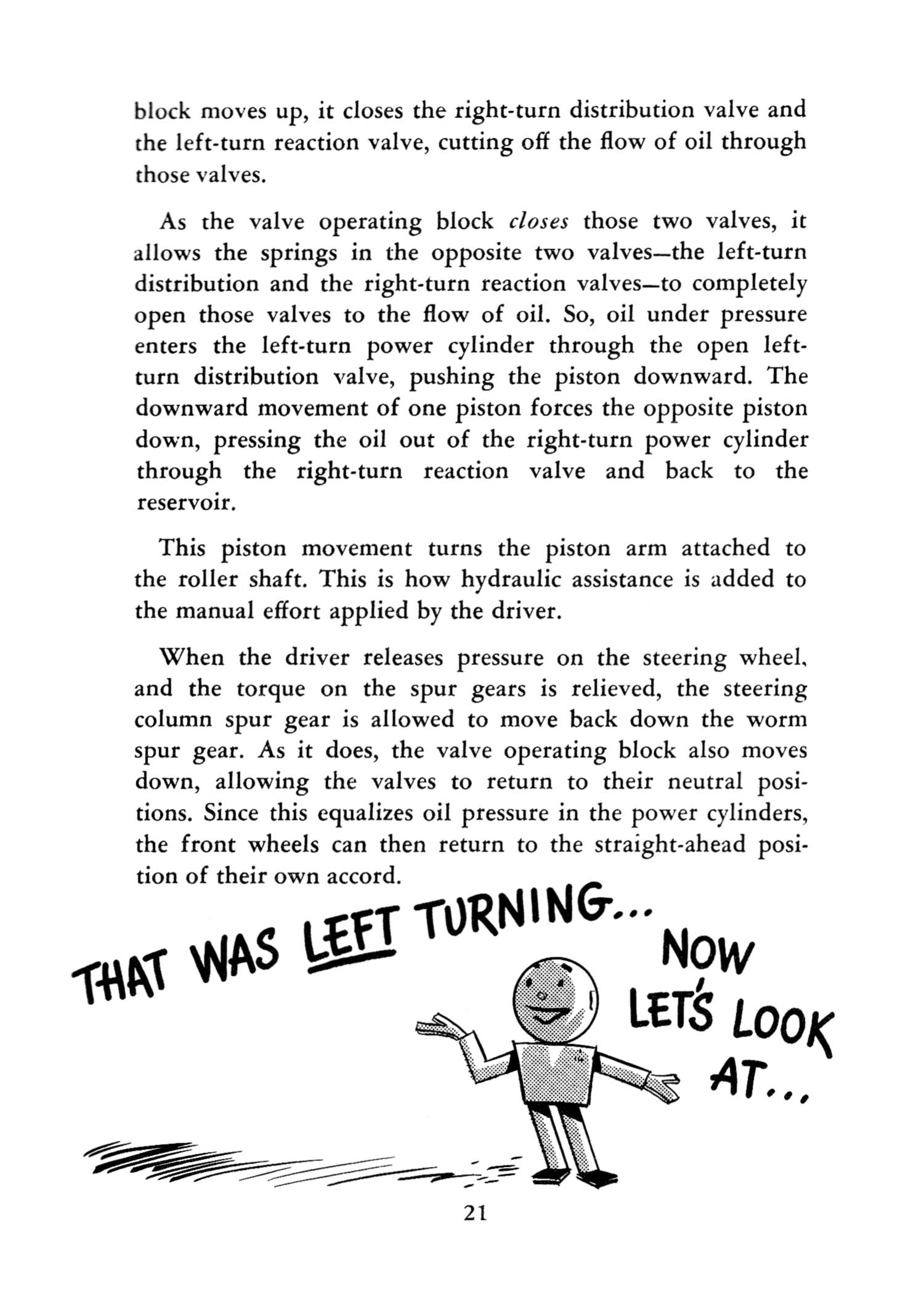

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
Close this window to return to Chrysler's 1952 Hydraulic Power Steering Table of Contents.
