Move your way through the 1951 Chrysler Reference Guide On Body Service Adjustment by choosing your next page. You are currently on Page 25.

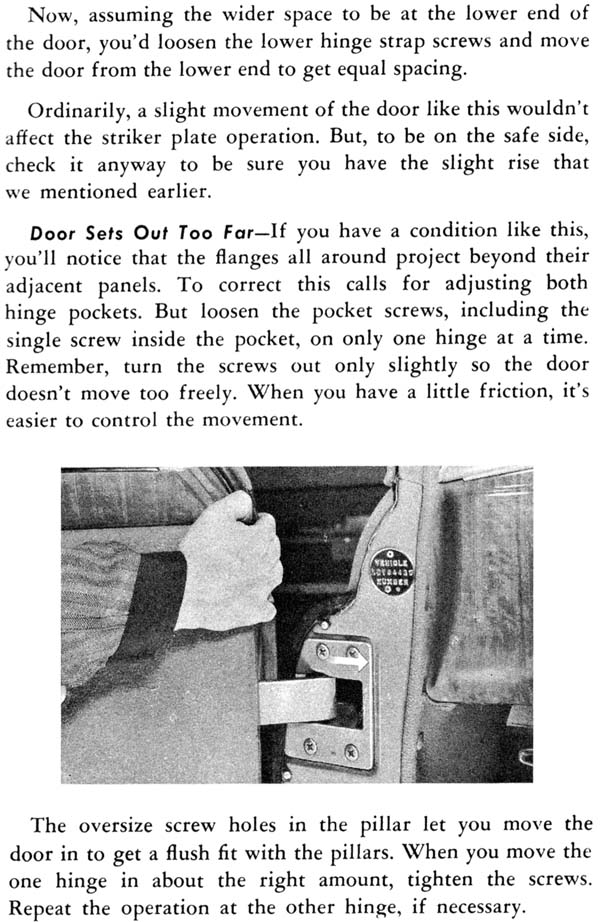

Front Cover Page 2 - Introduction To The Booklet & Table Of Contents Page 3 - Locating Water Leaks From The Cowl Page 4 - More On Cowl Water Leaks Page 5 - Possible Points Of Leakage Page 6 - More Locations Of Water Leaks Page 7 - How To Seal The Openings Page 8 - More On Sealing Dash Leaks Page 9 - Water Leaking Into The Front Pillar Page 10 - Windshield Water Leaks Page 11 - How To Seal Other Leakage Points Page 12 - Even More Techniques Page 13 - Hood & Fender Adjustments Page 14 - Too Much Space Between The Hood & Cowl Page 15 - More On The Hood & Cowl Page 16 - Hood Adjustments Beyond The Fenders Page 17 - The Hood Rises Over The Fender Page 18 - Center Of The Hood Is Lower Than The Fender Page 19 - Insufficient Clearance Between Rear Edge Of Hood & Cowl Page 20 - Fender Below The Level Of The Hood Page 21 - Front Edge Of Fender Above The Fenders & Fender and Hood Clearance Page 22 - Door Adjustments Page 23 - Too Small Clearance At The Top Of The Door Page 24 - Unequal Spacing Between The Door and Pillar Post Page 25 - Door Sits Out Too Far Page 26 - More On Far Sitting Door Page 27 - Upper Part Of Door Isn't Flush With Door Pillar Page 28 - Don't Rush The Process Page 29 - Checking Weatherstrip Compression Page 30 - Deck Lid Adjustments Page 31 - Water Leaks In The Deck Lid Page 32 - Deck Lid Isn't Flush With Side Body Panels Page 33 - Deck Lid Lock Adjustments Page 34 - More On Deck Lid Locks Page 35 - Questionnaire Of The Booklet Back Cover and Booklet Questions
Go back to Page 24 Go on to Page 26

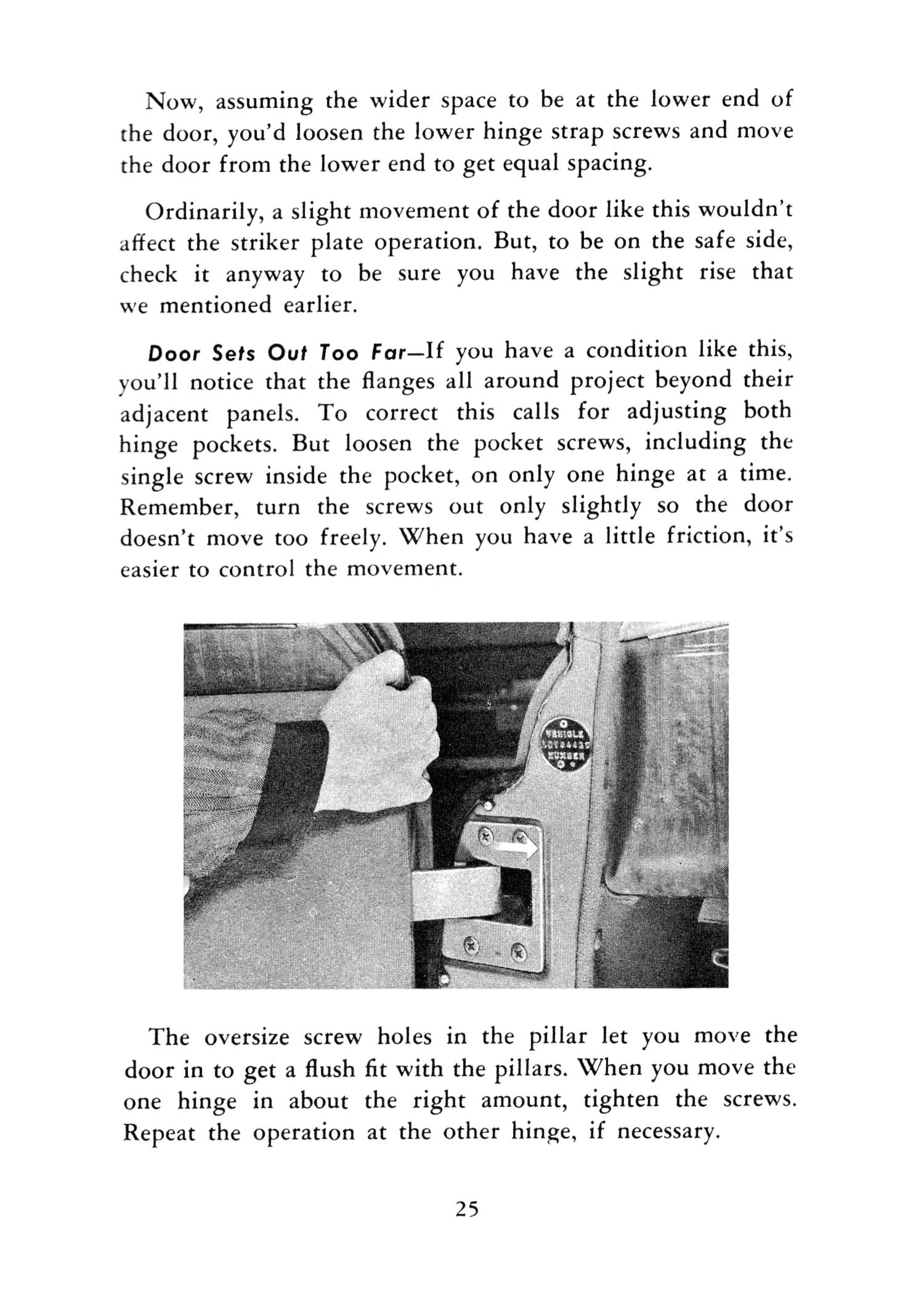

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
Close this window to return to Chrysler's 1951 Body Service Table of Contents.
