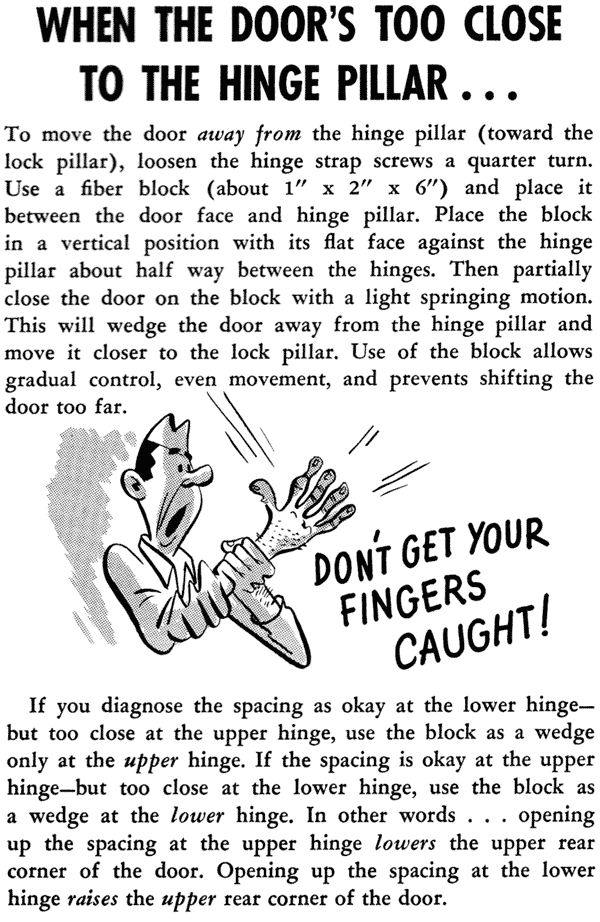

Move your way through the 1949 Chrysler Reference Guide On Body Fitting Facts by choosing your next page. You are currently on Page 12.
Front Cover Page 2 - Introduction To The Booklet Page 3 - Why Good Door Fits Are Important Page 4 - What Is A Proper Door Fit & Deciding On Needed Correction Page 5 - How To Feel For A Good Door Fit Page 6 - How The Hinge Is Built To Help In Door Fitting Page 7 - Door Latch & Striker Details Page 8 - Built-In Door Adjustments: To Center The Door In The Opening Page 9 - How To Move The Door With The Hinges In Position Page 10 - How To Raise The Door Straight Up Page 11 - How To Raise Just The Rear Edge Of The Door & Final Striker Adjustment Page 12 - How To Adjust The Door If It Is Too Close To The Hinge Pillar Page 13 - How To Adjust The Door If It Is Too Far From The Hinge Pillar Page 14 - How To Make A Door Fit Flush With Adjacent Body Panels Page 15 - Other Methods To Get A Door To Fit Properly Page 16 - How To Square The Door Page 17 - Another Block Adjustment To Doors Page 18 - How To Spring Hammer To Correct Door Contour Page 19 - More On Spring Hammering Page 20 - Bending The Door To Correct Its Contour Page 21 - More On Bending The Body Contour Page 22 - Spooning To Correct Door Contour Page 23 - Aligning Door Contour Page 24 - Aligning The Deck Lid & Lock and Striker Adjustments Page 25 - More On Trunk Lock & Striker Adjustments Page 26 - One Deck Lid Alignment Method Page 27 - A Second Deck Lid Adjustment Page 28 - Two Other Deck Lid Adjustments Page 29 - Adjustable Features Of The Hood Page 30 - Hood Adjustment Diagnosis Page 31 - More About Hood-Fitting & Hood Gaps Page 32 - Evening Up Hood Spaces Page 33 - More On Evening Up Hood Spaces Page 34 - Conclusions Page 35 - Booklet Questionnaire Back Cover
Go back to Page 11 Go on to Page 13

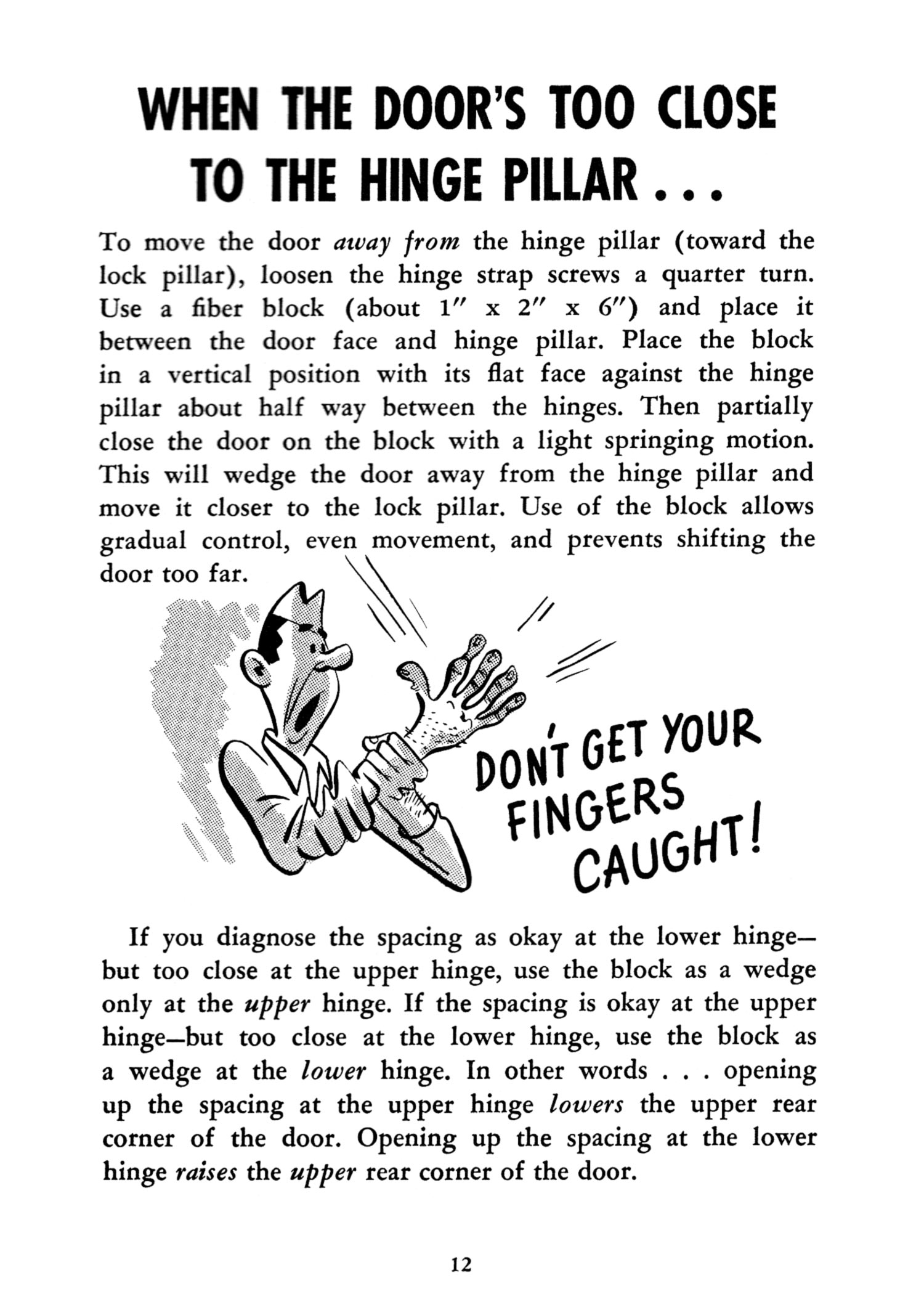

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
Close this window to return to Chrysler's 1949 Body-Fitting Facts' Table of Contents.
