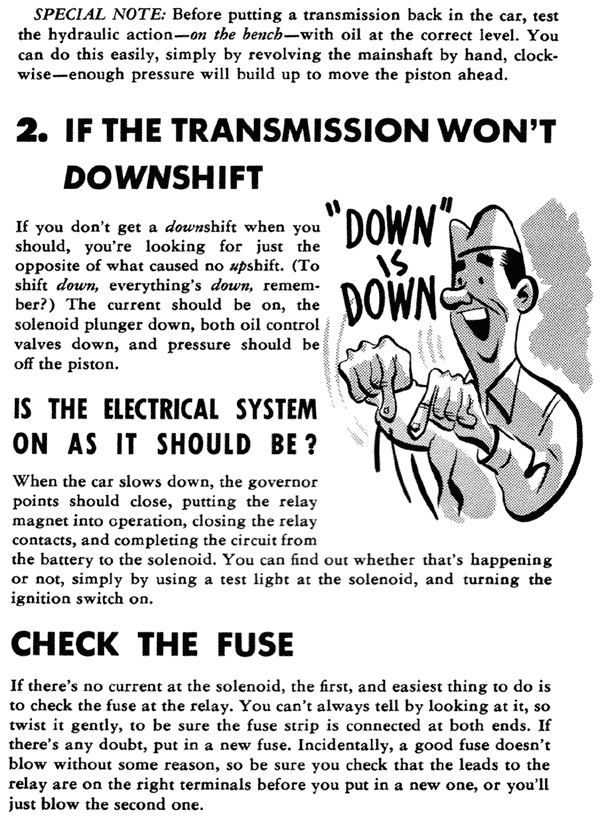

Move your way through the 1948 Chrysler Reference & Service Guide On Diagnosing The Fluid Drive Transmission by choosing your next page. You are currently on Page 13.
Front Cover Page 2 - Introduction And An Explanation About How The Fluid Drive Works Page 3 - Continuation Of The Introduction Page 4 - What It Means If The Transmission Doesn't Shift Page 5 - More Information About How The Electrical System Affects The Transmission Page 6 - Three Simple Steps To Fix The Electrical System Page 7 - How To Repair Your Governor Page 8 - Checking The Transmission's Hydraulic System Page 9 - Checking The Transmission's Oil Level & Pressure Page 10 - What Pressure Loss Past The Piston Means Page 11 - How To Free Up The Control Valves Page 12 - How To Pull The Transmission From The Chassis Page 13 - What It Means If The Transmission Will Not Downshift Page 14 - How To Test The Relay Page 15 - How To Test The Solenoid Page 16 - What It Means If There Is No Downshift On Kickdown Page 17 - How To Test The Interruptor Switch Page 18 - What To Recheck Before You Pull The Transmission Page 19 - What It Means If The Transmission Upshift Immediately & Slow Or Delayed Upshift Page 20 - More Information On Slow Or Delayed Upshift Page 21 - You Should Be Able To Diagnose Without Guessing Page 22 - The Importance Of Correctly Repairing A Fluid Drive Transmission Page 23 - Test Questions Back Cover
Go back to Page 12 Go on to Page 14
Close this window to return to the1948 Diagnosing Fluid Drive Transmission's Table of Contents.

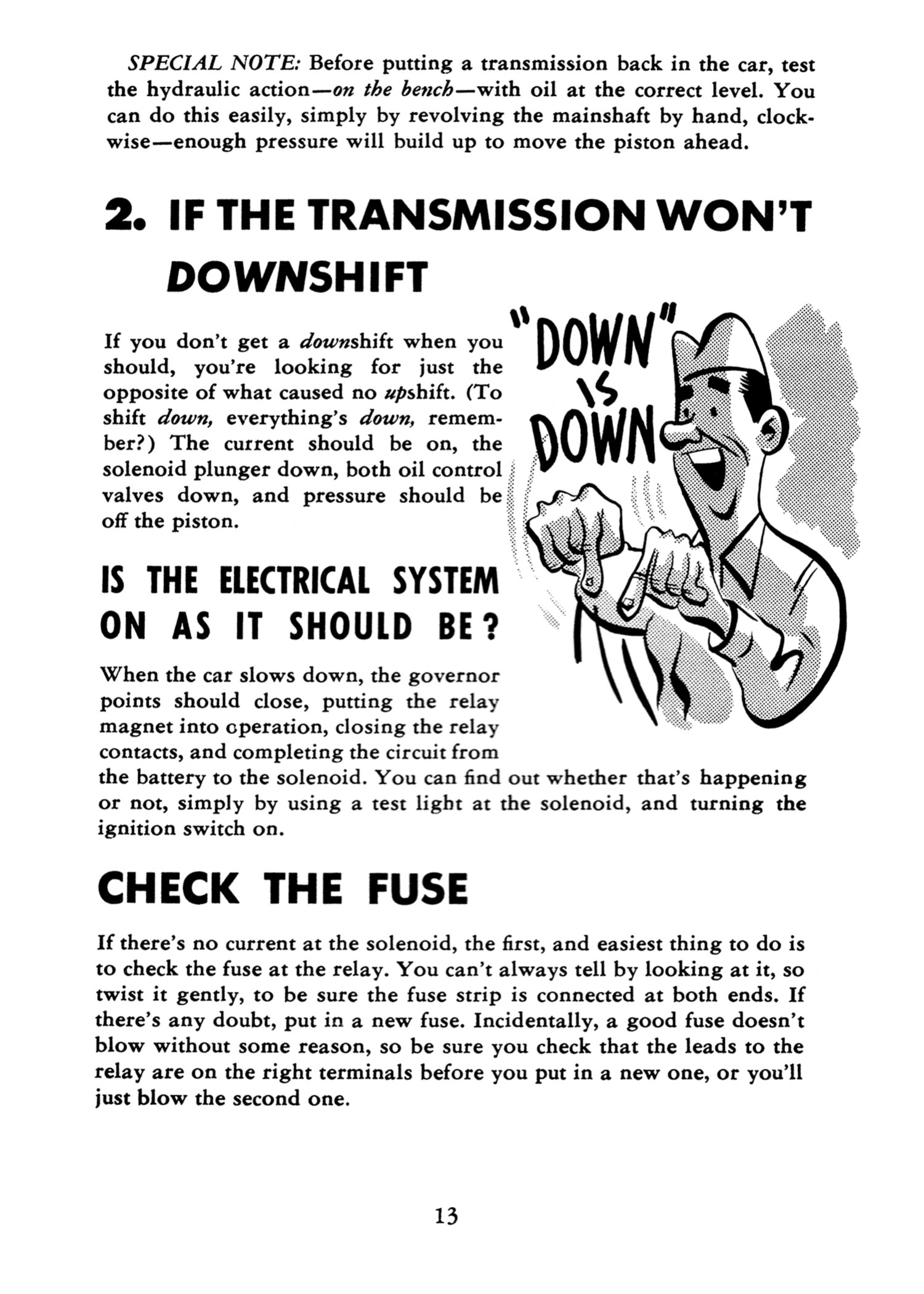

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
