Move your way through the 1948 Imperial and Chrysler Reference Guide On The Generator Regulator by choosing your next page. You are currently on Page 17.
Front Cover Page 2 - Introduction To The Booklet Page 3 - The Battery Is In Charge Of All The Electrical System Page 4 - How To Test The Generator Page 5 - What The Tests Tell You About The Generator Page 6 - What The Generator Does & How It Works Page 7 - The Circuit Breaker - How It Closes Page 8 - How The Circuit Breaker Points Open Page 9 - How The Current Regulator Controls The Flow Of Current Page 10 - More About Current Flow In The Regulator Page 11 - How The Voltage Regulator Controls Current Of Pressure Page 12 - More On The Voltage Regulator Page 13 - How The Three Units Work Together Page 14 - More On The Three Units Page 15 - When The Regulator Doesn't Work Page 16 - Putting Your Finger On The Guilty Unit & Servicing The Generator Regulator Page 17 - Flow Charts Of How The Units Work Together Page 18 - Voltage Regulator Servicing & Current Regulator Checking Page 19 - How To Check The Voltage and Current Regulators Air Gaps Page 20 - How To Clean Circuit Breaker Points & Voltage Regulator Points Page 21 - About The Carbon Resistors Page 22 - Generator Regulator Specifications & Data Page 23 - Booklet Quiz Back Cover
Go back to Page 16 Go on to Page 18
Close this window to return to the main page of the 1948 Generator Regulator Service booklet.

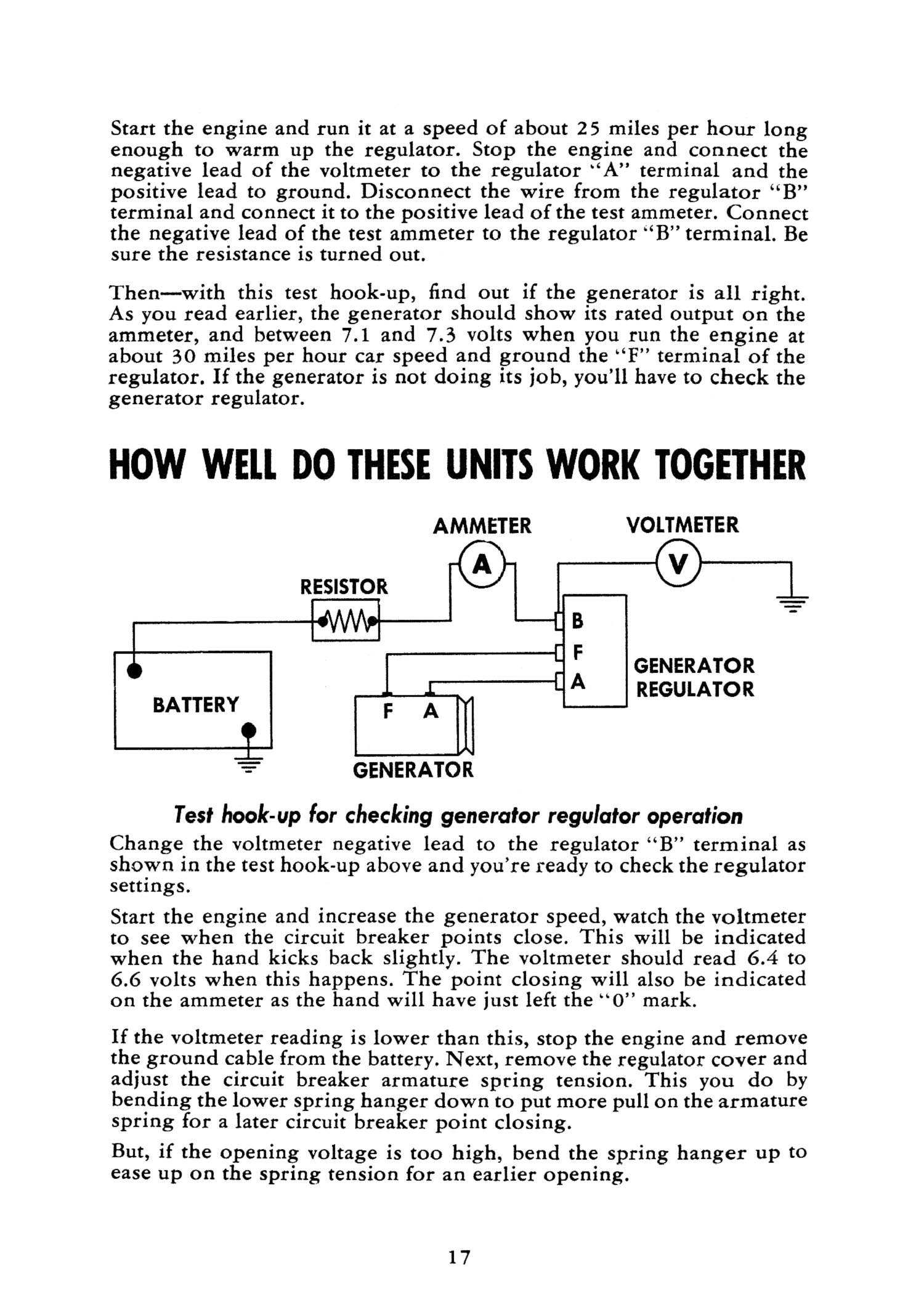

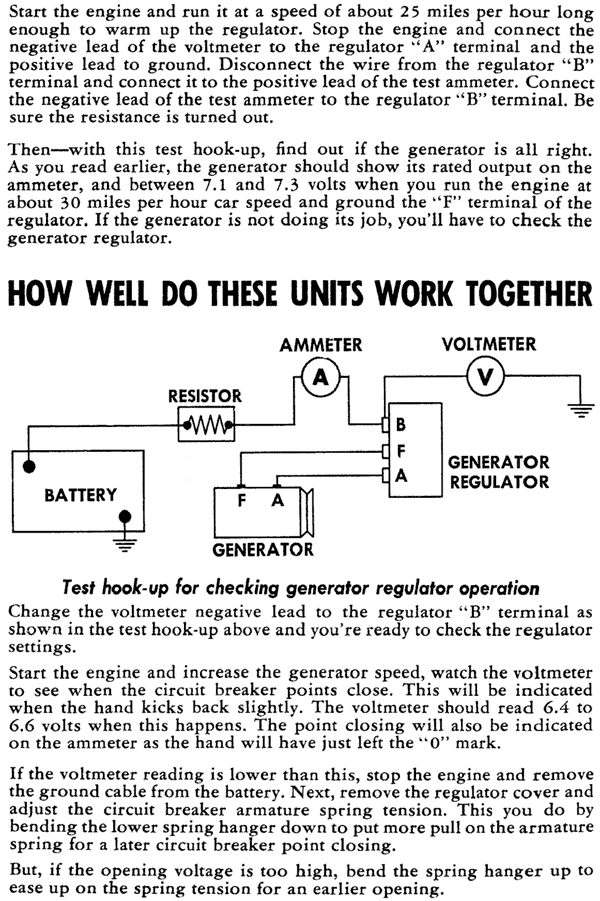

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
