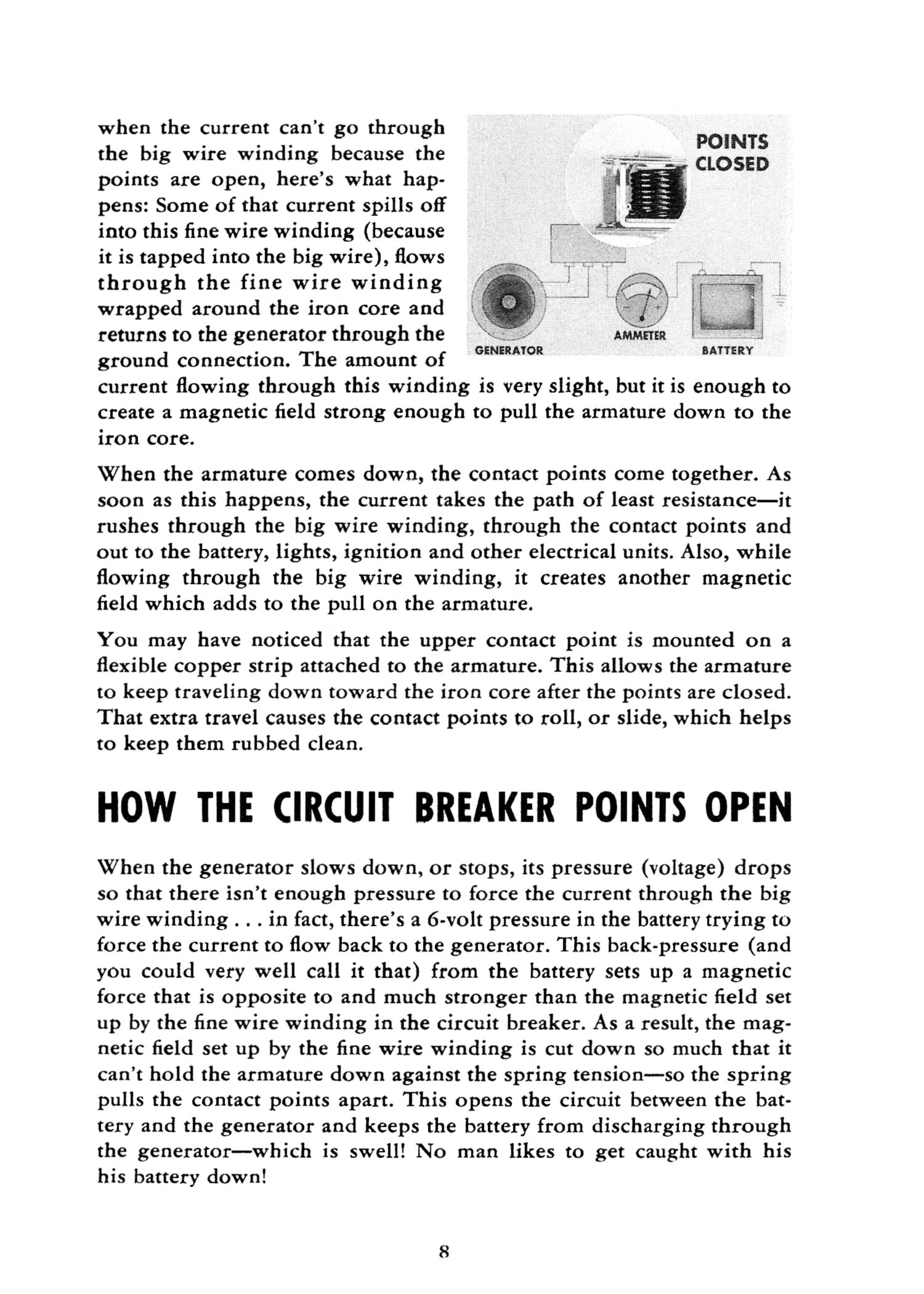

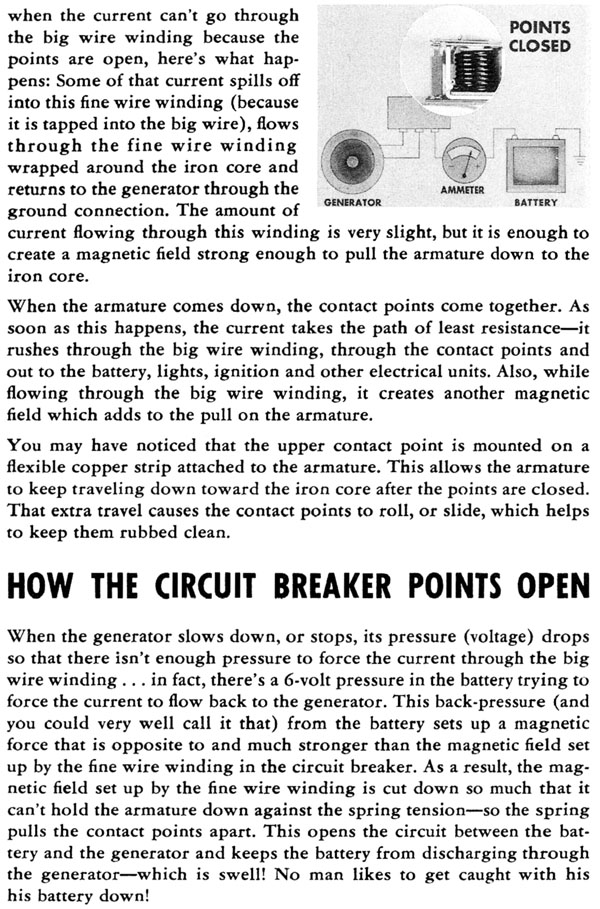

Move your way through the 1948 Imperial and Chrysler Reference Guide On The Generator Regulator by choosing your next page. You are currently on Page 8.
Front Cover Page 2 - Introduction To The Booklet Page 3 - The Battery Is In Charge Of All The Electrical System Page 4 - How To Test The Generator Page 5 - What The Tests Tell You About The Generator Page 6 - What The Generator Does & How It Works Page 7 - The Circuit Breaker - How It Closes Page 8 - How The Circuit Breaker Points Open Page 9 - How The Current Regulator Controls The Flow Of Current Page 10 - More About Current Flow In The Regulator Page 11 - How The Voltage Regulator Controls Current Of Pressure Page 12 - More On The Voltage Regulator Page 13 - How The Three Units Work Together Page 14 - More On The Three Units Page 15 - When The Regulator Doesn't Work Page 16 - Putting Your Finger On The Guilty Unit & Servicing The Generator Regulator Page 17 - Flow Charts Of How The Units Work Together Page 18 - Voltage Regulator Servicing & Current Regulator Checking Page 19 - How To Check The Voltage and Current Regulators Air Gaps Page 20 - How To Clean Circuit Breaker Points & Voltage Regulator Points Page 21 - About The Carbon Resistors Page 22 - Generator Regulator Specifications & Data Page 23 - Booklet Quiz Back Cover
Go back to Page 7 Go on to Page 9
Close this window to return to the main page of the 1948 Generator Regulator Service booklet.
We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
