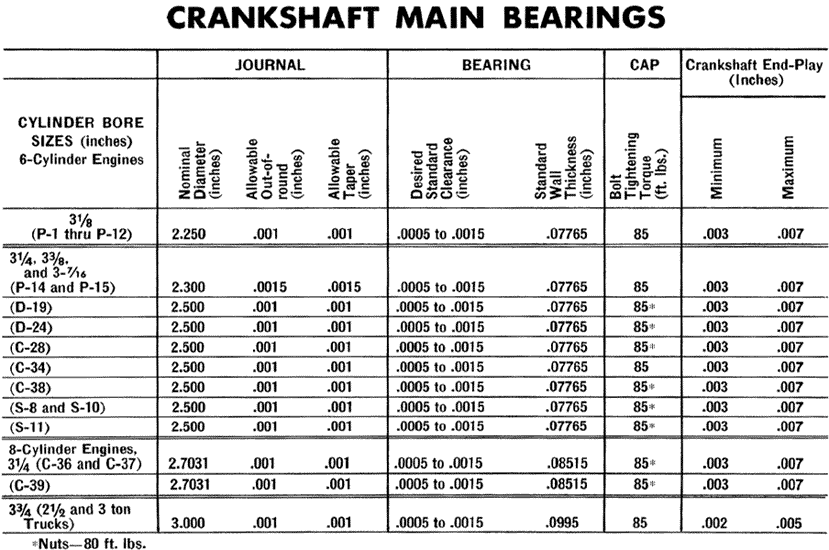

Move your way through the 1947 Imperial and Chrysler Reference Guide On Bearing Service by choosing your next page. You are currently on Page 18.
Front Cover Page 2 - Introduction To How To Fit Bearings Into Your Engine Page 3 - What Does A Bearing Do and How Does It Work? Page 4 - Size Of Bearings & How To Pick The Correct Size Page 5 - What Kind Of Troubles Bearing Can Cause Page 6 - The First Stages Of Troubleshooting Bearing Repair Page 7 - How To Inspect Bearings Page 8 - The Importance Of Keeping Bearings Clean Page 9 - Troubleshooting Tips Page 10 - What To Do After Your Inspection Is Complete Page 11 - How To Measure Wall Thickness Page 12 - Plymouth Model P15 Only Information Page 13 - How To Check The Service Bearings Page 14 - Judging Whether The New Bearing Is A Good Fit Page 15 - More On Getting The Correct Bearing Fit Page 16 - Checking The Crankshaft End-Play Page 17 - Connecting Rod Bearing Measurement Chart Page 18 - Crankshaft Main Bearing Measurement Chart Page 19 - Booklet Questions Back Cover
Go back to Page 17 Go on to Page 19
Close this window to return to the main page of the 1947 Bearing Service booklet.
We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
