Move your way through the 1947 Imperial and Chrysler Reference Guide On The Cam Ground Piston by choosing your next page. You are currently on Page 13.
Front Cover Page 2 - Mr. Tech Introduces The Sensitive Piston Story Page 3 - Introduction To The Booklet Page 4 - The Value Of Learning More About Pistons Page 5 - Let's Get Acquainted With The Piston Page 6 - Piston Fit Page 7 - Piston Fit Part 2 Page 8 - Meeting The Pin Page 9 - Relation Between The Pin and The Piston Page 10 - Locating The Piston At Fault Page 11 - Heating Up The Piston To Remove It Page 12 - Another, Easier Way To Remove The Piston Page 13 - How To Use A Hone On Your Cylinder Walls Page 14 - How To Fit A Piston & Keeping It Clean Page 15 - How To Fit Piston Pins Page 16 - Do's & Don't On Removing The Pins Page 17 - More On Installing The Piston Page 18 - Final Thoughts Page 19 - Booklet Questions Back Cover
Go back to Page 12 Go on to Page 14
Close this window to return to the main page of the 1947 Cam Ground Piston booklet.

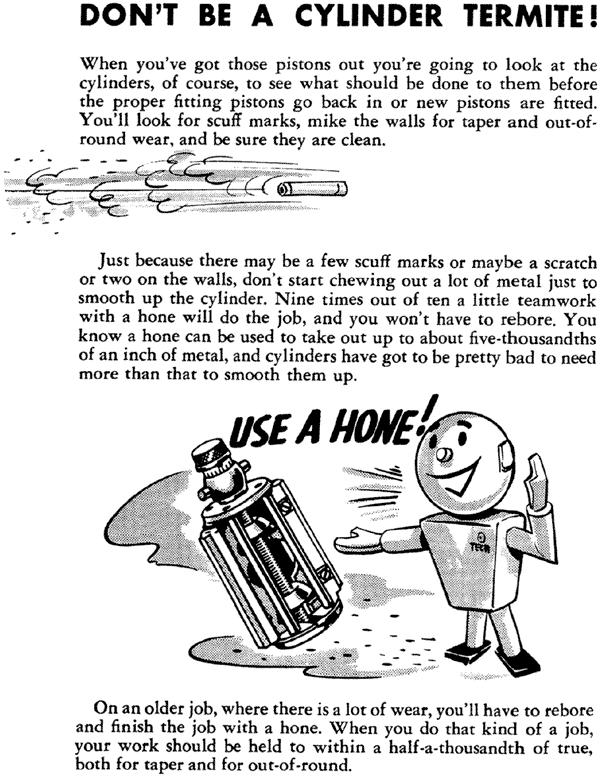

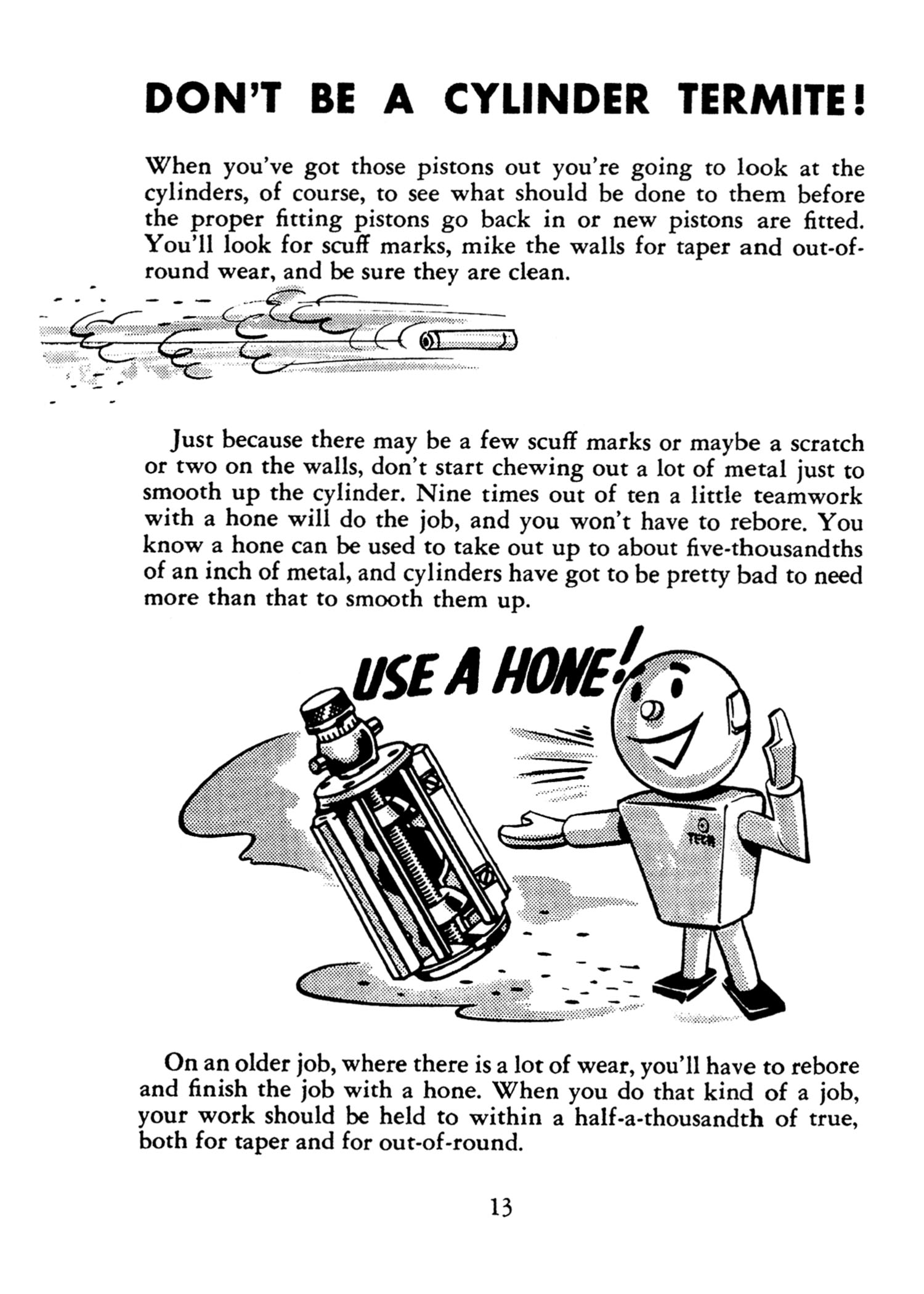

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
