Move your way through the 1947 Imperial and Chrysler Reference Guide On The Cam Ground Piston by choosing your next page. You are currently on Page 5.
Front Cover Page 2 - Mr. Tech Introduces The Sensitive Piston Story Page 3 - Introduction To The Booklet Page 4 - The Value Of Learning More About Pistons Page 5 - Let's Get Acquainted With The Piston Page 6 - Piston Fit Page 7 - Piston Fit Part 2 Page 8 - Meeting The Pin Page 9 - Relation Between The Pin and The Piston Page 10 - Locating The Piston At Fault Page 11 - Heating Up The Piston To Remove It Page 12 - Another, Easier Way To Remove The Piston Page 13 - How To Use A Hone On Your Cylinder Walls Page 14 - How To Fit A Piston & Keeping It Clean Page 15 - How To Fit Piston Pins Page 16 - Do's & Don't On Removing The Pins Page 17 - More On Installing The Piston Page 18 - Final Thoughts Page 19 - Booklet Questions Back Cover
Go back to Page 4 Go on to Page 6
Close this window to return to the main page of the 1947 Cam Ground Piston booklet.

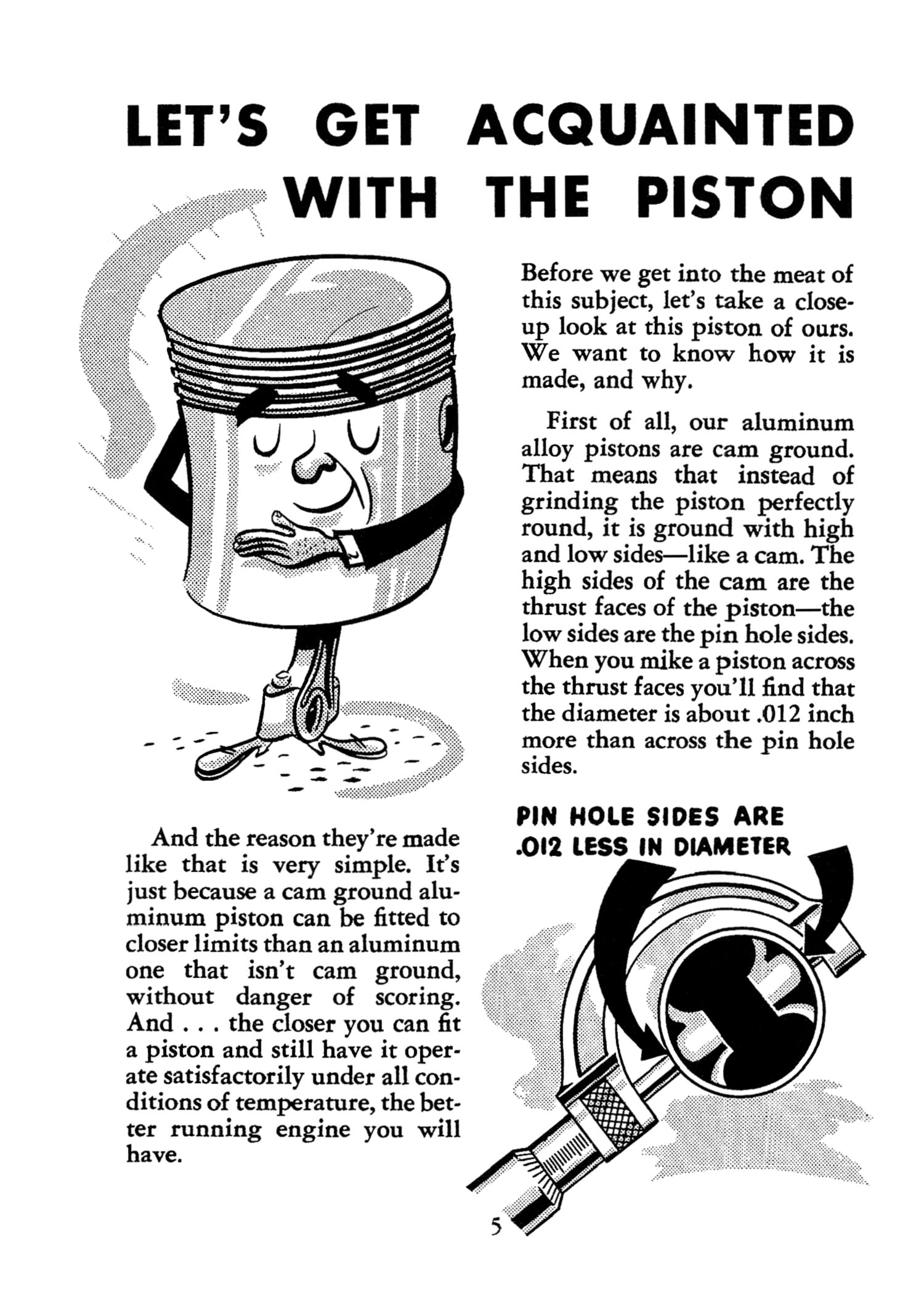

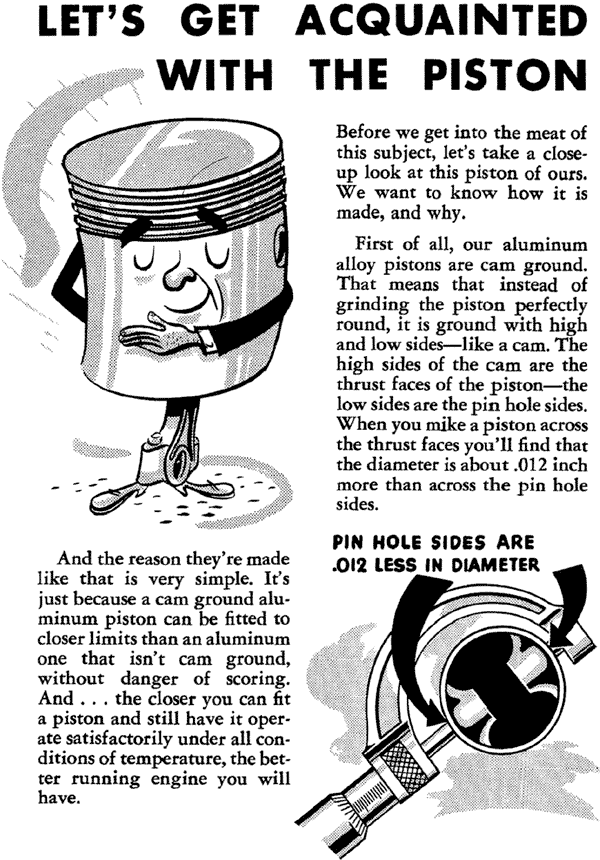

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
