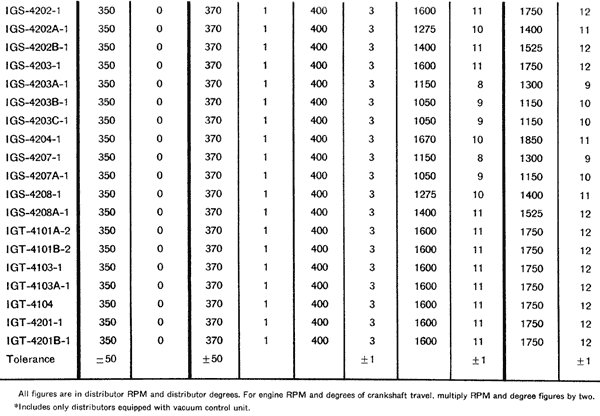

Move your way through the 1947 Imperial and Chrysler Reference Guide On Checking & Adjusting Your Distributor's Advance Mechanism by choosing your next page. You are currently on Page 21.
Front Cover Page 2 - A Warning On Diagnosing Your Ignition System Page 3 - Remembering Distributor Fundamentals Page 4 - Mechanical & Vacuum Advance Explained Page 5 - Vacuum Advance Continued Page 6 - How To Test The Advance Mechanism On A Distributor Tester Page 7 - The First 5 Steps On Getting To Work Page 8 - The Next Three Steps Page 9 - How To Test Distributor Advance Without A Tester Page 10 - Continuation Of Testing With No Tester Page 11 - Equipment Needed To Test With No Tester Page 12 - Making A Test Hook-Up Page 13 - Part Two Of Making A Tester Page 14 - How To Check The Governor Weight Advance Page 15 - More Steps In Checking The Governor Weight Advance Page 16 - Steps Six, Seven & Eight In Checking The Governor Weight Advance Page 17 - Checking The Vacuum Control Unit Page 18 - An Exploded Pictoral View Of The Distributor Page 19 - An Exploded Pictoral View Of The Vacuum Control Unit Page 20 - Specifications Table For The Distributor Centrifugal Governor Advance Page 21 - Continuation Of The Governor's Specifications Page 22 - Specifications For The Distributor Vacuum Control Page 23 - Part Two Of The Specifications For The Vacuum Control Back Cover
Go back to Page 20 Go on to Page 22
Close this window to return to 1947 Distributor Advance Mechanism's Table of Contents.

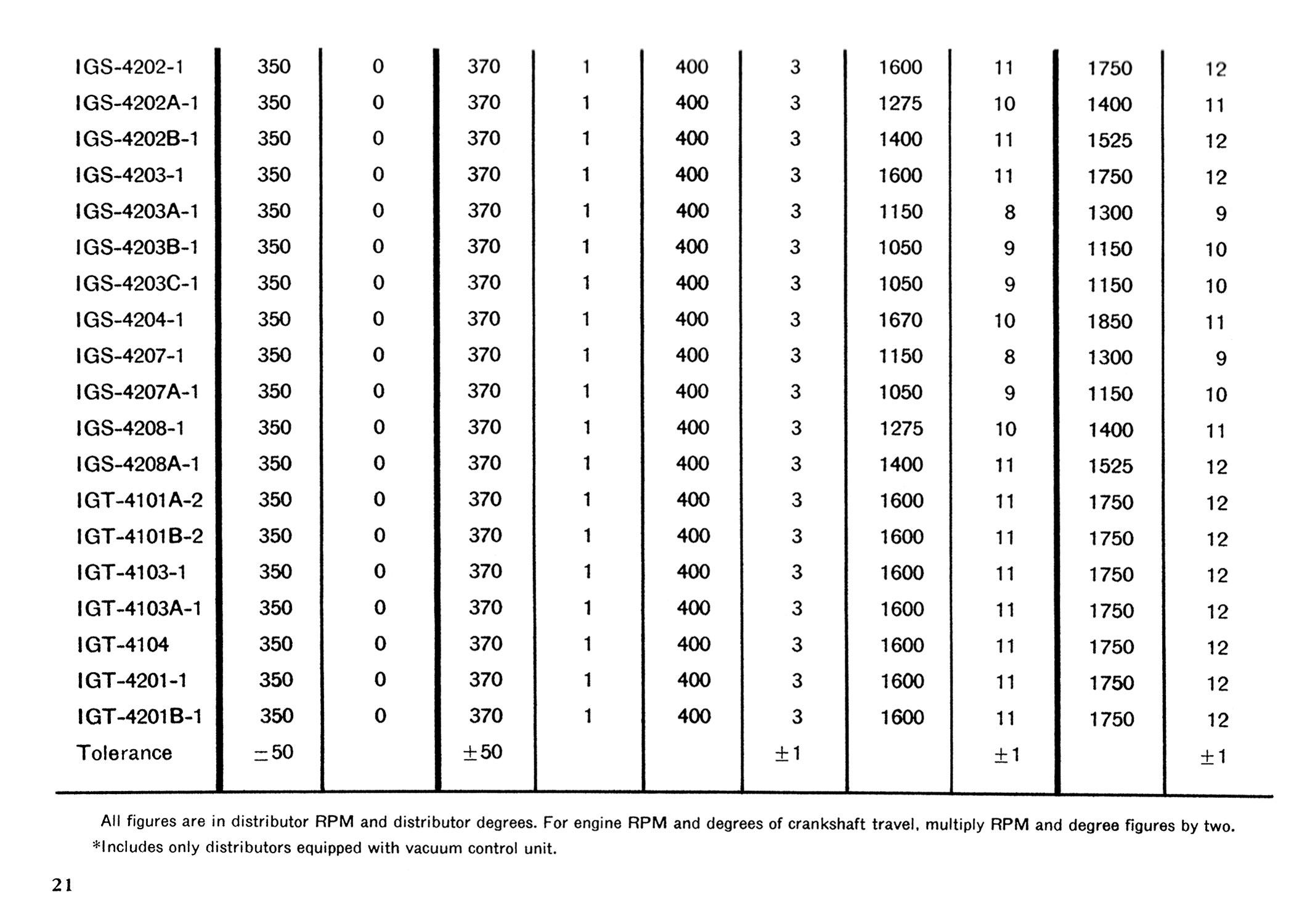

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
