Move your way through the 1947 Imperial and Chrysler Reference Guide On Checking & Adjusting Your Distributor's Advance Mechanism by choosing your next page. You are currently on Page 5.
Front Cover Page 2 - A Warning On Diagnosing Your Ignition System Page 3 - Remembering Distributor Fundamentals Page 4 - Mechanical & Vacuum Advance Explained Page 5 - Vacuum Advance Continued Page 6 - How To Test The Advance Mechanism On A Distributor Tester Page 7 - The First 5 Steps On Getting To Work Page 8 - The Next Three Steps Page 9 - How To Test Distributor Advance Without A Tester Page 10 - Continuation Of Testing With No Tester Page 11 - Equipment Needed To Test With No Tester Page 12 - Making A Test Hook-Up Page 13 - Part Two Of Making A Tester Page 14 - How To Check The Governor Weight Advance Page 15 - More Steps In Checking The Governor Weight Advance Page 16 - Steps Six, Seven & Eight In Checking The Governor Weight Advance Page 17 - Checking The Vacuum Control Unit Page 18 - An Exploded Pictoral View Of The Distributor Page 19 - An Exploded Pictoral View Of The Vacuum Control Unit Page 20 - Specifications Table For The Distributor Centrifugal Governor Advance Page 21 - Continuation Of The Governor's Specifications Page 22 - Specifications For The Distributor Vacuum Control Page 23 - Part Two Of The Specifications For The Vacuum Control Back Cover
Go back to Page 4 Go on to Page 6
Close this window to return to 1947 Distributor Advance Mechanism's Table of Contents.

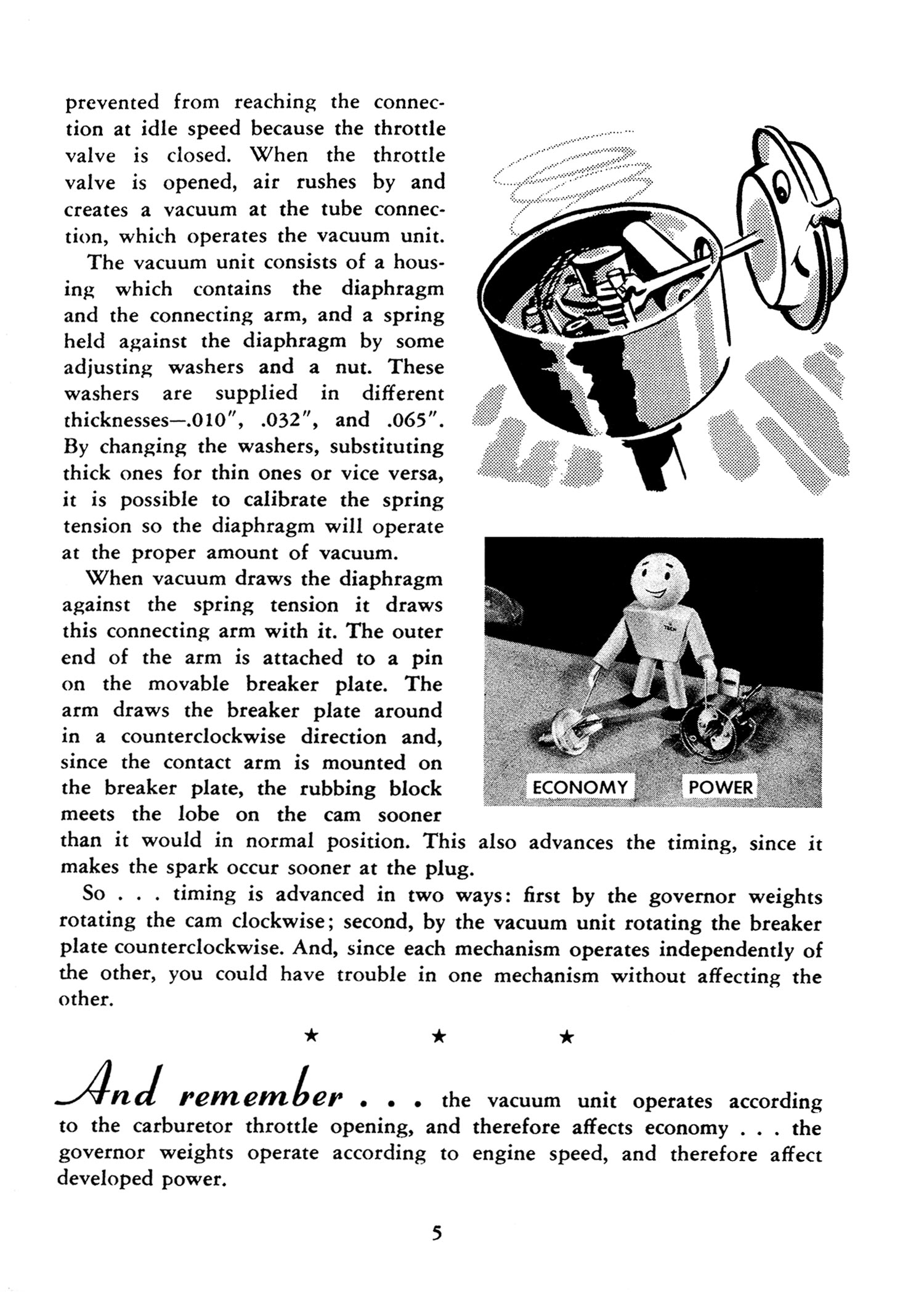

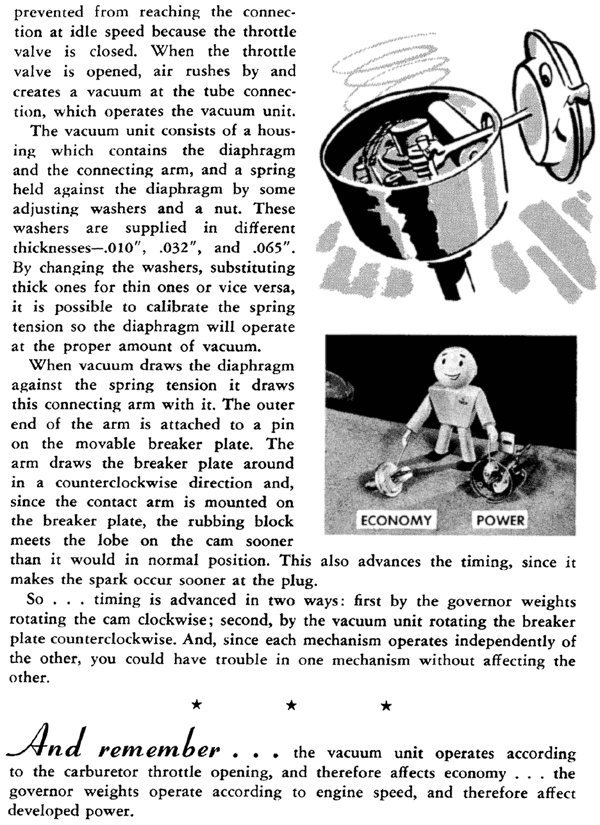

We also have a much larger, printable version of this page available. This booklet was originally a tiny 5" x 7".
